SKU: RHT-611-0327 Category:

[yith_ywraq_button_quote]

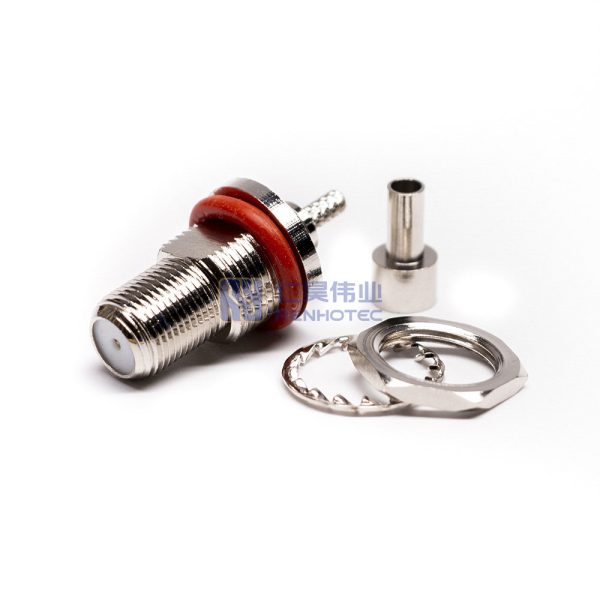

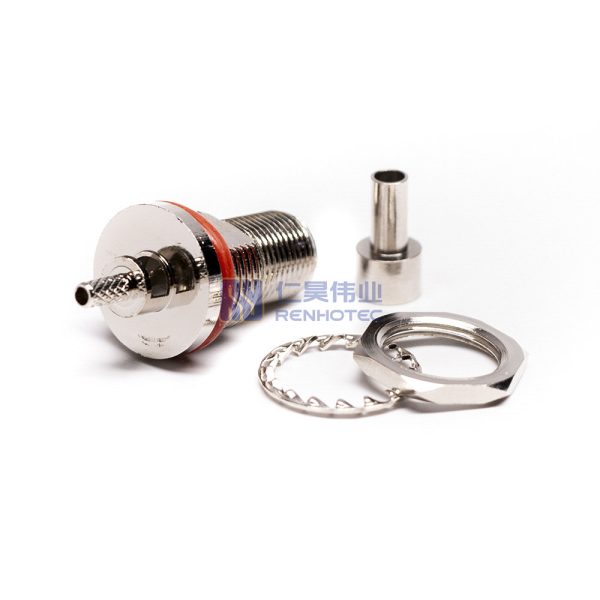

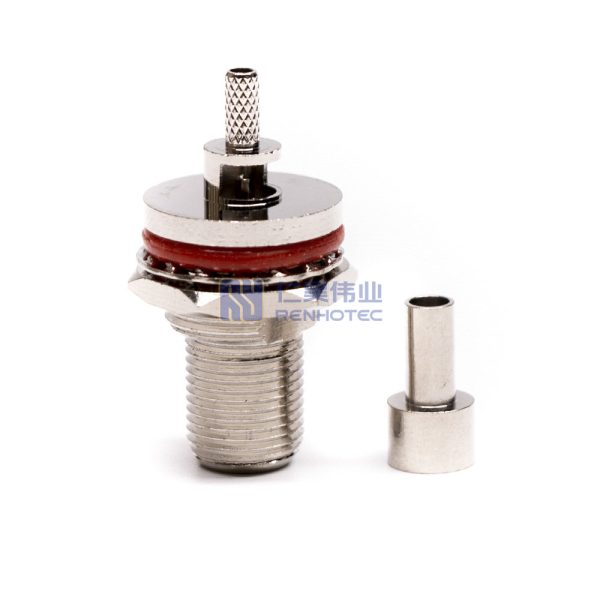

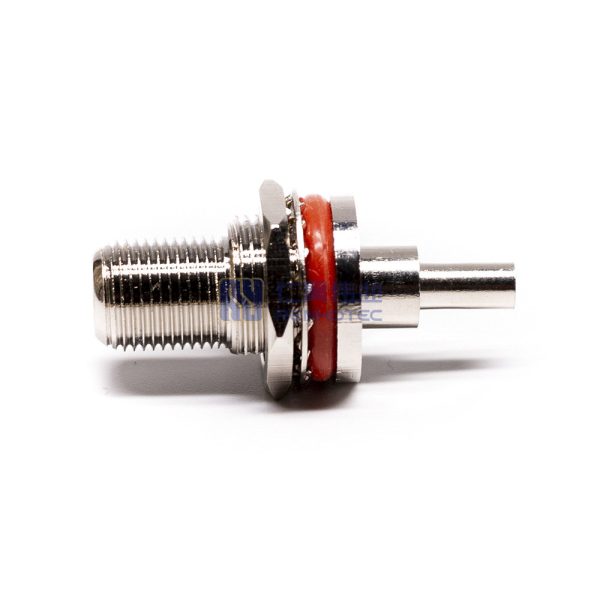

F Type Connector Straight Jack Crimp Cable Type Waterproof RG174 – RHT-611-0327

  • Cylindrical coaxial contact provides superior RF performance and excellent insertion/withdrawal characteristics
  • Multiple PCB mount packages: surface mount, edge mount, right angle, and straight, meets many customer application needs
  • Accommodates .022-.042 in. diameter conductor sizes
  • One connector accommodates a wide range of cable sizes, reducing part numbers

The F-type connector (also F-connector) is a coaxial RF connector. It is commonly used for “over-the-air” terrestrial TV, and cable TV. and commonly used for satellite TV and cable modems. Usually used with RG-6/U cable or with RG-59/U cable.

The F connector is an inexpensive, gendered, threaded, compression connector for radio frequency signals. It has a good 75 Ω impedance match for frequencies well over 1 GHz[2] and has usable bandwidth up to several GHz.

Application

Product Specification

RF Series

F Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Mounting Type

Cable Mount

Contact Termination Style

Crimp

Shield Termination

Crimp

Fastening Type

3/8-32 Threaded

Impedance

75 ohm

Insulator Material

PTFE

Shell Material

Copper Alloy

Shell Finish

Nickel Plated

Contact Material

Brass

Contact Finish

Nickel Plated

VSWR

R/A type ≦ 1.3MAX, Straight type≦1.2 MAX

Frequency Range

DC-1GHz

Center Contact Resistance

≦ 10 MΩ (Milliohms Max.)

Outer Contact Resistance

≦ 5 MΩ (Milliohms Max.)、

Insultation Resistance

≥ 1000 MΩ

Mating Durability

≥ 500 Cycles

Contact Retention

20 in-lbs min.

Temperature Range

−40°C to +140°C

Features

Waterproof

RF Series

F Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Mounting Type

Cable Mount

Contact Termination Style

Crimp

Shield Termination

Crimp

Fastening Type

3/8-32 Threaded

Impedance

75 ohm

Insulator Material

PTFE

Shell Material

Copper Alloy

Shell Finish

Nickel Plated

Contact Material

Brass

Contact Finish

Nickel Plated

VSWR

R/A type ≦ 1.3MAX, Straight type≦1.2 MAX

Frequency Range

DC-1GHz

Center Contact Resistance

≦ 10 MΩ (Milliohms Max.)

Outer Contact Resistance

≦ 5 MΩ (Milliohms Max.)、

Insultation Resistance

≥ 1000 MΩ

Mating Durability

≥ 500 Cycles

Contact Retention

20 in-lbs min.

Temperature Range

−40°C to +140°C

Features

Waterproof

RF Series

F Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Mounting Type

Cable Mount

Contact Termination Style

Crimp

Shield Termination

Crimp

Fastening Type

3/8-32 Threaded

Impedance

75 ohm

Insulator Material

PTFE

Shell Material

Copper Alloy

Shell Finish

Nickel Plated

Contact Material

Brass

Contact Finish

Nickel Plated

VSWR

R/A type ≦ 1.3MAX, Straight type≦1.2 MAX

Frequency Range

DC-1GHz

Center Contact Resistance

≦ 10 MΩ (Milliohms Max.)

Outer Contact Resistance

≦ 5 MΩ (Milliohms Max.)、

Insultation Resistance

≥ 1000 MΩ

Mating Durability

≥ 500 Cycles

Contact Retention

20 in-lbs min.

Temperature Range

−40°C to +140°C

Features

Waterproof

Renhotec Information

Where is your factory located? Can I visit your factory?

We have two factories, one is located in Dongguan city, another in Jiangmen city. Visitors are always welcome.

RF Connector Compatibility

Yes, our RF connector interface dimension conform international standards. Normally it’s interchangeable with similar products of other brands, it’s better to send us the datasheet/sample of other brands for check before order.

We recommend that you provide us with detailed specifications of your existing interfaces and cables, performance requirement and usage environment, so that our technical team can evaluate them.

Please advise your PCB layout dimension requirement, we’ll recommend you the most suitable Renhotec drawing for check.

Customization and Sample Testing

Yes, we offer customization services to meet your specific needs. Please provide your specification, performance requirement or drawing, photos, or samples for evaluation.

Yes, we provide customised services, it has MOQ requirement, please send your requirement for our engineer team evaluation.

Yes, please advise the thread length for evaluation.

Yes, we can. Please send us the datasheet or connector and cable requirement, we can produce as per request.

Yes, please share it and the requirement with us, our engineer team will evaluate it.

RF Connector Specifications

The impedance of an RF connector typically refers to the characteristic impedance of the transmission line it supports. The most common characteristic impedances for RF connectors are 50 ohms and 75 ohms. Please select an RF connector with the appropriate characteristic impedance to ensure optimal signal transmission and minimal signal loss within the system.
