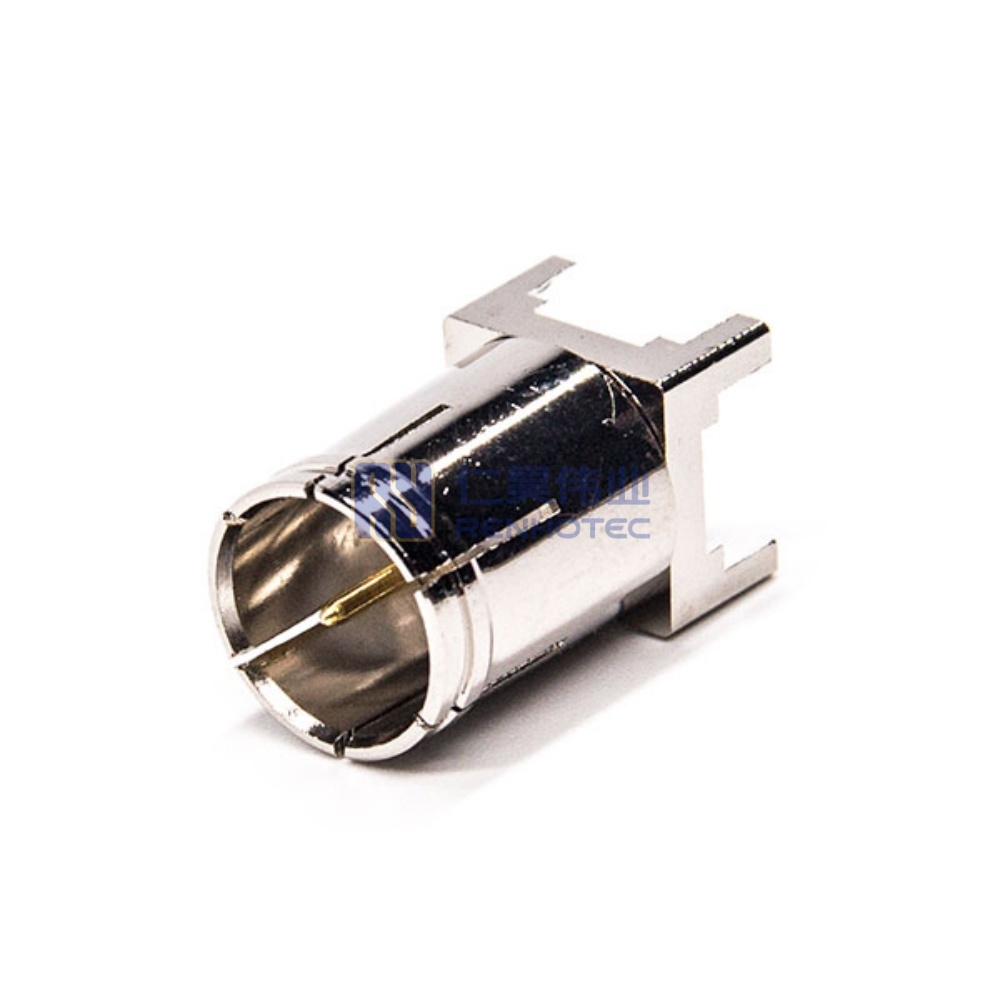

F Type Connector Plug Straight Solder PCB Mount Through Hole – RHT-611-0509
High-quality F Type Connector designed for PCB through-hole mounting. This straight solder plug offers reliable RF signal transmission, ideal for applications in TV, satellite, and broadband communication systems.
Product Specification
| RF Series | F Type |
||
|---|---|---|---|
| Fastening Type | Threaded |
||
| Orientation | Straight |
||
| Mounting Type | PCB Mount |
||
| Impedance | 75 ohm |
||
| Insulator Material | POM |
||
| Contact Material | Brass |
||
| Temperature Range | -40°C to +60°C |
||
| Insultation Resistance | 5000 Ohms min |
||
| RF Series | F Type |
Fastening Type | Threaded |
| Orientation | Straight |
Mounting Type | PCB Mount |
| Impedance | 75 ohm |
Insulator Material | POM |
| Contact Material | Brass |
Temperature Range | -40°C to +60°C |
| Insultation Resistance | 5000 Ohms min |
| Gender | Male |
||
|---|---|---|---|
| Polarity | Male Pin |
||
| Termination | Solder |
||
| Mount Feature | Through Hole |
||
| Port Numbers | 1 |
||
| Body Material | Brass |
||
| Body Plating | Nickel Plating |
||
| Contact Plating | Nickel Plating |
||
| Gender | Male |
Polarity | Male Pin |
| Termination | Solder |
Mount Feature | Through Hole |
| Port Numbers | 1 |
Body Material | Brass |
| Body Plating | Nickel Plating |
Contact Plating | Nickel Plating |
| RF Series | F Type |
|---|---|
| Fastening Type | Threaded |
| Orientation | Straight |
| Gender | Male |
| Polarity | Male Pin |
| Termination | Solder |
| Mounting Type | PCB Mount |
| Mount Feature | Through Hole |
| Port Numbers | 1 |
| Impedance | 75 ohm |
| Frequency(Max） | DC~3G |
| Body Material | Brass |
| Body Plating | Nickel Plating |
| Insulator Material | POM |
| Contact Material | Brass |
| Contact Plating | Nickel Plating |
| Temperature Range | -40°C to +60°C |
| Insultation Resistance | 5000 Ohms min |
F Type Coaxial Connectors
Own factory
Support customization
Real shooting
STRICTLY SELECT MATERIALS AND GUARD DETAILS
The F connector is a coaxial cable connector widely used in television and radio equipment. It is threaded to provide a reliable electrical connection and resistance to interference, and is commonly used to connect equipment such as antennas, modems, and satellite television receivers.The housing of the F connector is usually made of a metallic material, which helps to minimize signal attenuation and interference.
These connectors typically operate in the frequency range from a few hundred MHz to 3 GHz and are suitable for a wide variety of video and data transmission applications.F connectors are relatively simple to install and are therefore widely used in both home and commercial equipment. When installing, ensure that the connection is dry and clean to maintain optimal signal transmission quality.
Support high frequency transmission, reduce signal loss.
Made of nickel-plated or gold-plated material, anti-corrosion and long life.
Threaded design ensures firm connection and prevents loosening.
Suitable for a variety of coaxial cables, such as RG6, RG59, etc.
