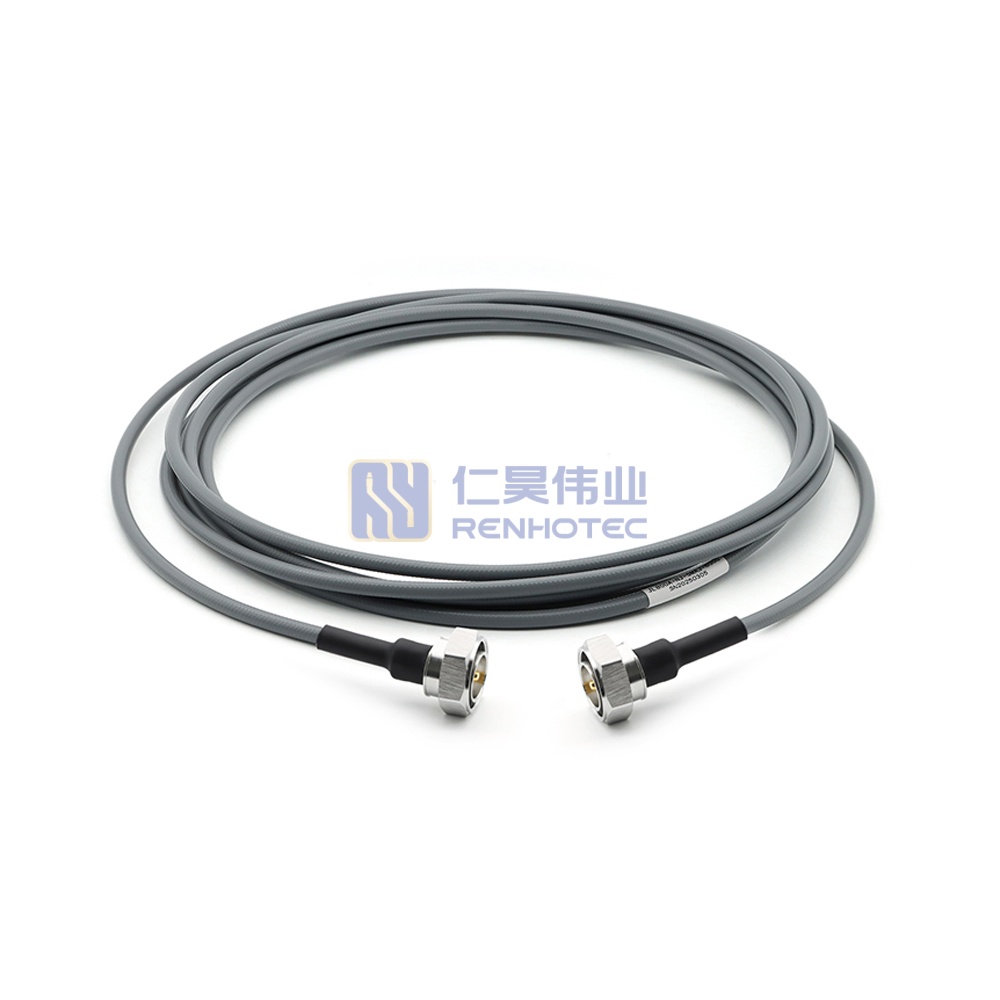

DIN Male to Male, L29 Low Loss Phase Stable Test Cable, 7/16 DIN, High Power, 6GHz – RHT-605-20652
| 1st Conn Outer Material | Brass Trimetal plating |
||
|---|---|---|---|
| 1st Conn Inner Material | Brass Silver plating |
||
| 2nd Conn Outer Material | Brass Trimetal plating |
||
| 2nd Conn Inner Material | Brass Silver plating |
||
| Operating Frequency | 18GHz |
||
| Velocity of Propagation | 0.83 |
||
| Shielding Effectiveness | >90dB |
||
| Static Bend Radius | 39mm |
||
| Dynamic Bend Radius | 78mm |
||
| Center Conductor Diameter | 2.3mm |
||
| Insulation Material | Low Density PTFE |
||
| Dielectric Layer Diameter | 6.3mm |
||
| Inner Shield Diameter | 6.6mm |
||
| Outer Shield Diameter | 7.15mm |
||
| Outer Jacket Material | FEP |
||
| Outer Jacket Diameter | 7.8mm |
||
| 1st Conn Outer Material | Brass Trimetal plating |
1st Conn Inner Material | Brass Silver plating |
| 2nd Conn Outer Material | Brass Trimetal plating |
2nd Conn Inner Material | Brass Silver plating |
| Operating Frequency | 18GHz |
Velocity of Propagation | 0.83 |
| Shielding Effectiveness | >90dB |
Static Bend Radius | 39mm |
| Dynamic Bend Radius | 78mm |
Center Conductor Diameter | 2.3mm |
| Insulation Material | Low Density PTFE |
Dielectric Layer Diameter | 6.3mm |
| Inner Shield Diameter | 6.6mm |
Outer Shield Diameter | 7.15mm |
| Outer Jacket Material | FEP |
Outer Jacket Diameter | 7.8mm |
Product Specification
| RF Cable 1st Connector | 7/16 |
||
|---|---|---|---|
| RF Cable 2nd Connector | 7/16 |
||
| 1st Contact Type | Male Pin |
||
| 2nd Contact Type | Male Pin |
||
| 1st Connector Orientation | Straight |
||
| 2nd Connector Orientation | Straight |
||
| Frequency Range | DC-6GHz |
||
| VSWR | 1.35 |
||
| Impedance | 50Ω |
||
| Dielectric Withstanding Voltage | 1700V, DC |
||
| Operating Temperature | -55℃~+165℃ |
||
| RF Cable 1st Connector | 7/16 |
RF Cable 2nd Connector | 7/16 |
| 1st Contact Type | Male Pin |
2nd Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
2nd Connector Orientation | Straight |
| Frequency Range | DC-6GHz |
VSWR | 1.35 |
| Impedance | 50Ω |
Dielectric Withstanding Voltage | 1700V, DC |
| Operating Temperature | -55℃~+165℃ |
| 1st Conn Outer Material | Brass Trimetal plating |
|---|---|
| 1st Conn Inner Material | Brass Silver plating |
| 2nd Conn Outer Material | Brass Trimetal plating |
| 2nd Conn Inner Material | Brass Silver plating |
| RF Cable 1st Connector | 7/16 |
| RF Cable 2nd Connector | 7/16 |
| 1st Contact Type | Male Pin |
| 2nd Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Orientation | Straight |
| Frequency Range | DC-6GHz |
| VSWR | 1.35 |
| Operating Frequency | 18GHz |
| Impedance | 50Ω |
| Velocity of Propagation | 0.83 |
| Shielding Effectiveness | >90dB |
| Dielectric Withstanding Voltage | 1700V, DC |
| Static Bend Radius | 39mm |
| Dynamic Bend Radius | 78mm |
| Operating Temperature | -55℃~+165℃ |
| Center Conductor Diameter | 2.3mm |
| Insulation Material | Low Density PTFE |
| Dielectric Layer Diameter | 6.3mm |
| Inner Shield Diameter | 6.6mm |
| Outer Shield Diameter | 7.15mm |
| Outer Jacket Material | FEP |
| Outer Jacket Diameter | 7.8mm |
