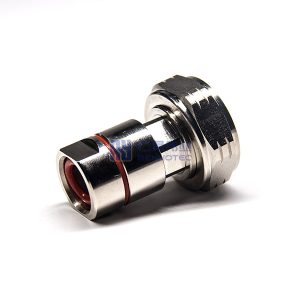

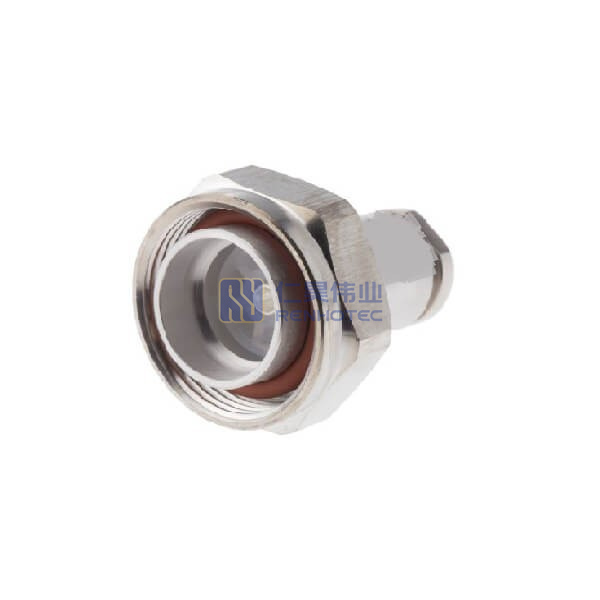

DIN 7/16 Connector Straight Male Solder Panel Mount RG213/U 50ohm – RHT-618-0450
High-quality DIN 7/16 connector with straight male solder panel mount for RG213/U cables. Suitable for 50ohm applications, ensuring reliable signal transmission. Ideal for various communication and networking setups.
The 7-16 series metric dimensions of the connector interface: 7mm OD of inner contact, 16 mm ID of outer contact. Provide superior performance for both return loss and intermodulation distortion (IMD).7-16 connector is very robust, extremely stable, and waterproof, It is an ideal choice for anti-vibration and environmental protection applications. They have a pre-assembled gasket that protects against dust and water (IP68) per IEC 169.
Interface
Product Specification
RF Series | DIN 7/16 |
||
---|---|---|---|
Connector Type | Plug |
||
Orientation | Straight |
||
Contact Type | Male Pin |
||
Contact Termination Style | Solder |
||
Shield Termination | Solder |
||
Mounting Type | Cable Mount |
||
Cable Type | RG213 |
||
Fastening Type | Threaded |
||
Number of Ports | 1 |
||
Impedance | 50 ohm |
||
Shell Material | Copper Alloy |
||
Insulator Material | PTFE |
||
Contact Material | Brass |
||
Contact Finish | Gold Plated |
||
Temperature Range | −40°C to +85°C |
||
Mating Durability | ≥ 500 Cycles |
||
Insultation Resistance | 5000 MΩ Min |
||
Rated Voltage | 500 Volts RMS Max Continuous |
||
Dielectric Withstanding Voltage | 2300 VRMS Max |
||
Frequency Range | DC – 7.5 GHz |
||
RF Series | DIN 7/16 |
Connector Type | Plug |
Orientation | Straight |
Contact Type | Male Pin |
Contact Termination Style | Solder |
Shield Termination | Solder |
Mounting Type | Cable Mount |
Cable Type | RG213 |
Fastening Type | Threaded |
Number of Ports | 1 |
Impedance | 50 ohm |
Shell Material | Copper Alloy |
Insulator Material | PTFE |
Contact Material | Brass |
Contact Finish | Gold Plated |
Temperature Range | −40°C to +85°C |
Mating Durability | ≥ 500 Cycles |
Insultation Resistance | 5000 MΩ Min |
Rated Voltage | 500 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 2300 VRMS Max |
Frequency Range | DC – 7.5 GHz |
RF Series | DIN 7/16 |
---|---|
Connector Type | Plug |
Orientation | Straight |
Contact Type | Male Pin |
Contact Termination Style | Solder |
Shield Termination | Solder |
Mounting Type | Cable Mount |
Cable Type | RG213 |
Fastening Type | Threaded |
Number of Ports | 1 |
Impedance | 50 ohm |
Shell Material | Copper Alloy |
Insulator Material | PTFE |
Contact Material | Brass |
Contact Finish | Gold Plated |
Temperature Range | −40°C to +85°C |
Mating Durability | ≥ 500 Cycles |
Insultation Resistance | 5000 MΩ Min |
Rated Voltage | 500 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 2300 VRMS Max |
Frequency Range | DC – 7.5 GHz |
