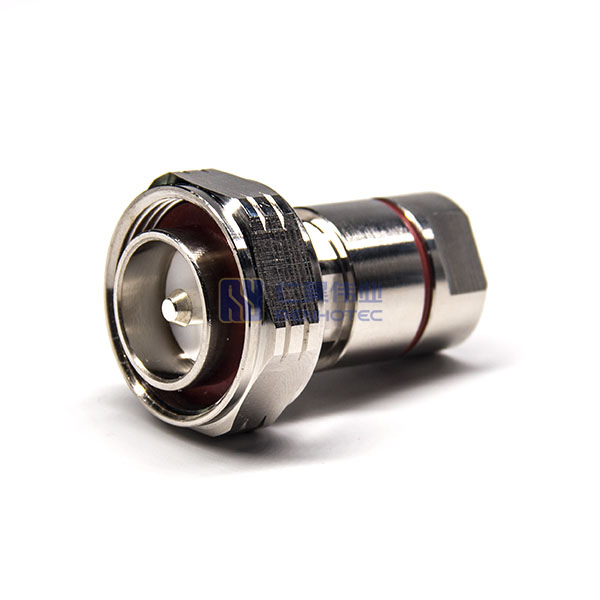

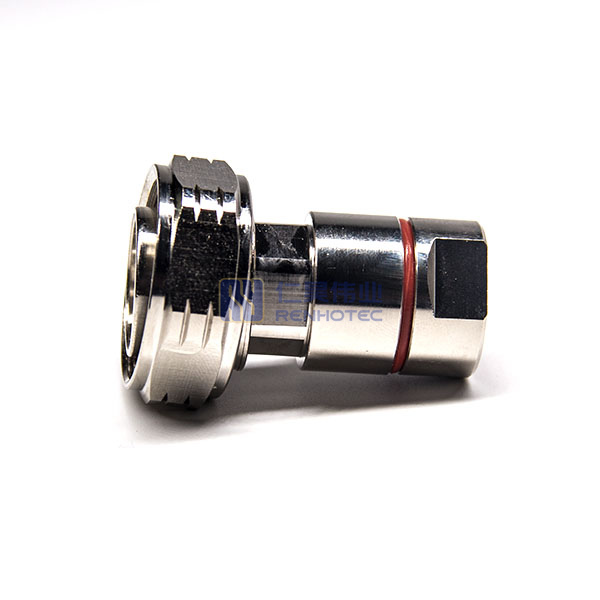

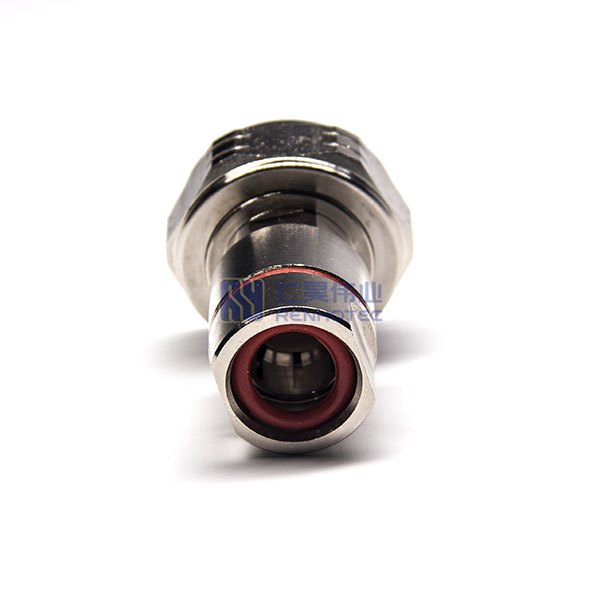

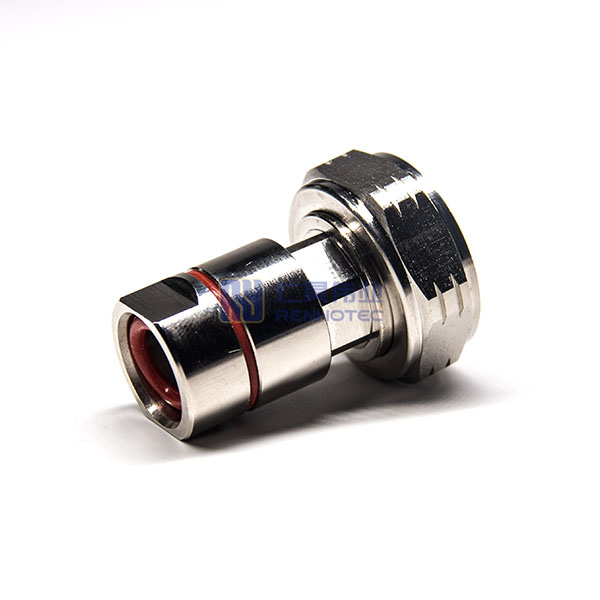

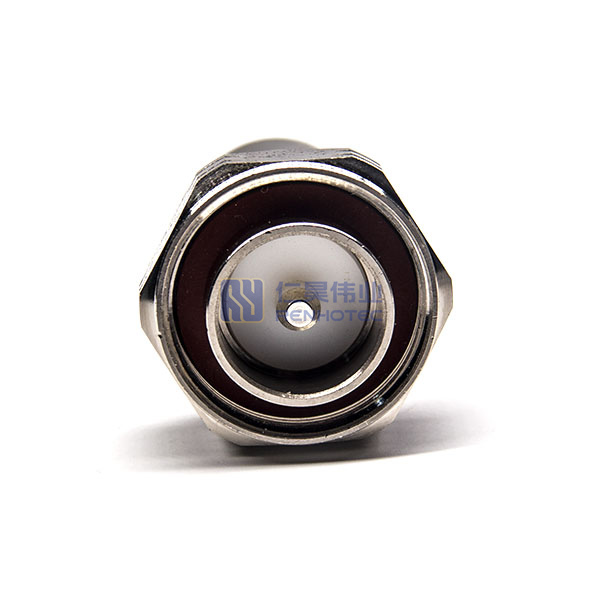

DIN 7/16 Connector Straight Male Clamp Cable Type RG213 50ohm
- Quick connect and disconnect
- Space-saving compact design
- Ideal for high vibration applications
- Available for a wide variety of cable types
- Delivers high conductivity and corrosion resistance
- Self-flared design uses standard hand tools for easy installation
The 7-16 series metric dimensions of the connector interface: 7mm OD of inner contact, 16 mm ID of outer contact. Provide superior performance for both return loss and intermodulation distortion (IMD).7-16 connector is very robust, extremely stable, and waterproof, It is an ideal choice for anti-vibration and environmental protection applications. They have a pre-assembled gasket that protects against dust and water (IP68) per IEC 169.
Interface
Product Specification
| RF Series | DIN 7/16 |
||
|---|---|---|---|
| Connector Type | Plug |
||
| Orientation | Straight |
||
| Contact Type | Male Pin |
||
| Shield Termination | Clamp |
||
| Mounting Type | Cable Mount |
||
| Cable Type | RG213 |
||
| Fastening Type | Threaded |
||
| Number of Ports | 1 |
||
| Impedance | 50 ohm |
||
| Shell Material | Copper Alloy |
||
| Shell Finish | Nickel Plated |
||
| Insulator Material | PTFE |
||
| Contact Material | Brass |
||
| Contact Finish | Silver Plated |
||
| Temperature Range | −40°C to +85°C |
||
| Mating Durability | ≥ 500 Cycles |
||
| Insultation Resistance | 5000 MΩ Min |
||
| Rated Voltage | 500 Volts RMS Max Continuous |
||
| Dielectric Withstanding Voltage | 2300 VRMS Max |
||
| Frequency Range | DC – 7.5 GHz |
||
| RF Series | DIN 7/16 |
Connector Type | Plug |
| Orientation | Straight |
Contact Type | Male Pin |
| Shield Termination | Clamp |
Mounting Type | Cable Mount |
| Cable Type | RG213 |
Fastening Type | Threaded |
| Number of Ports | 1 |
Impedance | 50 ohm |
| Shell Material | Copper Alloy |
Shell Finish | Nickel Plated |
| Insulator Material | PTFE |
Contact Material | Brass |
| Contact Finish | Silver Plated |
Temperature Range | −40°C to +85°C |
| Mating Durability | ≥ 500 Cycles |
Insultation Resistance | 5000 MΩ Min |
| Rated Voltage | 500 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 2300 VRMS Max |
| Frequency Range | DC – 7.5 GHz |
| RF Series | DIN 7/16 |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Contact Type | Male Pin |
| Shield Termination | Clamp |
| Mounting Type | Cable Mount |
| Cable Type | RG213 |
| Fastening Type | Threaded |
| Number of Ports | 1 |
| Impedance | 50 ohm |
| Shell Material | Copper Alloy |
| Shell Finish | Nickel Plated |
| Insulator Material | PTFE |
| Contact Material | Brass |
| Contact Finish | Silver Plated |
| Temperature Range | −40°C to +85°C |
| Mating Durability | ≥ 500 Cycles |
| Insultation Resistance | 5000 MΩ Min |
| Rated Voltage | 500 Volts RMS Max Continuous |
| Dielectric Withstanding Voltage | 2300 VRMS Max |
| Frequency Range | DC – 7.5 GHz |
