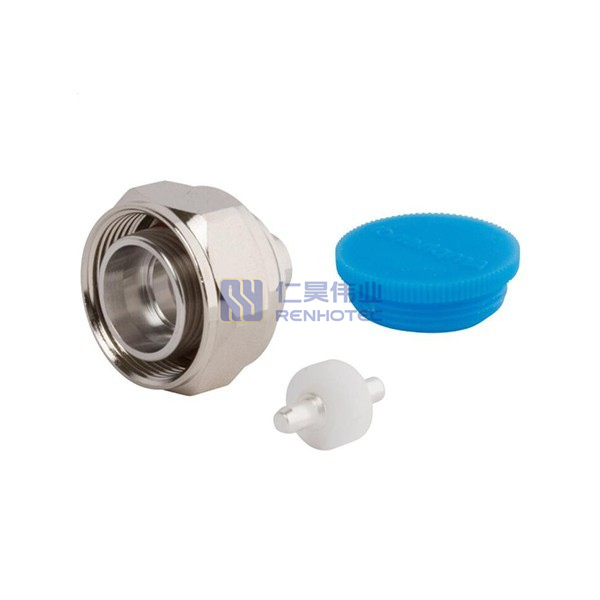

DIN 4.3/10 Connector Straight Male Solder Panel Mount 4 Hole Flange Semi-rigid 50ohm – RHT-644-0013
Precision-engineered DIN 4.3/10 connector features a straight male solder design for secure connections. Ideal for panel mounting with a 4 hole flange and designed for semi-rigid 50ohm cables, ensuring reliable performance in high-frequency applications.
4.3-10 the connector is solid in design, small in size, and light in weight. It can be used in high-density and lightweight applications. It complies with IP67 standards when used, can be dustproof and waterproof, and provides excellent VSWR performance up to 6 GHz.
Regardless of the coupling torque, individual electrical and mechanical components can produce very stable PIM performance and easier installation. Silver plated contact and white bronze plated body has high conductivity, corrosion resistance, and durability.
Interface
Product Specification
RF Series | DIN 4.3/10 |
||
---|---|---|---|
Connector Type | Plug |
||
Orientation | Straight |
||
Contact Type | Male Pin |
||
Contact Termination Style | Solder |
||
Shield Termination | Solder |
||
Mounting Type | Panel Mount |
||
Mounting Feature | 4 Hole Flange |
||
Fastening Type | Threaded |
||
Number of Ports | 1 |
||
Impedance | 50 ohm |
||
Frequency Range | DC-6GHz |
||
Shell Material | Copper Alloy |
||
Shell Finish | Nickel Plated |
||
Insulator Material | PTFE |
||
Contact Material | Beryllium Copper |
||
Contact Finish | Silver Plated |
||
Features | Dustproof |
||
Temperature Range | −40°C to +85°C |
||
Mating Durability | ≥ 100 Cycles |
||
Insultation Resistance | 5000 MΩ Min |
||
Rated Voltage | 500 Volts RMS Max Continuous |
||
Dielectric Withstanding Voltage | 2500 V rms |
||
RF Series | DIN 4.3/10 |
Connector Type | Plug |
Orientation | Straight |
Contact Type | Male Pin |
Contact Termination Style | Solder |
Shield Termination | Solder |
Mounting Type | Panel Mount |
Mounting Feature | 4 Hole Flange |
Fastening Type | Threaded |
Number of Ports | 1 |
Impedance | 50 ohm |
Frequency Range | DC-6GHz |
Shell Material | Copper Alloy |
Shell Finish | Nickel Plated |
Insulator Material | PTFE |
Contact Material | Beryllium Copper |
Contact Finish | Silver Plated |
Features | Dustproof |
Temperature Range | −40°C to +85°C |
Mating Durability | ≥ 100 Cycles |
Insultation Resistance | 5000 MΩ Min |
Rated Voltage | 500 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 2500 V rms |
RF Series | DIN 4.3/10 |
---|---|
Connector Type | Plug |
Orientation | Straight |
Contact Type | Male Pin |
Contact Termination Style | Solder |
Shield Termination | Solder |
Mounting Type | Panel Mount |
Mounting Feature | 4 Hole Flange |
Fastening Type | Threaded |
Number of Ports | 1 |
Impedance | 50 ohm |
Frequency Range | DC-6GHz |
Shell Material | Copper Alloy |
Shell Finish | Nickel Plated |
Insulator Material | PTFE |
Contact Material | Beryllium Copper |
Contact Finish | Silver Plated |
Features | Dustproof |
Temperature Range | −40°C to +85°C |
Mating Durability | ≥ 100 Cycles |
Insultation Resistance | 5000 MΩ Min |
Rated Voltage | 500 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 2500 V rms |
