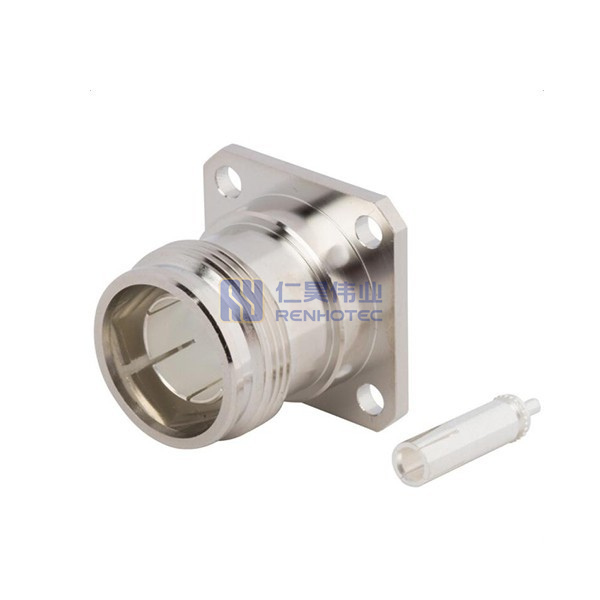

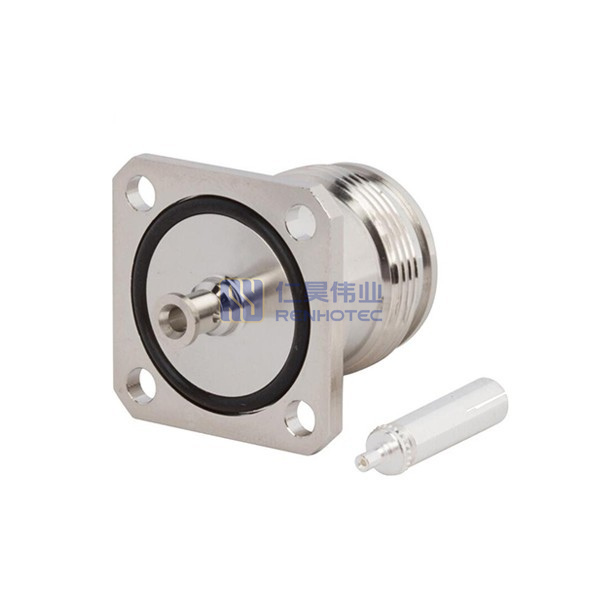

DIN 4.3/10 Connector Straight Jack Solder Panel Mount 4 Hole Flange 50ohm – RHT-644-0012

  • Straight jack solder connector with 4-hole flange for secure panel mounting
  • Optimized for 50ohm cable, offering excellent signal transmission
  • Suitable for high-frequency RF applications such as telecommunications and wireless systems
  • Durable design ensures reliability in harsh environments and long-term use
  • Ideal for use in high-performance and high-power RF systems requiring low loss

4.3-10 the connector is solid in design, small in size, and light in weight. It can be used in high-density and lightweight applications. It complies with IP67 standards when used, can be dustproof and waterproof, and provides excellent VSWR performance up to 6 GHz.

Regardless of the coupling torque, individual electrical and mechanical components can produce very stable PIM performance and easier installation. Silver plated contact and white bronze plated body has high conductivity, corrosion resistance, and durability.

Interface

Product Specification

RF Series

DIN 4.3/10
Connector Type

Jack
Orientation

Straight
Contact Type

Female Pin
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Panel Mount
Mounting Feature

4 Hole Flange
Fastening Type

Threaded
Number of Ports

1
Impedance

50 ohm
Frequency Range

DC-6GHz
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
Insulator Material

PTFE
Contact Material

Beryllium Copper
Contact Finish

Silver Plated
Temperature Range

-40°C to +85°C
Mating Durability

≥ 100 Cycles
Insultation Resistance

5000MΩ Min
Rated Voltage

500 Volts RMS Max Continuous
Dielectric Withstanding Voltage

2500 V rms
