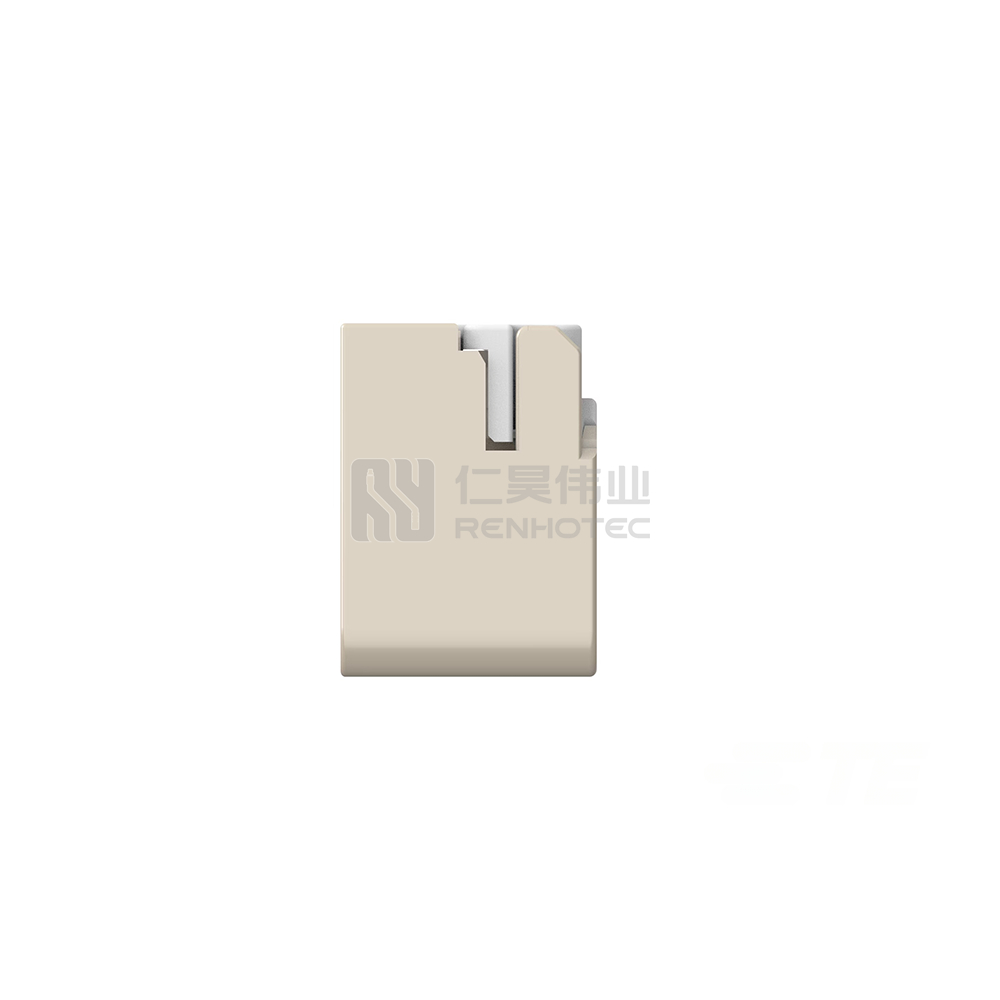

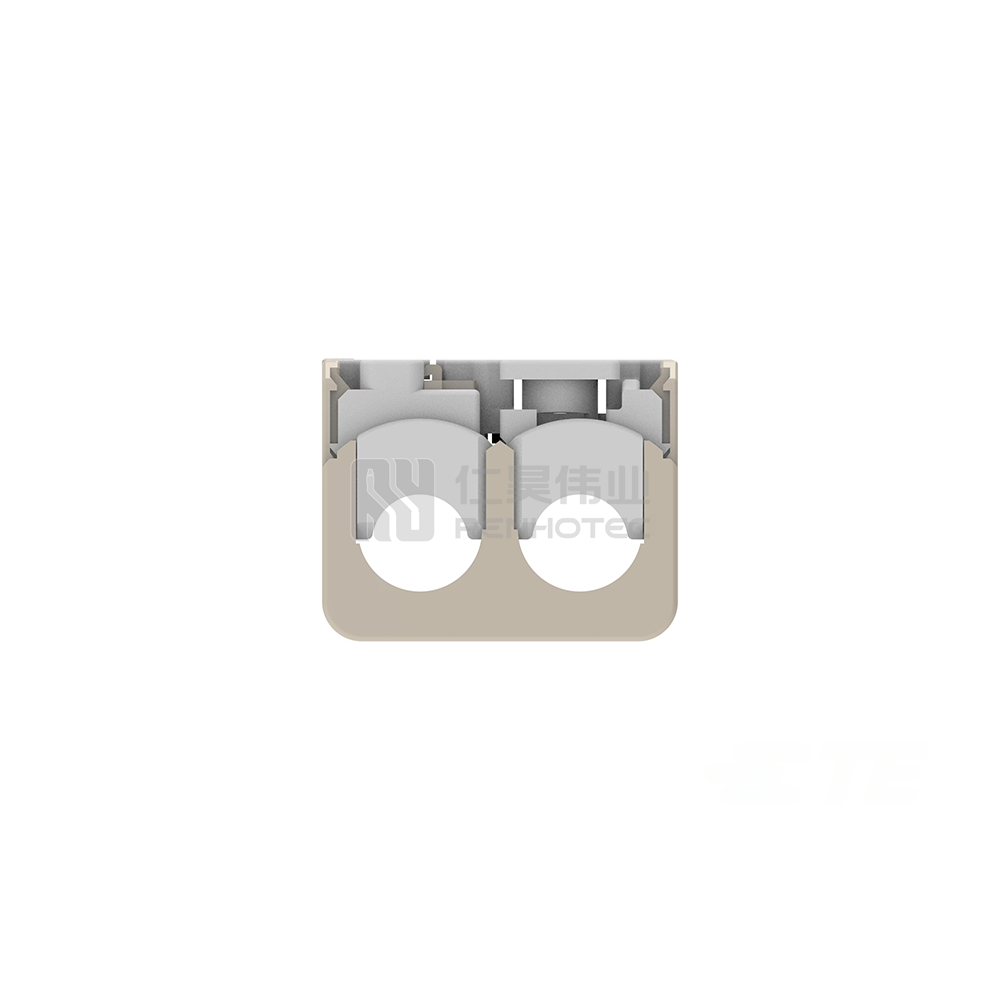

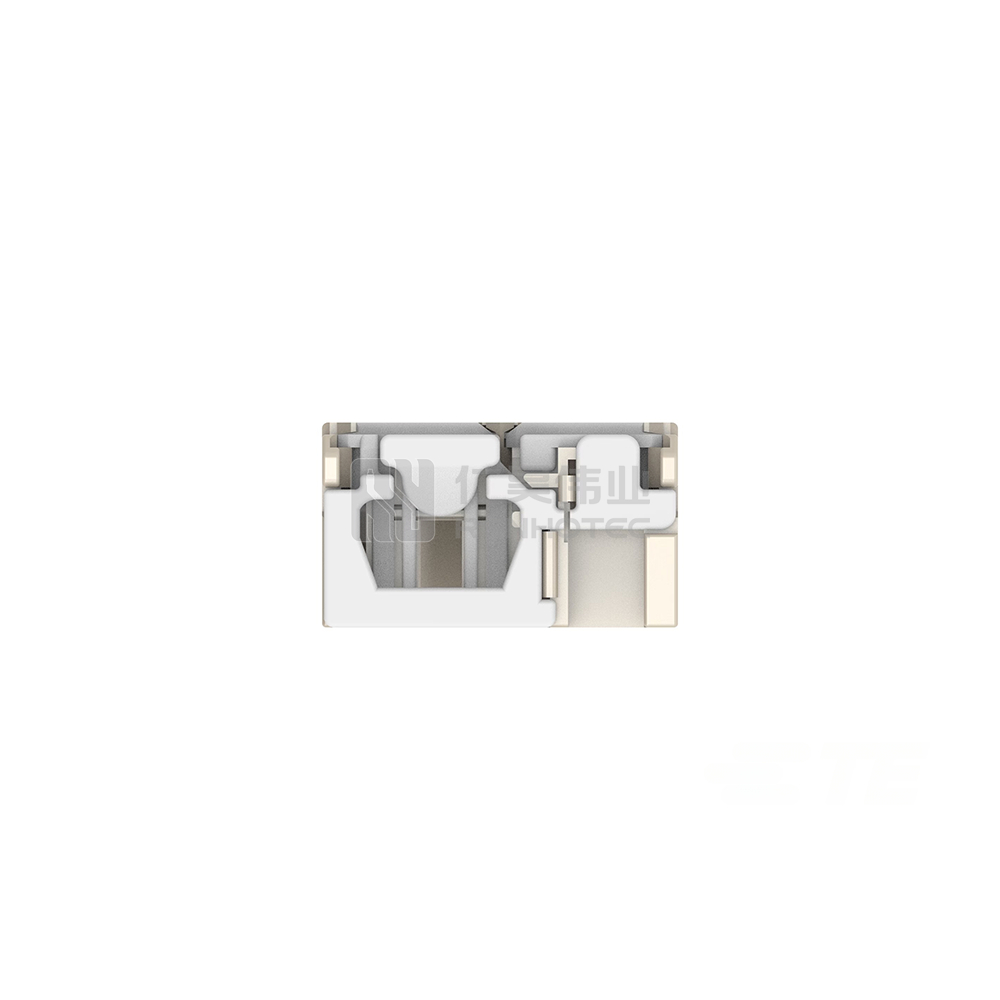

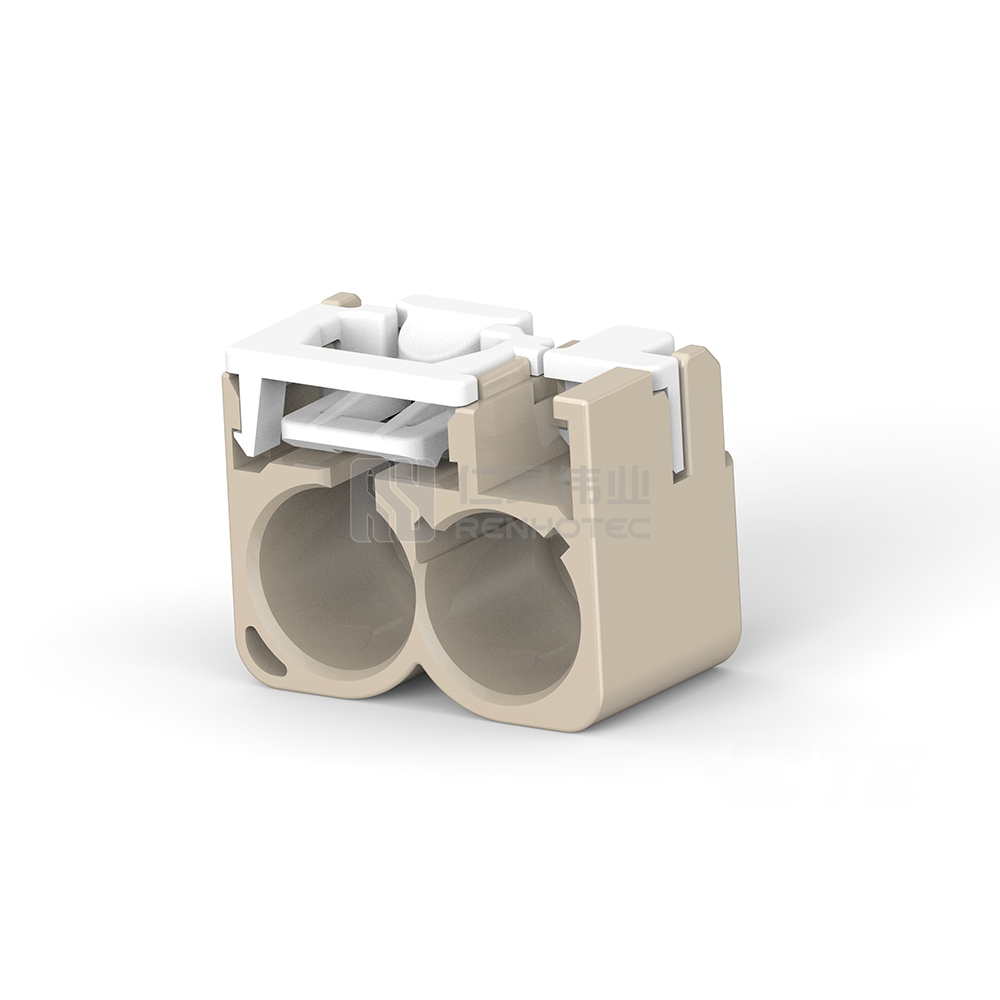

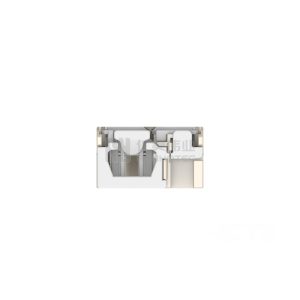

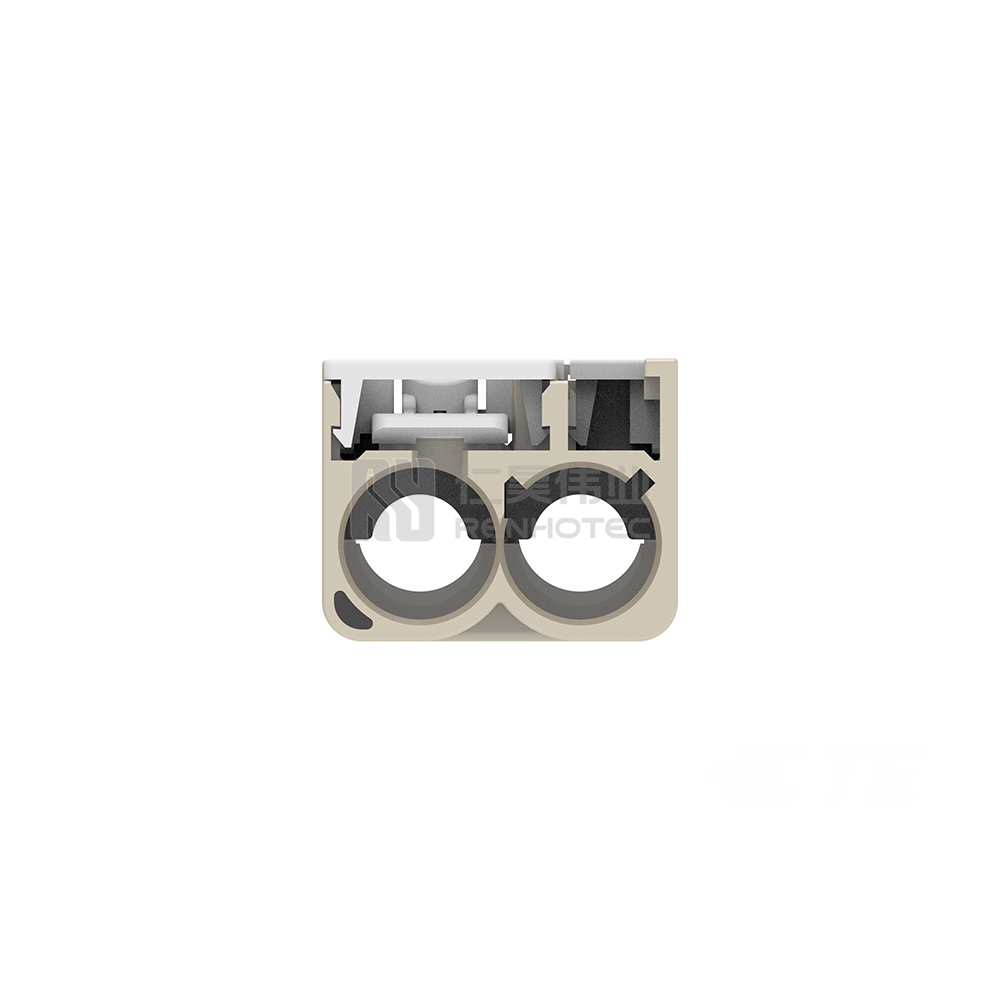

Cable-to-Cable / Wire-to-Wire, 90° Cable Exit, 2 Position, C Code, Housing for Female Terminals, FAKRA, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Wire-to-Wire
Sealable	No
Row Count	1
Position Count	2
Key Code	B
Pin Diameter	.5 mm [ .02 in ]
Max Current A	1
Housing Color	Cream
Pitch	8 mm [ .31 in ]
Connector Height	16.7 mm [ .65 in ]
Product Length	17.8 mm [ .7 in ]
Product Width	10.25 mm [ .4 in ]
Shielded	No
Max Temperature	100 °C [ 212 °F ]
Housing Type	Housing for Female Terminals
Snap Lock	Without
Cable Exit Type	Fixed
Ferrule	Without
Cable Exit Angle	90°
Cable Termination	Crimp
Frequency Range GHz	0 – 6
Nominal Voltage V	800
Operating Voltage VAC	800
Termination Point	Wire & Cable	Connector System	Wire-to-Wire
Sealable	No	Row Count	1
Position Count	2	Key Code	B
Pin Diameter	.5 mm [ .02 in ]	Max Current A	1
Housing Color	Cream	Pitch	8 mm [ .31 in ]
Connector Height	16.7 mm [ .65 in ]	Product Length	17.8 mm [ .7 in ]
Product Width	10.25 mm [ .4 in ]	Shielded	No
Max Temperature	100 °C [ 212 °F ]	Housing Type	Housing for Female Terminals
Snap Lock	Without	Cable Exit Type	Fixed
Ferrule	Without	Cable Exit Angle	90°
Cable Termination	Crimp	Frequency Range GHz	0 – 6
Nominal Voltage V	800	Operating Voltage VAC	800

Termination Point	Wire & Cable
Connector System	Wire-to-Wire
Sealable	No
Row Count	1
Position Count	2
Key Code	B
Contact Type	Socket
Pin Diameter	.5 mm [ .02 in ]
Max Current A	1
Housing Color	Cream
Pitch	8 mm [ .31 in ]
Connector Height	16.7 mm [ .65 in ]
Product Length	17.8 mm [ .7 in ]
Product Width	10.25 mm [ .4 in ]
Shielded	No
Max Temperature	100 °C [ 212 °F ]
Temperature Range	-40 – 100 °C [ -40 – 212 °F ]
Impedance Ω	50
Housing Type	Housing for Female Terminals
Snap Lock	Without
Cable Exit Type	Fixed
Ferrule	Without
Cable Exit Angle	90°
Cable Termination	Crimp
Cable Type	DACAR 462
Frequency Range GHz	0 – 6
Nominal Voltage V	800
Operating Voltage VAC	800
