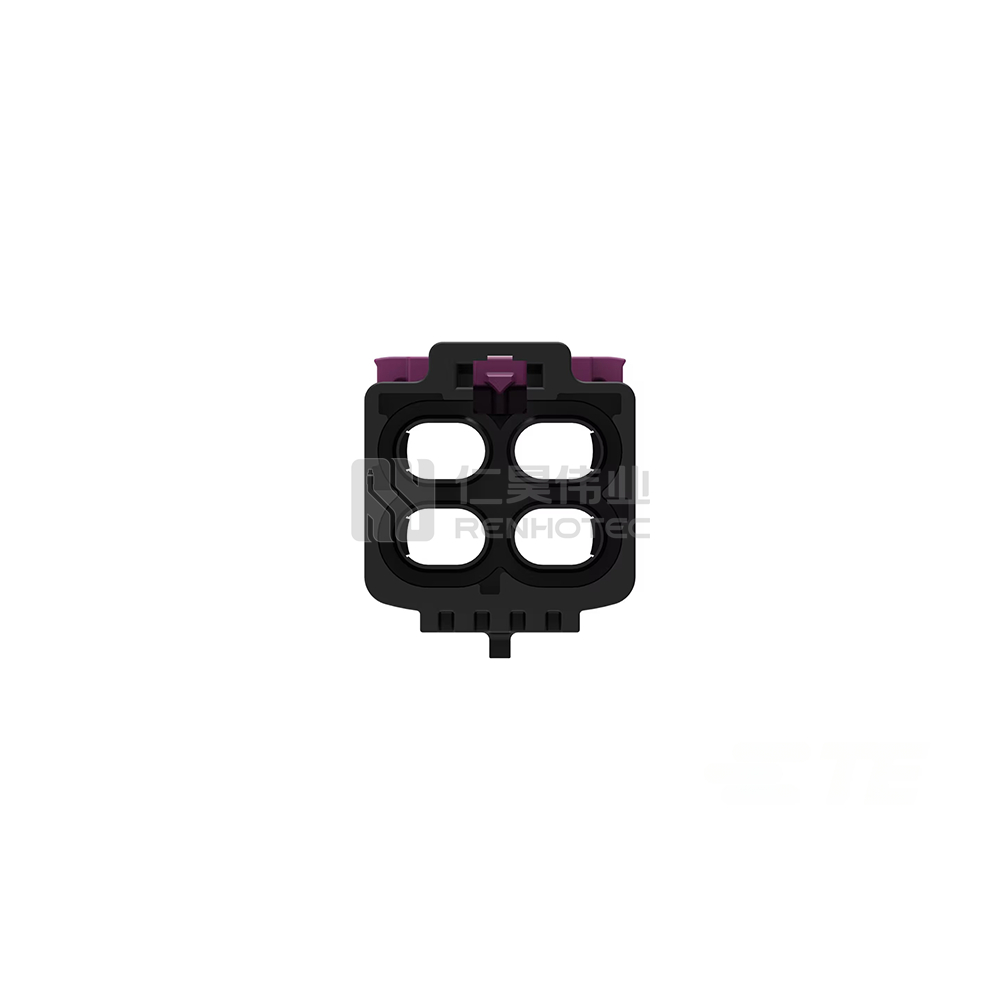

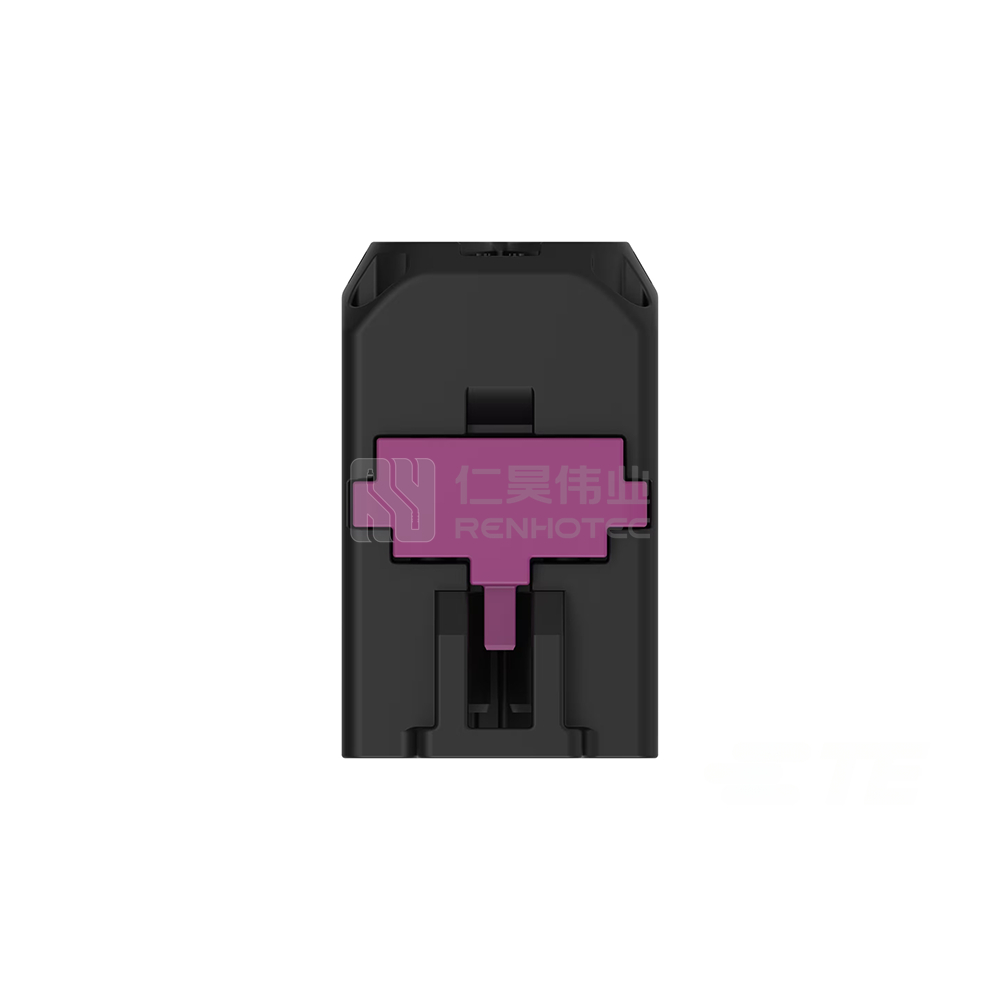

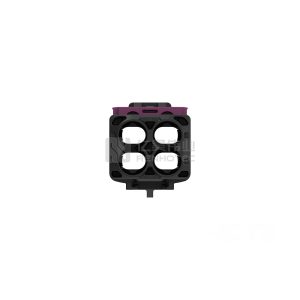

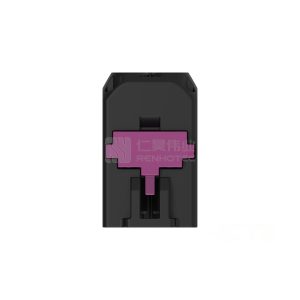

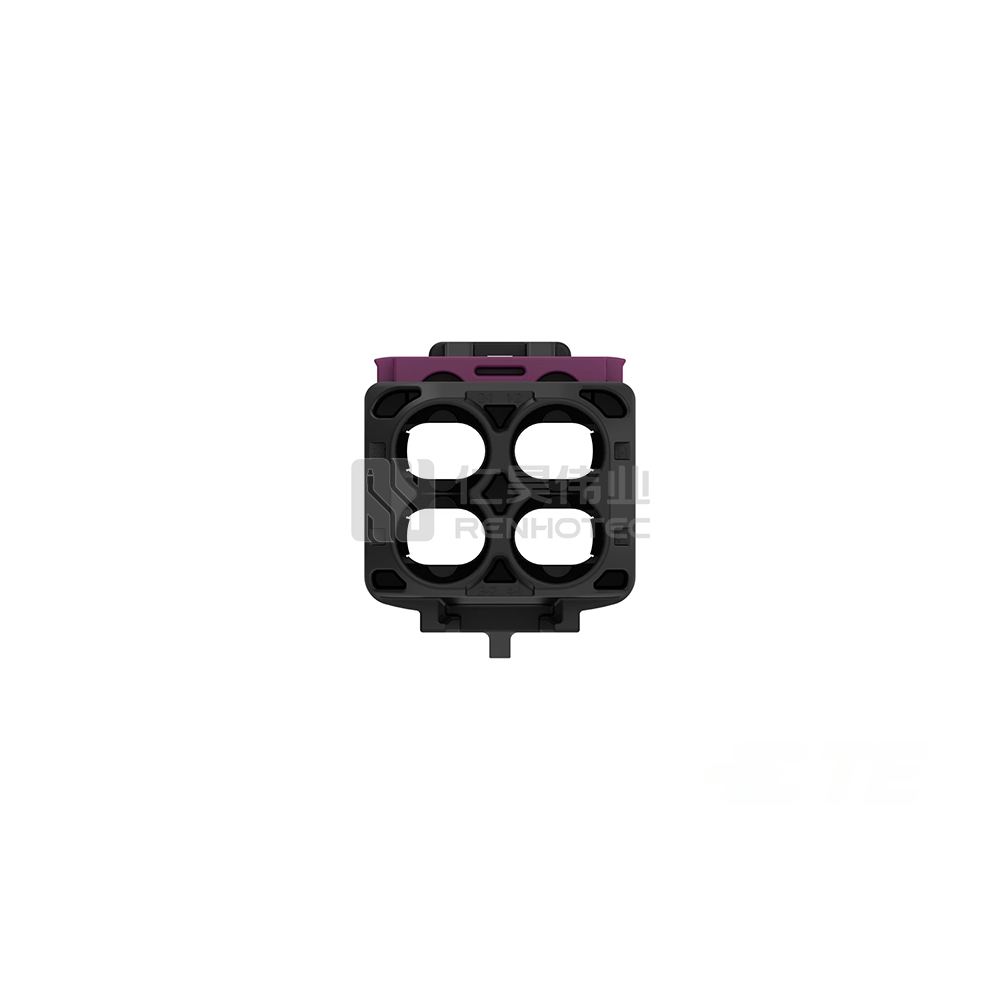

Cable-to-Cable / Wire-to-Wire, 180° Cable Exit, 4 Position, A Code, Housing for Female Terminals, 8 mm Centerline, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Cable-to-Cable \| Wire-to-Wire
Sealable	No
Row Count	2
Position Count	4
Key Code	A
Pin Diameter	.5 mm [ .02 in ]
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Jet Black
Pitch	8 mm [ .31 in ]
Connector Height	22.2 mm [ .87 in ]
Product Length	19 mm [ .74 in ]
Product Width	31 mm [ 1.22 in ]
Shielded	No
Body Material	PBT
Max Temperature	125 °C [ 257 °F ]
Housing Type	Housing for Female Terminals
Snap Lock	Without
Cable Exit Angle	180°
Cable Termination	Crimp
Position Assurance	No
Termination Point	Wire & Cable	Connector System	Cable-to-Cable \| Wire-to-Wire
Sealable	No	Row Count	2
Position Count	4	Key Code	A
Pin Diameter	.5 mm [ .02 in ]	Mount Type	Cable Mount (Free-Hanging)
Housing Color	Jet Black	Pitch	8 mm [ .31 in ]
Connector Height	22.2 mm [ .87 in ]	Product Length	19 mm [ .74 in ]
Product Width	31 mm [ 1.22 in ]	Shielded	No
Body Material	PBT	Max Temperature	125 °C [ 257 °F ]
Housing Type	Housing for Female Terminals	Snap Lock	Without
Cable Exit Angle	180°	Cable Termination	Crimp
Position Assurance	No

Temperature Range	-40 – 125 °C [ -40 – 257 °F ]
Temperature Range	-40 – 125 °C [ -40 – 257 °F ]

Termination Point	Wire & Cable
Connector System	Cable-to-Cable \| Wire-to-Wire
Sealable	No
Row Count	2
Position Count	4
Key Code	A
Pin Diameter	.5 mm [ .02 in ]
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Jet Black
Pitch	8 mm [ .31 in ]
Connector Height	22.2 mm [ .87 in ]
Product Length	19 mm [ .74 in ]
Product Width	31 mm [ 1.22 in ]
Shielded	No
Body Material	PBT
Max Temperature	125 °C [ 257 °F ]
Temperature Range	-40 – 125 °C [ -40 – 257 °F ]
Housing Type	Housing for Female Terminals
Snap Lock	Without
Cable Exit Angle	180°
Cable Termination	Crimp
Position Assurance	No
