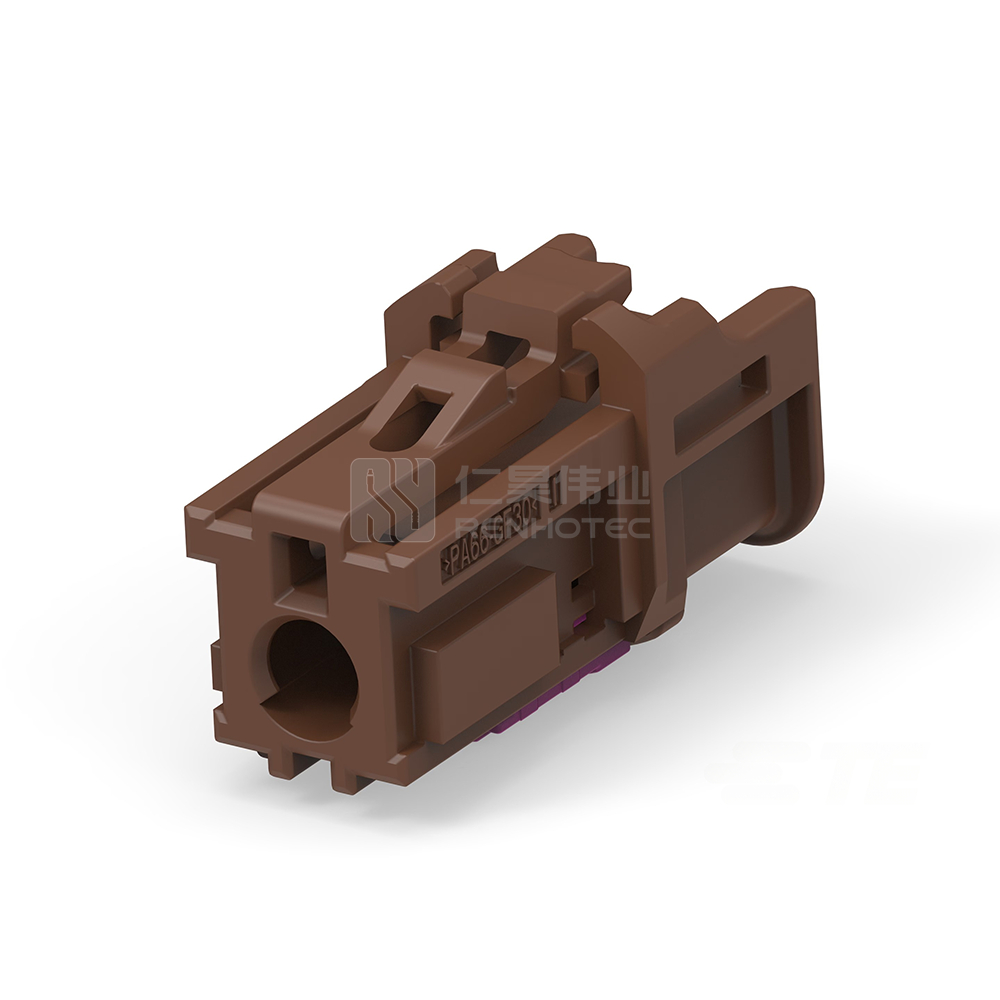

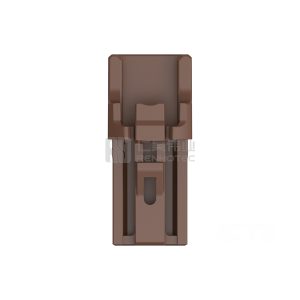

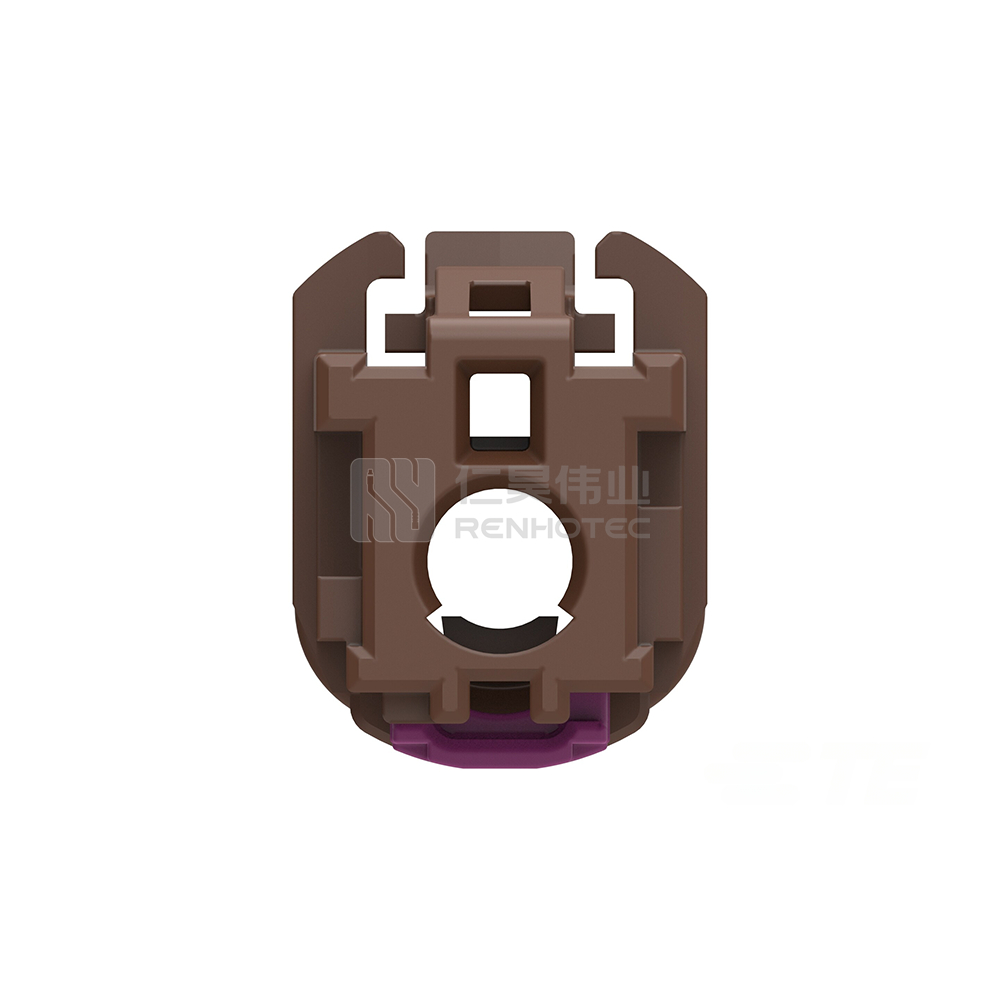

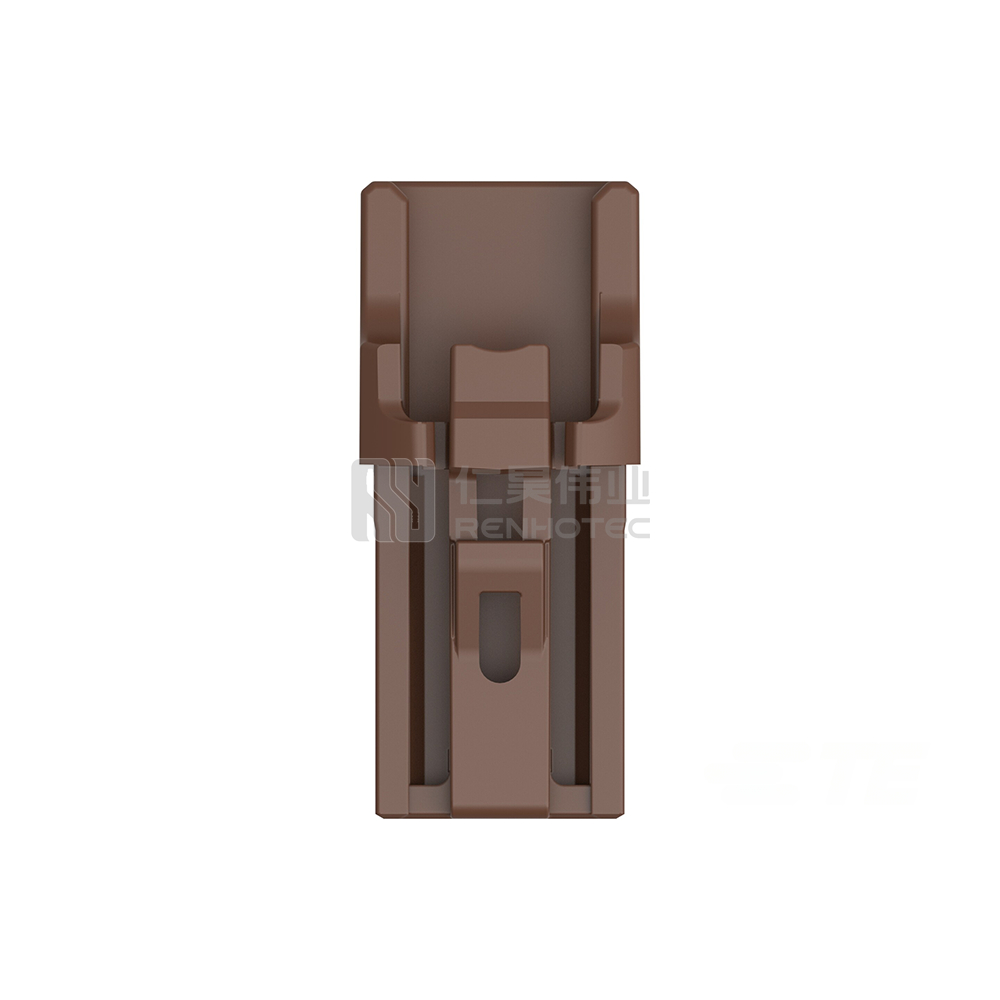

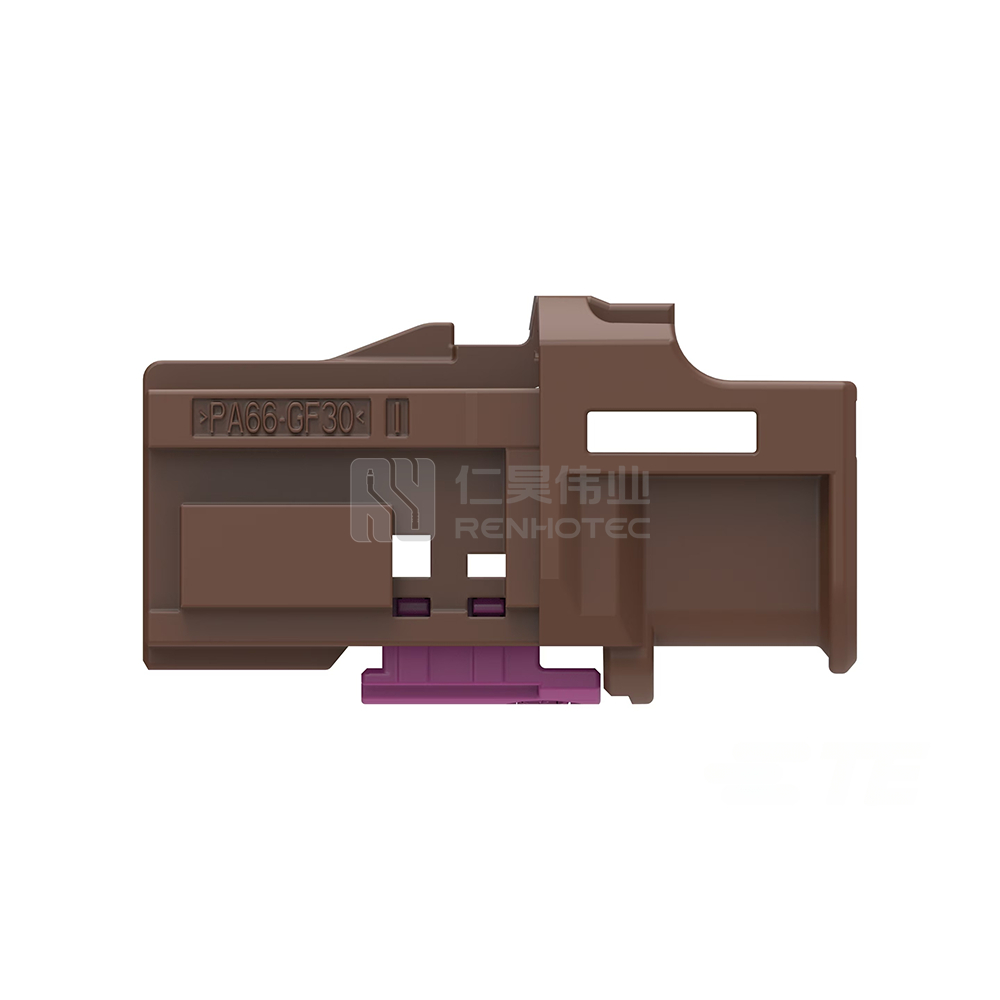

Cable-to-Cable / Wire-to-Wire 180° Cable Exit 1 Position F Code Housing for Female Terminals Crimp High Speed Data Data Connectivity Housings
Compatible Part Number
| Manufacturer | Part Number |
|---|---|
| TE | TE-2310137-6 |
| Body Material | PA66 GF30 |
||
|---|---|---|---|
| Cable Exit Angle | 180° |
||
| Cable Exit Type | Straight |
||
| Cable Termination | Crimp |
||
| Center Contact | With |
||
| Operating Voltage VDC | 60 |
||
| Dielectric Material | PBT |
||
| Connector Height | 10.75 mm [ .42 in ] |
||
| Connector System | Cable-to-Cable | Wire-to-Wire |
||
| Contact Plating | Silver (Ag) |
||
| Ferrule | With |
||
| Housing Color | Nut Brown |
||
| Housing Type | Housing for Female Terminals |
||
| Key Code | F |
||
| Mating Retention | With |
||
| Max Temperature | 105 °C [ 221 °F ] |
||
| Mount Type | Cable Mount (Free-Hanging) |
||
| Outer Contact Plating | Tin (Sn) |
||
| Pin Diameter | .4 mm [ .016 in ] |
||
| Position Count | 1 |
||
| Primary Lock | On the Terminal |
||
| Product Length | 8.3 mm [ .32 in ] |
||
| Product Width | 18.8 mm [ .74 in ] |
||
| Row Count | 1 |
||
| Sealable | No |
||
| Snap Lock | Without |
||
| Termination Point | Wire & Cable |
||
| Body Material | PA66 GF30 |
Cable Exit Angle | 180° |
| Cable Exit Type | Straight |
Cable Termination | Crimp |
| Center Contact | With |
Operating Voltage VDC | 60 |
| Dielectric Material | PBT |
Connector Height | 10.75 mm [ .42 in ] |
| Connector System | Cable-to-Cable | Wire-to-Wire |
Contact Plating | Silver (Ag) |
| Ferrule | With |
Housing Color | Nut Brown |
| Housing Type | Housing for Female Terminals |
Key Code | F |
| Mating Retention | With |
Max Temperature | 105 °C [ 221 °F ] |
| Mount Type | Cable Mount (Free-Hanging) |
Outer Contact Plating | Tin (Sn) |
| Pin Diameter | .4 mm [ .016 in ] |
Position Count | 1 |
| Primary Lock | On the Terminal |
Product Length | 8.3 mm [ .32 in ] |
| Product Width | 18.8 mm [ .74 in ] |
Row Count | 1 |
| Sealable | No |
Snap Lock | Without |
| Termination Point | Wire & Cable |
Product Specification
| Cable Type | RG 174 | RTK 031 |
||
|---|---|---|---|
| Impedance | 50Ω |
||
| Contact Type | Socket |
||
| IP Rating | IP40 |
||
| Temperature Range | -40 – 105 °C [ -40 – 221 °F ] |
||
| Cable Type | RG 174 | RTK 031 |
Impedance | 50Ω |
| Contact Type | Socket |
IP Rating | IP40 |
| Temperature Range | -40 – 105 °C [ -40 – 221 °F ] |
| Body Material | PA66 GF30 |
|---|---|
| Cable Exit Angle | 180° |
| Cable Exit Type | Straight |
| Cable Termination | Crimp |
| Cable Type | RG 174 | RTK 031 |
| Center Contact | With |
| Operating Voltage VDC | 60 |
| Dielectric Material | PBT |
| Impedance | 50Ω |
| Connector Height | 10.75 mm [ .42 in ] |
| Connector System | Cable-to-Cable | Wire-to-Wire |
| Contact Plating | Silver (Ag) |
| Contact Type | Socket |
| Ferrule | With |
| IP Rating | IP40 |
| Housing Color | Nut Brown |
| Housing Type | Housing for Female Terminals |
| Key Code | F |
| Mating Retention | With |
| Max Temperature | 105 °C [ 221 °F ] |
| Mount Type | Cable Mount (Free-Hanging) |
| Outer Contact Plating | Tin (Sn) |
| Pin Diameter | .4 mm [ .016 in ] |
| Position Count | 1 |
| Primary Lock | On the Terminal |
| Product Length | 8.3 mm [ .32 in ] |
| Product Width | 18.8 mm [ .74 in ] |
| Row Count | 1 |
| Sealable | No |
| Snap Lock | Without |
| Temperature Range | -40 – 105 °C [ -40 – 221 °F ] |
| Termination Point | Wire & Cable |
