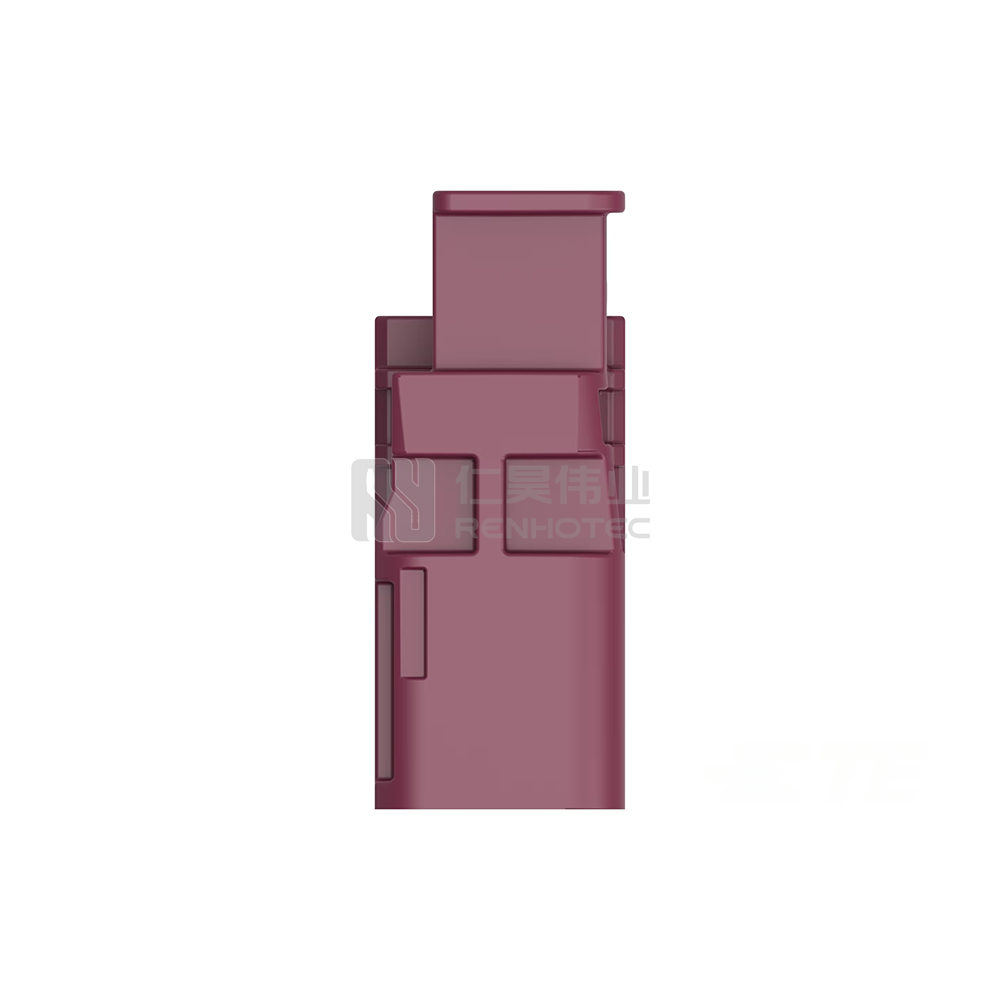

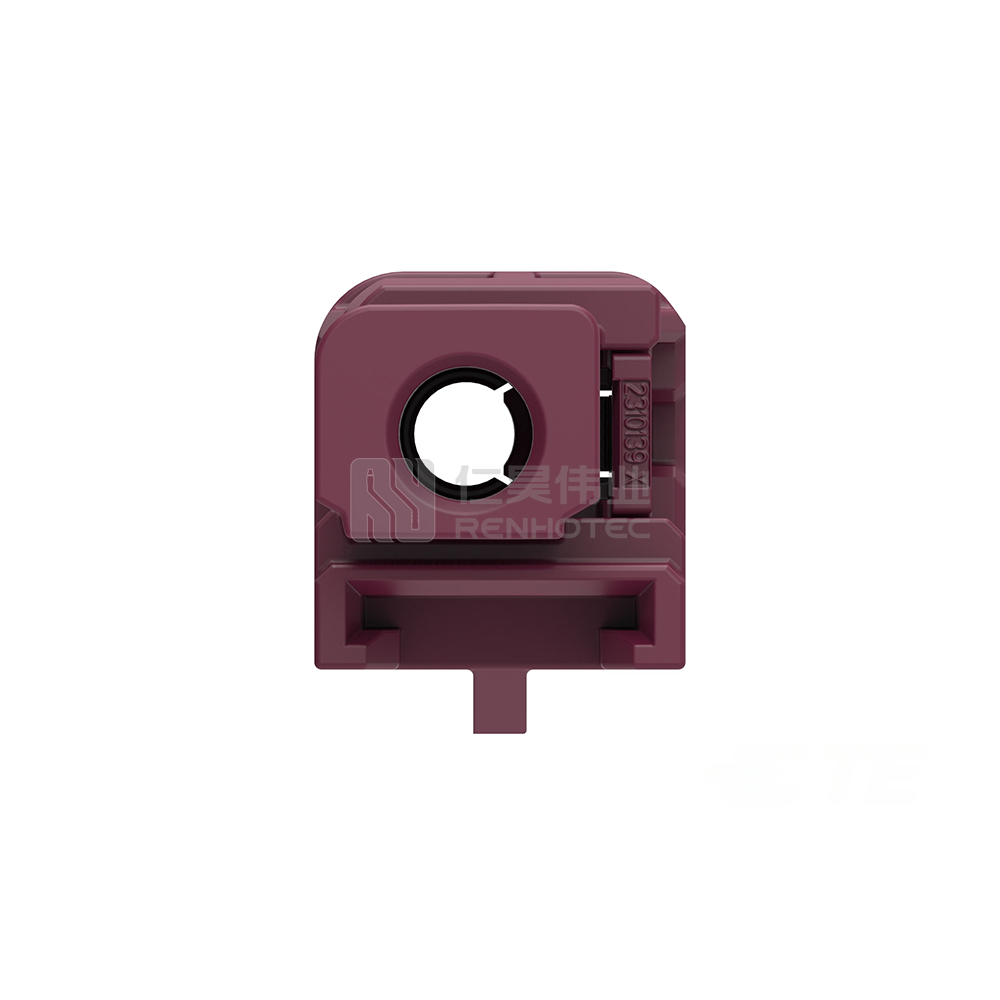

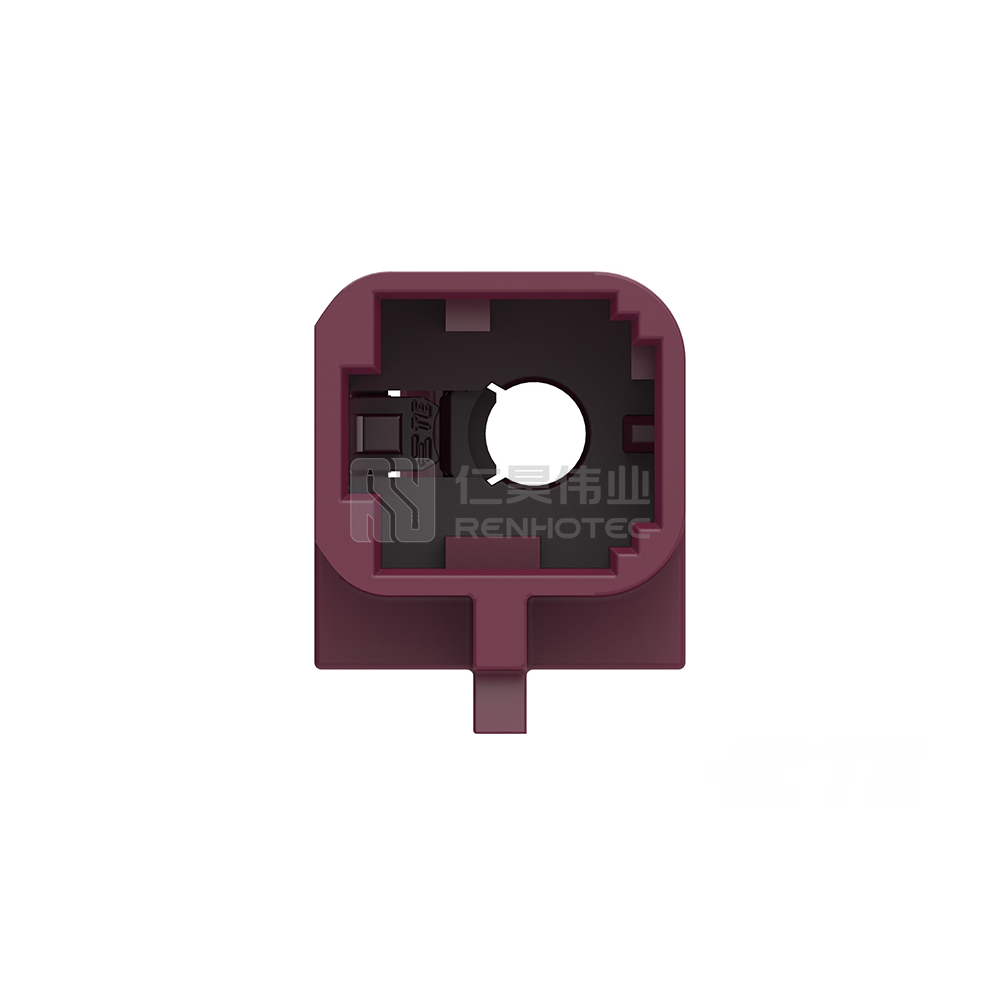

Cable-to-Cable / Wire-to-Wire, 180° Cable Exit, 1 Position, E Code, Housing for Male Terminals, Crimp, High Speed Data, Data Connectivity Housings

Termination Point

Wire & Cable
Connector System

Cable-to-Cable | Wire-to-Wire
Sealable

No
Row Count

1
Position Count

1
Key Code

D
Center Contact

With
Contact Plating

Silver (Ag)
Pin Diameter

.4 mm [ .016 in ]
Max Current A

3
Mating Retention

Without
Mount Type

Cable Mount (Free-Hanging)
Housing Color

Claret Violet
Connector Height

10.4 mm [ .4 in ]
Product Length

9.1 mm [ .35 in ]
Product Width

25.7 mm [ 1.01 in ]
Body Material

PA66 GF30
Outer Contact Plating

Tin (Sn)
Max Temperature

105 °C [ 221 °F ]
Primary Lock

On the Terminal
Housing Type

Housing for Male Terminals
Snap Lock

Without
Cable Exit Type

Straight
Ferrule

With
Cable Exit Angle

180°
Cable Termination

Crimp
Termination Point

Wire & Cable

 Connector System

Cable-to-Cable | Wire-to-Wire
Sealable

No

 Row Count

1
Position Count

1

 Key Code

D
Center Contact

With

 Contact Plating

Silver (Ag)
Pin Diameter

.4 mm [ .016 in ]

 Max Current A

3
Mating Retention

Without

 Mount Type

Cable Mount (Free-Hanging)
Housing Color

Claret Violet

 Connector Height

10.4 mm [ .4 in ]
Product Length

9.1 mm [ .35 in ]

 Product Width

25.7 mm [ 1.01 in ]
Body Material

PA66 GF30

 Outer Contact Plating

Tin (Sn)
Max Temperature

105 °C [ 221 °F ]

 Primary Lock

On the Terminal
Housing Type

Housing for Male Terminals

 Snap Lock

Without
Cable Exit Type

Straight

 Ferrule

With
Cable Exit Angle

180°

 Cable Termination

Crimp

Product Specification

Contact Type

Pin
Cable Type

RG 174 | RTK 031
Contact Type

Pin

 Cable Type

RG 174 | RTK 031
Termination Point

Wire & Cable
Connector System

Cable-to-Cable | Wire-to-Wire
Sealable

No
Row Count

1
Position Count

1
Key Code

D
Contact Type

Pin
Center Contact

With
Contact Plating

Silver (Ag)
Pin Diameter

.4 mm [ .016 in ]
Max Current A

3
Mating Retention

Without
Mount Type

Cable Mount (Free-Hanging)
Housing Color

Claret Violet
Connector Height

10.4 mm [ .4 in ]
Product Length

9.1 mm [ .35 in ]
Product Width

25.7 mm [ 1.01 in ]
Body Material

PA66 GF30
Outer Contact Plating

Tin (Sn)
Max Temperature

105 °C [ 221 °F ]
Impedance Ω

100
Primary Lock

On the Terminal
Housing Type

Housing for Male Terminals
Snap Lock

Without
Cable Exit Type

Straight
Ferrule

With
Cable Exit Angle

180°
Cable Termination

Crimp
Cable Type

RG 174 | RTK 031
