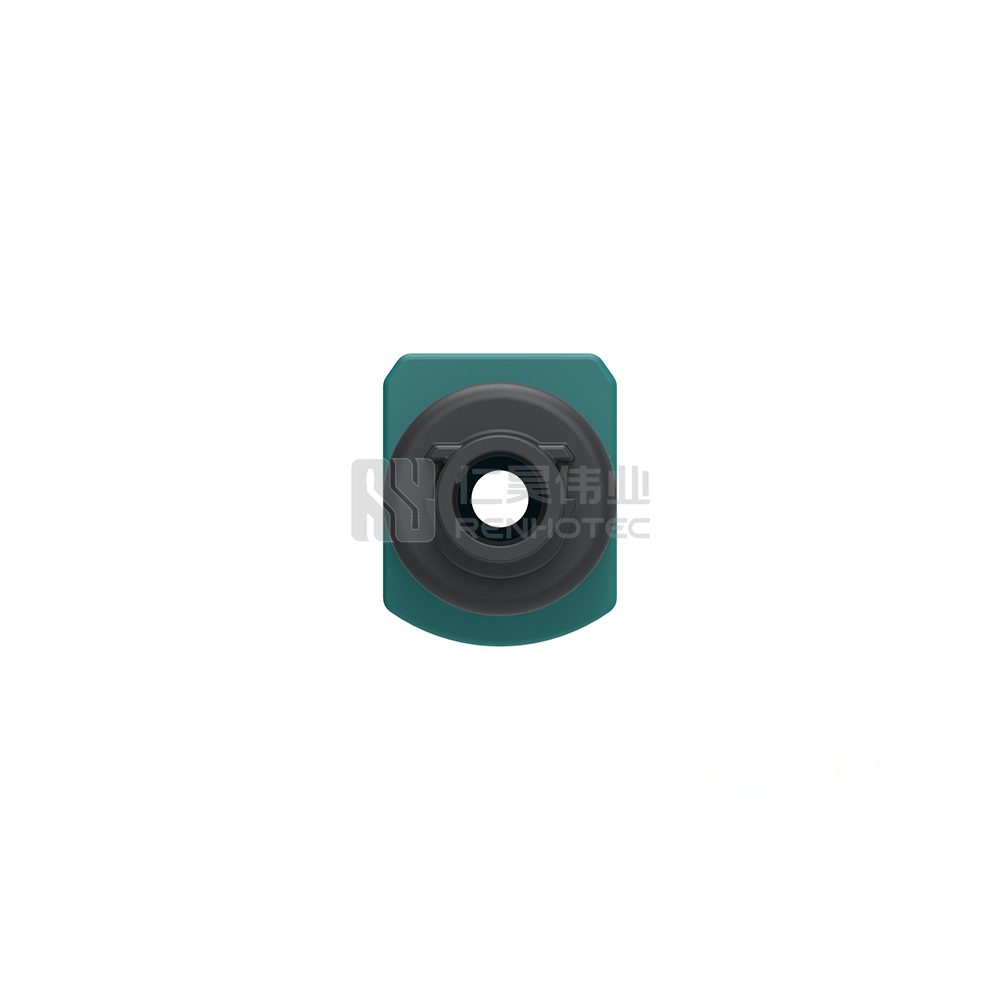

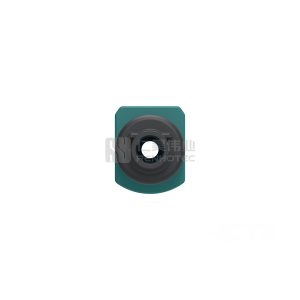

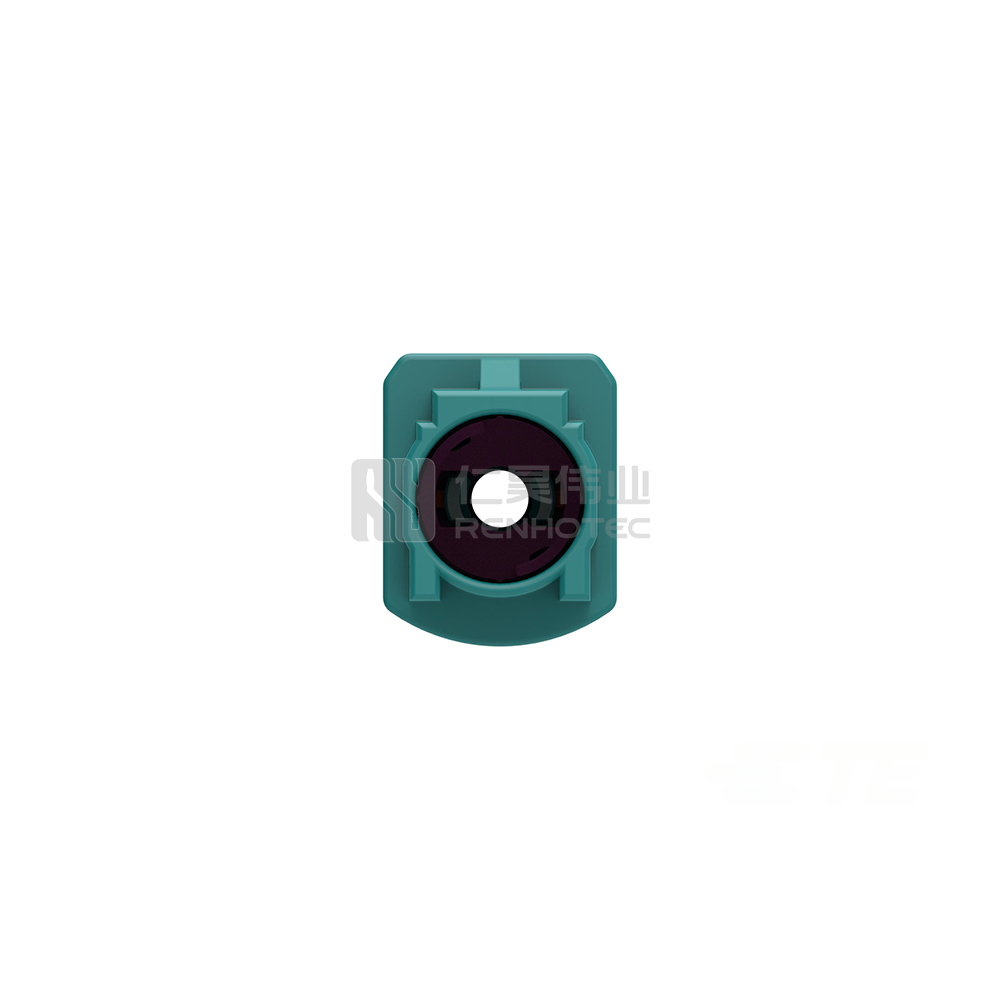

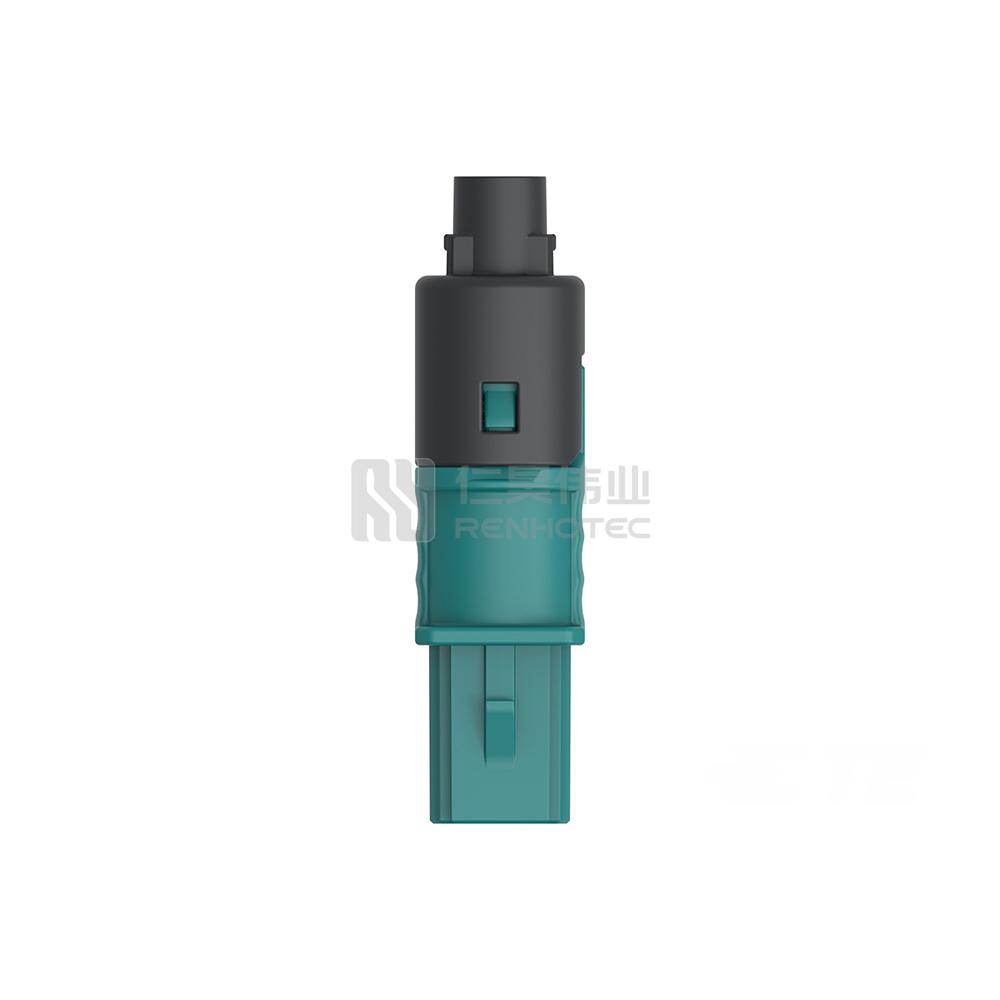

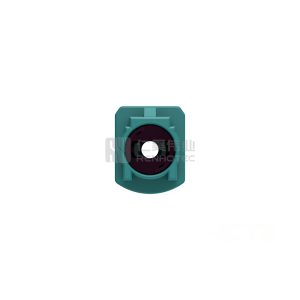

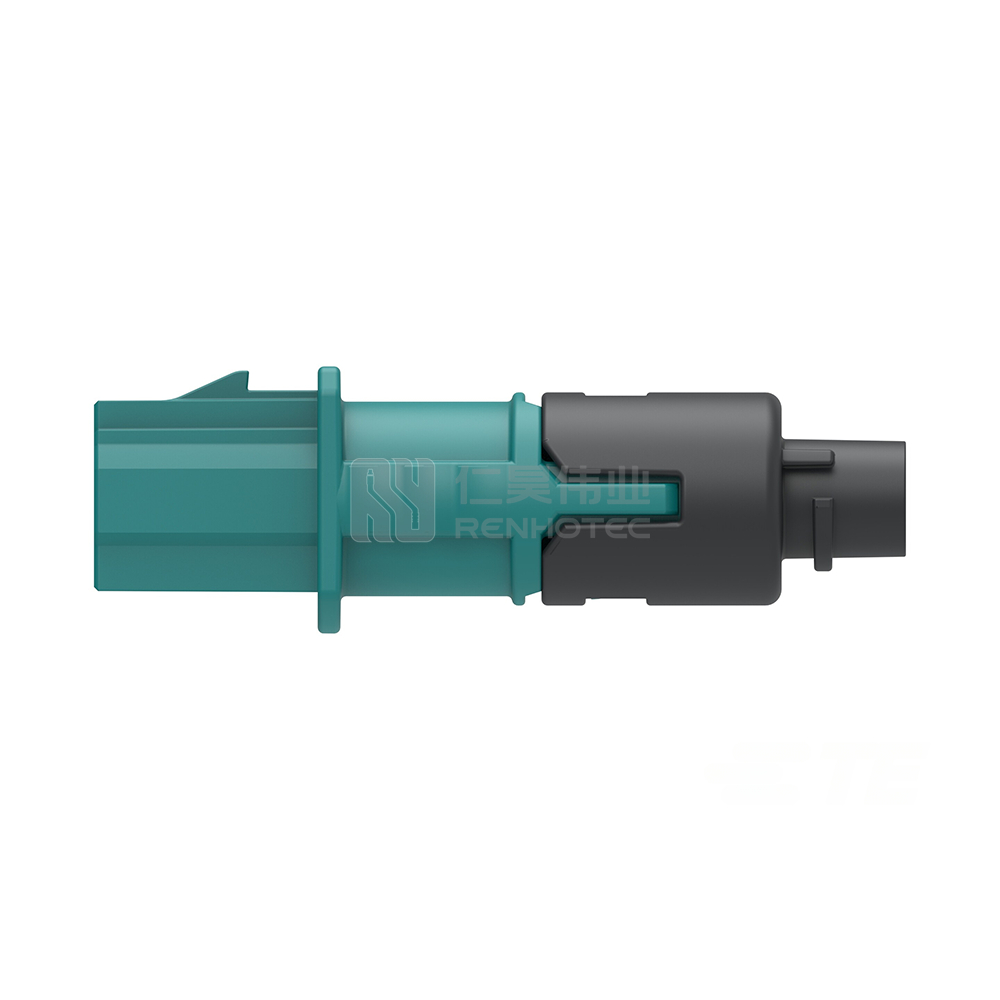

Cable-to-Cable / Wire-to-Wire, 180° Cable Exit, 1 Position, A Code, Housing for Male Terminals, Crimp, High Speed Data, Data Connectivity Housings

Cable-to-Cable / Wire-to-Wire, 180° Cable Exit, 1 Position, A Code, Housing for Male Terminals, Crimp, High Speed Data, Data Connectivity Housings - Image 2

Cable-to-Cable / Wire-to-Wire, 180° Cable Exit, 1 Position, A Code, Housing for Male Terminals, Crimp, High Speed Data, Data Connectivity Housings - Image 3

Cable-to-Cable / Wire-to-Wire, 180° Cable Exit, 1 Position, A Code, Housing for Male Terminals, Crimp, High Speed Data, Data Connectivity Housings - Image 4

Cable-to-Cable / Wire-to-Wire, 180° Cable Exit, 1 Position, A Code, Housing for Male Terminals, Crimp, High Speed Data, Data Connectivity Housings - Image 5

SKU: TE-2312193-9 Categories: Automotive Series Assemblies, Automotive Ethernet Cable Assemblies

TE-2312193-9 Automotive Ethernet Cable Assemblies Specs & Datasheet

Request for Quotation

Cable-to-Cable / Wire-to-Wire, 180° Cable Exit, 1 Position, A Code, Housing for Male Terminals, Crimp, High Speed Data, Data Connectivity Housings

Attributes

Termination Point	Wire & Cable
Connector System	Cable-to-Cable \| Wire-to-Wire
Sealable	No
Row Count	1
Position Count	1
Key Code	Z
Center Contact	With
Contact Plating	Silver (Ag)
Center Contact Plating	Tin (Sn)
Pin Diameter	2.8 mm [ .11 in ]
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Water Blue
Connector Height	12.9 mm [ .5 in ]
Product Length	10.3 mm [ .4 in ]
Product Width	39.2 mm [ 1.54 in ]
Body Material	PA66 GF30
Outer Contact Plating	Tin (Sn)
Max Temperature	105 °C [ 221 °F ]
Primary Lock	On the Terminal
Housing Type	Housing for Male Terminals
Snap Lock	Without
Cable Exit Type	Straight
Ferrule	With
Cable Exit Angle	180°
Cable Termination	Crimp
Termination Point	Wire & Cable	Connector System	Cable-to-Cable \| Wire-to-Wire
Sealable	No	Row Count	1
Position Count	1	Key Code	Z
Center Contact	With	Contact Plating	Silver (Ag)
Center Contact Plating	Tin (Sn)	Pin Diameter	2.8 mm [ .11 in ]
Mating Retention	With	Mount Type	Cable Mount (Free-Hanging)
Housing Color	Water Blue	Connector Height	12.9 mm [ .5 in ]
Product Length	10.3 mm [ .4 in ]	Product Width	39.2 mm [ 1.54 in ]
Body Material	PA66 GF30	Outer Contact Plating	Tin (Sn)
Max Temperature	105 °C [ 221 °F ]	Primary Lock	On the Terminal
Housing Type	Housing for Male Terminals	Snap Lock	Without
Cable Exit Type	Straight	Ferrule	With
Cable Exit Angle	180°	Cable Termination	Crimp

Product Specification

Contact Type	Pin
Cable Type	RG 174 \| RTK 031
Contact Type	Pin	Cable Type	RG 174 \| RTK 031

Termination Point	Wire & Cable
Connector System	Cable-to-Cable \| Wire-to-Wire
Sealable	No
Row Count	1
Position Count	1
Key Code	Z
Contact Type	Pin
Center Contact	With
Contact Plating	Silver (Ag)
Center Contact Plating	Tin (Sn)
Pin Diameter	2.8 mm [ .11 in ]
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Water Blue
Connector Height	12.9 mm [ .5 in ]
Product Length	10.3 mm [ .4 in ]
Product Width	39.2 mm [ 1.54 in ]
Body Material	PA66 GF30
Outer Contact Plating	Tin (Sn)
Max Temperature	105 °C [ 221 °F ]
Impedance Ω	90
Primary Lock	On the Terminal
Housing Type	Housing for Male Terminals
Snap Lock	Without
Cable Exit Type	Straight
Ferrule	With
Cable Exit Angle	180°
Cable Termination	Crimp
Cable Type	RG 174 \| RTK 031
