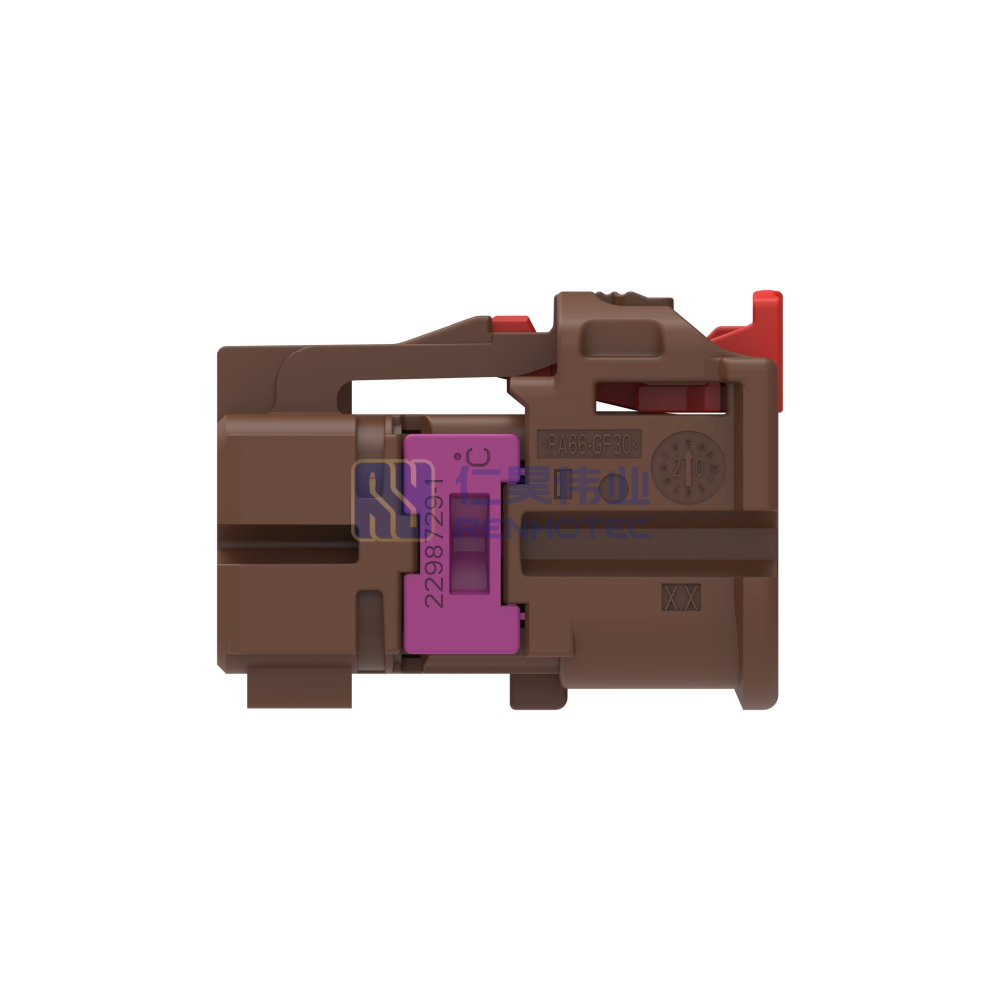

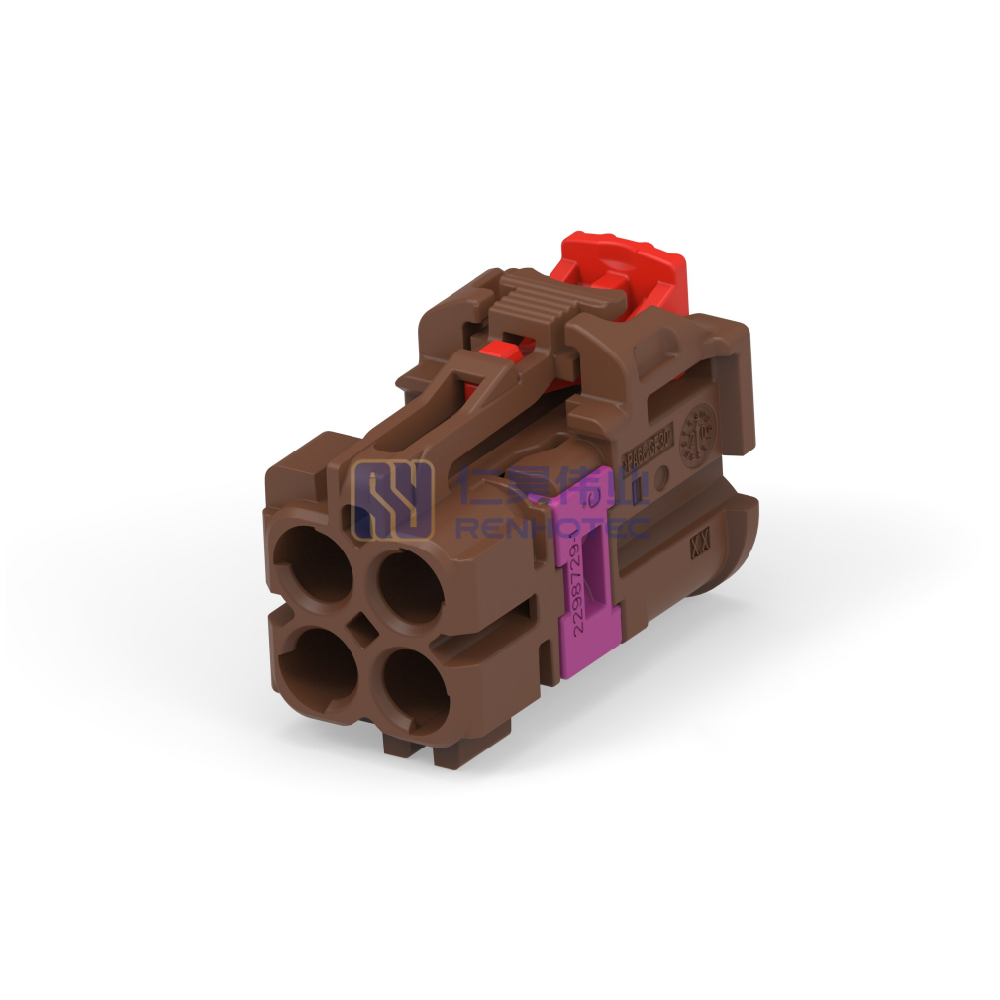

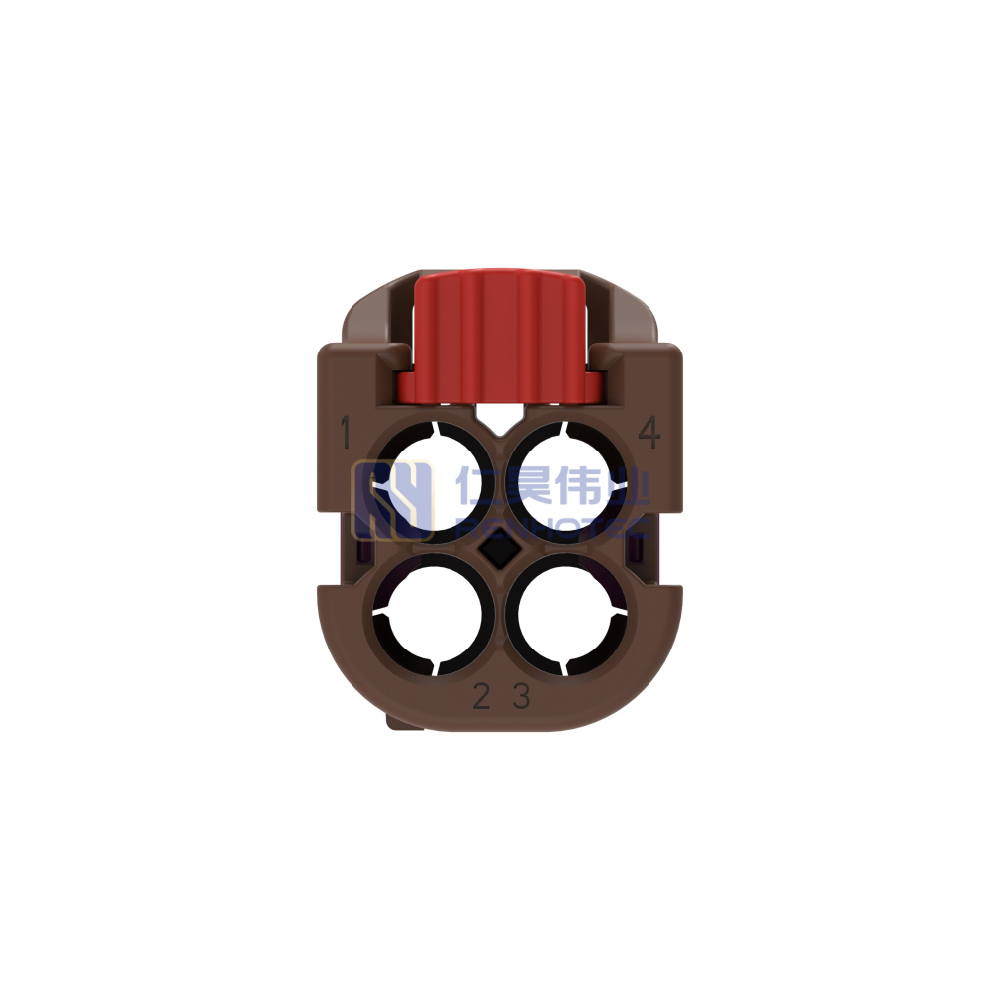

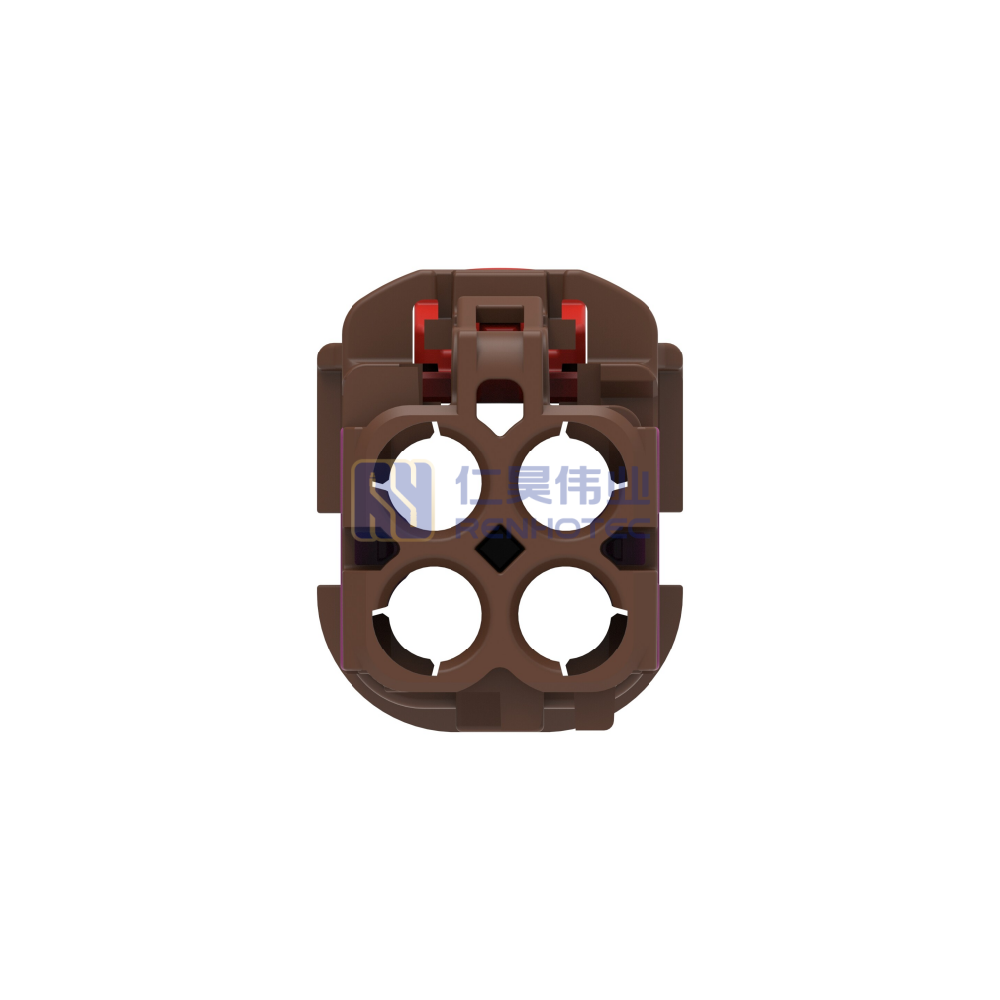

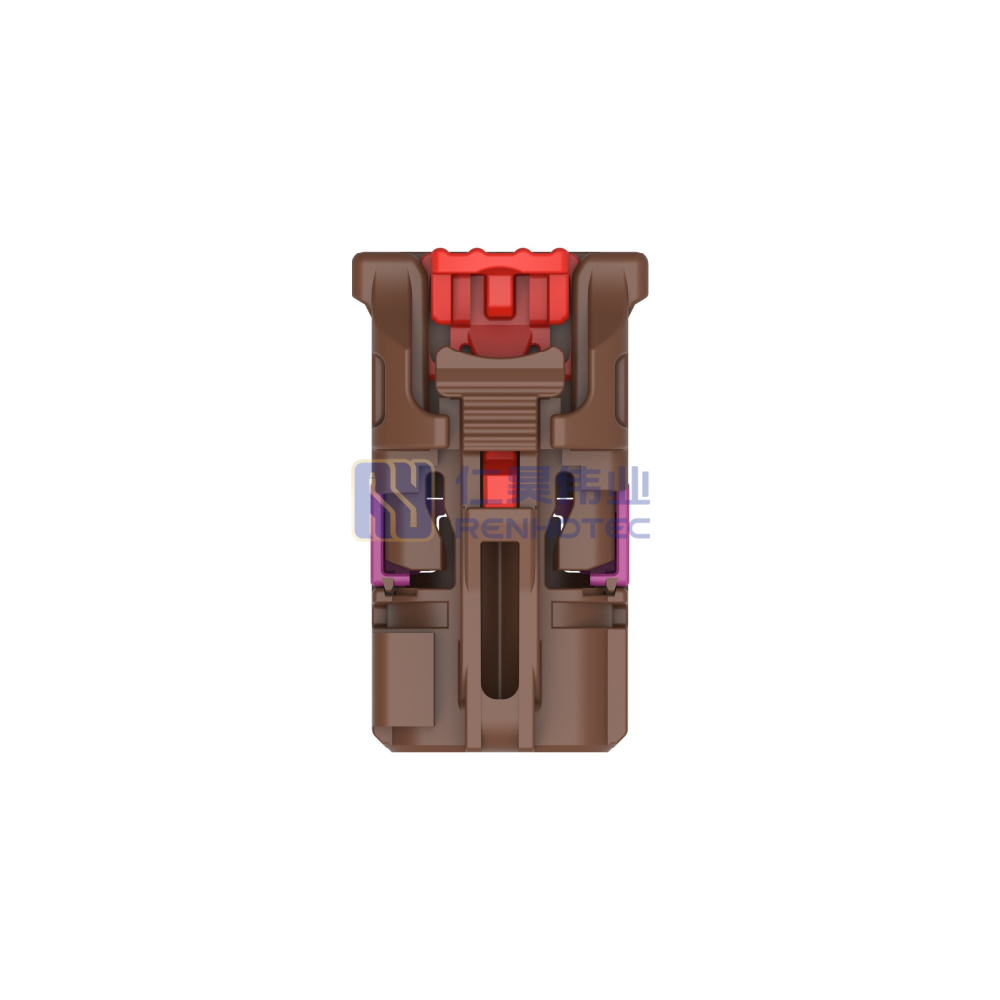

Cable-to-Cable 180° Cable Exit 4 Position F Code Housing for Female Terminals 4 mm Centerline Crimp Data Connectivity Housings
Compatible Part Number
| Manufacturer | Part Number |
|---|---|
| TE | TE-2-2298721-6 |
| Body Material | PA66 GF30 |
||
|---|---|---|---|
| Cable Exit Angle | 180° |
||
| Cable Exit Type | Straight |
||
| Cable Termination | Crimp |
||
| Center Contact | With |
||
| Center Contact Plating | Silver (Ag) |
||
| Operating Voltage VDC | 60 |
||
| Connector Height | 14 mm [ .55 in ] |
||
| Connector System | Cable-to-Cable |
||
| Contact Plating | Silver (Ag) |
||
| Housing Color | Nut Brown |
||
| Housing Type | Housing for Female Terminals |
||
| Key Code | F |
||
| Mating Retention | Without |
||
| Max Current A | 3 |
||
| Mount Type | Cable Mount (Free-Hanging) |
||
| Outer Contact Plating | Tin (Sn) |
||
| Pin Diameter | .4 mm [ .015 in ] |
||
| Pitch | 4 mm [ .157 in ] |
||
| Position Count | 4 |
||
| Primary Lock | On the Terminal |
||
| Product Length | 18.8 mm [ .74 in ] |
||
| Product Width | 11.1 mm [ .43 in ] |
||
| Row Count | 2 |
||
| Sealable | No |
||
| Snap Lock | With |
||
| Termination Point | Wire & Cable |
||
| Body Material | PA66 GF30 |
Cable Exit Angle | 180° |
| Cable Exit Type | Straight |
Cable Termination | Crimp |
| Center Contact | With |
Center Contact Plating | Silver (Ag) |
| Operating Voltage VDC | 60 |
Connector Height | 14 mm [ .55 in ] |
| Connector System | Cable-to-Cable |
Contact Plating | Silver (Ag) |
| Housing Color | Nut Brown |
Housing Type | Housing for Female Terminals |
| Key Code | F |
Mating Retention | Without |
| Max Current A | 3 |
Mount Type | Cable Mount (Free-Hanging) |
| Outer Contact Plating | Tin (Sn) |
Pin Diameter | .4 mm [ .015 in ] |
| Pitch | 4 mm [ .157 in ] |
Position Count | 4 |
| Primary Lock | On the Terminal |
Product Length | 18.8 mm [ .74 in ] |
| Product Width | 11.1 mm [ .43 in ] |
Row Count | 2 |
| Sealable | No |
Snap Lock | With |
| Termination Point | Wire & Cable |
Product Specification
| Impedance | 50Ω |
||
|---|---|---|---|
| Contact Type | Socket |
||
| Temperature Range | -40 – 105 °C [ -40 – 221 °F ] |
||
| Impedance | 50Ω |
Contact Type | Socket |
| Temperature Range | -40 – 105 °C [ -40 – 221 °F ] |
| Body Material | PA66 GF30 |
|---|---|
| Cable Exit Angle | 180° |
| Cable Exit Type | Straight |
| Cable Termination | Crimp |
| Center Contact | With |
| Center Contact Plating | Silver (Ag) |
| Operating Voltage VDC | 60 |
| Impedance | 50Ω |
| Connector Height | 14 mm [ .55 in ] |
| Connector System | Cable-to-Cable |
| Contact Plating | Silver (Ag) |
| Contact Type | Socket |
| Housing Color | Nut Brown |
| Housing Type | Housing for Female Terminals |
| Key Code | F |
| Mating Retention | Without |
| Max Current A | 3 |
| Mount Type | Cable Mount (Free-Hanging) |
| Outer Contact Plating | Tin (Sn) |
| Pin Diameter | .4 mm [ .015 in ] |
| Pitch | 4 mm [ .157 in ] |
| Position Count | 4 |
| Primary Lock | On the Terminal |
| Product Length | 18.8 mm [ .74 in ] |
| Product Width | 11.1 mm [ .43 in ] |
| Row Count | 2 |
| Sealable | No |
| Snap Lock | With |
| Temperature Range | -40 – 105 °C [ -40 – 221 °F ] |
| Termination Point | Wire & Cable |
