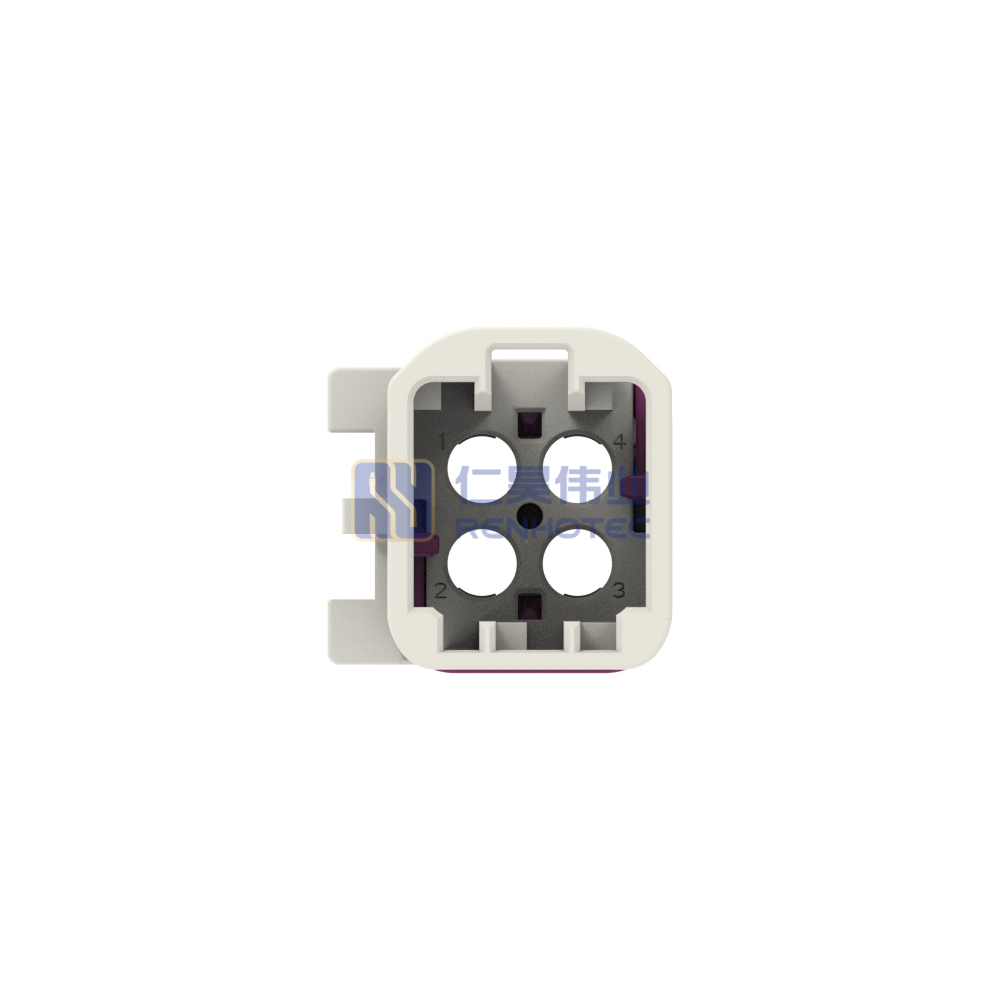

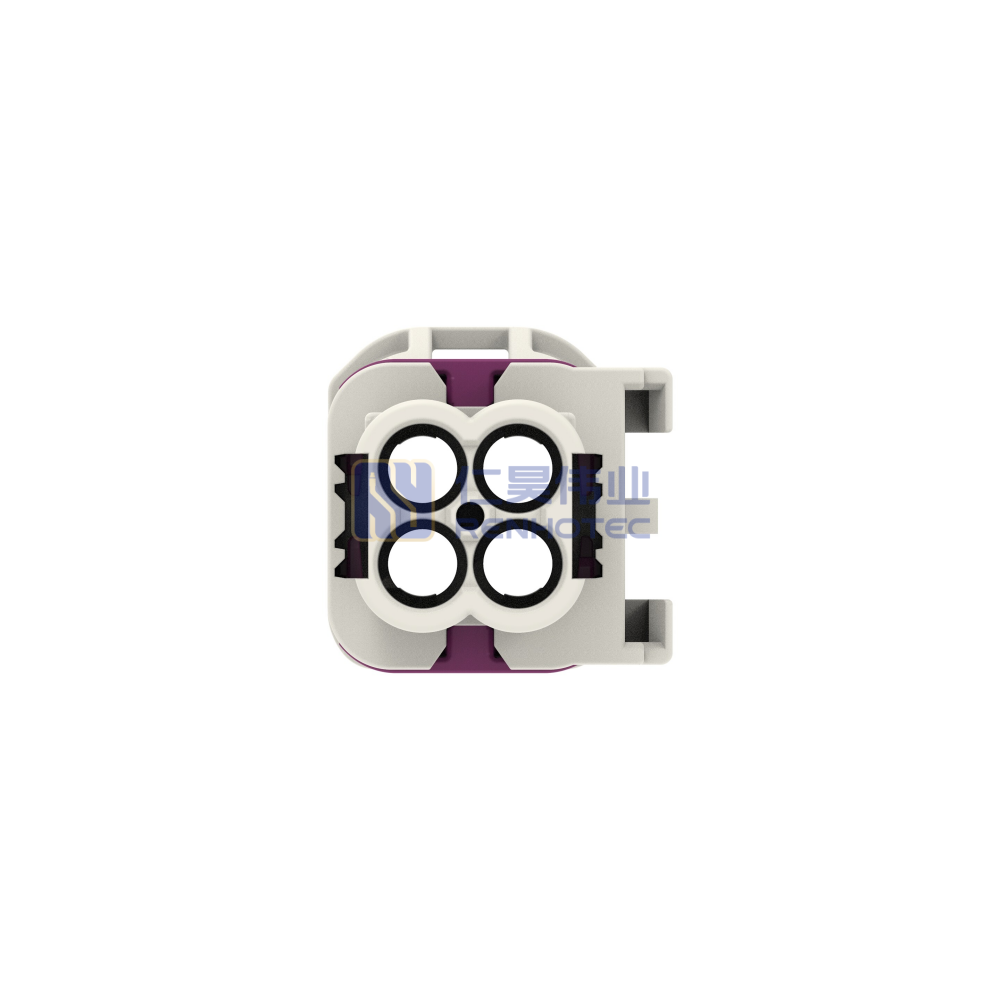

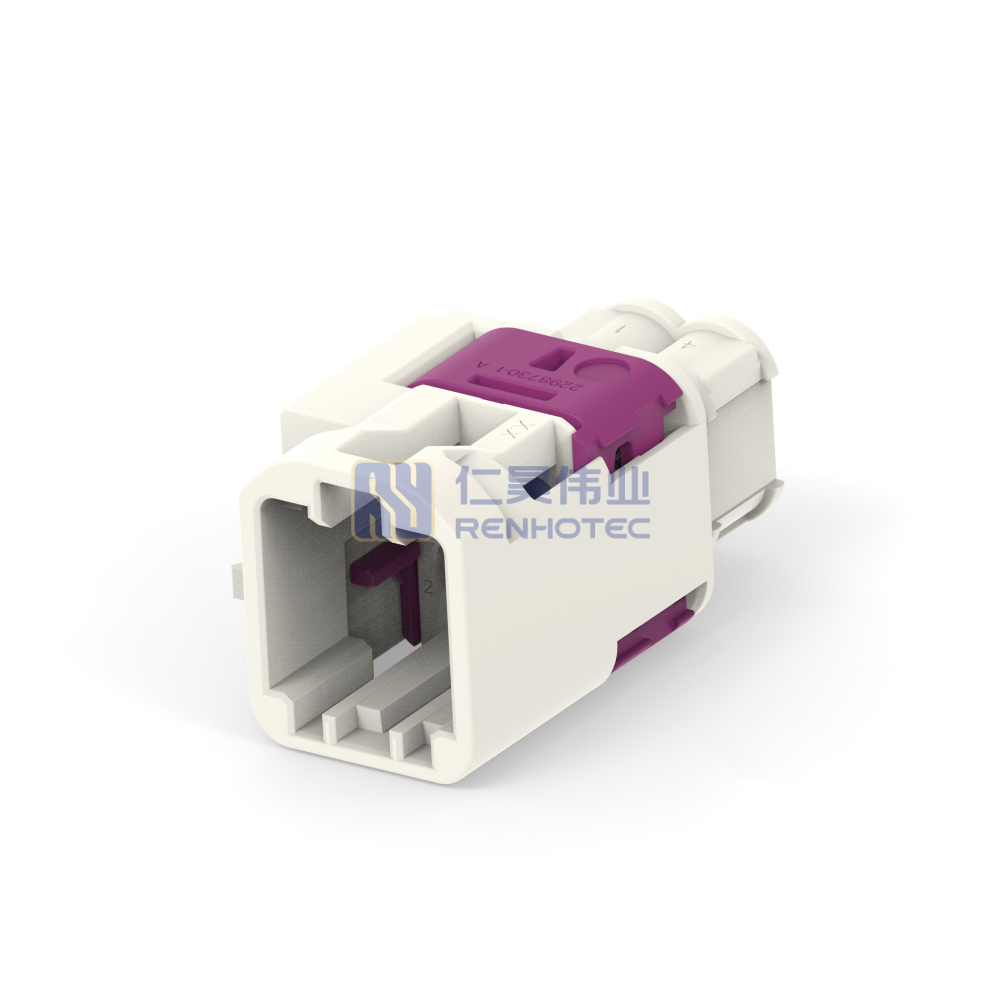

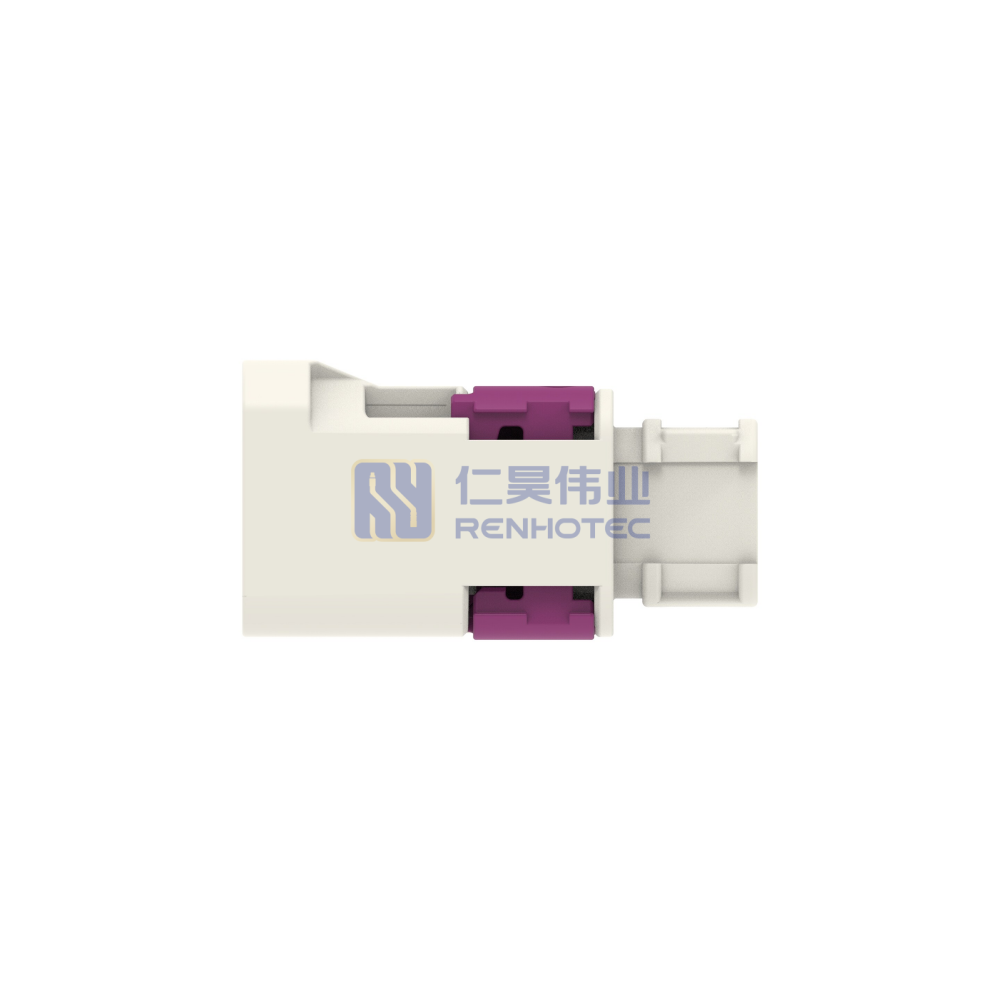

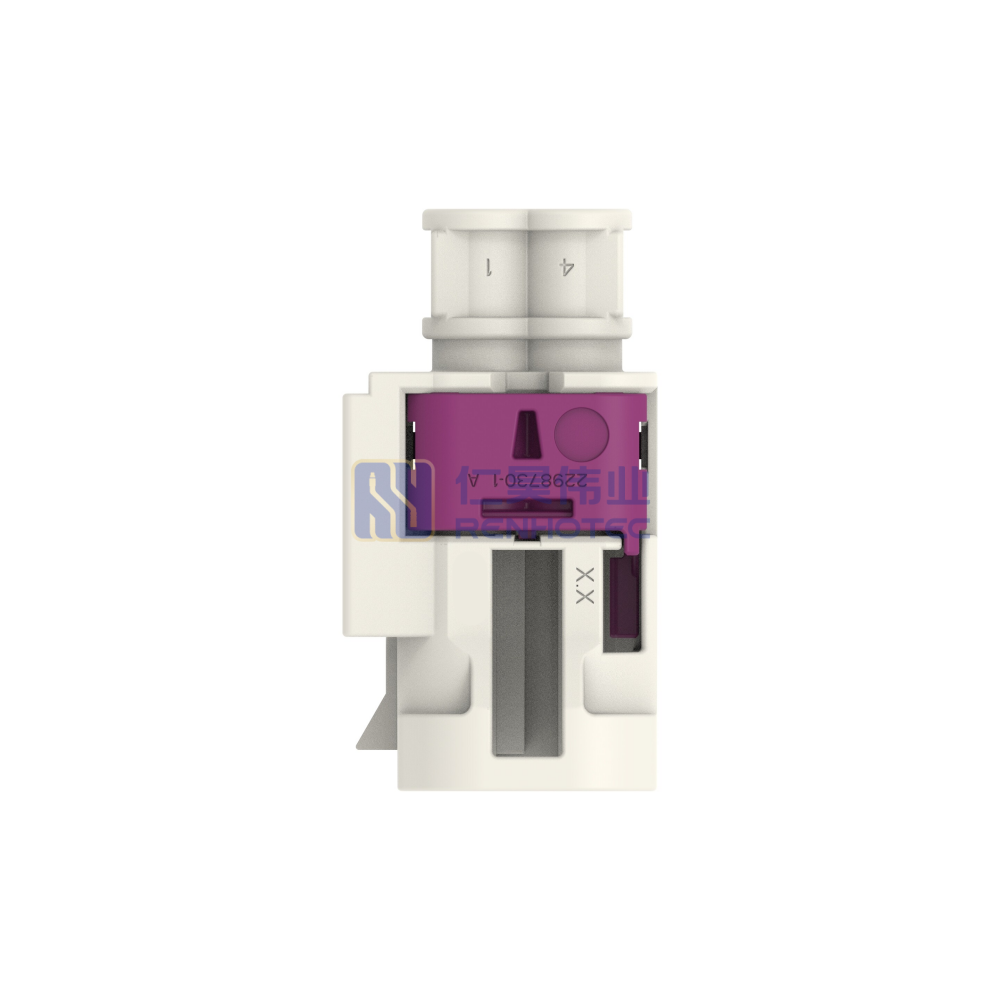

Cable-to-Cable, 180° Cable Exit, 4 Position, C Code, Housing for Male Terminals, 4 mm Centerline, Crimp, Data Connectivity Housings

Termination Point

Wire & Cable
Connector System

Cable-to-Cable
Sealable

No
Row Count

2
Position Count

4
Key Code

B
Pin Diameter

.4 mm [ .016 in ]
Mount Type

Cable Mount (Free-Hanging)
Housing Color

White
Pitch

4 mm [ .157 in ]
Connector Height

14.55 mm [ .573 in ]
Product Length

14.5 mm [ .571 in ]
Product Width

26.8 mm [ 1.055 in ]
Shielded

No
Circuit Application

High Speed Data
Package Qty

1400
Body Material

PA GF
Package Method

Box
Primary Lock

On the Terminal
Housing Type

Housing for Male Terminals
Cable Exit Angle

180°
Cable Termination

Crimp
Position Assurance

No
Max Temperature C

65 | 70 | 75 | 80 | 85 | 90 | 100 | 105
Max Temperature F

221
Termination Point

Wire & Cable

 Connector System

Cable-to-Cable
Sealable

No

 Row Count

2
Position Count

4

 Key Code

B
Pin Diameter

.4 mm [ .016 in ]

 Mount Type

Cable Mount (Free-Hanging)
Housing Color

White

 Pitch

4 mm [ .157 in ]
Connector Height

14.55 mm [ .573 in ]

 Product Length

14.5 mm [ .571 in ]
Product Width

26.8 mm [ 1.055 in ]

 Shielded

No
Circuit Application

High Speed Data

 Package Qty

1400
Body Material

PA GF

 Package Method

Box
Primary Lock

On the Terminal

 Housing Type

Housing for Male Terminals
Cable Exit Angle

180°

 Cable Termination

Crimp
Position Assurance

No

 Max Temperature C

65 | 70 | 75 | 80 | 85 | 90 | 100 | 105
Max Temperature F

221

Product Specification

Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Cable Type

RTK 031
Temperature Range

-40 – 105 °C [ -40 – 221 °F ]

 Cable Type

RTK 031
