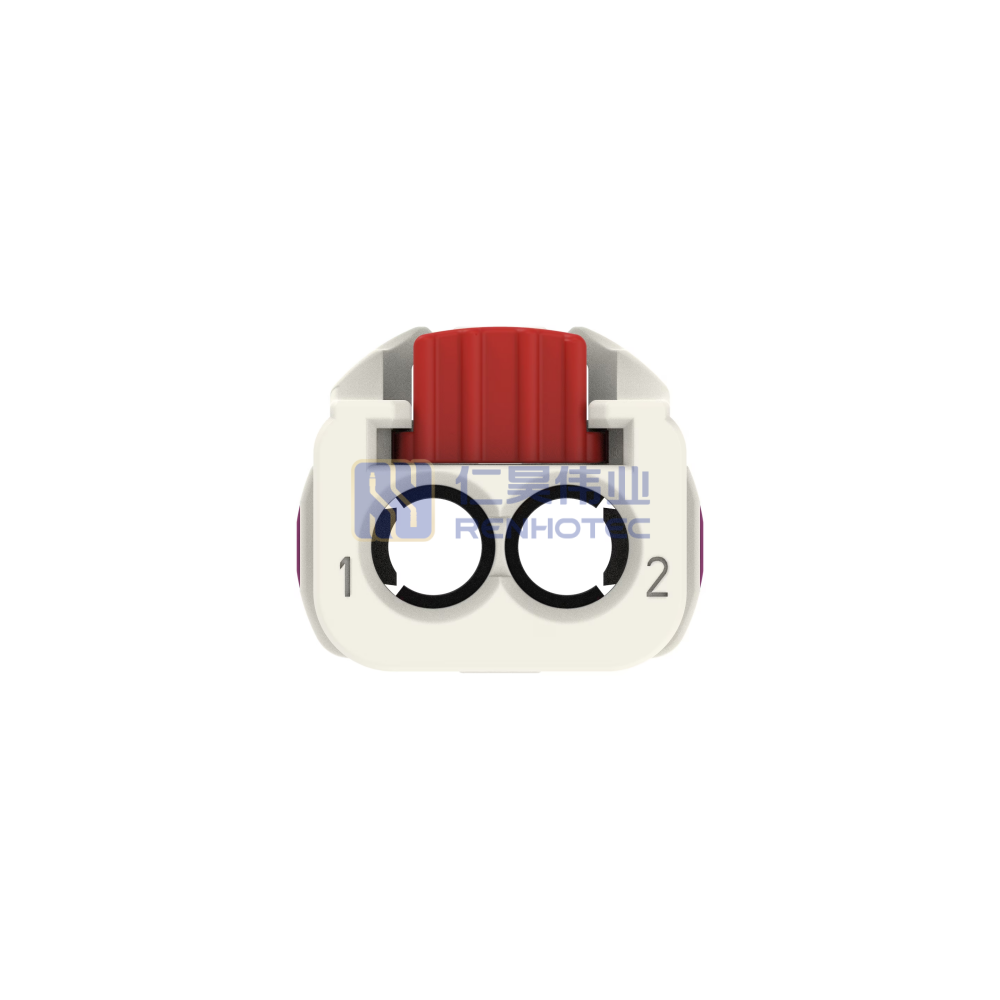

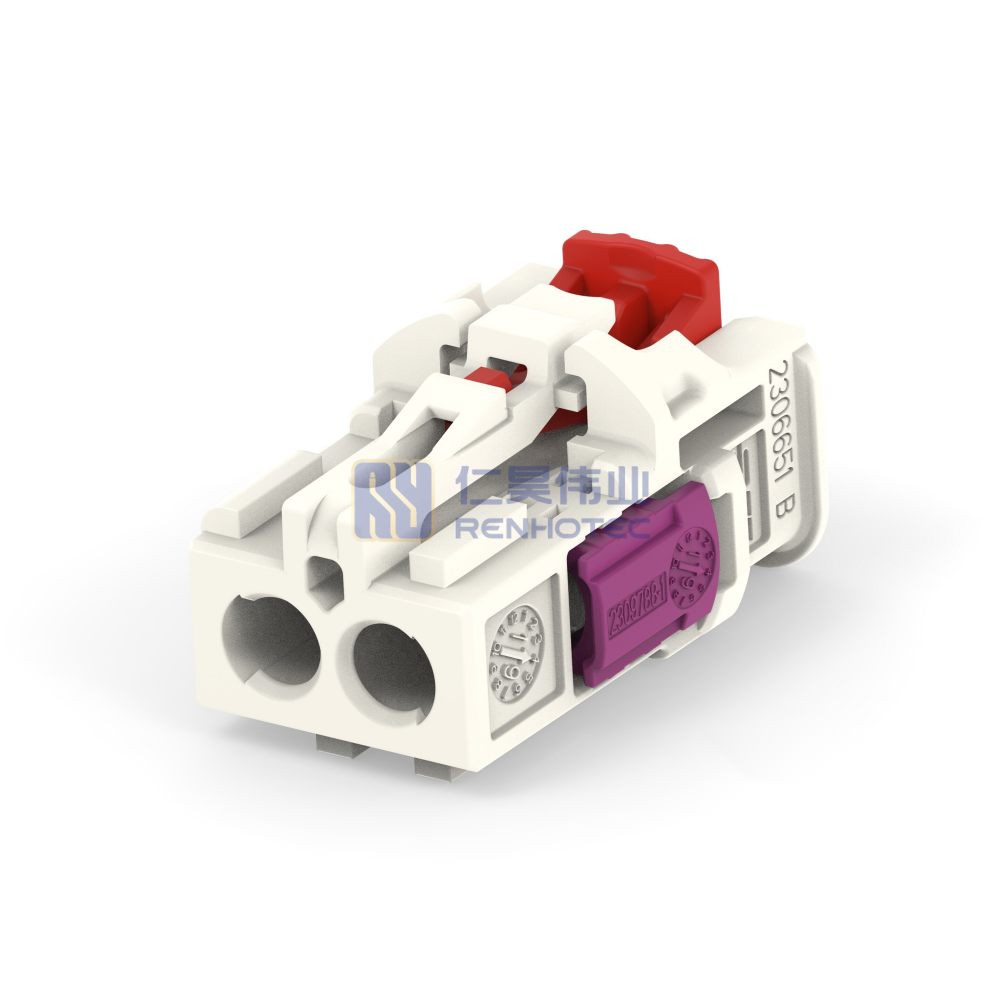

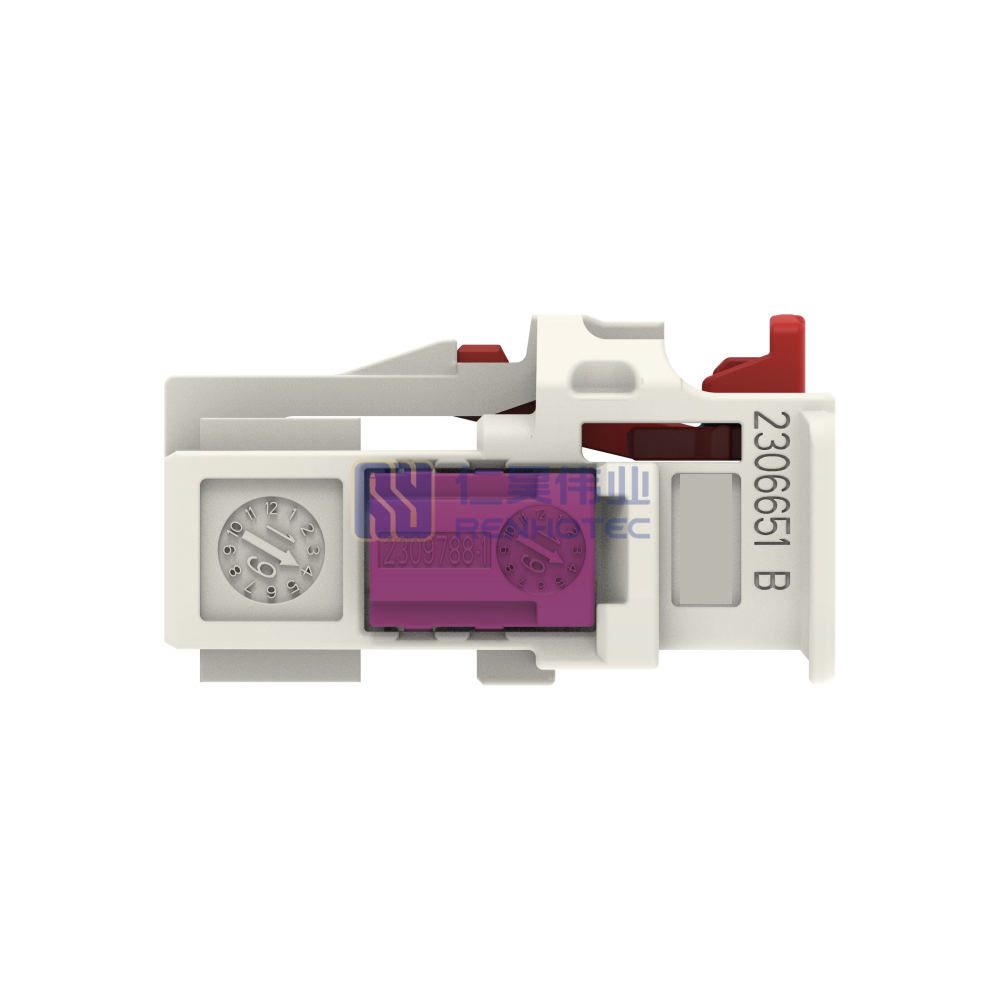

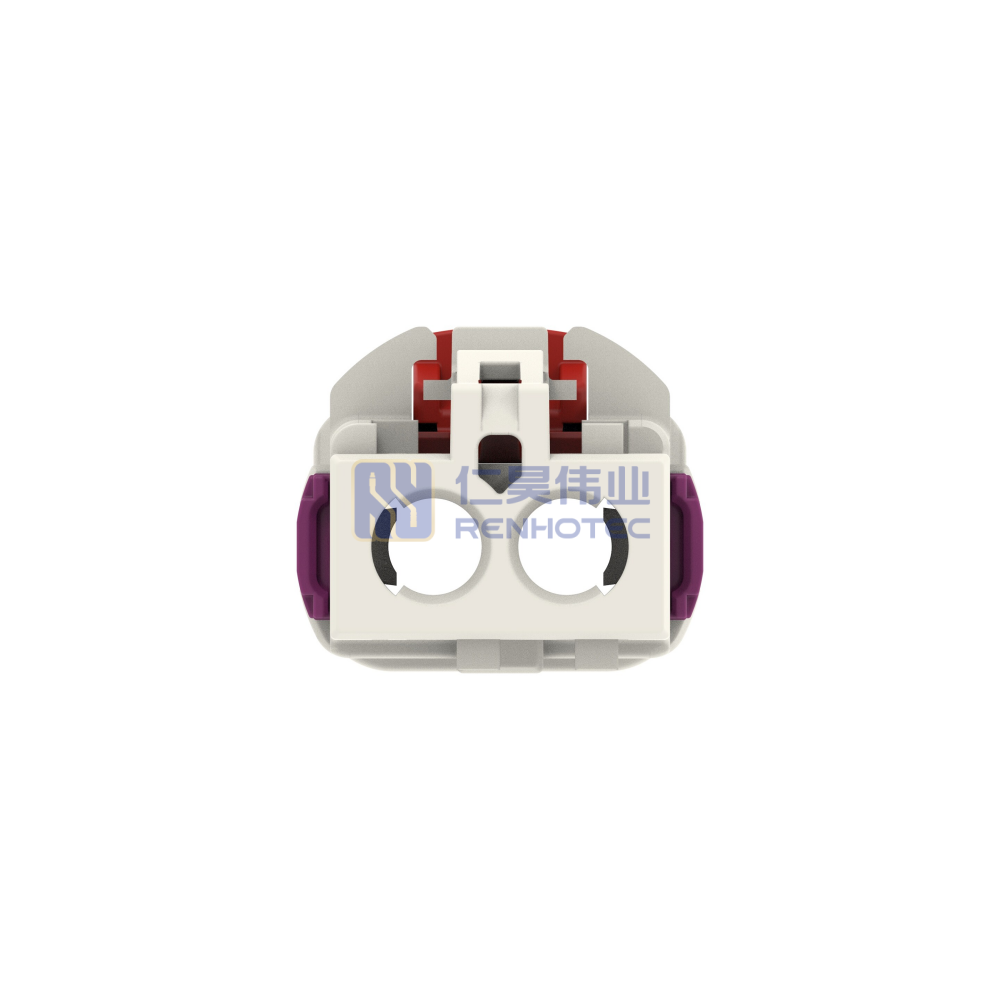

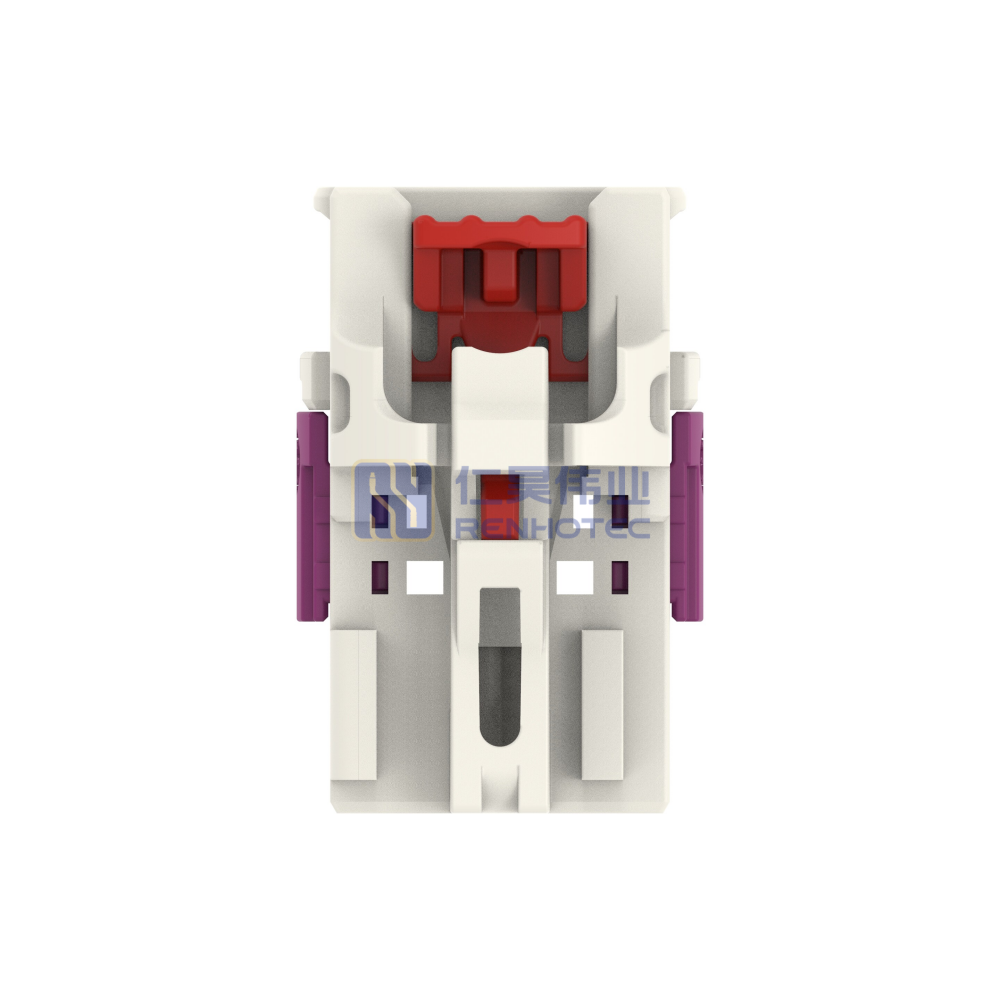

Cable-to-Cable, 180° Cable Exit, 2 Position, C Code, Housing for Female Terminals, 4 mm Centerline, Crimp, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	No
Row Count	1
Position Count	2
Key Code	B
Pin Diameter	.4 mm [ .015 in ]
Mount Type	Cable Mount (Free-Hanging)
Housing Color	White
Pitch	4 mm [ .157 in ]
Connector Height	10.35 mm [ .407 in ]
Product Length	18.8 mm [ .74 in ]
Product Width	12.2 mm [ .48 in ]
Shielded	No
Package Qty	2400
Body Material	PA GF
Max Temperature	105 °C [ 221 °F ]
Package Method	Box
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Termination	Crimp
Position Assurance	Yes
Termination Point	Wire & Cable	Connector System	Cable-to-Cable
Sealable	No	Row Count	1
Position Count	2	Key Code	B
Pin Diameter	.4 mm [ .015 in ]	Mount Type	Cable Mount (Free-Hanging)
Housing Color	White	Pitch	4 mm [ .157 in ]
Connector Height	10.35 mm [ .407 in ]	Product Length	18.8 mm [ .74 in ]
Product Width	12.2 mm [ .48 in ]	Shielded	No
Package Qty	2400	Body Material	PA GF
Max Temperature	105 °C [ 221 °F ]	Package Method	Box
Primary Lock	On the Terminal	Housing Type	Housing for Female Terminals
Cable Exit Angle	180°	Cable Termination	Crimp
Position Assurance	Yes

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	No
Row Count	1
Position Count	2
Key Code	B
Pin Diameter	.4 mm [ .015 in ]
Mount Type	Cable Mount (Free-Hanging)
Housing Color	White
Pitch	4 mm [ .157 in ]
Connector Height	10.35 mm [ .407 in ]
Product Length	18.8 mm [ .74 in ]
Product Width	12.2 mm [ .48 in ]
Shielded	No
Package Qty	2400
Body Material	PA GF
Max Temperature	105 °C [ 221 °F ]
Temperature Range	-40 – 105 °C [ -40 – 221 °F ]
Package Method	Box
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Termination	Crimp
Cable Type	RTK 031
Position Assurance	Yes
