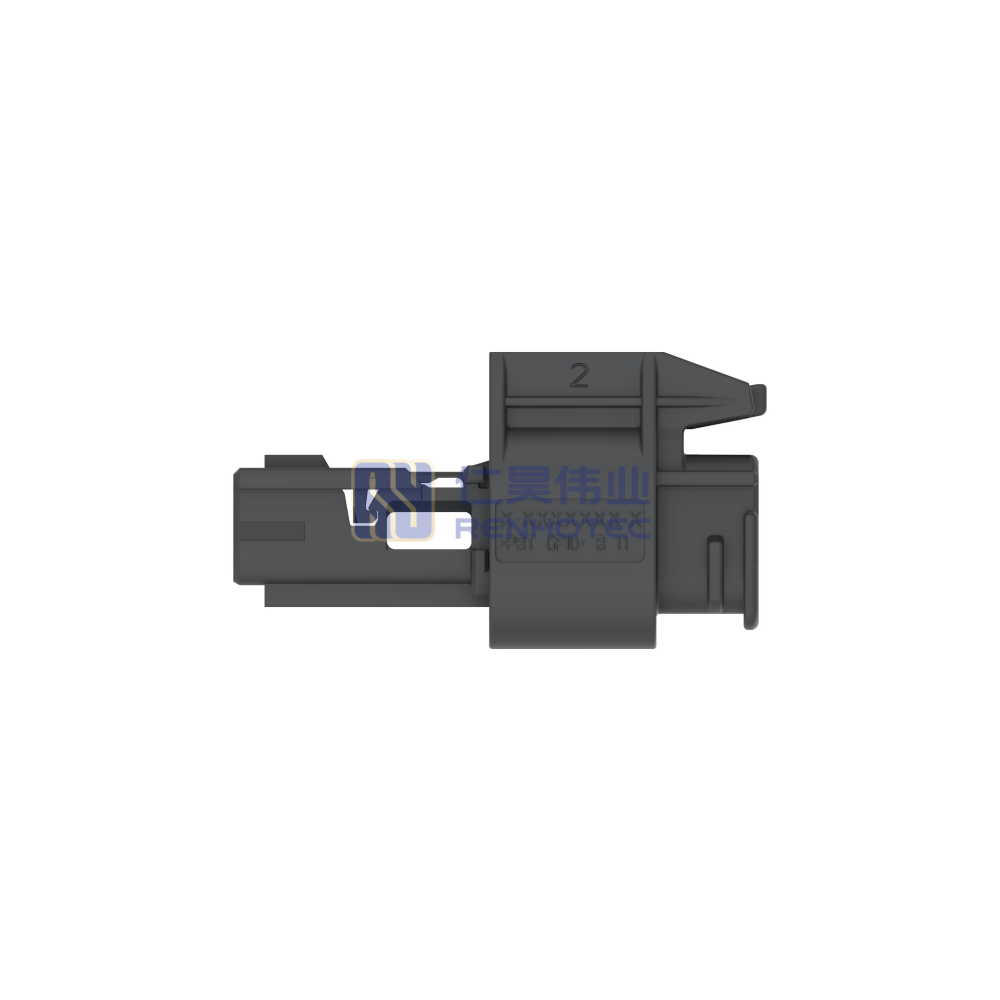

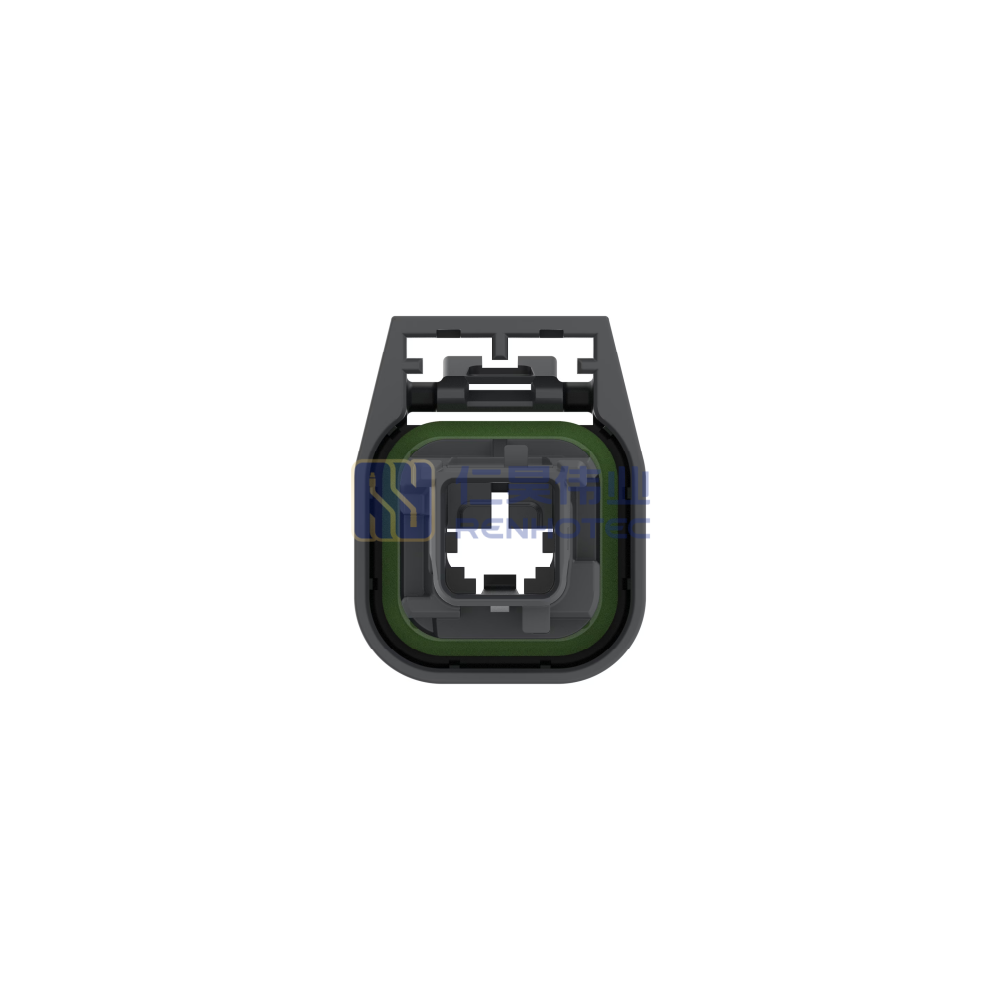

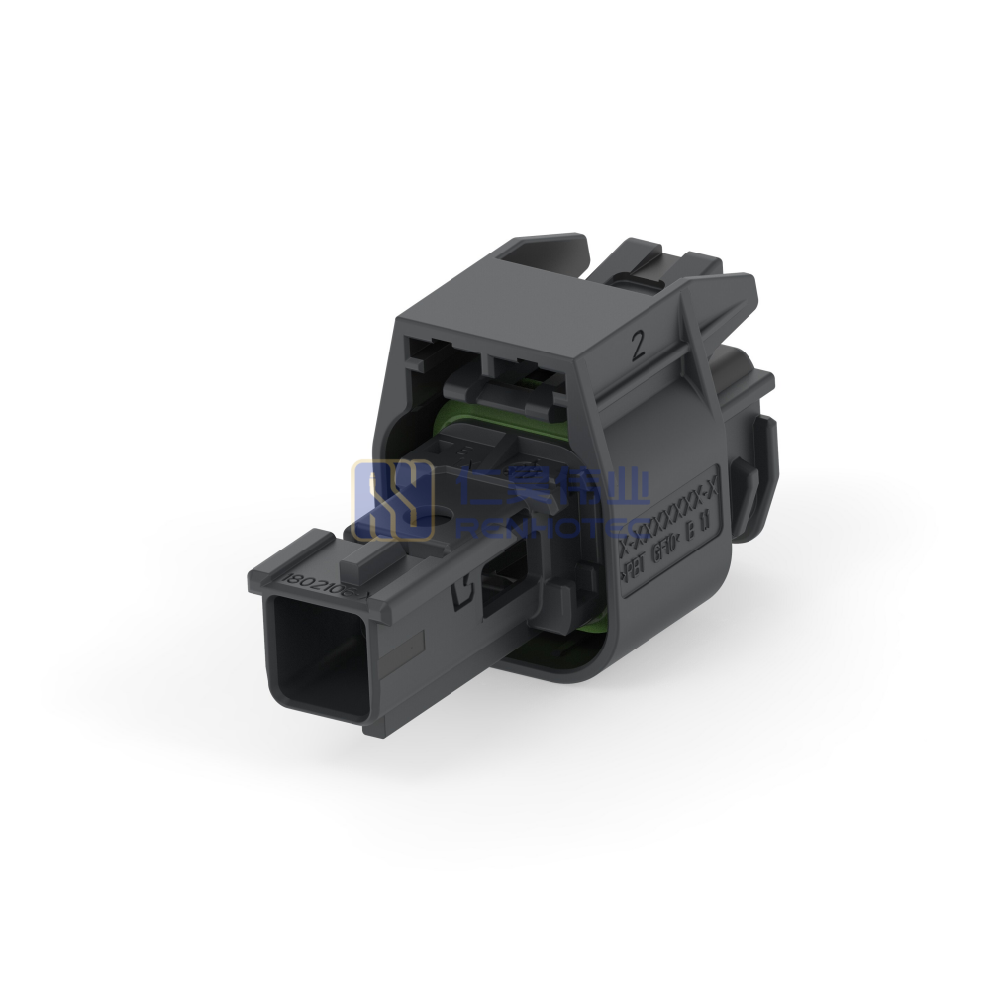

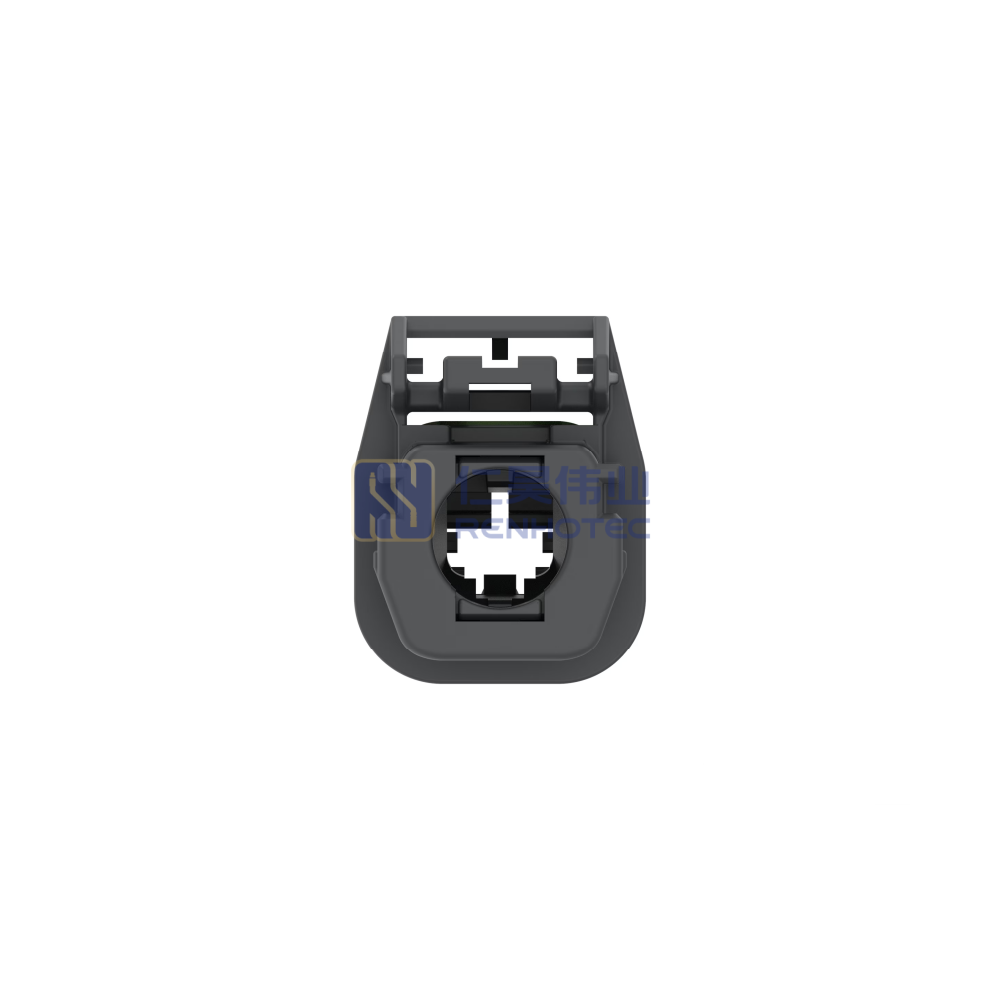

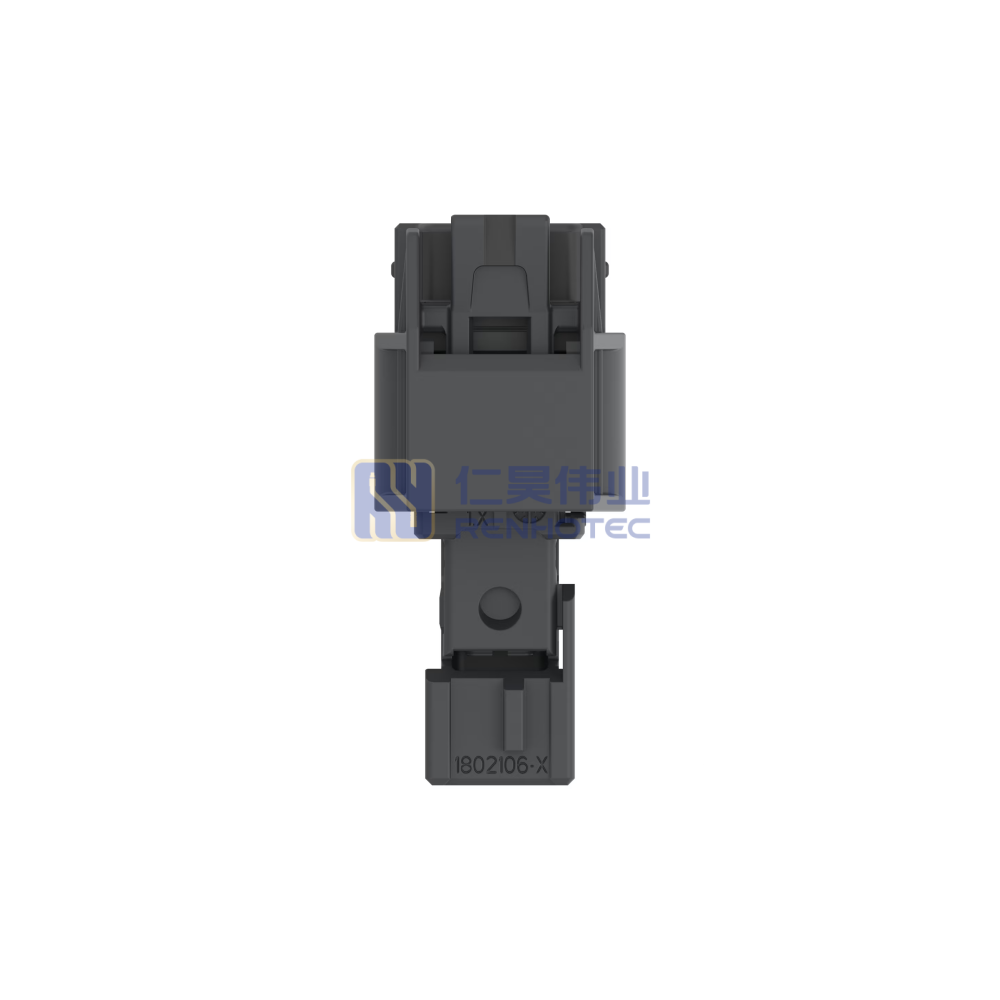

Cable-to-Board / Cable-to-Cable, Sealable, 180° Cable Exit, 1 Position, A Code, Housing for Female Terminals, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Cable-to-Board \| Cable-to-Cable
Sealable	Yes
Row Count	1
Position Count	1
Key Code	A
Mating Retention	Without
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Black
Pitch	1.8 mm [ .071 in ]
Product Length	17.45 mm [ .687 in ]
Shielded	No
Tab Width	.5 mm [ .02 in ]
Tab Thickness	.4 mm [ .016 in ]
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Snap Lock	With
Ferrule	Without
Cable Exit Angle	180°
Cable Termination	Crimp
Frequency Range GHz	0 – .6
Nominal Voltage V	60
Max Temperature C	65 \| 70 \| 75 \| 80 \| 85 \| 90 \| 100 \| 105
Max Temperature F	221
Height mm	18.6
Width mm	33
Termination Point	Wire & Cable	Connector System	Cable-to-Board \| Cable-to-Cable
Sealable	Yes	Row Count	1
Position Count	1	Key Code	A
Mating Retention	Without	Mount Type	Cable Mount (Free-Hanging)
Housing Color	Black	Pitch	1.8 mm [ .071 in ]
Product Length	17.45 mm [ .687 in ]	Shielded	No
Tab Width	.5 mm [ .02 in ]	Tab Thickness	.4 mm [ .016 in ]
Primary Lock	On the Terminal	Housing Type	Housing for Female Terminals
Snap Lock	With	Ferrule	Without
Cable Exit Angle	180°	Cable Termination	Crimp
Frequency Range GHz	0 – .6	Nominal Voltage V	60
Max Temperature C	65 \| 70 \| 75 \| 80 \| 85 \| 90 \| 100 \| 105	Max Temperature F	221
Height mm	18.6	Width mm	33

Termination Point	Wire & Cable
Connector System	Cable-to-Board \| Cable-to-Cable
Sealable	Yes
Row Count	1
Position Count	1
Key Code	A
Mating Retention	Without
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Black
Pitch	1.8 mm [ .071 in ]
Product Length	17.45 mm [ .687 in ]
Shielded	No
Tab Width	.5 mm [ .02 in ]
Tab Thickness	.4 mm [ .016 in ]
Temperature Range	-40 – 105 °C [ -40 – 221 °F ]
Impedance Ω	100
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Snap Lock	With
Ferrule	Without
Cable Exit Angle	180°
Cable Termination	Crimp
Cable Type	UTP
Frequency Range GHz	0 – .6
Nominal Voltage V	60
Max Temperature C	65 \| 70 \| 75 \| 80 \| 85 \| 90 \| 100 \| 105
Max Temperature F	221
Height mm	18.6
Width mm	33
