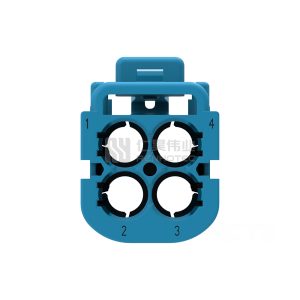

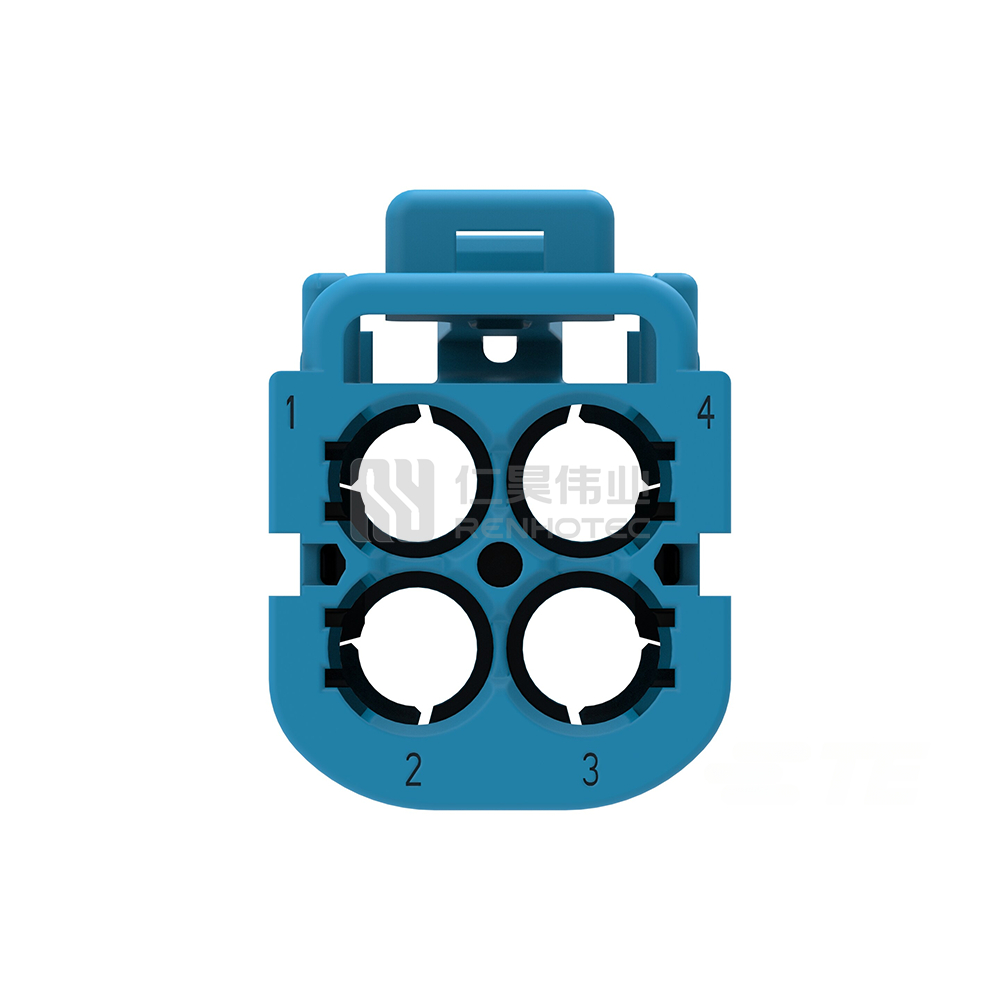

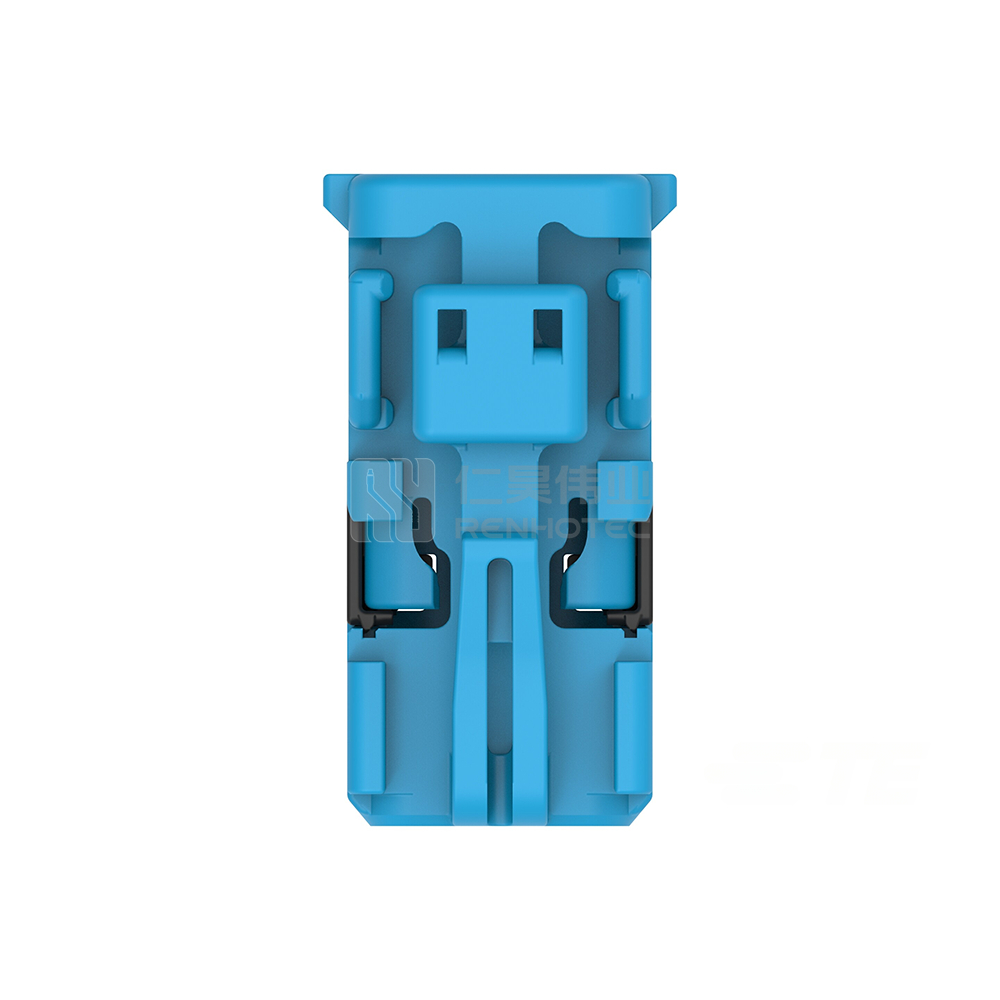

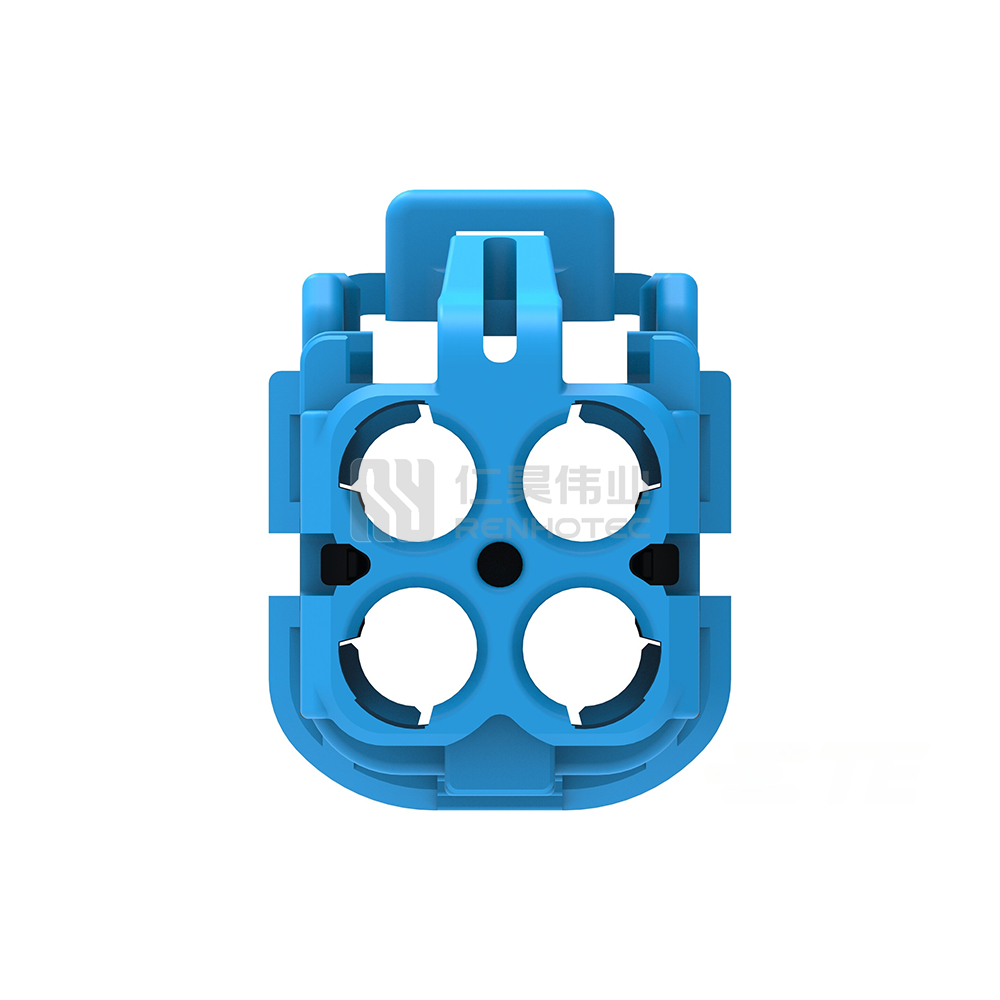

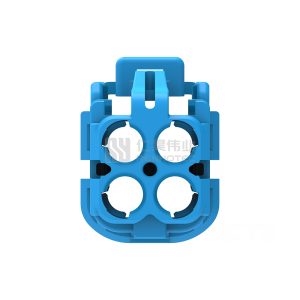

Cable-to-Board, 180° Cable Exit, 4 Position, C Code, Housing for Female Terminals, 4 mm Centerline, Crimp, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Cable-to-Board
Sealable	No
Row Count	2
Position Count	4
Key Code	C
Contact Plating	Gold (Au)
Center Contact Plating	Gold (Au)
Pin Diameter	.4 mm [ .016 in ]
Max Current A	1
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Light Blue
Pitch	4 mm [ .157 in ]
Shielded	No
Circuit Application	Signal
Max Temperature	105 °C [ 221 °F ]
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Termination	Crimp
Position Assurance	No
Termination Point	Wire & Cable	Connector System	Cable-to-Board
Sealable	No	Row Count	2
Position Count	4	Key Code	C
Contact Plating	Gold (Au)	Center Contact Plating	Gold (Au)
Pin Diameter	.4 mm [ .016 in ]	Max Current A	1
Mount Type	Cable Mount (Free-Hanging)	Housing Color	Light Blue
Pitch	4 mm [ .157 in ]	Shielded	No
Circuit Application	Signal	Max Temperature	105 °C [ 221 °F ]
Primary Lock	On the Terminal	Housing Type	Housing for Female Terminals
Cable Exit Angle	180°	Cable Termination	Crimp
Position Assurance	No

Termination Point	Wire & Cable
Connector System	Cable-to-Board
Sealable	No
Row Count	2
Position Count	4
Key Code	C
Contact Type	Receptacle
Contact Plating	Gold (Au)
Center Contact Plating	Gold (Au)
Pin Diameter	.4 mm [ .016 in ]
Max Current A	1
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Light Blue
Pitch	4 mm [ .157 in ]
Shielded	No
Circuit Application	Signal
Max Temperature	105 °C [ 221 °F ]
Temperature Range	-40 – 105 °C [ -40 – 221 °F ]
Impedance Ω	50
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Termination	Crimp
Cable Type	Coaxial
Position Assurance	No
