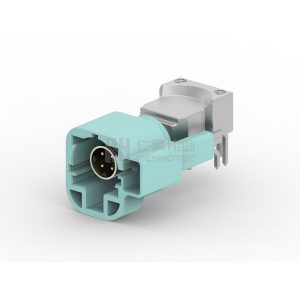

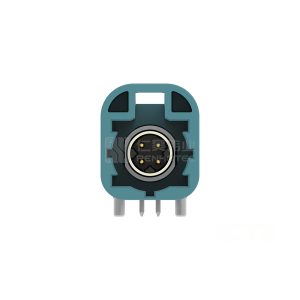

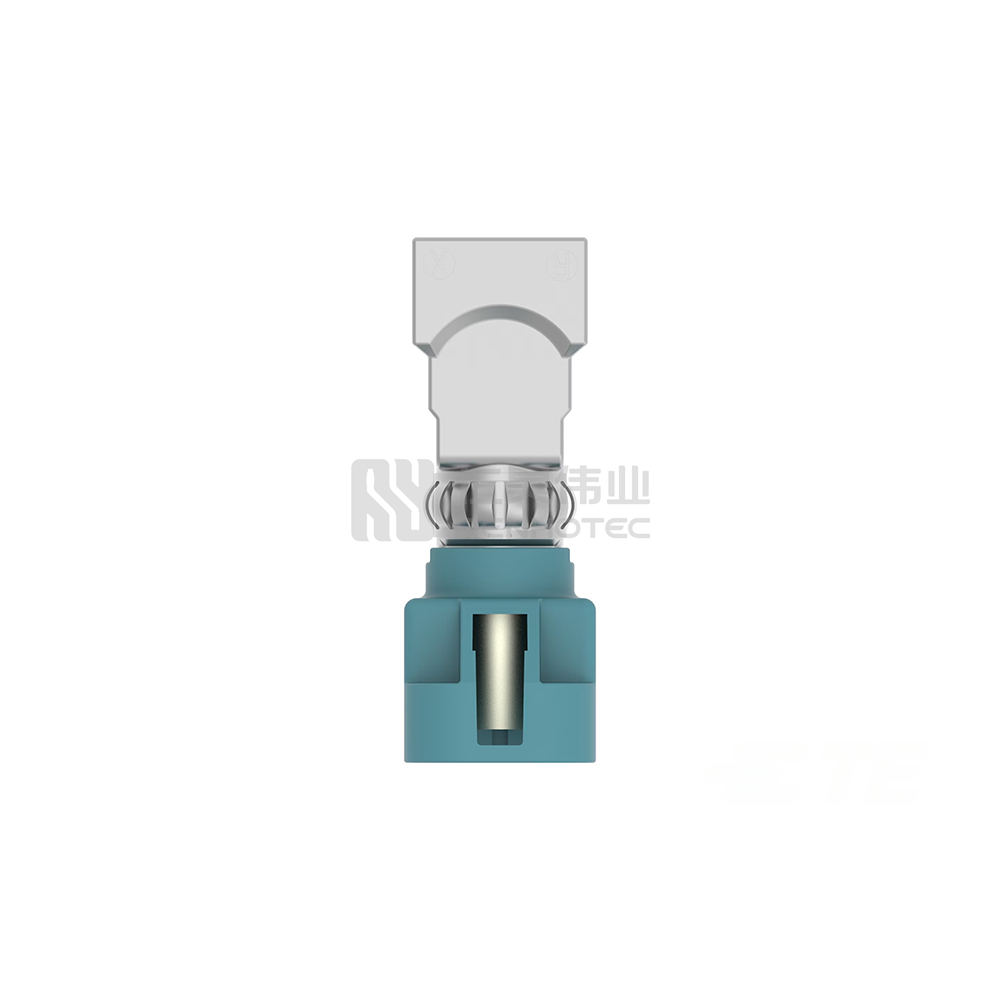

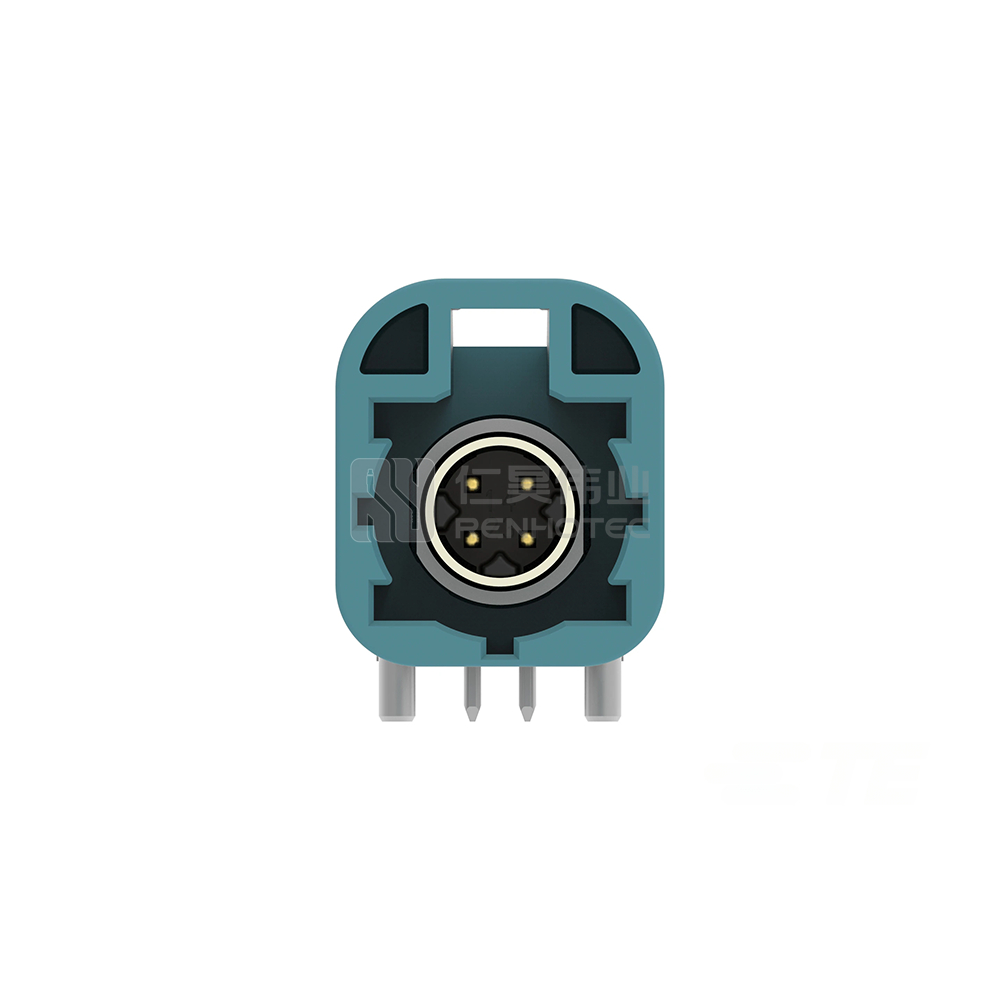

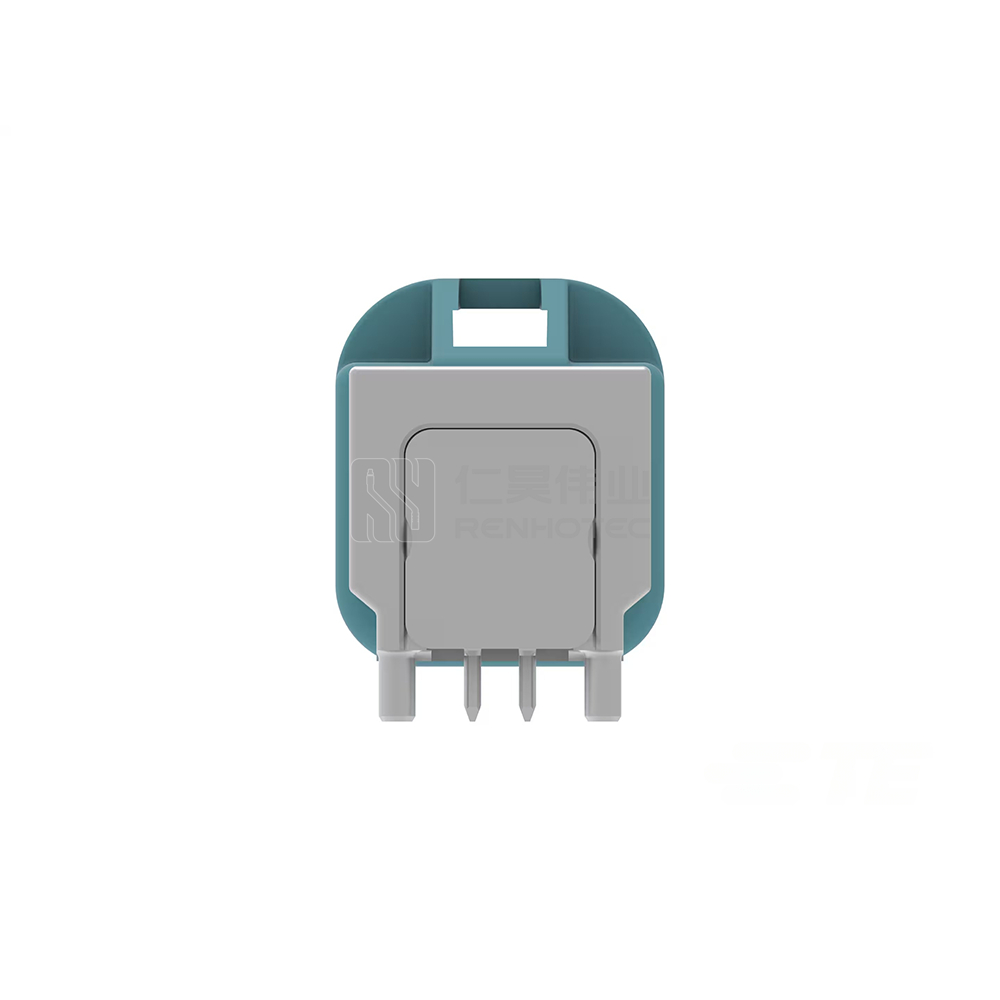

Board-to-Board / Wire-to-Board, Shielded, Horizontal, 4 Position, Board Mount, Z Code, Automotive HSD, Data Connectivity Headers

HSD connectors provide connectivity solutions for automotive infotainment modules, cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive data transmission rates up to 6 GHz.
The connector product portfolio can be combined with 1-channel and 4-channel LVDS, IEEE 1394, GVIF, eMOST, and USB 2.0 protocols. These high-speed connectors are compatible with the German AK HSD interface, USCAR 30 (Mini USB) and designated shield connection systems. These connectors can be used for sealing applications.

HSD stands for High Speed Data and is a 4-pin interface that can be used to create shielded high-speed connection systems. The interface is designed based on the “star-four principle”, which means that the opposite wires form a wire pair.

HSD plug and jack in schematic view with pin assignment

Code A B C D E F G
Color Jet black Cream Signal blue Claret violet Leaf green Nut brown Blue grey
Male
Female
Code H J K L M O Z
Color Heather violet Beige Curry Yellow green Pastel orange Pastel green Water blue
Male
Female


As included in the name, HSD serves the high speed data transfer. In addition to the interference safety just described, HSD offers high signal quality, which is why its main area of application is the automotive industry.

  • connects components of electrical engineering and electronics in vehicles
  • offers connection solutions for vehicle infotainment modules, camereas, device connectors for vehicle occupants and screens
  • creating connections for driver assistance systems

HSD connector systems can transmit USB signals, signals from LVDS cameras or from IEEE 1394. This makes HSD suitable for digital infotainment applications or head-up displays, HD entertainment, symmetrical networks, Ethernet data connections, telematics, video transmission via GVIF and also mobile phone base stations.

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues
good reviews

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Termination Point

Printed Circuit Board
Connector System

Board-to-Board | Wire-to-Board
Sealable

No
Row Count

2
PCB Orientation

Horizontal
Position Count

4
Key Code

Z
Center Contact

With
Contact Plating

Gold (Au)
Center Contact Plating

Gold (Au)
Pin Diameter

.6 mm [ .02 in ]
Max Current A

2.5
PCB Termination

Through Hole – Solder
Mating Retention

With
PCB Retention

With
Mount Type

Board Mount
Housing Color

Water Blue
Pitch

2 mm [ .07 in ]
Connector Height

13.95 mm [ .549 in ]
Product Length

12 mm [ .472 in ]
Product Width

32.85 mm [ 1.293 in ]
Operating Voltage VDC

60
Body Material

PPA GF25 | Zinc Alloy
Outer Contact Plating

Tin (Sn)
PCB Retention Type

Solder Tail
Max Temperature

105 °C [ 221 °F ]
PCB Retention Plating

Tin
Termination Point

Printed Circuit Board

 Connector System

Board-to-Board | Wire-to-Board
Sealable

No

 Row Count

2
PCB Orientation

Horizontal

 Position Count

4
Key Code

Z

 Center Contact

With
Contact Plating

Gold (Au)

 Center Contact Plating

Gold (Au)
Pin Diameter

.6 mm [ .02 in ]

 Max Current A

2.5
PCB Termination

Through Hole – Solder

 Mating Retention

With
PCB Retention

With

 Mount Type

Board Mount
Housing Color

Water Blue

 Pitch

2 mm [ .07 in ]
Connector Height

13.95 mm [ .549 in ]

 Product Length

12 mm [ .472 in ]
Product Width

32.85 mm [ 1.293 in ]

 Operating Voltage VDC

60
Body Material

PPA GF25 | Zinc Alloy

 Outer Contact Plating

Tin (Sn)
PCB Retention Type

Solder Tail

 Max Temperature

105 °C [ 221 °F ]
PCB Retention Plating

Tin

Product Specification

Contact Type

Pin
Contact Type

Pin
Termination Point

Printed Circuit Board
Connector System

Board-to-Board | Wire-to-Board
Sealable

No
Row Count

2
PCB Orientation

Horizontal
Position Count

4
Key Code

Z
Contact Type

Pin
Center Contact

With
Contact Plating

Gold (Au)
Center Contact Plating

Gold (Au)
Pin Diameter

.6 mm [ .02 in ]
Max Current A

2.5
PCB Termination

Through Hole – Solder
Mating Retention

With
PCB Retention

With
Mount Type

Board Mount
Housing Color

Water Blue
Pitch

2 mm [ .07 in ]
Connector Height

13.95 mm [ .549 in ]
Product Length

12 mm [ .472 in ]
Product Width

32.85 mm [ 1.293 in ]
Operating Voltage VDC

60
Body Material

PPA GF25 | Zinc Alloy
Outer Contact Plating

Tin (Sn)
PCB Retention Type

Solder Tail
Max Temperature

105 °C [ 221 °F ]
PCB Retention Plating

Tin
Impedance Ω

100
