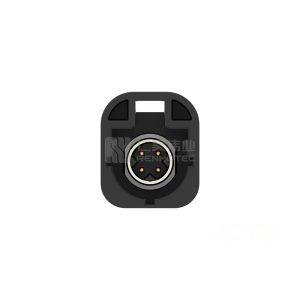

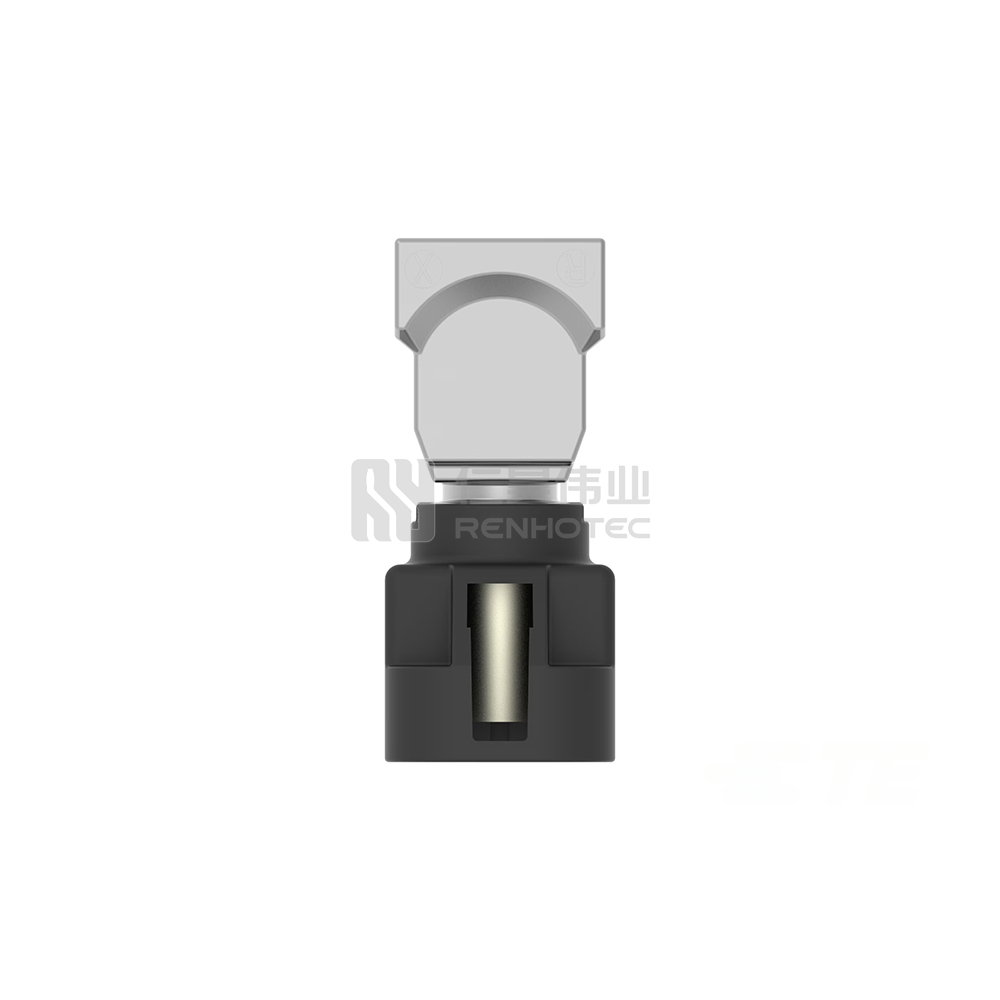

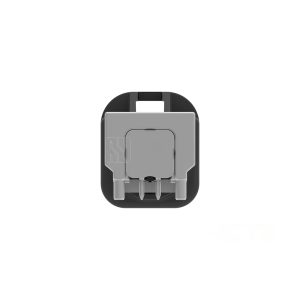

Board-to-Board / Wire-to-Board, Shielded, Horizontal, 4 Position, Board Mount, A Code, Automotive HSD, Data Connectivity Headers
| Body Material | PA6T/6 GF25 | Zinc Alloy |
||
|---|---|---|---|
| Center Contact | With |
||
| Center Contact Plating | Gold (Au) |
||
| Connector Height | 10.95 mm [ .431 in ] |
||
| Connector System | Board-to-Board | Wire-to-Board |
||
| Contact Plating | Gold (Au) |
||
| Housing Color | Black |
||
| Key Code | A |
||
| Mating Retention | With |
||
| Max Current A | 2.5 |
||
| Max Temperature | 105 °C [ 221 °F ] |
||
| Mount Type | Board Mount |
||
| Operating Voltage VDC | 60 |
||
| Outer Contact Plating | Tin (Sn) |
||
| PCB Orientation | Horizontal |
||
| PCB Retention | With |
||
| PCB Retention Plating | Tin |
||
| PCB Retention Type | Solder Tail |
||
| PCB Termination | Through Hole – Solder |
||
| Pin Diameter | .6 mm [ .02 in ] |
||
| Pitch | 2 mm [ .07 in ] |
||
| Product Length | 12 mm [ .472 in ] |
||
| Product Width | 27.3 mm [ 1.074 in ] |
||
| Row Count | 2 |
||
| Sealable | No |
||
| Termination Point | Printed Circuit Board |
||
| Body Material | PA6T/6 GF25 | Zinc Alloy |
Center Contact | With |
| Center Contact Plating | Gold (Au) |
Connector Height | 10.95 mm [ .431 in ] |
| Connector System | Board-to-Board | Wire-to-Board |
Contact Plating | Gold (Au) |
| Housing Color | Black |
Key Code | A |
| Mating Retention | With |
Max Current A | 2.5 |
| Max Temperature | 105 °C [ 221 °F ] |
Mount Type | Board Mount |
| Operating Voltage VDC | 60 |
Outer Contact Plating | Tin (Sn) |
| PCB Orientation | Horizontal |
PCB Retention | With |
| PCB Retention Plating | Tin |
PCB Retention Type | Solder Tail |
| PCB Termination | Through Hole – Solder |
Pin Diameter | .6 mm [ .02 in ] |
| Pitch | 2 mm [ .07 in ] |
Product Length | 12 mm [ .472 in ] |
| Product Width | 27.3 mm [ 1.074 in ] |
Row Count | 2 |
| Sealable | No |
Termination Point | Printed Circuit Board |
Product Specification
| Contact Type | Pin |
||
|---|---|---|---|
| Impedance | 100 ohm |
||
| Number of Ports | 4 |
||
| Orientation | Right Angle |
||
| Contact Type | Pin |
Impedance | 100 ohm |
| Number of Ports | 4 |
Orientation | Right Angle |
| Body Material | PA6T/6 GF25 | Zinc Alloy |
|---|---|
| Center Contact | With |
| Center Contact Plating | Gold (Au) |
| Connector Height | 10.95 mm [ .431 in ] |
| Connector System | Board-to-Board | Wire-to-Board |
| Contact Plating | Gold (Au) |
| Contact Type | Pin |
| Housing Color | Black |
| Impedance | 100 ohm |
| Key Code | A |
| Mating Retention | With |
| Max Current A | 2.5 |
| Max Temperature | 105 °C [ 221 °F ] |
| Mount Type | Board Mount |
| Number of Ports | 4 |
| Operating Voltage VDC | 60 |
| Orientation | Right Angle |
| Outer Contact Plating | Tin (Sn) |
| PCB Orientation | Horizontal |
| PCB Retention | With |
| PCB Retention Plating | Tin |
| PCB Retention Type | Solder Tail |
| PCB Termination | Through Hole – Solder |
| Pin Diameter | .6 mm [ .02 in ] |
| Pitch | 2 mm [ .07 in ] |
| Product Length | 12 mm [ .472 in ] |
| Product Width | 27.3 mm [ 1.074 in ] |
| Row Count | 2 |
| Sealable | No |
| Termination Point | Printed Circuit Board |
HSD connectors provide connectivity solutions for automotive infotainment modules, GMSL/GMSL2 cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive requirements up to 6 Gbps. It is engineered to support leading SerDes protocols with superior signal integrity.
These connectors can be combined with GMSL2, LVDS, IEEE 1394, and USB 2.0. Our high-speed solutions are compatible with the German AK HSD interface and support protocols compliant with USCAR 30.
HSD plug and jack in schematic view with pin assignment
| Code | A | B | C | D | E | F | G |
| Color | Jet black | Cream | Signal blue | Claret violet | Leaf green | Nut brown | Blue grey |
| Male |  |
 |
 |
 |
 |
 |
 |
| Female |  |
 |
 |
 |
 |
 |
 |
| Code | H | J | K | L | M | O | Z |
| Color | Heather violet | Beige | Curry | Yellow green | Pastel orange | Pastel green | Water blue |
| Male |  |
 |
 |
 |
 |
 |
 |
| Female |  |
 |
 |
 |
 |
 |
 |
HSD stands for High Speed Data and is a high-density interface available in 1-pin, 4-pin, 6-pin (4+2), and 4+4 pin (Dual HSD) configurations to meet various data and power needs. The core 4-pin data interface is designed based on the “star-four principle”, where the opposite wires form a balanced wire pair to minimize crosstalk and EMI. As the name implies, HSD is dedicated to high-speed data transfer, offering high signal quality and interference safety for the demanding automotive industry. Key Applications:
