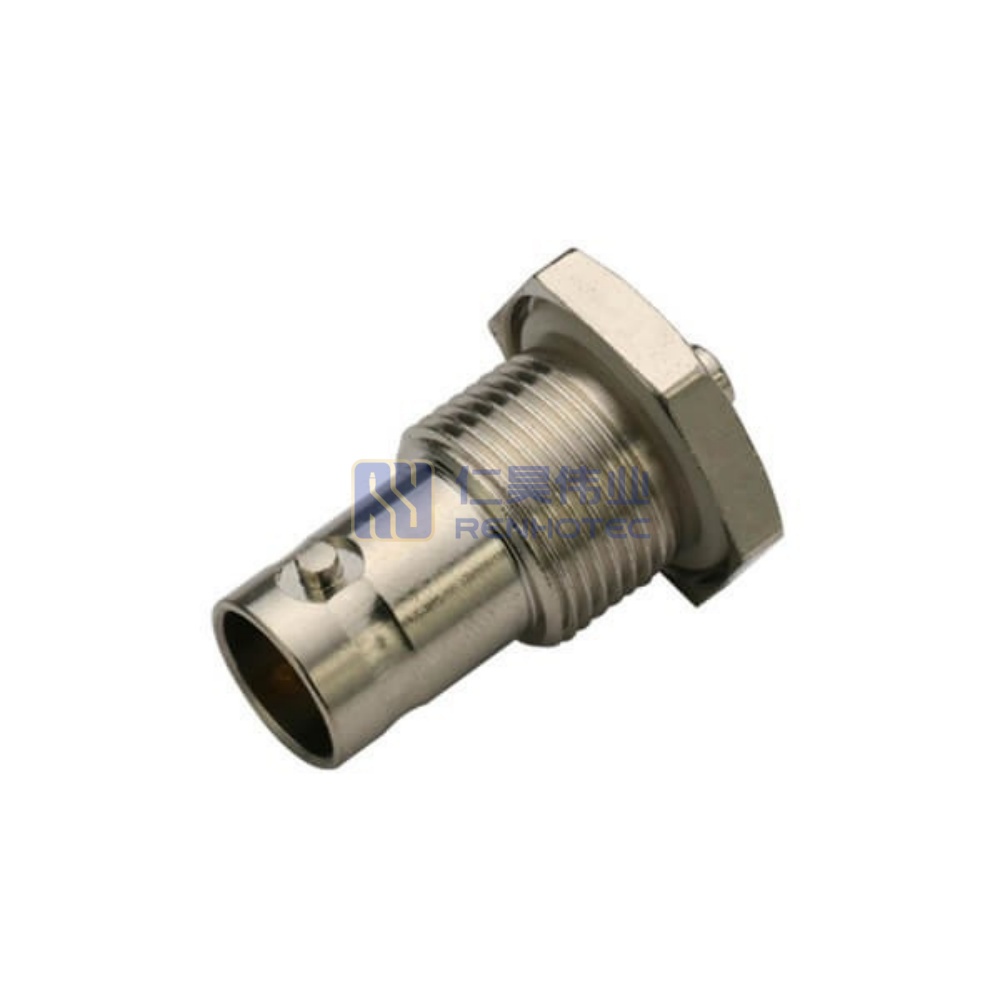

BNC Connector Straight Jack Cable/Panel Mount Solder – RHT-610-0217
- Easy solder installation for panel or cable mount BNC connections
- Straight jack design for tight-space RF and video setups
- Durable construction withstands frequent plug/unplug cycles
- Compatible with standard RG-series cables for clean signal transfer
- Ideal for test equipment, CCTV, and telecom applications
| Body Material | Cooper |
||
|---|---|---|---|
| Connector Style | BNC Connector |
||
| Mount Feature | Bulkhead |
||
| Termination | Solder |
||
| Body Material | Cooper |
Connector Style | BNC Connector |
| Mount Feature | Bulkhead |
Termination | Solder |
| Connector Type | Jack |
||
|---|---|---|---|
| Contact Finish | Gold Plating |
||
| Contact Material | Copper |
||
| Contact Type | Female Pin |
||
| Fastening Type | Bayonet |
||
| Ingress Protection | IP65 |
||
| Insulator Material | Teflon White |
||
| Mounting Type | Cable/Panel Mount |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| Shell Finish | Nickel Plating |
||
| Suitable Cable | RG316 |
||
| Connector Type | Jack |
Contact Finish | Gold Plating |
| Contact Material | Copper |
Contact Type | Female Pin |
| Fastening Type | Bayonet |
Ingress Protection | IP65 |
| Insulator Material | Teflon White |
Mounting Type | Cable/Panel Mount |
| Number of Ports | 1 |
Orientation | Straight |
| Shell Finish | Nickel Plating |
Suitable Cable | RG316 |
| Body Material | Cooper |
|---|---|
| Connector Style | BNC Connector |
| Connector Type | Jack |
| Contact Finish | Gold Plating |
| Contact Material | Copper |
| Contact Type | Female Pin |
| Fastening Type | Bayonet |
| Frequency(Max） | 4G |
| Ingress Protection | IP65 |
| Insulator Material | Teflon White |
| Mount Feature | Bulkhead |
| Mounting Type | Cable/Panel Mount |
| Number of Ports | 1 |
| Orientation | Straight |
| Shell Finish | Nickel Plating |
| Suitable Cable | RG316 |
| Termination | Solder |
Drawing for BNC Connector Straight Jack Cable/Panel Mount SolderDownload
