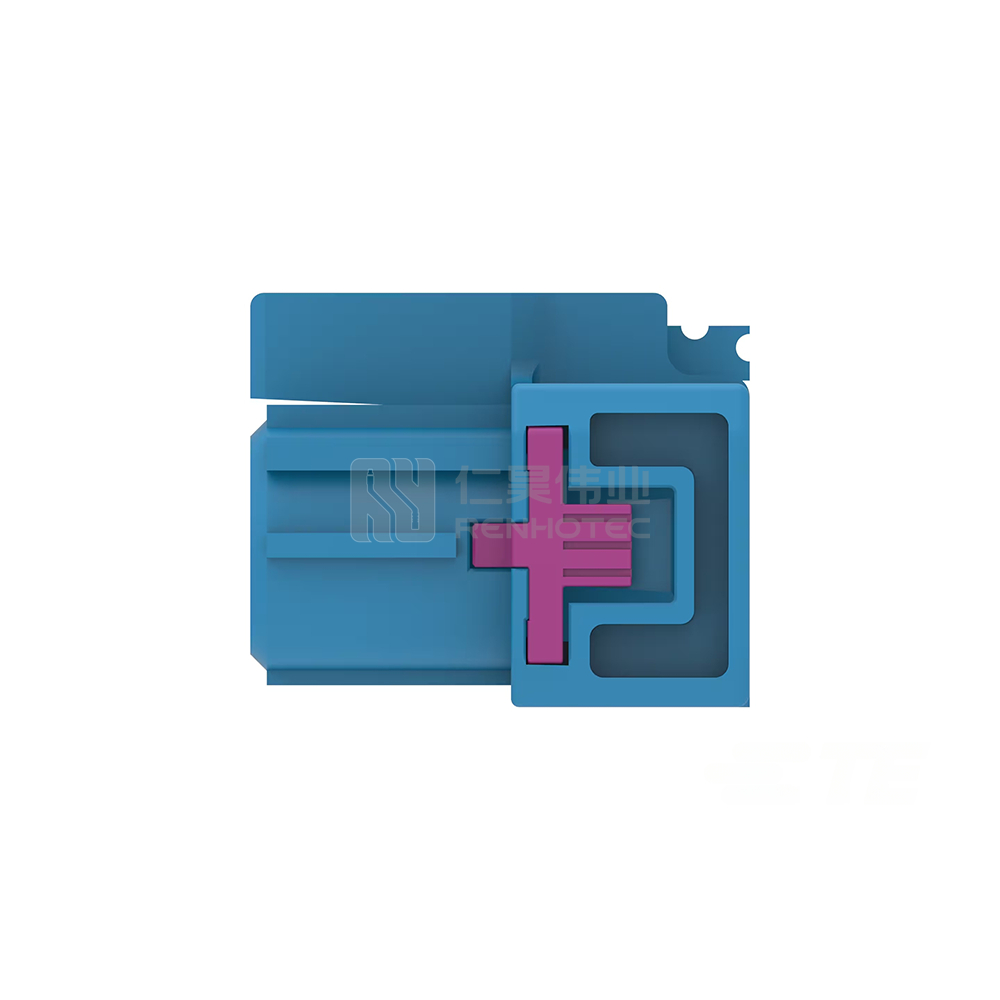

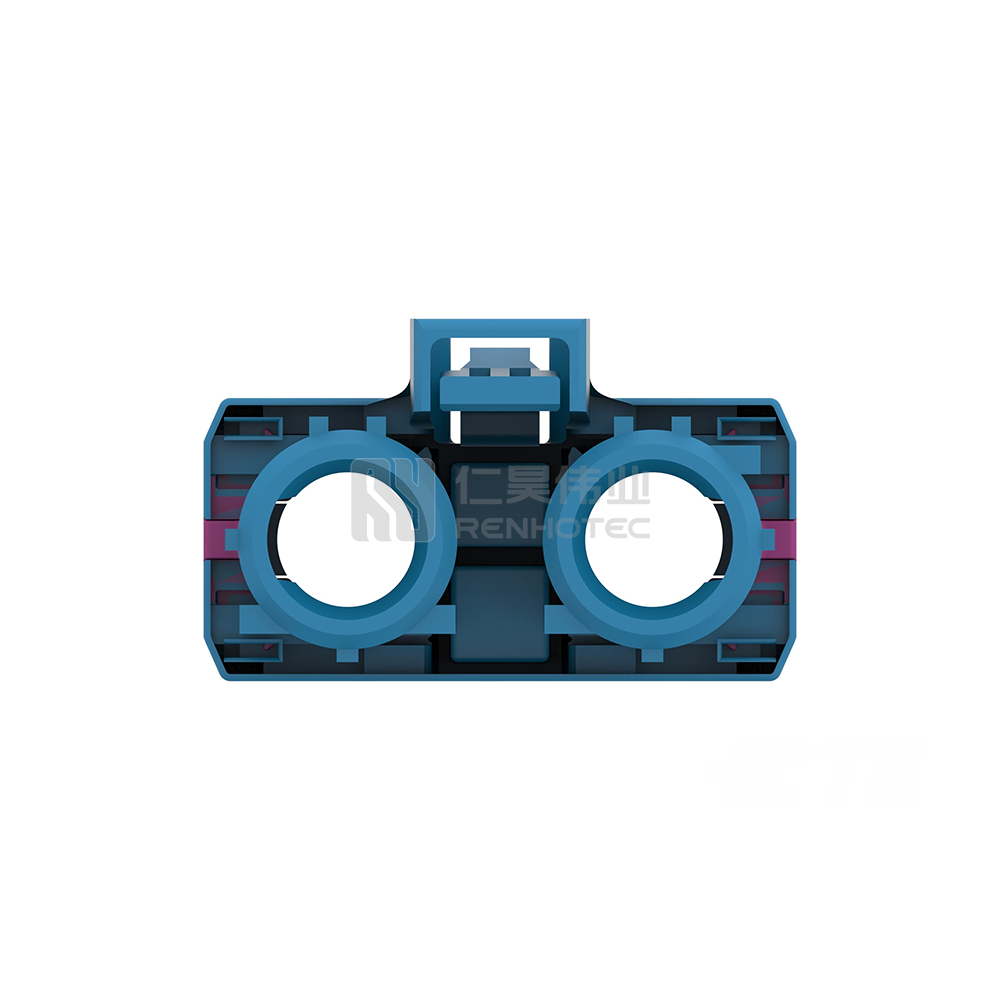

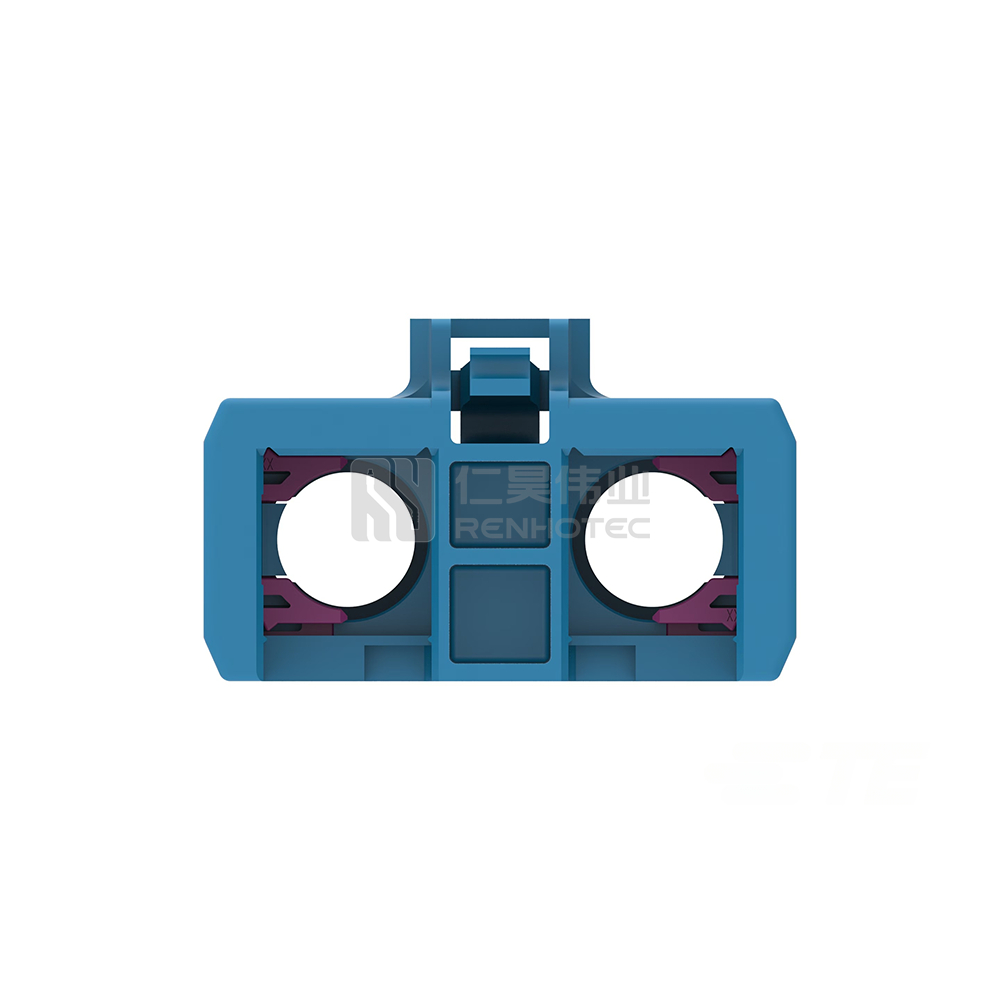

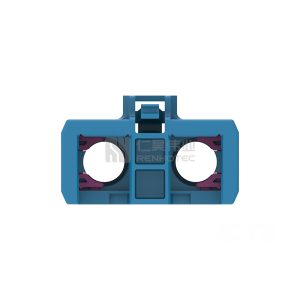

90° Cable Exit, 8 Position, C Code, Housing for Female Terminals, 12.7 mm Centerline, Crimp, Automotive HSD, Data Connectivity Housings

Termination Point	Wire & Cable
Sealable	No
Row Count	1
Position Count	8
Key Code	C
Center Contact	Without
Contact Plating	Unplated
Pin Diameter	.6 mm [ .024 in ]
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Blue
Pitch	12.7 mm [ .5 in ]
Connector Height	15.1 mm [ .6 in ]
Product Length	27.9 mm [ 1.09 in ]
Product Width	18.2 mm [ .71 in ]
Body Material	PBT GF
Primary Lock	Clean Body
Housing Type	Housing for Female Terminals
Snap Lock	With
Cable Exit Type	Fixed
Ferrule	Without
Cable Exit Angle	90°
Cable Termination	Crimp
Panel Style	Rear Mount
Termination Point	Wire & Cable	Sealable	No
Row Count	1	Position Count	8
Key Code	C	Center Contact	Without
Contact Plating	Unplated	Pin Diameter	.6 mm [ .024 in ]
Mating Retention	With	Mount Type	Cable Mount (Free-Hanging)
Housing Color	Blue	Pitch	12.7 mm [ .5 in ]
Connector Height	15.1 mm [ .6 in ]	Product Length	27.9 mm [ 1.09 in ]
Product Width	18.2 mm [ .71 in ]	Body Material	PBT GF
Primary Lock	Clean Body	Housing Type	Housing for Female Terminals
Snap Lock	With	Cable Exit Type	Fixed
Ferrule	Without	Cable Exit Angle	90°
Cable Termination	Crimp	Panel Style	Rear Mount

Termination Point	Wire & Cable
Sealable	No
Row Count	1
Position Count	8
Key Code	C
Contact Type	Socket
Center Contact	Without
Contact Plating	Unplated
Pin Diameter	.6 mm [ .024 in ]
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Blue
Pitch	12.7 mm [ .5 in ]
Connector Height	15.1 mm [ .6 in ]
Product Length	27.9 mm [ 1.09 in ]
Product Width	18.2 mm [ .71 in ]
Body Material	PBT GF
Temperature Range	-40 – 105 °C [ -40 – 221 °F ]
Impedance Ω	100
Primary Lock	Clean Body
Housing Type	Housing for Female Terminals
Snap Lock	With
Cable Exit Type	Fixed
Ferrule	Without
Cable Exit Angle	90°
Cable Termination	Crimp
Panel Style	Rear Mount
Cable Type	SSQ
