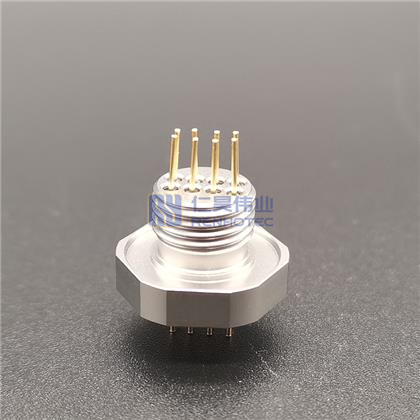

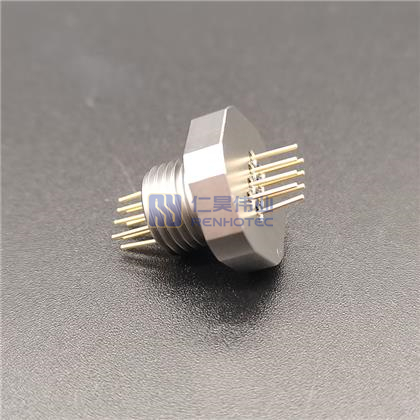

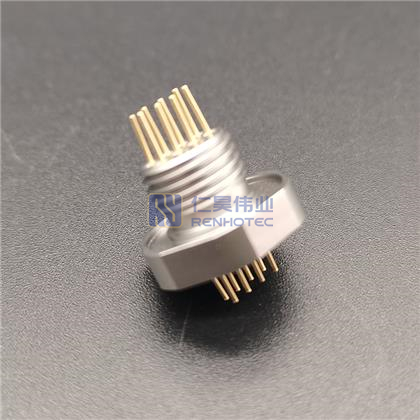

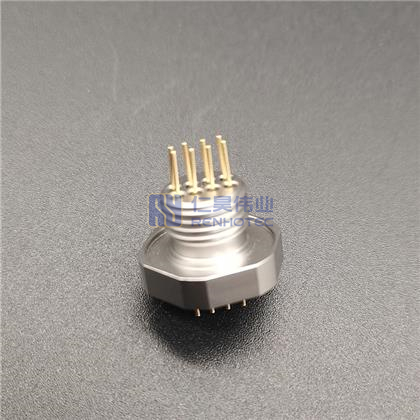

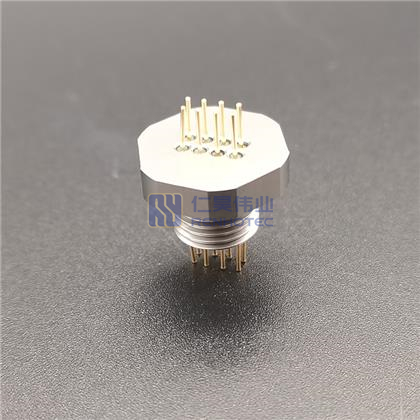

8 Pin Glass to Metal Sealed Hermetic Feedthrough Connector – RHT-10200-08P
- 8-pin glass-to-metal hermetic feedthrough connector designed for superior sealing against moisture, gases, and contaminants.
- Ideal for use in high-pressure, high-temperature environments where reliable electrical connections are essential.
- Offers protection from environmental factors, including moisture, dust, and chemicals, ensuring long-term stability and performance.
- Highly resistant to vibration and shock, making it suitable for demanding applications in aerospace, military, and industrial sectors.
- Custom configurations available to meet specific electrical and mechanical requirements for specialized applications.
- Built for extreme reliability, ensuring secure connections even in challenging conditions like high altitudes and harsh chemical environments.
Glass to Metal Hermetic RF/DC Feedthroughs/Seals /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components. The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The centerconductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.
Structure
Glass insulator is composed of three parts: outer conductor/shell, glass medium and center conductor/pin.Its basic structure is shown in the figure.
Reliability Requirements
Hermeticity
≤1.01325×10-³Pa·cm³/s/s
Salt spray
Glass insulators shall be tested without severe corrosion and spotting.
Temperature shock
There shall be no cosmetic or mechanical damage after testing.
Applications
High Temperature Sensors
Implanted Medical Devices
Batteries and Capacitors
Automotive Airbag
Our Advantages
Production Process
1. Put forward demand
2. Sketch design
3. Production equipment
4. Production measurement
5. Product assembly
6. Quality test
7. Product packaging
8. Product packag box
9. Deliver goods
Product Specification
Number of Positions | 8 Pin |
||
---|---|---|---|
Shell Material | Stainless Steel 304 |
||
Shell Finish | Polishing |
||
Contact Finish | Gold Plated, Ep.Ni5Au0.1 |
||
Insulation Resistance | ≥500 MΩ (500V DC) |
||
Number of Positions | 8 Pin |
Shell Material | Stainless Steel 304 |
Shell Finish | Polishing |
Contact Finish | Gold Plated, Ep.Ni5Au0.1 |
Insulation Resistance | ≥500 MΩ (500V DC) |
Sealing | ≤1×10^-9 Pa·m³/s |
||
---|---|---|---|
Max. Pressure | 40 MPa |
||
Production Technology | Glass Sintering |
||
Customizable | Yes |
||
Sealing | ≤1×10^-9 Pa·m³/s |
Max. Pressure | 40 MPa |
Production Technology | Glass Sintering |
Customizable | Yes |
Number of Positions | 8 Pin |
---|---|
Shell Material | Stainless Steel 304 |
Shell Finish | Polishing |
Contact Finish | Gold Plated, Ep.Ni5Au0.1 |
Sealing | ≤1×10^-9 Pa·m³/s |
Insulation Resistance | ≥500 MΩ (500V DC) |
Max. Pressure | 40 MPa |
Production Technology | Glass Sintering |
Customizable | Yes |
