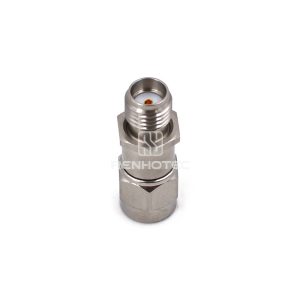

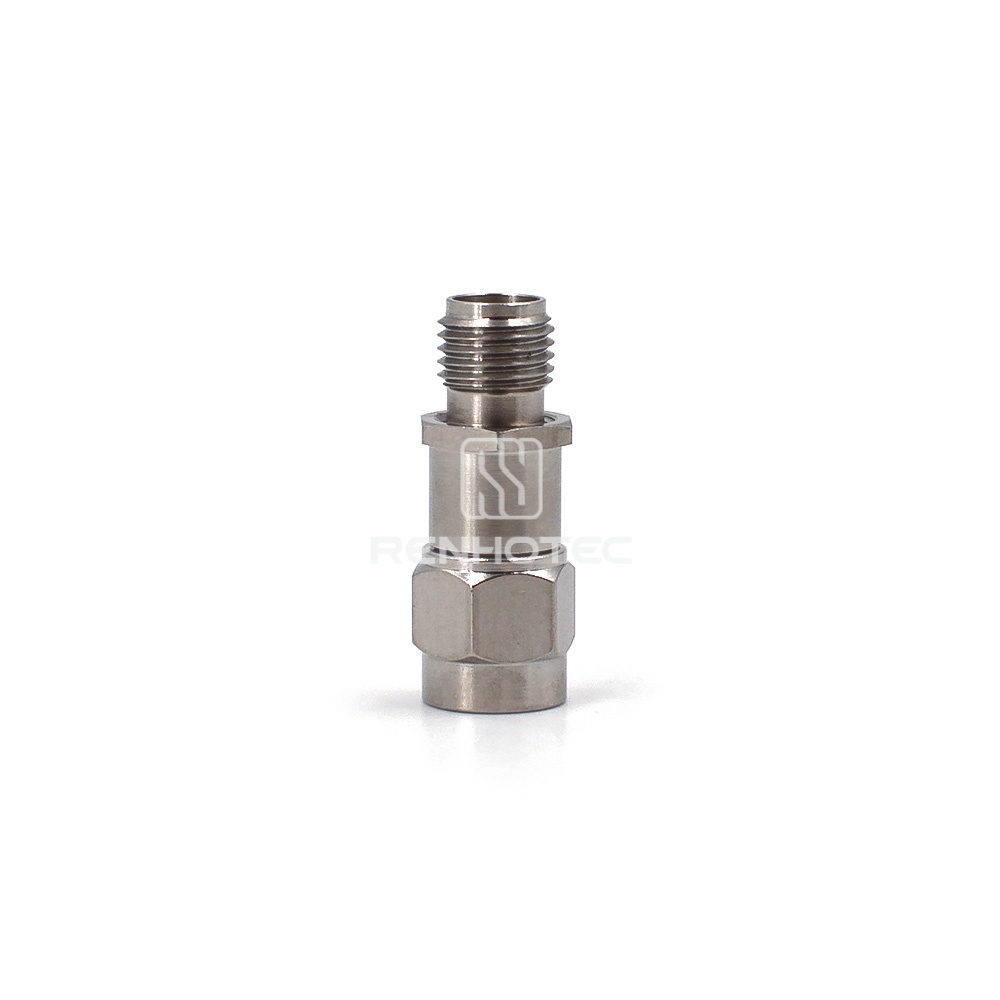

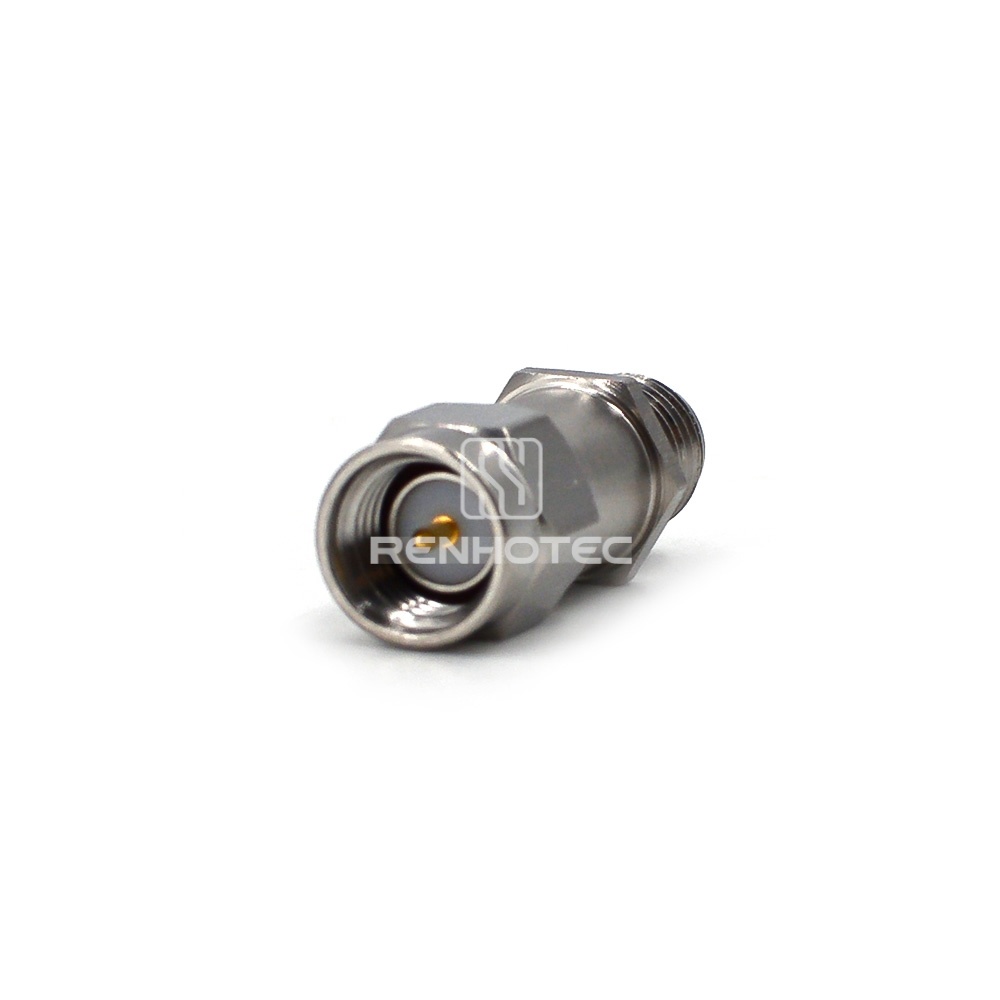

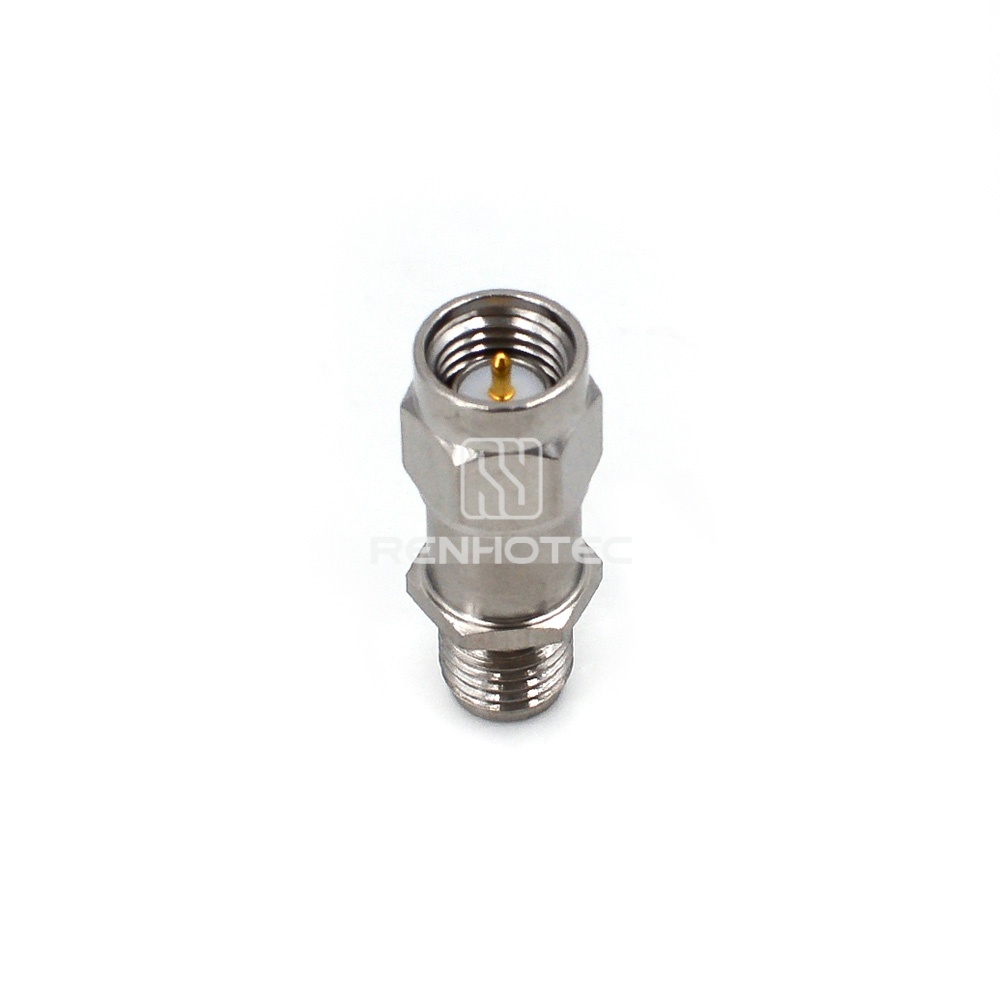

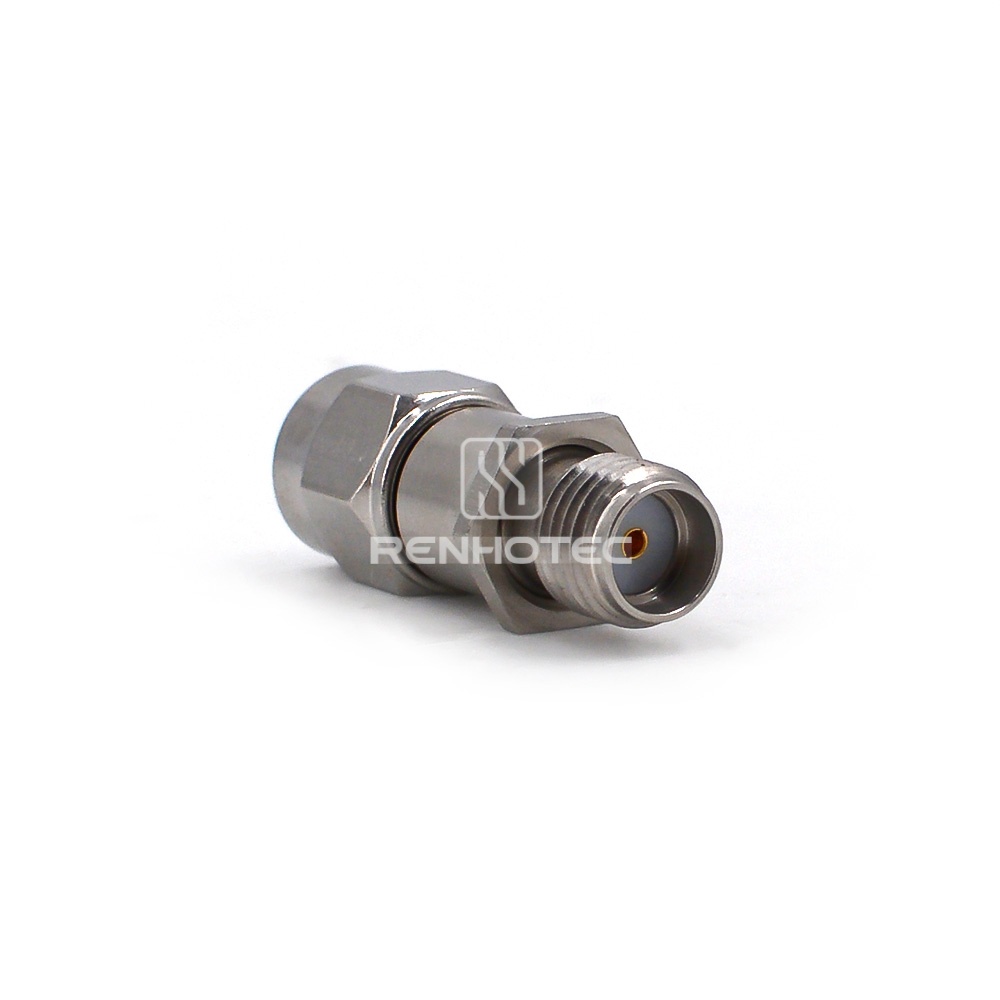

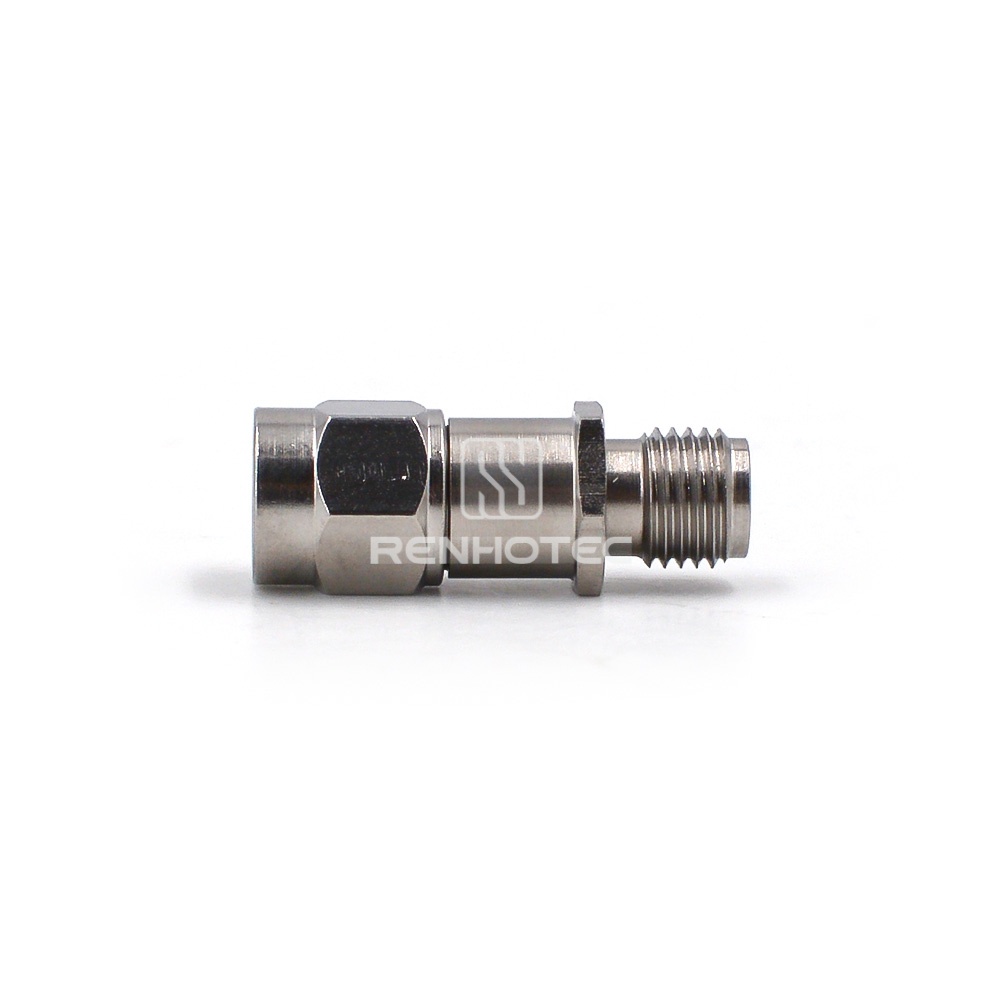

2W SMA Fixed RF Coaxial Attenuator 2dB DC-18GHz
Product Specification
| Frequency Range | DC-18 GHz |
||
|---|---|---|---|
| VSWR | 1.3:1 (max) |
||
| Impedance | 50Ω |
||
| Insulation Resistance | ≥5000MΩ |
||
| Adapter Style | SMA to SMA |
||
| 1st Connector | SMA Plug |
||
| 2nd Connector | SMA Jack |
||
| Frequency Range | DC-18 GHz |
VSWR | 1.3:1 (max) |
| Impedance | 50Ω |
Insulation Resistance | ≥5000MΩ |
| Adapter Style | SMA to SMA |
1st Connector | SMA Plug |
| 2nd Connector | SMA Jack |
| Attenuation Values | 2dB |
||
|---|---|---|---|
| Max Input Power | 2W |
||
| Dielectric Withstand Voltage | 1000V |
||
| Service Life | ≥500 |
||
| Operation Temperature | -55℃ ~ +125℃ |
||
| Inner Conductor Material | Beryllium bronze gold plating |
||
| External Conductor Material | Stainless steel passivation |
||
| Insulator | PTFE |
||
| Attenuation Values | 2dB |
Max Input Power | 2W |
| Dielectric Withstand Voltage | 1000V |
Service Life | ≥500 |
| Operation Temperature | -55℃ ~ +125℃ |
Inner Conductor Material | Beryllium bronze gold plating |
| External Conductor Material | Stainless steel passivation |
Insulator | PTFE |
| Frequency Range | DC-18 GHz |
|---|---|
| VSWR | 1.3:1 (max) |
| Attenuation Values | 2dB |
| Impedance | 50Ω |
| Max Input Power | 2W |
| Dielectric Withstand Voltage | 1000V |
| Service Life | ≥500 |
| Insulation Resistance | ≥5000MΩ |
| Adapter Style | SMA to SMA |
| 1st Connector | SMA Plug |
| 2nd Connector | SMA Jack |
| Operation Temperature | -55℃ ~ +125℃ |
| Inner Conductor Material | Beryllium bronze gold plating |
| External Conductor Material | Stainless steel passivation |
| Insulator | PTFE |
