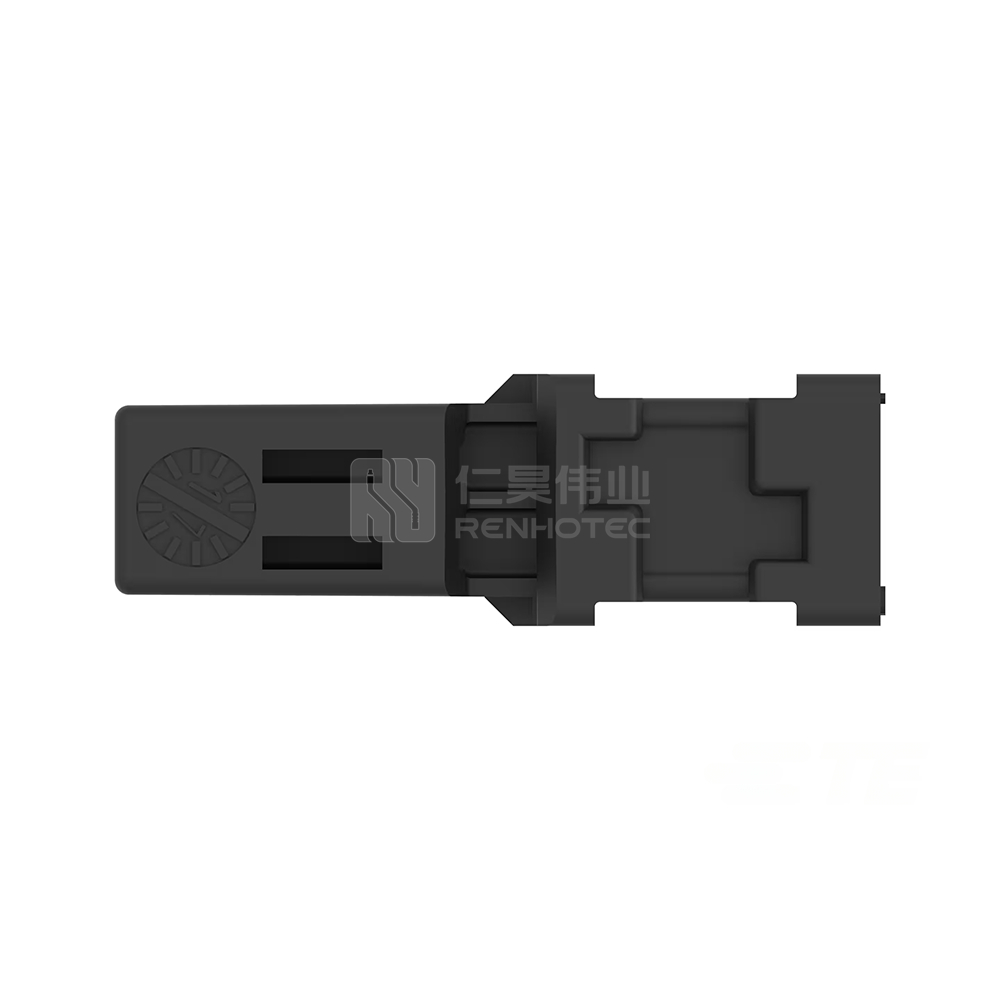

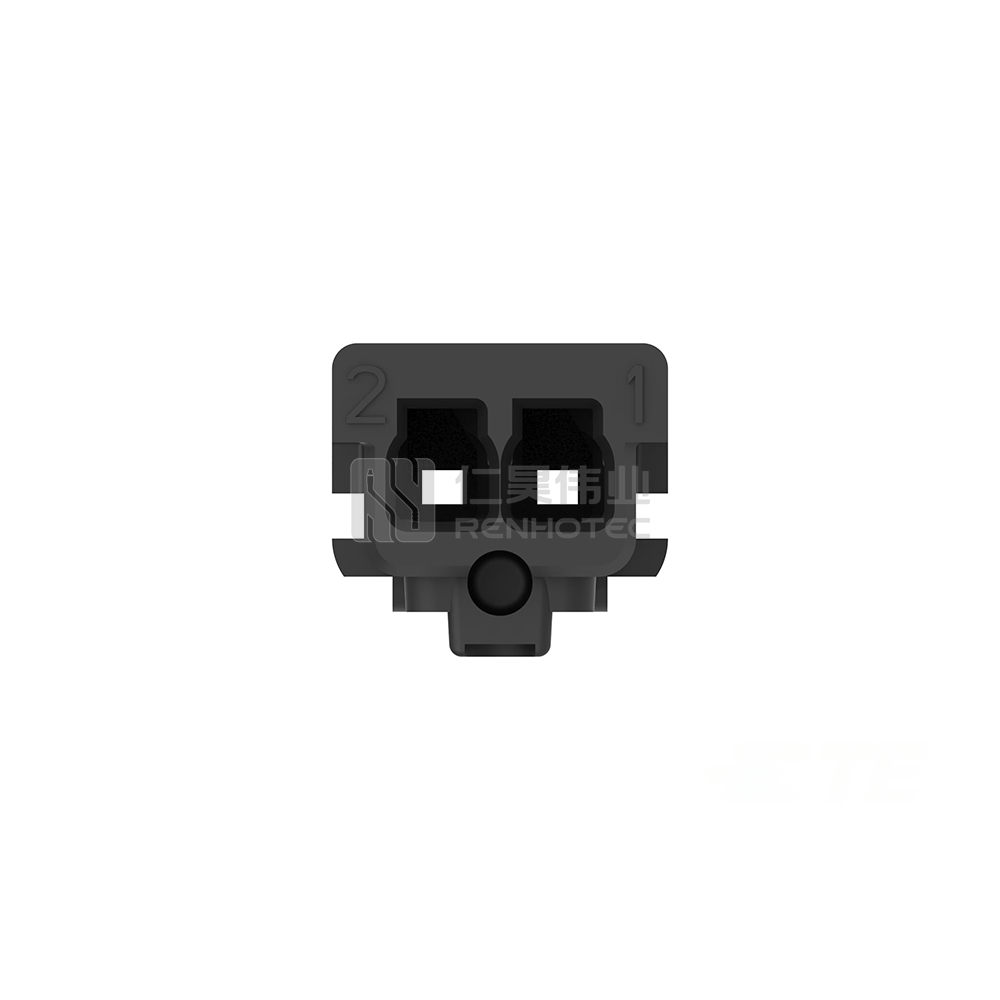

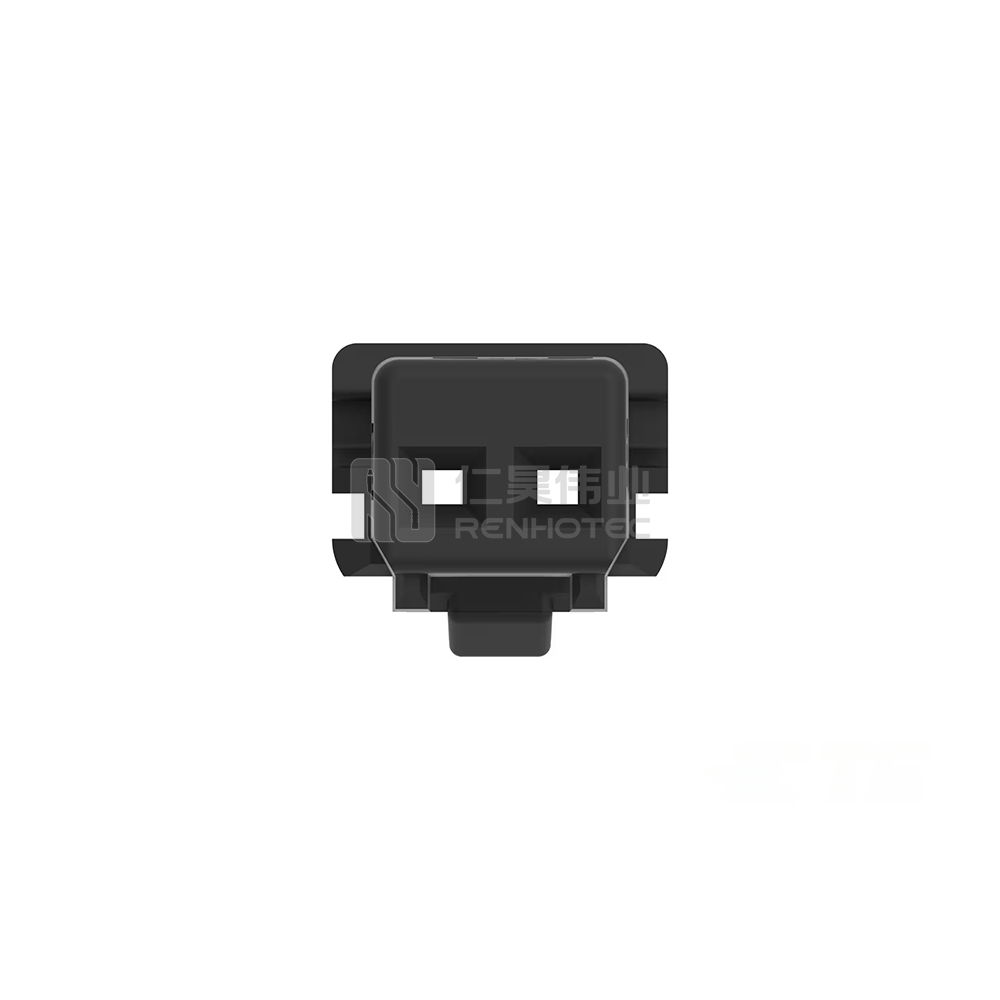

2 Position, Automotive Housing for Female Terminals, Wire-to-Wire, 1.8 mm Centerline, Black, Signal, Cable Mount (Free-Hanging)
Compatible Part Number
| Manufacturer | Part Number |
|---|---|
| TE | TE-2302450-1 |
| Alignment Type | Polarization |
||
|---|---|---|---|
| Cable Exit Angle | 180° |
||
| Circuit Application | Signal |
||
| Connector Height | 4.9 mm [ .192 in ] |
||
| Connector Shape | Rectangular |
||
| Connector System | Wire-to-Wire |
||
| Contact Size | .5mm |
||
| Housing Material | PA GF |
||
| Housing Type | Housing for Female Terminals |
||
| Mating Alignment | With |
||
| Mount Type | Cable Mount (Free-Hanging) |
||
| Pitch | 1.8 mm [ .07 in ] |
||
| Position Assurance | No |
||
| Position Count | 2 |
||
| Primary Color | Black |
||
| Primary Lock | Integrated in Housing |
||
| Product Length | 5.25 mm [ .206 in ] |
||
| Product Width | 15.95 mm [ .627 in ] |
||
| Row Count | 1 |
||
| Sealable | No |
||
| Serviceable | No |
||
| Strain Relief | Without |
||
| Tab Width | .5 mm [ .019 in ] |
||
| Terminal Assurance | No |
||
| Alignment Type | Polarization |
Cable Exit Angle | 180° |
| Circuit Application | Signal |
Connector Height | 4.9 mm [ .192 in ] |
| Connector Shape | Rectangular |
Connector System | Wire-to-Wire |
| Contact Size | .5mm |
Housing Material | PA GF |
| Housing Type | Housing for Female Terminals |
Mating Alignment | With |
| Mount Type | Cable Mount (Free-Hanging) |
Pitch | 1.8 mm [ .07 in ] |
| Position Assurance | No |
Position Count | 2 |
| Primary Color | Black |
Primary Lock | Integrated in Housing |
| Product Length | 5.25 mm [ .206 in ] |
Product Width | 15.95 mm [ .627 in ] |
| Row Count | 1 |
Sealable | No |
| Serviceable | No |
Strain Relief | Without |
| Tab Width | .5 mm [ .019 in ] |
Terminal Assurance | No |
Product Specification
| Contact Type | Receptacle |
|---|---|
| Contact Type | Receptacle |
| Alignment Type | Polarization |
|---|---|
| Cable Exit Angle | 180° |
| Circuit Application | Signal |
| Connector Height | 4.9 mm [ .192 in ] |
| Connector Shape | Rectangular |
| Connector System | Wire-to-Wire |
| Contact Size | .5mm |
| Contact Type | Receptacle |
| Housing Material | PA GF |
| Housing Type | Housing for Female Terminals |
| Mating Alignment | With |
| Mount Type | Cable Mount (Free-Hanging) |
| Pitch | 1.8 mm [ .07 in ] |
| Position Assurance | No |
| Position Count | 2 |
| Primary Color | Black |
| Primary Lock | Integrated in Housing |
| Product Length | 5.25 mm [ .206 in ] |
| Product Width | 15.95 mm [ .627 in ] |
| Row Count | 1 |
| Sealable | No |
| Serviceable | No |
| Strain Relief | Without |
| Tab Width | .5 mm [ .019 in ] |
| Terminal Assurance | No |
