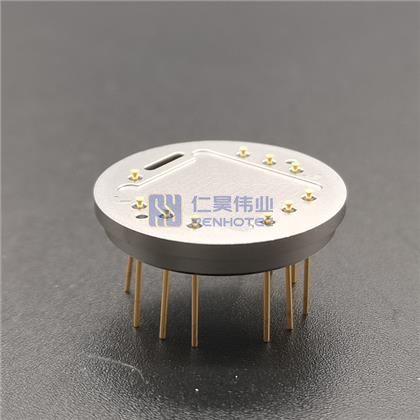

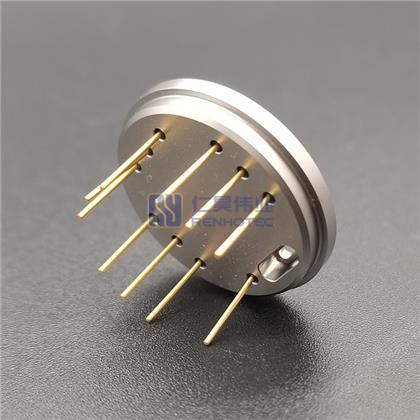

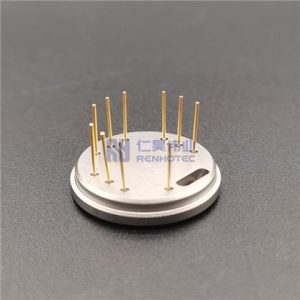

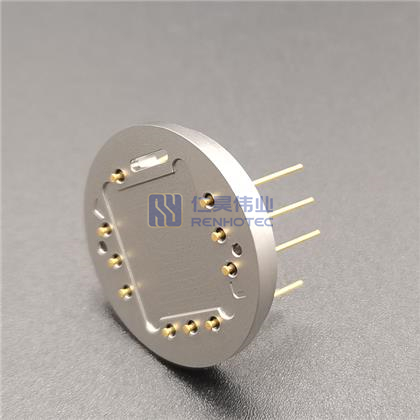

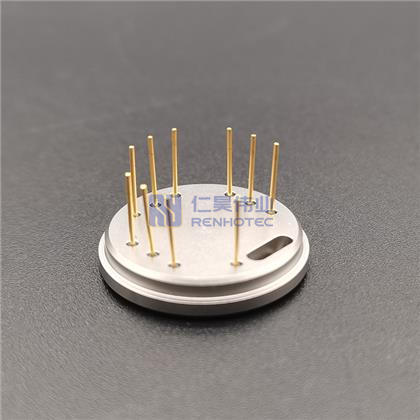

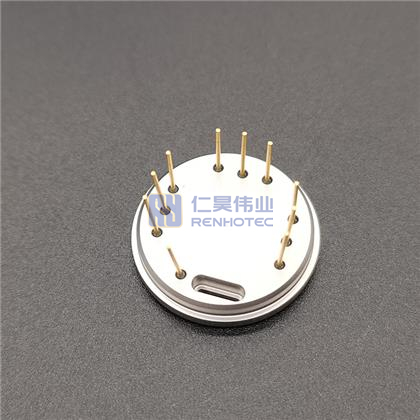

10 Pin Glass to Metal Seal Header – RHT-10382-10P

  • 10-pin glass-to-metal seal header designed for secure electrical connections in high-reliability applications, ensuring optimal performance under extreme conditions.
  • Hermetically sealed to protect against moisture, gases, and contaminants, providing long-term protection in challenging environments such as aerospace and defense.
  • Built for high-temperature and high-pressure conditions, ensuring stable electrical performance and reliability in harsh, demanding applications.
  • Resistant to thermal fluctuations, vibrations, and other environmental factors that could otherwise compromise the integrity of electrical connections.
  • Ideal for industrial, aerospace, military, and other sectors where reliable, durable, and protected connections are critical.
  • Customizable design options available to meet specific needs in high-pressure or high-temperature environments.

Glass-To-Metal-Seal-Connectors

Glass to Metal Hermetic RF/DC Feedthroughs/Seals /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components. The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The centerconductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

Structure

Glass insulator is composed of three parts: outer conductor/shell, glass medium and center conductor/pin.Its basic structure is shown in the figure.

Glass-To-Metal-Seal-Connectors-Structure

Reliability Requirements

Hermeticity

≤1.01325×10-³Pa·cm³/s/s

Salt spray

Glass insulators shall be tested without severe corrosion and spotting.

Temperature shock

There shall be no cosmetic or mechanical damage after testing.

Applications

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

Number of Positions

10 Pin
Shell Material

Stainless Steel 316L
Shell Finish

Polishing
Contact Finish

Gold Plated, Ep.Ni3-5Au0.89-1.27
Number of Positions

10 Pin

 Shell Material

Stainless Steel 316L
Shell Finish

Polishing

 Contact Finish

Gold Plated, Ep.Ni3-5Au0.89-1.27

Sealing

≤1×10^-8 Pa·cm³/s
Max. Pressure

10 MPa
Production Technology

Glass Sintering
Customizable

Yes
Sealing

≤1×10^-8 Pa·cm³/s

 Max. Pressure

10 MPa
Production Technology

Glass Sintering

 Customizable

Yes
Number of Positions

10 Pin
Shell Material

Stainless Steel 316L
Shell Finish

Polishing
Contact Finish

Gold Plated, Ep.Ni3-5Au0.89-1.27
Sealing

≤1×10^-8 Pa·cm³/s
Max. Pressure

10 MPa
Production Technology

Glass Sintering
Customizable

Yes
