QSFPDD Module Archives - RenhotecRF

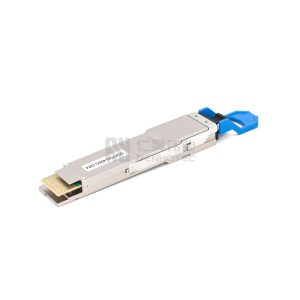

QSFPDD-400G-AOC

Quick View

Customized 400G QSFPDD Active Optical Cable, QSFPDD-400G-AOC, 1m(3ft)

Cable length: Customized

Connector Type: QSFP56 to QSFP56

DOM/DDM: Supported

Max Data Rate: 200Gbps

Protocols: IEEE 802.3, QSFP56 MSA, SFF-8665, SFF-8636, InfiniBand HDR

Receiver Type: PIN

Transmitter Type: VCSEL

QSFPDD-400G-DR4

Quick View

QSFPDD-400G-DR4, 400G, 1310nm 500m DOC MPO MMF Optical Transceiver Module

Connector: MPO/MTP-12

DOM/DDM: Supported

Form Factor: QSFPDD

Max Data Rate: 400Gbps

Mode: Single Mode

Protocols: IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1

Receiver Sensitivity: <-5.9dBm

TX Power: -2.9~4.0dBm

Wavelength: 1310nm

QSFPDD-400G-FR4

Quick View

QSFPDD-400G-FR4, 400G, 1310nm 2km DOC LC SMF Optical Transceiver Module

Connector: Duplex LC

DOM/DDM: Supported

Form Factor: QSFPDD

Max Data Rate: 400Gbps

Mode: Single Mode

Protocols: QSFP-DD MSA

Receiver Sensitivity: <-7.3dBm

TX Power: -3.3~3.5dBm

Wavelength: 1310nm

QSFPDD-400G-LR4

Quick View

QSFPDD-400G-LR4, 400G, 1310nm 10km DOC LC SMF Optical Transceiver Module

Connector: Duplex LC

DOM/DDM: Supported

Form Factor: QSFPDD

Max Data Rate: 400Gbps

Mode: Single Mode

Protocols: QSFP-DD MSA

Receiver Sensitivity: <-9.1dBm

TX Power: -2.8~4.0dBm

Wavelength: 1310nm

QSFPDD-400G-SR8

Quick View

QSFPDD-400G-SR8, 400G, 850nm 100m DOC MPO MMF Optical Transceiver Module

Connector: MPO/MTP-12

DOM/DDM: Supported

Form Factor: QSFPDD

Max Data Rate: 400Gbps

Mode: Multimode

Protocols: IEEE 802.3cd, QSFP-DD MSA, CMIS 5.0

Receiver Sensitivity: <-7.9dBm

TX Power: -6~4dBm

Wavelength: 850nm
