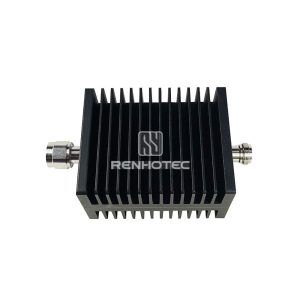

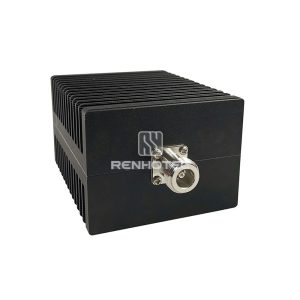

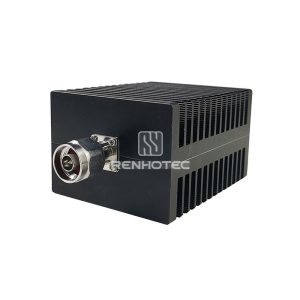

100W N-JK Coaxial Fixed Attenuator 40DB DC-3GHz
100W N-JK Coaxial Fixed Attenuator 40DB DC-3GHz - Image 2
100W N-JK Coaxial Fixed Attenuator 40DB DC-3GHz - Image 3
100W N-JK Coaxial Fixed Attenuator 40DB DC-3GHz - Image 4
100W N-JK Coaxial Fixed Attenuator 40DB DC-3GHz - Image 5
100W N-JK Coaxial Fixed Attenuator 40DB DC-3GHz - Image 6
SKU: RHT-100W-N-JK-3G-40DB-Sq Category:

100W N-JK Coaxial Fixed Attenuator 40DB DC-3GHz

Weight

700g
Attenuation Value

40DB
Protection Degree

IP20
Max Input Power

100W
Weight

700g

 Attenuation Value

40DB
Protection Degree

IP20

 Max Input Power

100W

Product Specification

Contact Material

Stainless Steel
Connector Type

Radio Frequency Coaxial (RF)
Adapter Style

N to N
1st Connector

N Plug
2nd Connector

N Jack
VSWR

≤1.2
Mounting Type

Threaded
Impedance

50Ω
Operating Temperature

-55℃～+125℃
Contact Material

Stainless Steel

 Connector Type

Radio Frequency Coaxial (RF)
Adapter Style

N to N

 1st Connector

N Plug
2nd Connector

N Jack

 VSWR

≤1.2
Mounting Type

Threaded

 Impedance

50Ω
Operating Temperature

-55℃～+125℃
Weight

700g
Contact Material

Stainless Steel
Connector Type

Radio Frequency Coaxial (RF)
Adapter Style

N to N
1st Connector

N Plug
2nd Connector

N Jack
Attenuation Value

40DB
VSWR

≤1.2
Mounting Type

Threaded
Protection Degree

IP20
Working Frequency 文本

DC-3GHz
Impedance

50Ω
Max Input Power

100W
Operating Temperature

-55℃～+125℃
