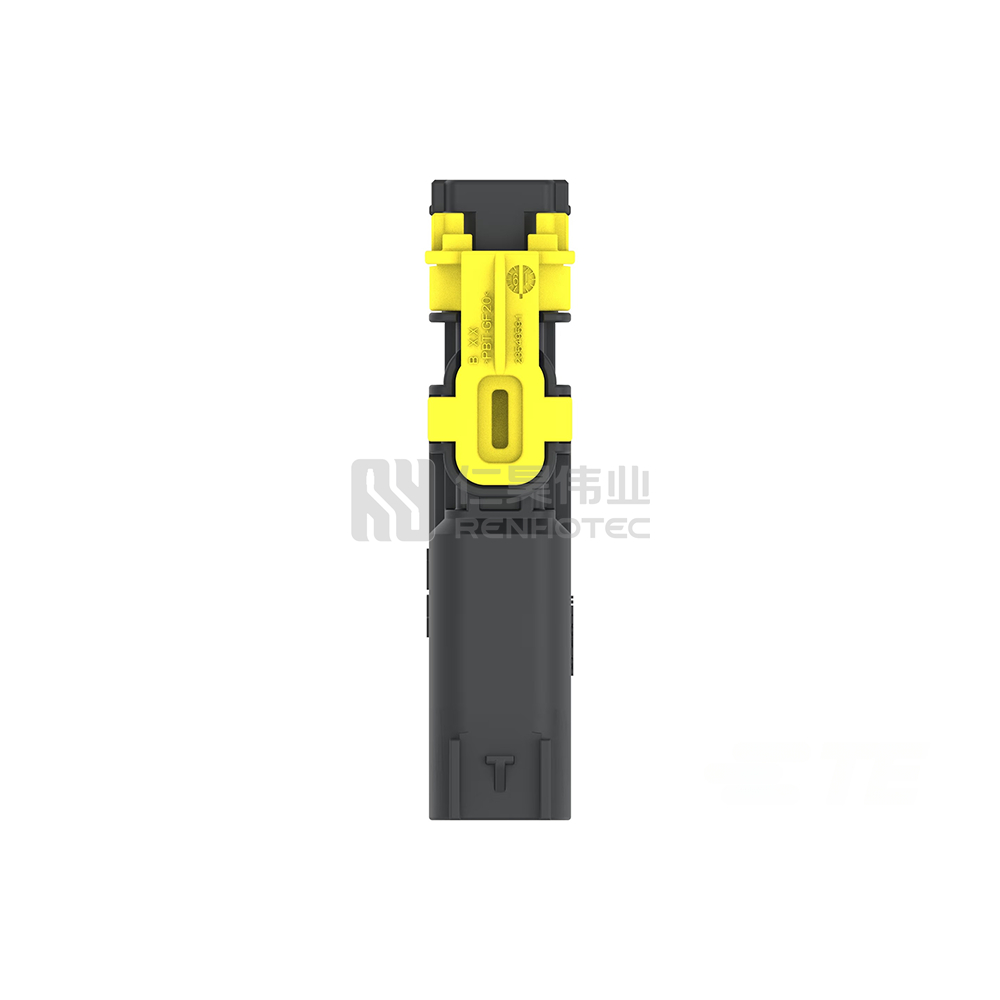

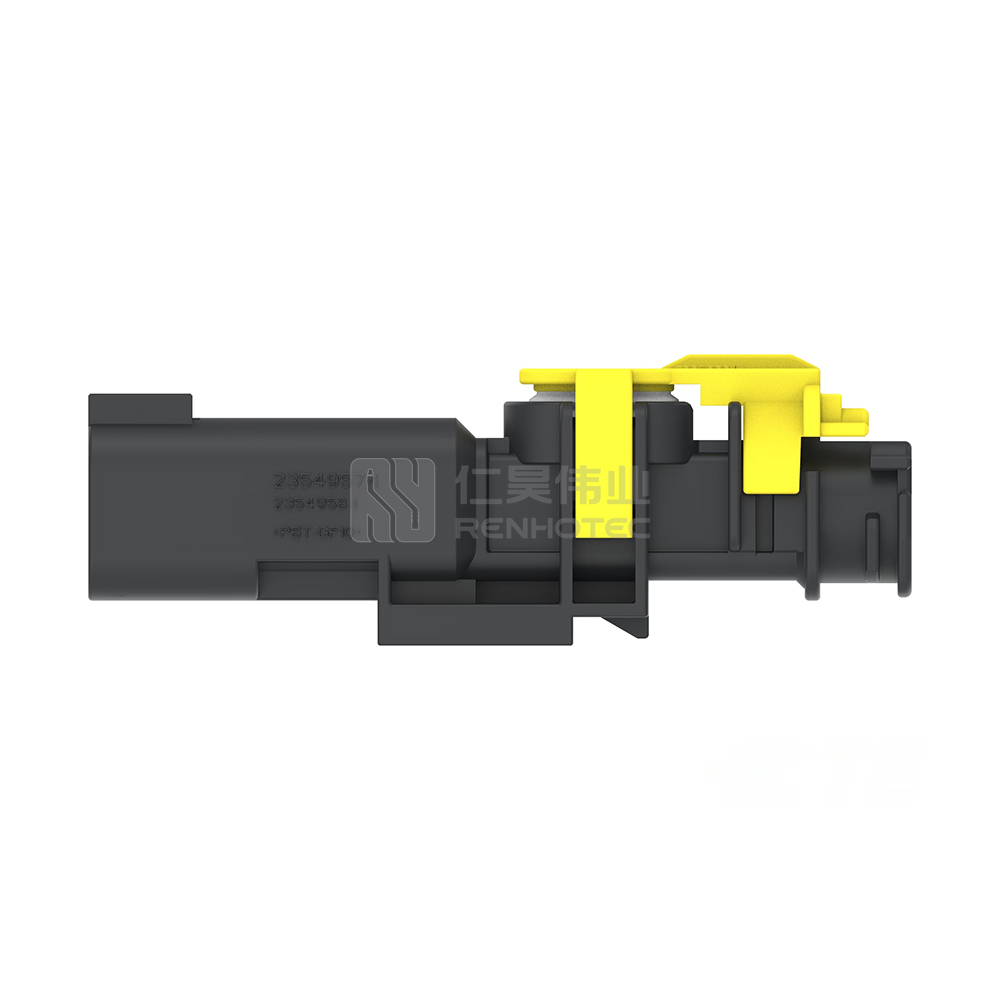

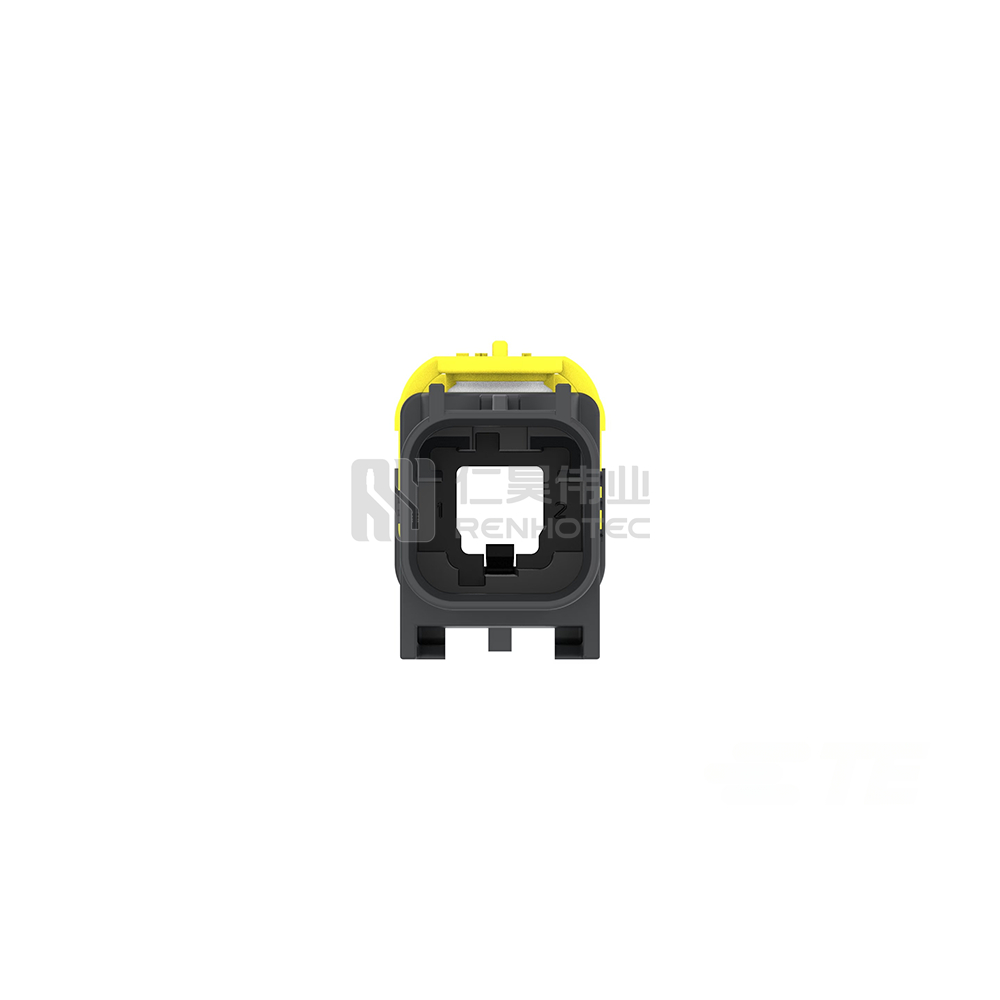

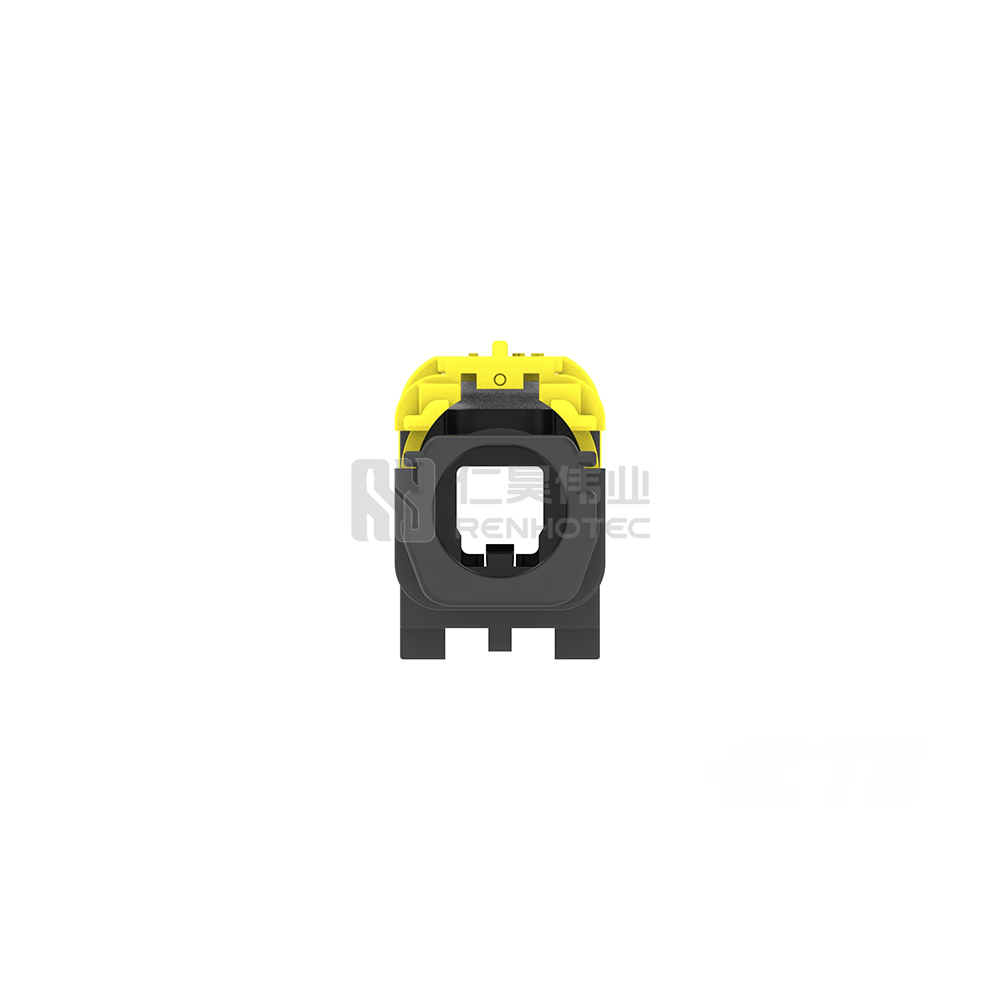

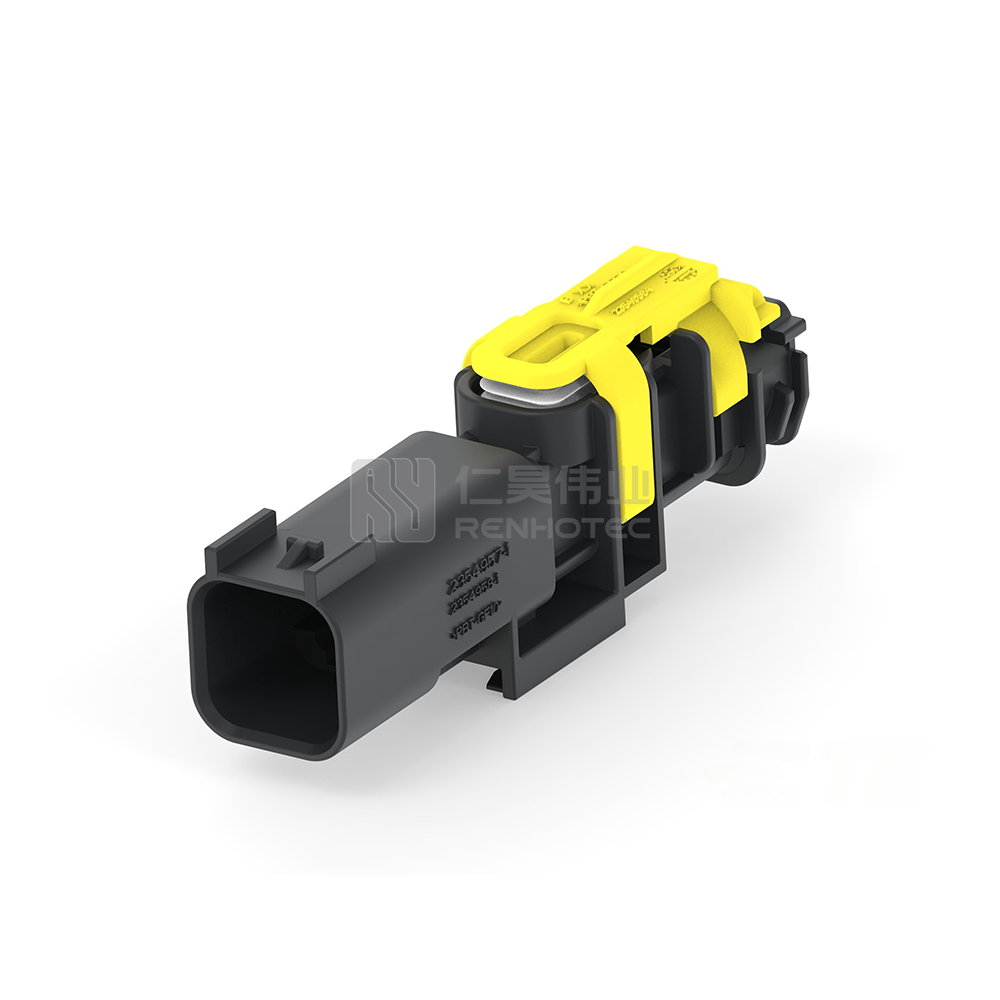

Wire-to-Wire, Sealable, 180° Cable Exit, 2 Position, A Code, Housing for Male Terminals, 1.8 mm Centerline, Data Connectivity Housings
Compatible Part Number
| Manufacturer | Part Number |
|---|---|
| TE | TE-2354957-1 |
| Body Material | PBT GF |
||
|---|---|---|---|
| Cable Exit Angle | 180° |
||
| Cable Exit Type | Straight to Straight |
||
| Cable Termination | Crimp |
||
| Center Contact | With |
||
| Center Contact Plating | Silver (Ag) |
||
| Operating Voltage VDC | 60 |
||
| Dielectric Material | PA |
||
| Circuit Application | Signal |
||
| Connector Height | 13.5 mm [ .531 in ] |
||
| Connector System | Wire-to-Wire |
||
| Contact Plating | Silver (Ag) |
||
| Ferrule | With |
||
| Housing Color | Black |
||
| Housing Type | Housing for Male Terminals |
||
| Key Code | A |
||
| Mating Retention | With |
||
| Max Current A | 3 |
||
| Mount Type | Cable Mount (Free-Hanging) |
||
| Pitch | 1.8 mm [ .071 in ] |
||
| Position Count | 2 |
||
| Primary Lock | On the Terminal |
||
| Product Length | 57.67 mm [ 2.271 in ] |
||
| Product Width | 20.4 mm [ .8 in ] |
||
| Row Count | 1 |
||
| Sealable | Yes |
||
| Snap Lock | With |
||
| Tab Thickness | .4 mm [ .016 in ] |
||
| Tab Width | .5 mm [ .02 in ] |
||
| Termination Point | Wire & Cable |
||
| Body Material | PBT GF |
Cable Exit Angle | 180° |
| Cable Exit Type | Straight to Straight |
Cable Termination | Crimp |
| Center Contact | With |
Center Contact Plating | Silver (Ag) |
| Operating Voltage VDC | 60 |
Dielectric Material | PA |
| Circuit Application | Signal |
Connector Height | 13.5 mm [ .531 in ] |
| Connector System | Wire-to-Wire |
Contact Plating | Silver (Ag) |
| Ferrule | With |
Housing Color | Black |
| Housing Type | Housing for Male Terminals |
Key Code | A |
| Mating Retention | With |
Max Current A | 3 |
| Mount Type | Cable Mount (Free-Hanging) |
Pitch | 1.8 mm [ .071 in ] |
| Position Count | 2 |
Primary Lock | On the Terminal |
| Product Length | 57.67 mm [ 2.271 in ] |
Product Width | 20.4 mm [ .8 in ] |
| Row Count | 1 |
Sealable | Yes |
| Snap Lock | With |
Tab Thickness | .4 mm [ .016 in ] |
| Tab Width | .5 mm [ .02 in ] |
Termination Point | Wire & Cable |
Product Specification
| Cable Type | UTP |
||
|---|---|---|---|
| Contact Type | Tab |
||
| Temperature Range | -40°C to +120°C |
||
| Cable Type | UTP |
Contact Type | Tab |
| Temperature Range | -40°C to +120°C |
| Body Material | PBT GF |
|---|---|
| Cable Exit Angle | 180° |
| Cable Exit Type | Straight to Straight |
| Cable Termination | Crimp |
| Cable Type | UTP |
| Center Contact | With |
| Center Contact Plating | Silver (Ag) |
| Operating Voltage VDC | 60 |
| Dielectric Material | PA |
| Circuit Application | Signal |
| Connector Height | 13.5 mm [ .531 in ] |
| Connector System | Wire-to-Wire |
| Contact Plating | Silver (Ag) |
| Contact Type | Tab |
| Ferrule | With |
| Housing Color | Black |
| Housing Type | Housing for Male Terminals |
| Key Code | A |
| Mating Retention | With |
| Max Current A | 3 |
| Mount Type | Cable Mount (Free-Hanging) |
| Pitch | 1.8 mm [ .071 in ] |
| Position Count | 2 |
| Primary Lock | On the Terminal |
| Product Length | 57.67 mm [ 2.271 in ] |
| Product Width | 20.4 mm [ .8 in ] |
| Row Count | 1 |
| Sealable | Yes |
| Snap Lock | With |
| Tab Thickness | .4 mm [ .016 in ] |
| Tab Width | .5 mm [ .02 in ] |
| Temperature Range | -40°C to +120°C |
| Termination Point | Wire & Cable |
