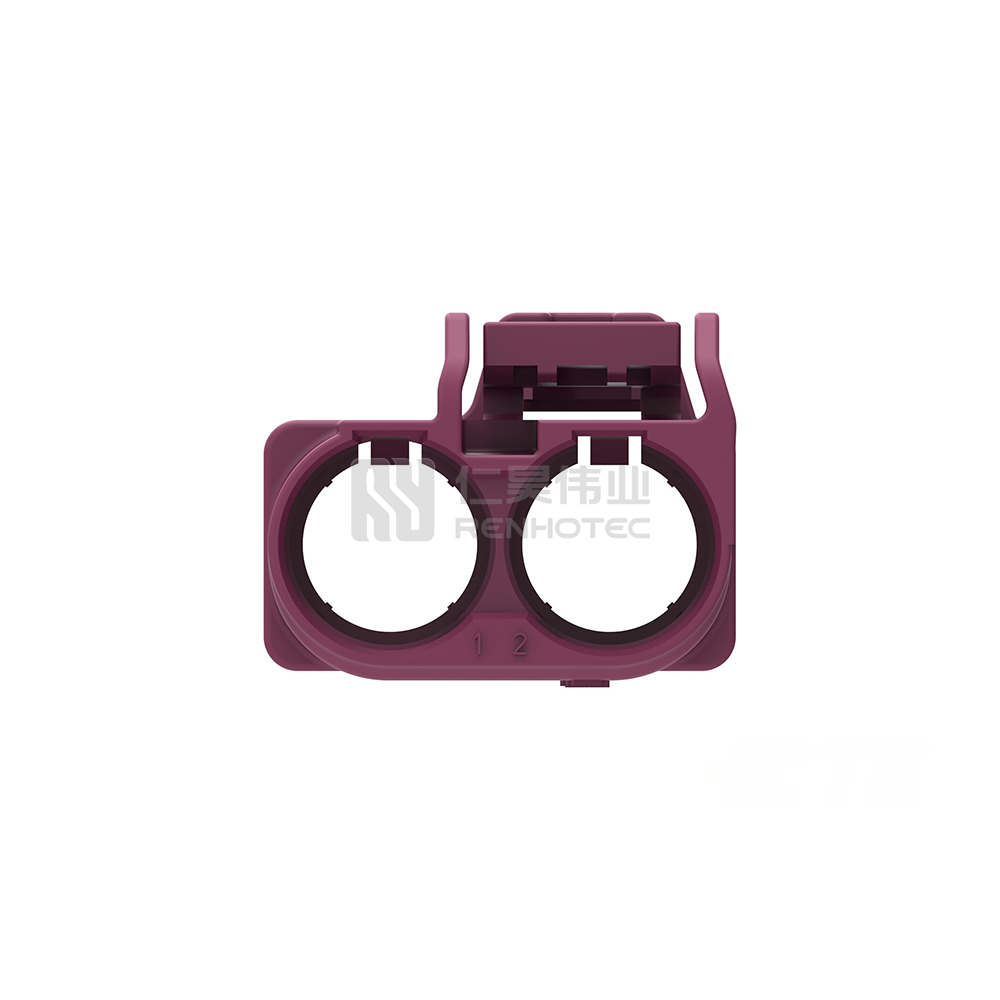

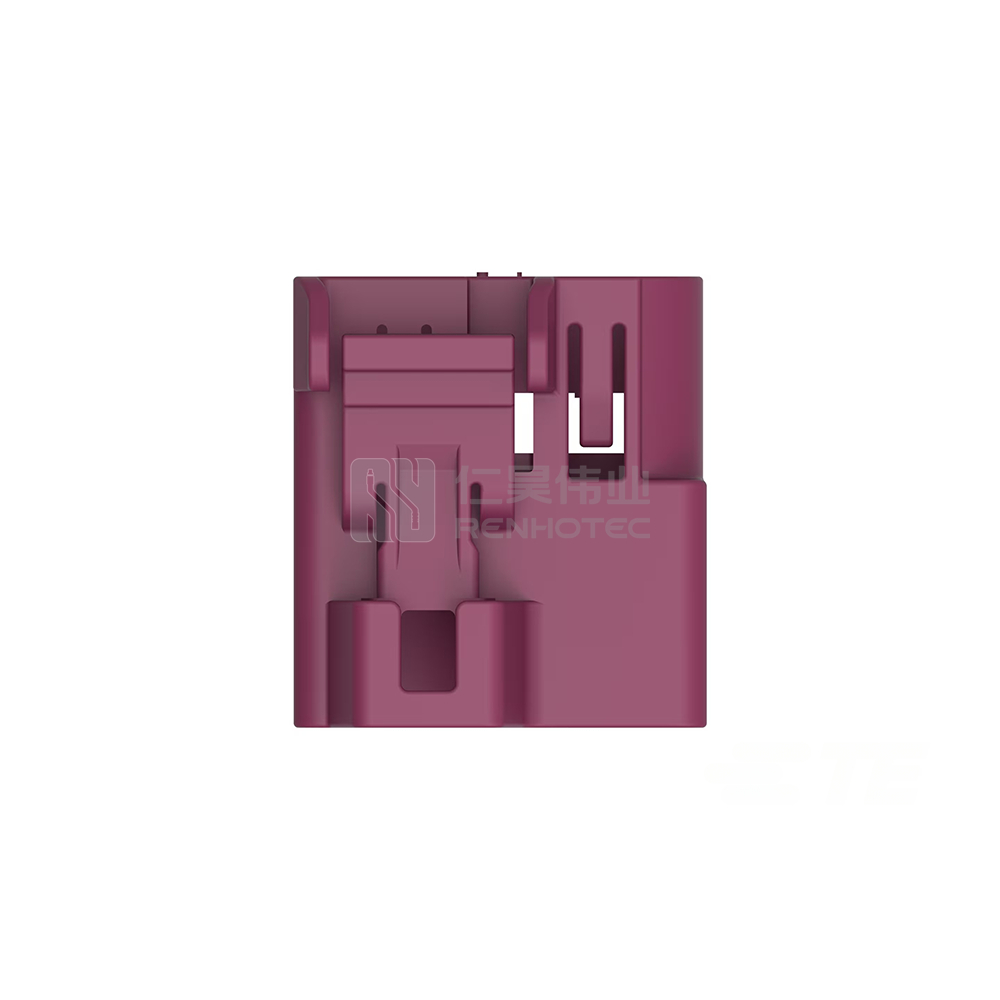

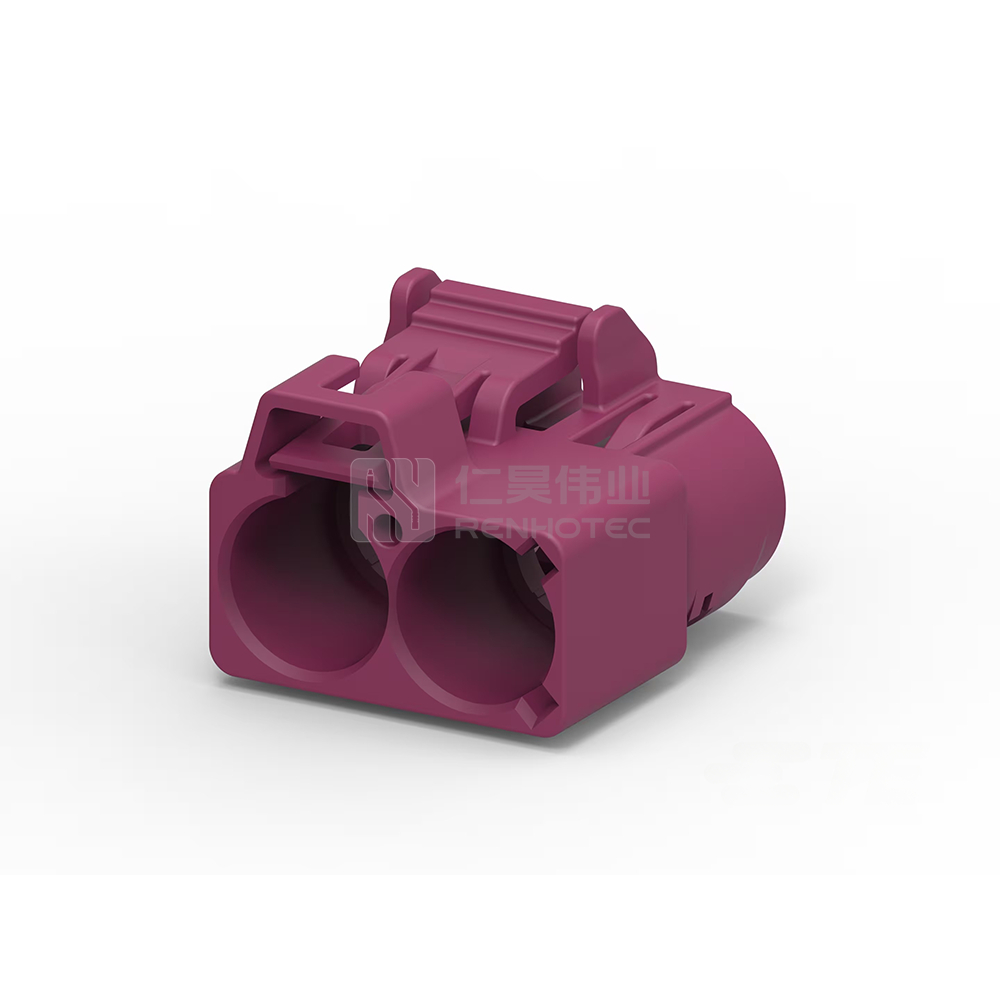

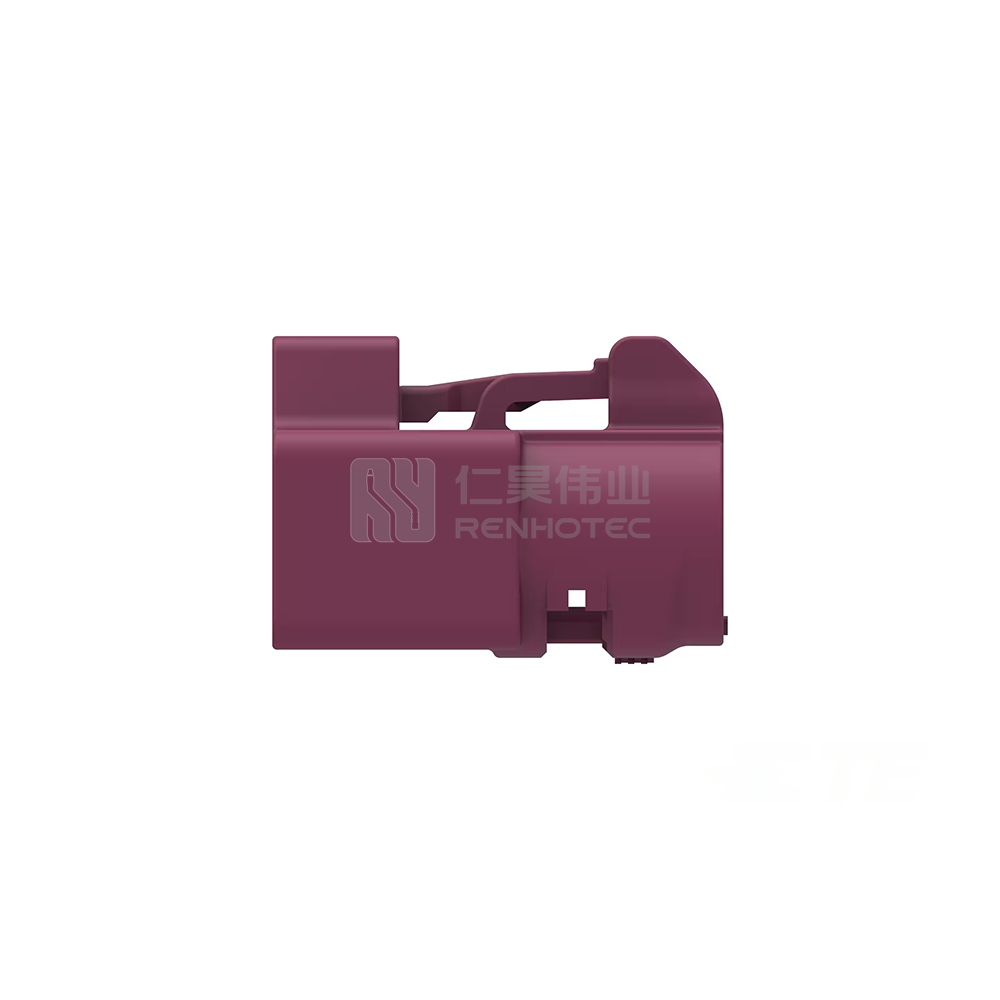

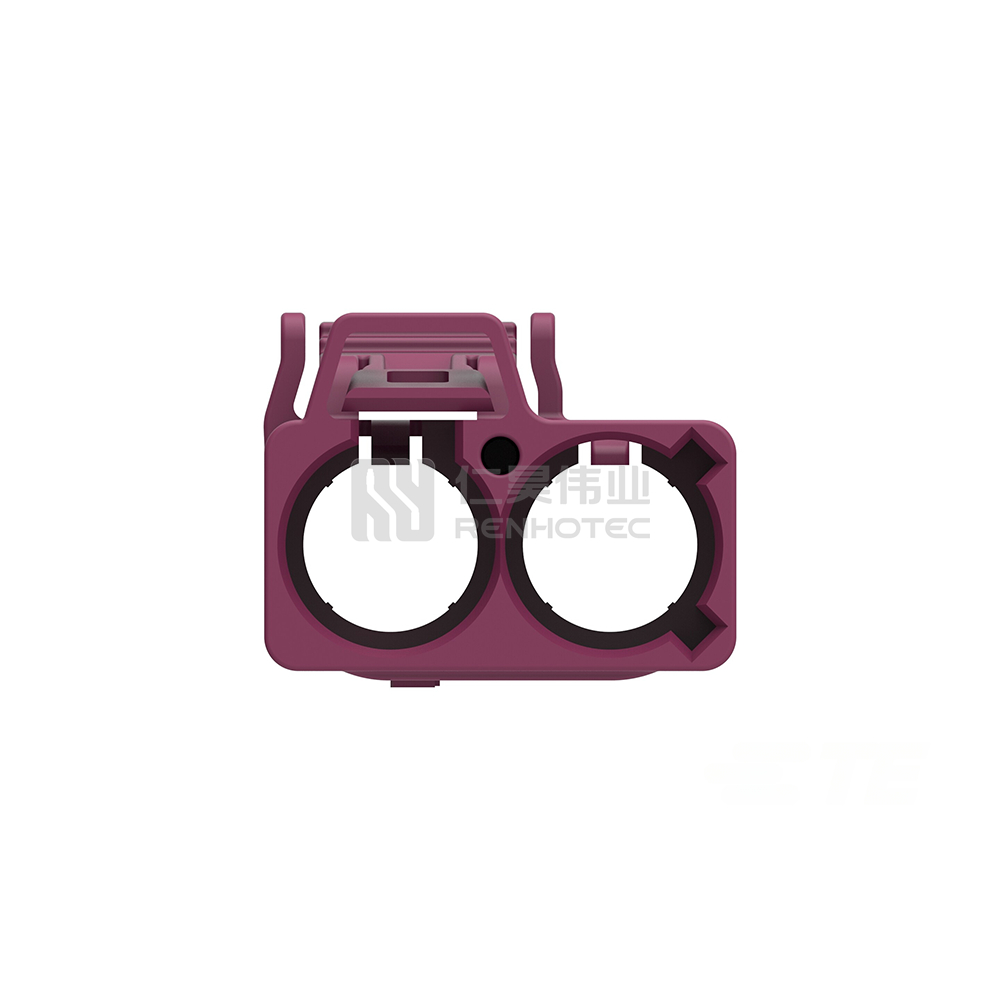

Wire-to-Wire, 2 Position, E Code, Housing for Female Terminals, 8 mm Centerline, Crimp, FAKRA, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Wire-to-Wire
Sealable	No
Row Count	1
Position Count	2
Key Code	D
Center Contact	Without
Contact Plating	Unplated
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Violet
Connector Height	13.41 mm [ .528 in ]
Product Length	18.8 mm [ .74 in ]
Product Width	17.21 mm [ .678 in ]
Circuit Application	Signal
Package Qty	3500
Body Material	PBT GF
Housing Type	Housing for Female Terminals
Snap Lock	Without
Cable Exit Type	Fixed
Ferrule	Without
Cable Exit Angle	180°
Position Assurance	No
Standards Certified	USCAR
Max Temperature C	65 \| 70 \| 75 \| 80 \| 85
Max Temperature F	149 \| 158 \| 167 \| 176 \| 185
Termination Point	Wire & Cable	Connector System	Wire-to-Wire
Sealable	No	Row Count	1
Position Count	2	Key Code	D
Center Contact	Without	Contact Plating	Unplated
Mount Type	Cable Mount (Free-Hanging)	Housing Color	Violet
Connector Height	13.41 mm [ .528 in ]	Product Length	18.8 mm [ .74 in ]
Product Width	17.21 mm [ .678 in ]	Circuit Application	Signal
Package Qty	3500	Body Material	PBT GF
Housing Type	Housing for Female Terminals	Snap Lock	Without
Cable Exit Type	Fixed	Ferrule	Without
Cable Exit Angle	180°	Position Assurance	No
Standards Certified	USCAR	Max Temperature C	65 \| 70 \| 75 \| 80 \| 85
Max Temperature F	149 \| 158 \| 167 \| 176 \| 185

Termination Point	Wire & Cable
Connector System	Wire-to-Wire
Sealable	No
Row Count	1
Position Count	2
Key Code	D
Center Contact	Without
Contact Plating	Unplated
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Violet
Connector Height	13.41 mm [ .528 in ]
Product Length	18.8 mm [ .74 in ]
Product Width	17.21 mm [ .678 in ]
Circuit Application	Signal
Package Qty	3500
Body Material	PBT GF
Temperature Range	-40 – 85 °C [ -40 – 185 °F ]
Housing Type	Housing for Female Terminals
Snap Lock	Without
Cable Exit Type	Fixed
Ferrule	Without
Cable Exit Angle	180°
Cable Type	Coaxial
Position Assurance	No
Standards Certified	USCAR
Max Temperature C	65 \| 70 \| 75 \| 80 \| 85
Max Temperature F	149 \| 158 \| 167 \| 176 \| 185
