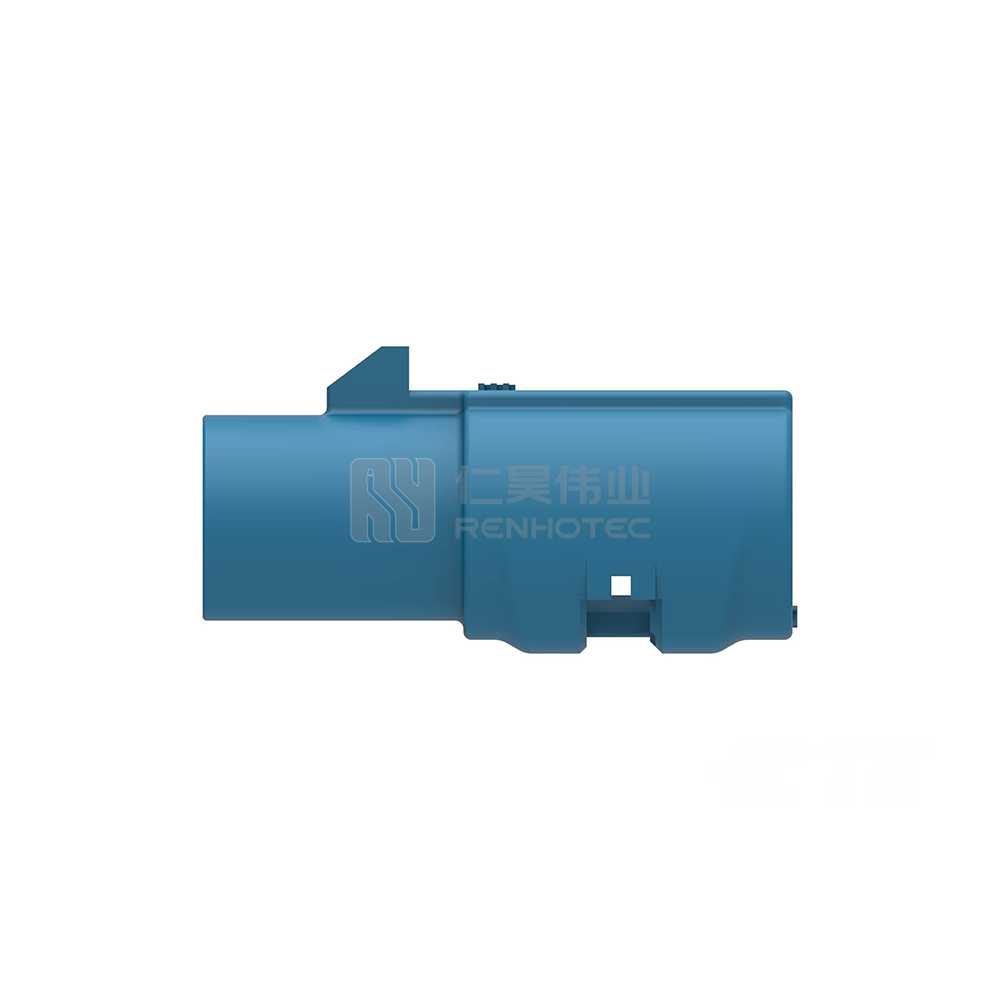

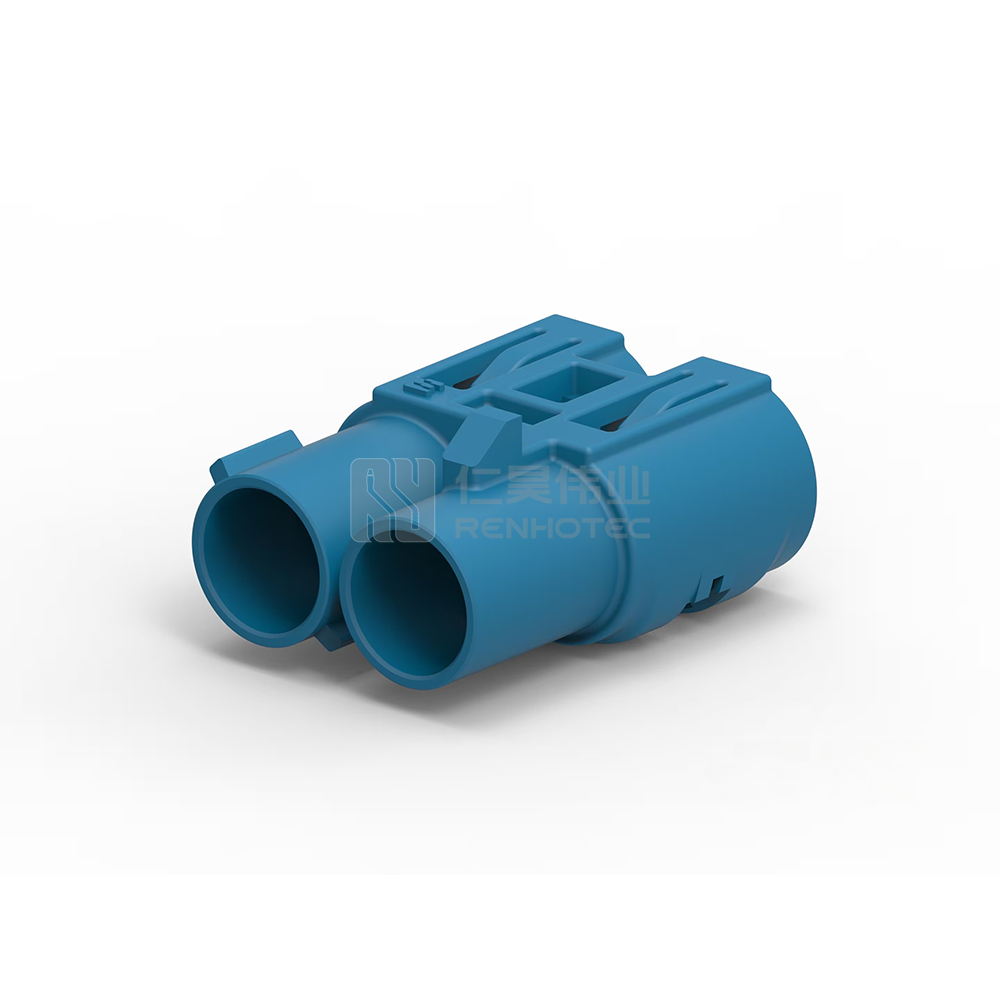

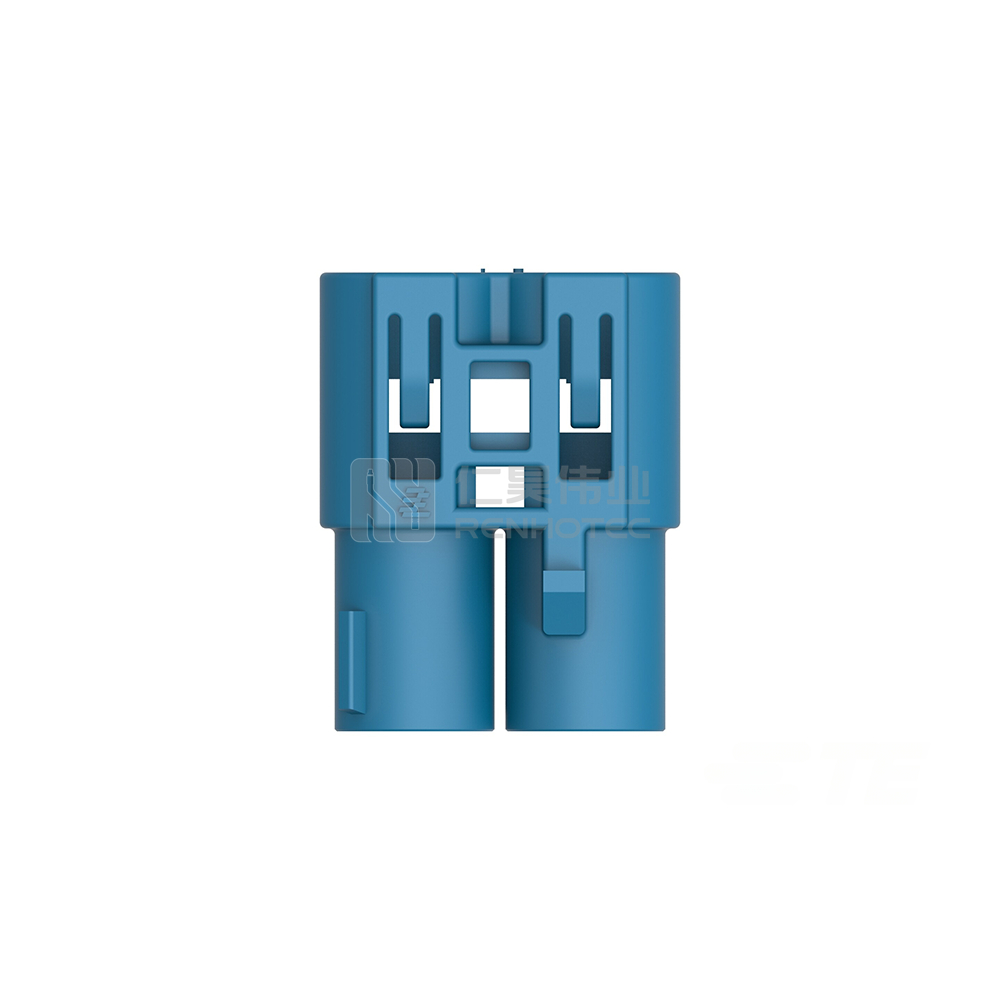

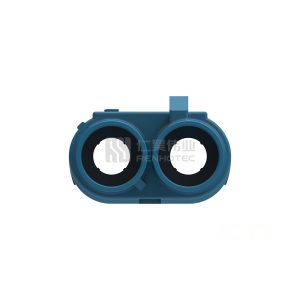

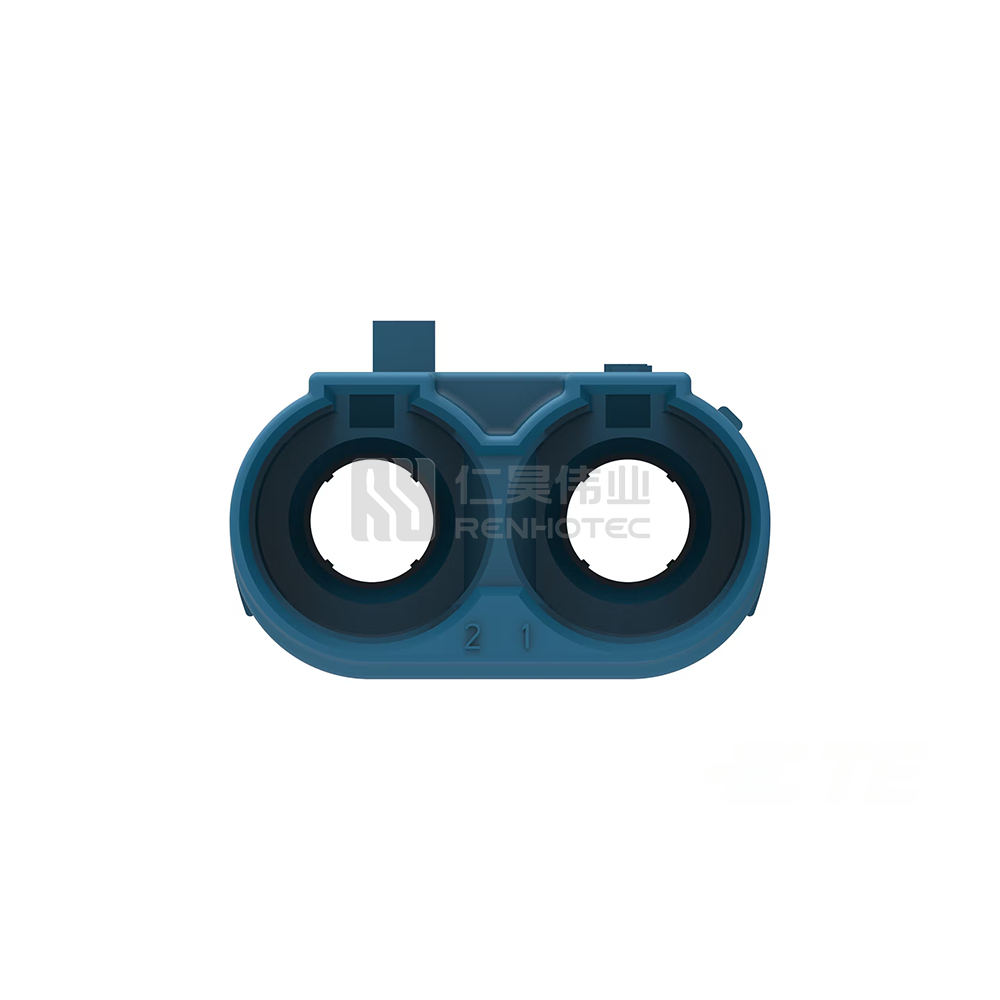

Wire-to-Wire, 180° Cable Exit, 2 Position, K Code, Housing for Male Terminals, Signal, Cable Mount (Free-Hanging), FAKRA, Data Connectivity Housings

Termination Point

Wire & Cable
Connector System

Wire-to-Wire
Sealable

No
Row Count

1
Position Count

2
Key Code

C
Center Contact

Without
Contact Plating

Unplated
Mating Retention

With
Housing Color

Blue
Pitch

8 mm [ .315 in ]
Connector Height

11.2 mm [ .441 in ]
Product Length

21.5 mm [ .846 in ]
Product Width

16.9 mm [ .665 in ]
Shielded

No
Package Qty

3500
Body Material

PBT
Package Method

Bag & Box
Housing Type

Housing for Male Terminals
Snap Lock

Without
Cable Exit Type

Fixed
Ferrule

Without
Cable Exit Angle

180°
Standards Certified

USCAR
Max Temperature C

65 | 70 | 75 | 80 | 85
Max Temperature F

149 | 158 | 167 | 176 | 185
Termination Point

Wire & Cable

 Connector System

Wire-to-Wire
Sealable

No

 Row Count

1
Position Count

2

 Key Code

C
Center Contact

Without

 Contact Plating

Unplated
Mating Retention

With

 Housing Color

Blue
Pitch

8 mm [ .315 in ]

 Connector Height

11.2 mm [ .441 in ]
Product Length

21.5 mm [ .846 in ]

 Product Width

16.9 mm [ .665 in ]
Shielded

No

 Package Qty

3500
Body Material

PBT

 Package Method

Bag & Box
Housing Type

Housing for Male Terminals

 Snap Lock

Without
Cable Exit Type

Fixed

 Ferrule

Without
Cable Exit Angle

180°

 Standards Certified

USCAR
Max Temperature C

65 | 70 | 75 | 80 | 85

 Max Temperature F

149 | 158 | 167 | 176 | 185

Product Specification

Temperature Range

-40 – 85 °C [ -40 – 185 °F ]
Cable Type

Coaxial
Temperature Range

-40 – 85 °C [ -40 – 185 °F ]

 Cable Type

Coaxial
Termination Point

Wire & Cable
Connector System

Wire-to-Wire
Sealable

No
Row Count

1
Position Count

2
Key Code

C
Center Contact

Without
Contact Plating

Unplated
Mating Retention

With
Housing Color

Blue
Pitch

8 mm [ .315 in ]
Connector Height

11.2 mm [ .441 in ]
Product Length

21.5 mm [ .846 in ]
Product Width

16.9 mm [ .665 in ]
Shielded

No
Package Qty

3500
Body Material

PBT
Temperature Range

-40 – 85 °C [ -40 – 185 °F ]
Package Method

Bag & Box
Impedance Ω

50
Housing Type

Housing for Male Terminals
Snap Lock

Without
Cable Exit Type

Fixed
Ferrule

Without
Cable Exit Angle

180°
Cable Type

Coaxial
Standards Certified

USCAR
Max Temperature C

65 | 70 | 75 | 80 | 85
Max Temperature F

149 | 158 | 167 | 176 | 185
