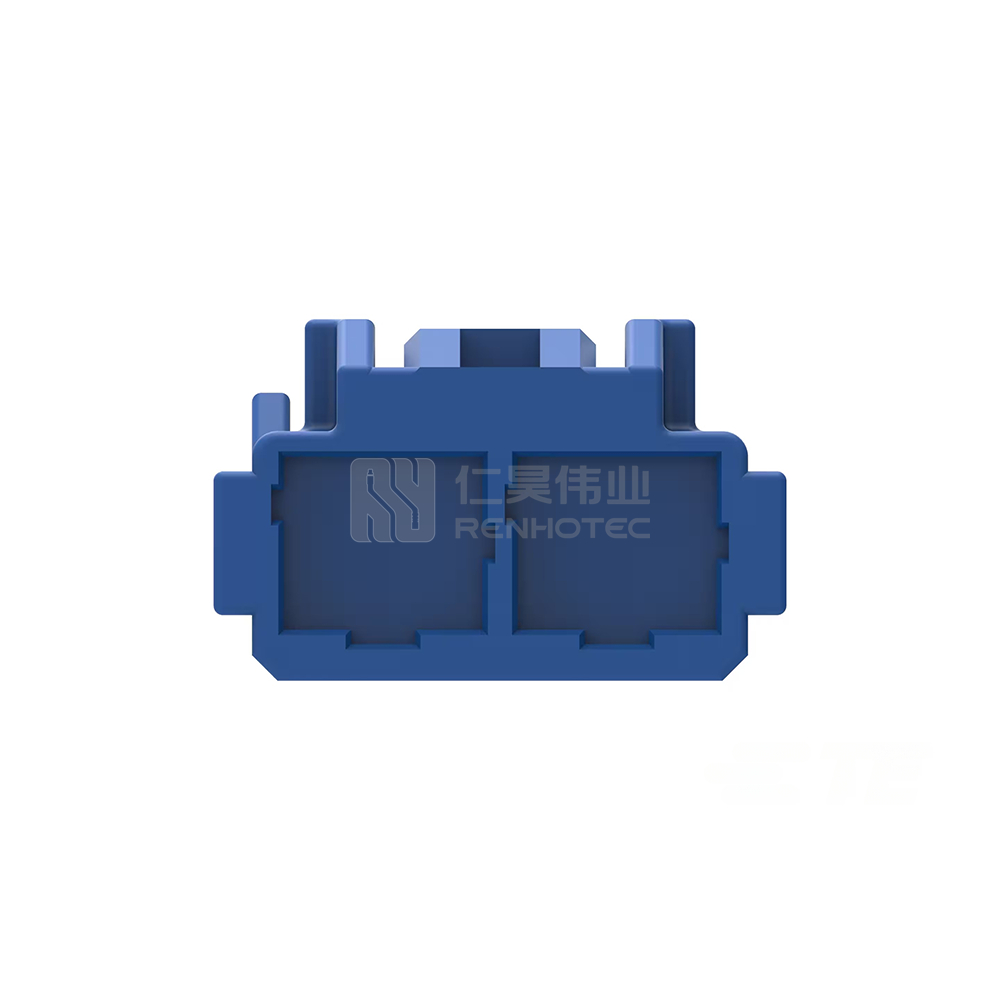

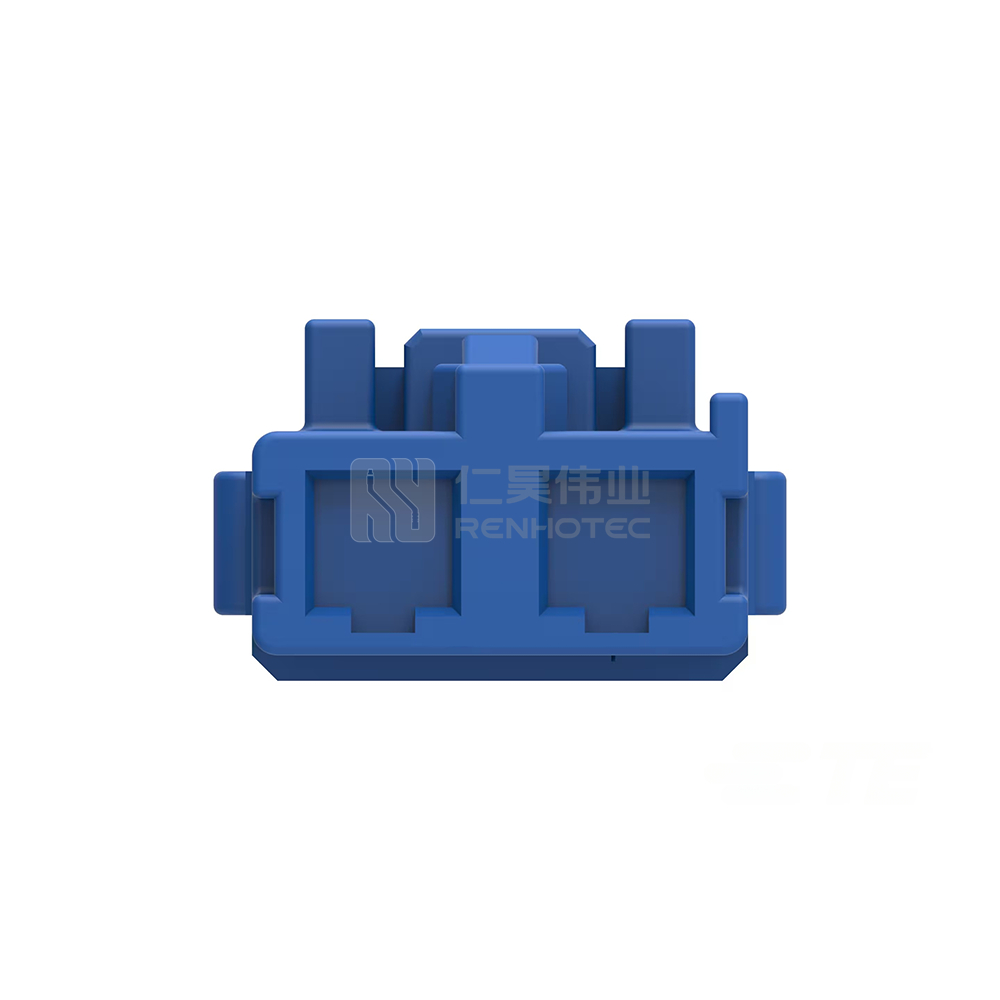

Wire-to-Wire, 180° Cable Exit, 2 Position, Housing for Female Terminals, 7.3 mm Centerline, Crimp, FAKRA, Data Connectivity Housings

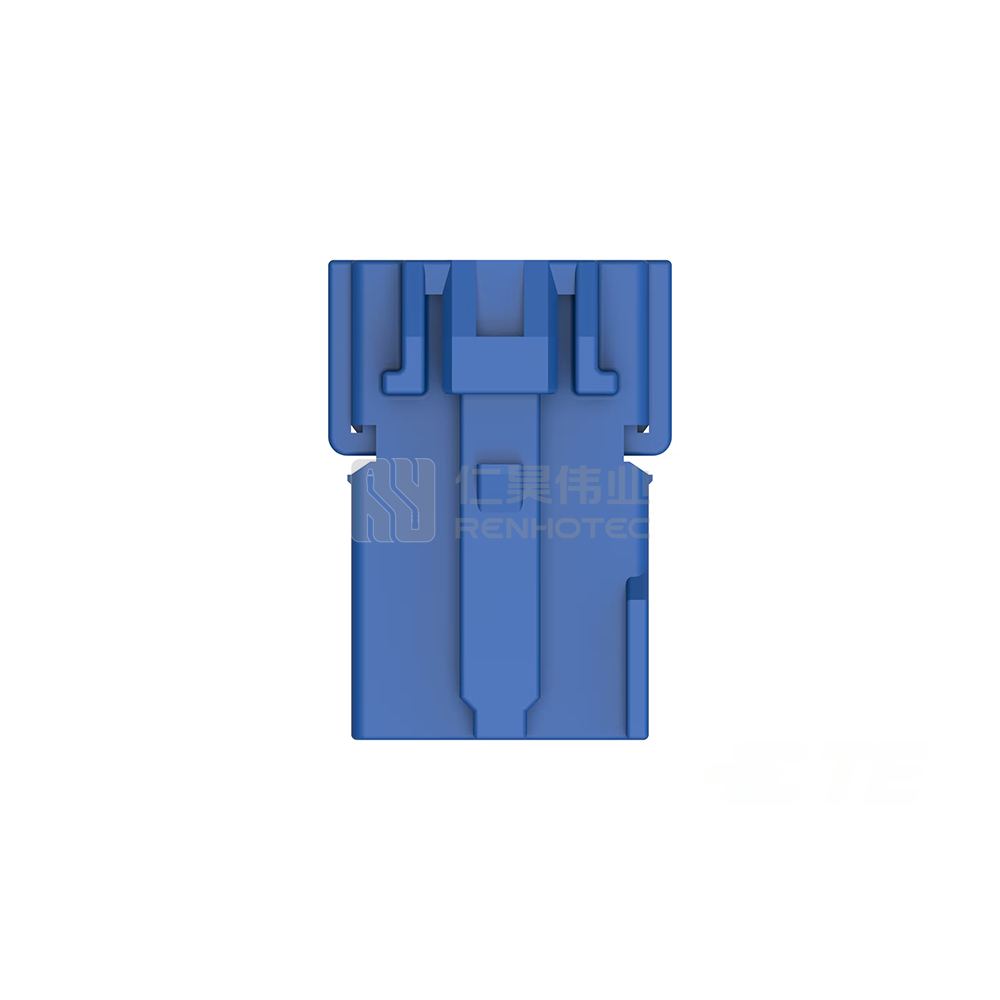

Wire-to-Wire, 180° Cable Exit, 2 Position, Housing for Female Terminals, 7.3 mm Centerline, Crimp, FAKRA, Data Connectivity Housings - Image 2

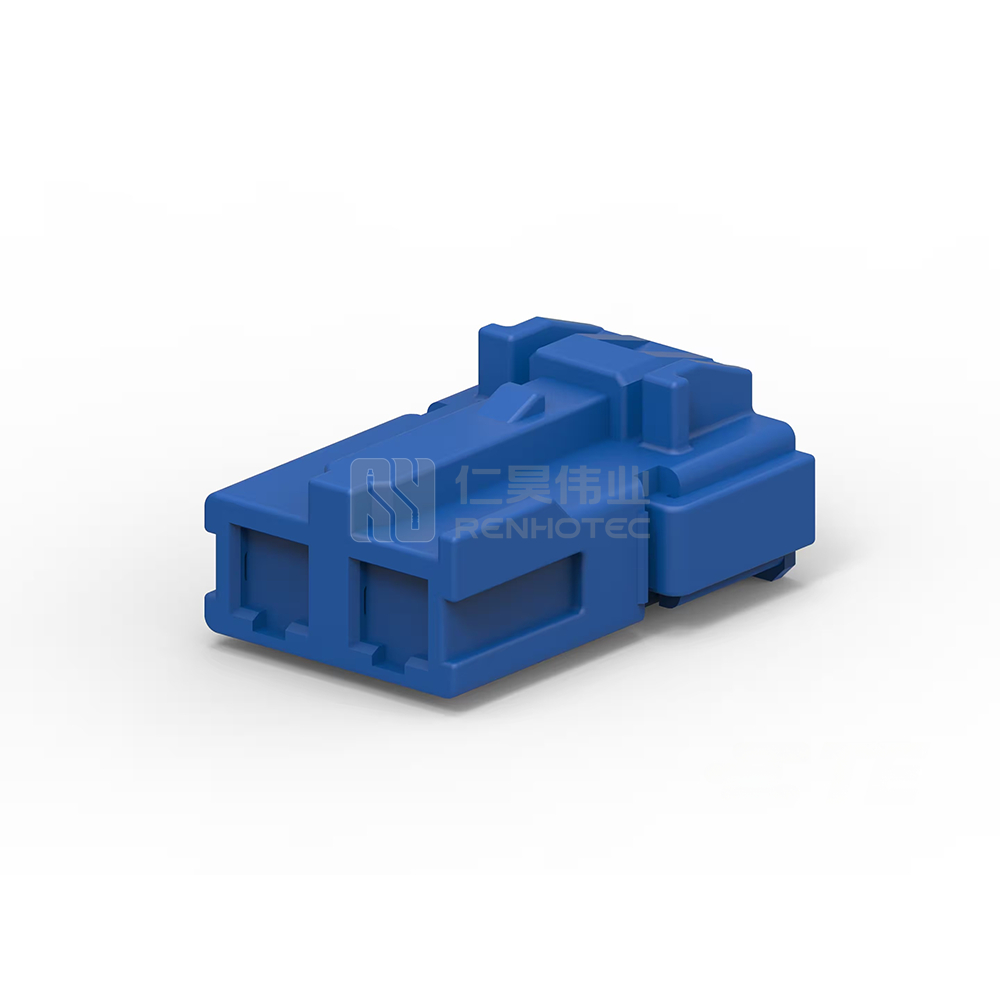

Wire-to-Wire, 180° Cable Exit, 2 Position, Housing for Female Terminals, 7.3 mm Centerline, Crimp, FAKRA, Data Connectivity Housings - Image 3

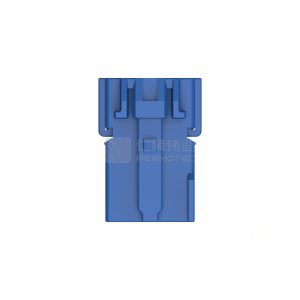

Wire-to-Wire, 180° Cable Exit, 2 Position, Housing for Female Terminals, 7.3 mm Centerline, Crimp, FAKRA, Data Connectivity Housings - Image 4

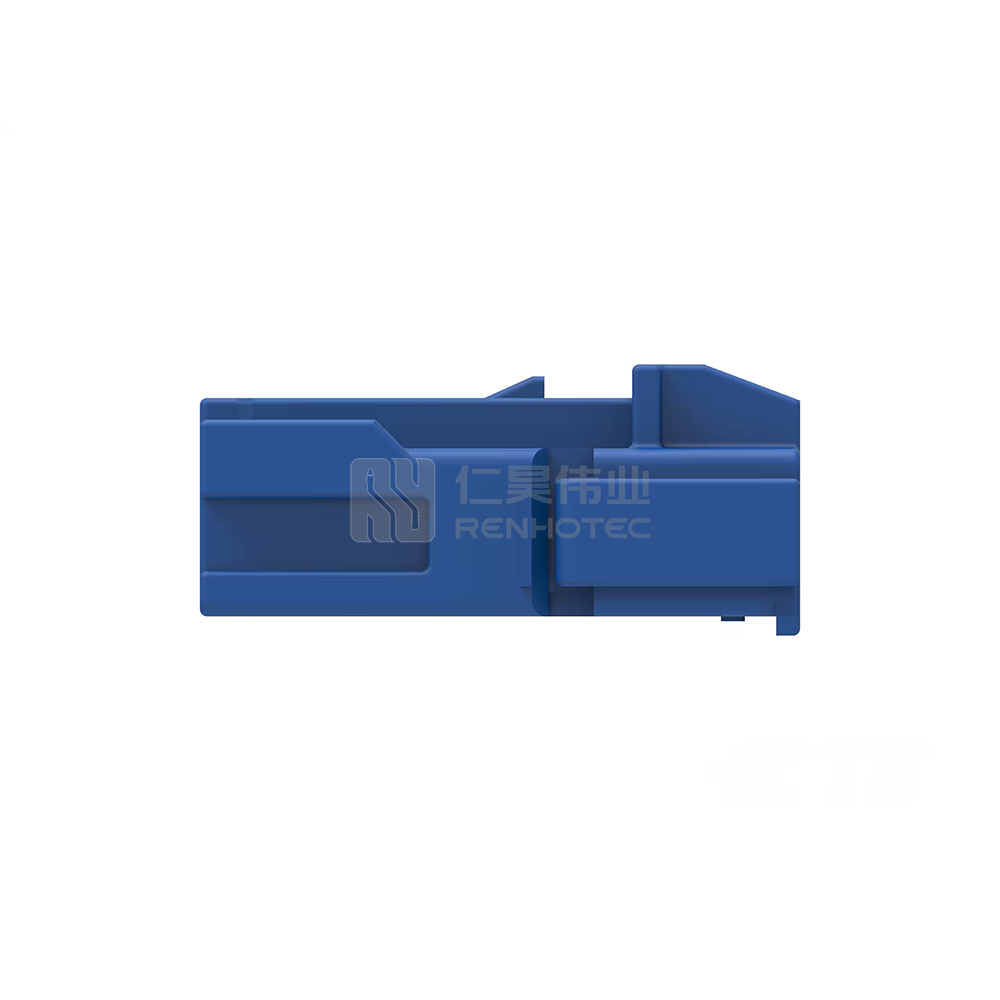

Wire-to-Wire, 180° Cable Exit, 2 Position, Housing for Female Terminals, 7.3 mm Centerline, Crimp, FAKRA, Data Connectivity Housings - Image 5

TE-1897789-8 Fakra Connectors Specs & Datasheet

Request for Quotation

Wire-to-Wire, 180° Cable Exit, 2 Position, Housing for Female Terminals, 7.3 mm Centerline, Crimp, FAKRA, Data Connectivity Housings

Secure and organize your automotive data connections with this 2-position FAKRA housing. It solves loose wire issues with a secure 180° cable exit and crimp terminals for reliable, high-speed signal transmission in tight spaces.

Description
Attributes

With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

PCB End (Male)

Cable End (Male)

Cable End (Female)

Secure primary locking system with tactile and audible locking
Shock and vibration resistant coded housing
Protection against unintentional opening by protective bar and protective strips
High axial holding power of the coaxial insert due to secondary locking
Mechanical and color coding system with 14 different codes

Fastening groove for cable connectors for chassis mounting
Coaxial insert and cable freely rotatable in the housing
Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
Efficient, automated further processing option
Customized packaging possible


Code	A	B	C	D	E	F	G
Color	Deep Black	Cream White	Signal Blue	Bordeaux Violet	Leaf Green	Brown	Blue Gray
Application	Radio with phantom supply	Radio without phantom supply	GPS telematics or navigation	GSM Cellular Phone	TV (UHF)	TV (VHF)	SDARS terrestrial

Code	H	I	K	L	M	N	Z
Color	Violet	Beige	Curry Yellow	Carmine Red	Pastel Orange	Pastel Green	Water Blue
Application	GPS telematics and navigation	Bluetooth Controlled Parking Heating	SDARS satellite	Not defined	Keyless entry Tire pressure monitoring	Not defined	Neutral

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Termination Point	Wire & Cable
Connector System	Wire-to-Wire
Sealable	No
Row Count	1
Position Count	2
Max Current A	1
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Blue
Pitch	7.3 mm [ .28 in ]
Connector Height	11.3 mm [ .44 in ]
Product Length	15.5 mm [ .61 in ]
Product Width	25 mm [ .98 in ]
Shielded	No
Package Qty	800
Body Material	PBT GF10
Tab Width	.8 mm [ .03 in ]
Tab Thickness	.25 mm [ .009 in ]
Primary Lock	Locking Lance
Housing Type	Housing for Female Terminals
Snap Lock	Without
Cable Exit Type	Straight
Cable Exit Angle	180°
Cable Termination	Crimp
Frequency Range GHz	0 – 3
Standards Certified	SAE/USCAR-17 \| SAE/USCAR-2
Operating Voltage VAC	800
Temperature Range C	-40 – 85 \| -40 – 105
Temperature Range F	-40 – 221 \| -40 – 185
Termination Point	Wire & Cable	Connector System	Wire-to-Wire
Sealable	No	Row Count	1
Position Count	2	Max Current A	1
Mount Type	Cable Mount (Free-Hanging)	Housing Color	Blue
Pitch	7.3 mm [ .28 in ]	Connector Height	11.3 mm [ .44 in ]
Product Length	15.5 mm [ .61 in ]	Product Width	25 mm [ .98 in ]
Shielded	No	Package Qty	800
Body Material	PBT GF10	Tab Width	.8 mm [ .03 in ]
Tab Thickness	.25 mm [ .009 in ]	Primary Lock	Locking Lance
Housing Type	Housing for Female Terminals	Snap Lock	Without
Cable Exit Type	Straight	Cable Exit Angle	180°
Cable Termination	Crimp	Frequency Range GHz	0 – 3
Standards Certified	SAE/USCAR-17 \| SAE/USCAR-2	Operating Voltage VAC	800
Temperature Range C	-40 – 85 \| -40 – 105	Temperature Range F	-40 – 221 \| -40 – 185

Product Specification

Contact Type	Receptacle
Contact Type	Receptacle

Termination Point	Wire & Cable
Connector System	Wire-to-Wire
Sealable	No
Row Count	1
Position Count	2
Contact Type	Receptacle
Max Current A	1
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Blue
Pitch	7.3 mm [ .28 in ]
Connector Height	11.3 mm [ .44 in ]
Product Length	15.5 mm [ .61 in ]
Product Width	25 mm [ .98 in ]
Shielded	No
Package Qty	800
Body Material	PBT GF10
Tab Width	.8 mm [ .03 in ]
Tab Thickness	.25 mm [ .009 in ]
Primary Lock	Locking Lance
Housing Type	Housing for Female Terminals
Snap Lock	Without
Cable Exit Type	Straight
Cable Exit Angle	180°
Cable Termination	Crimp
Frequency Range GHz	0 – 3
Standards Certified	SAE/USCAR-17 \| SAE/USCAR-2
Operating Voltage VAC	800
Temperature Range C	-40 – 85 \| -40 – 105
Temperature Range F	-40 – 221 \| -40 – 185
