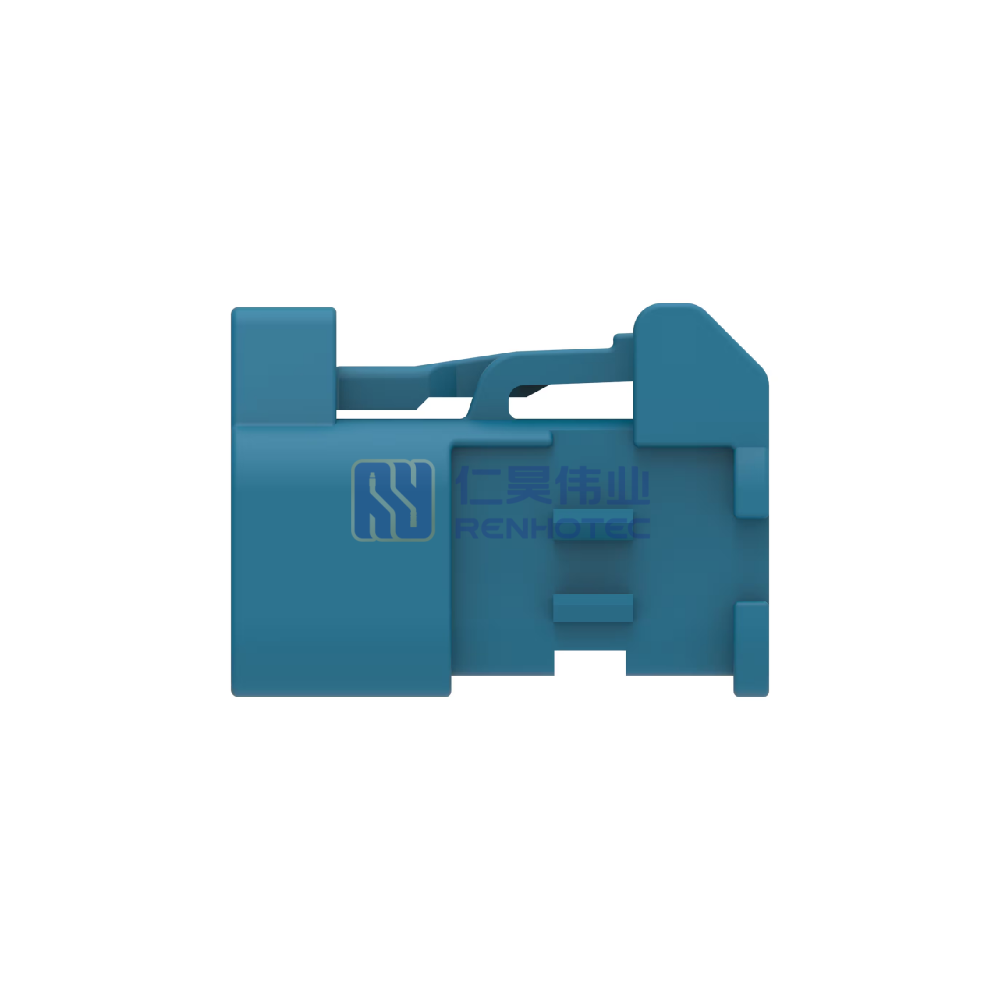

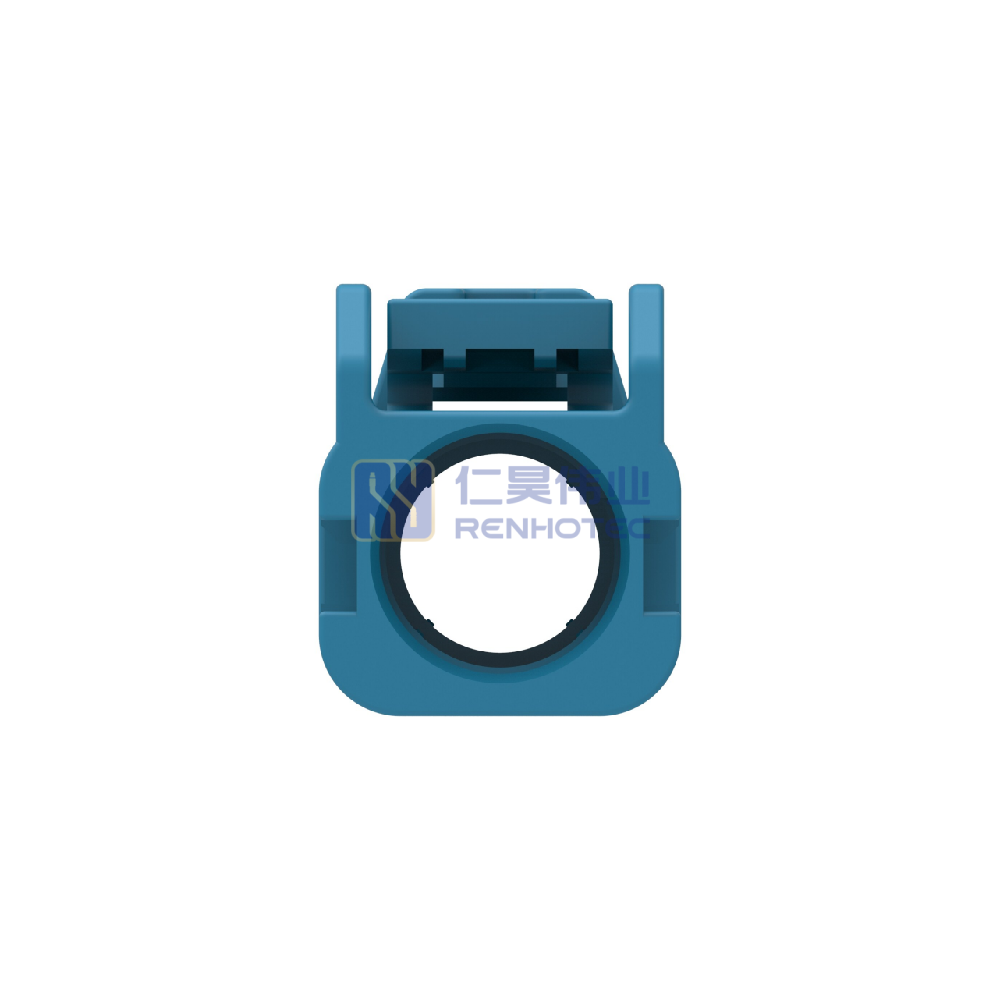

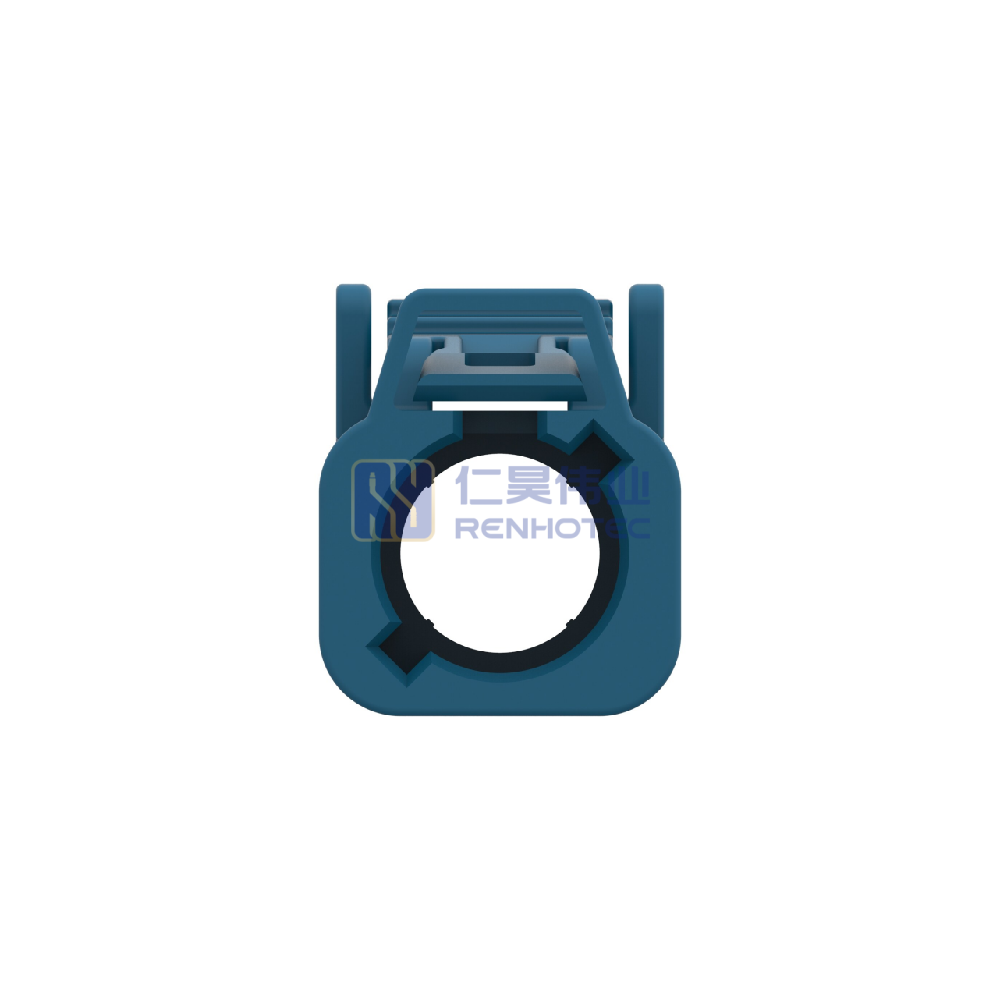

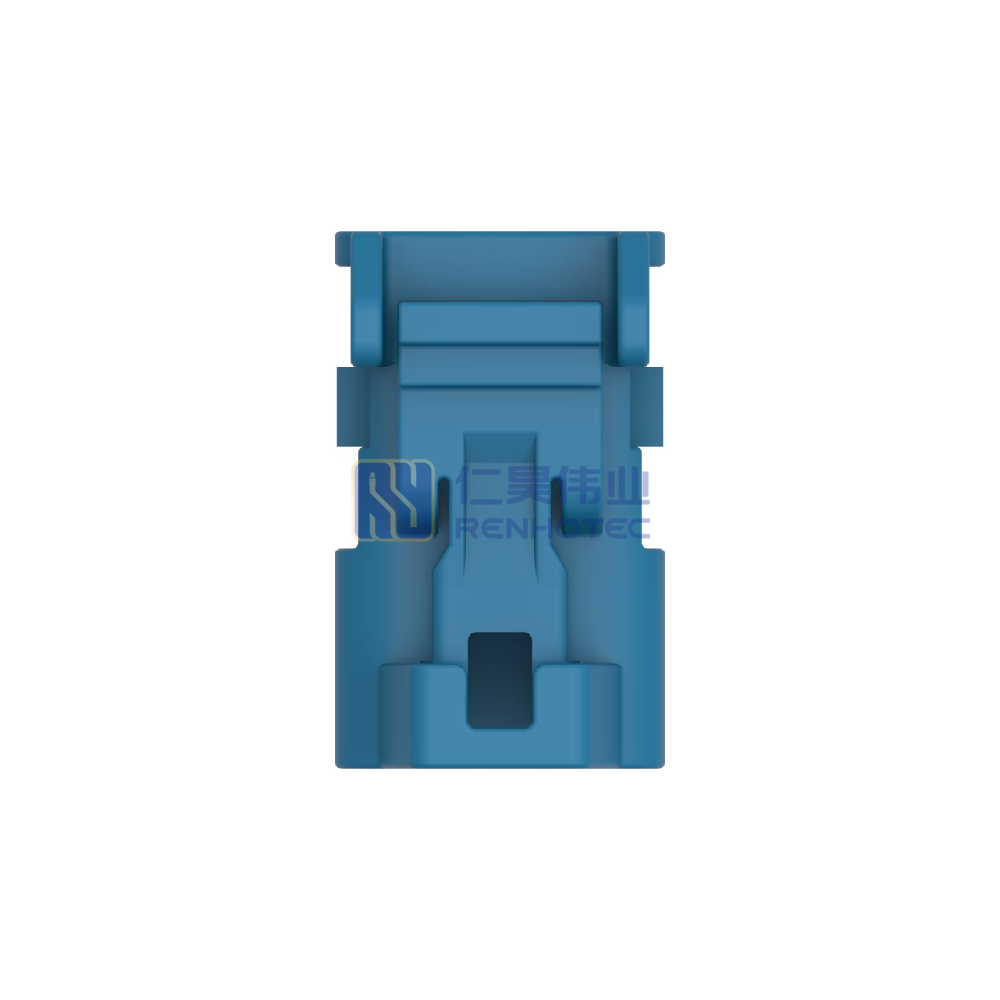

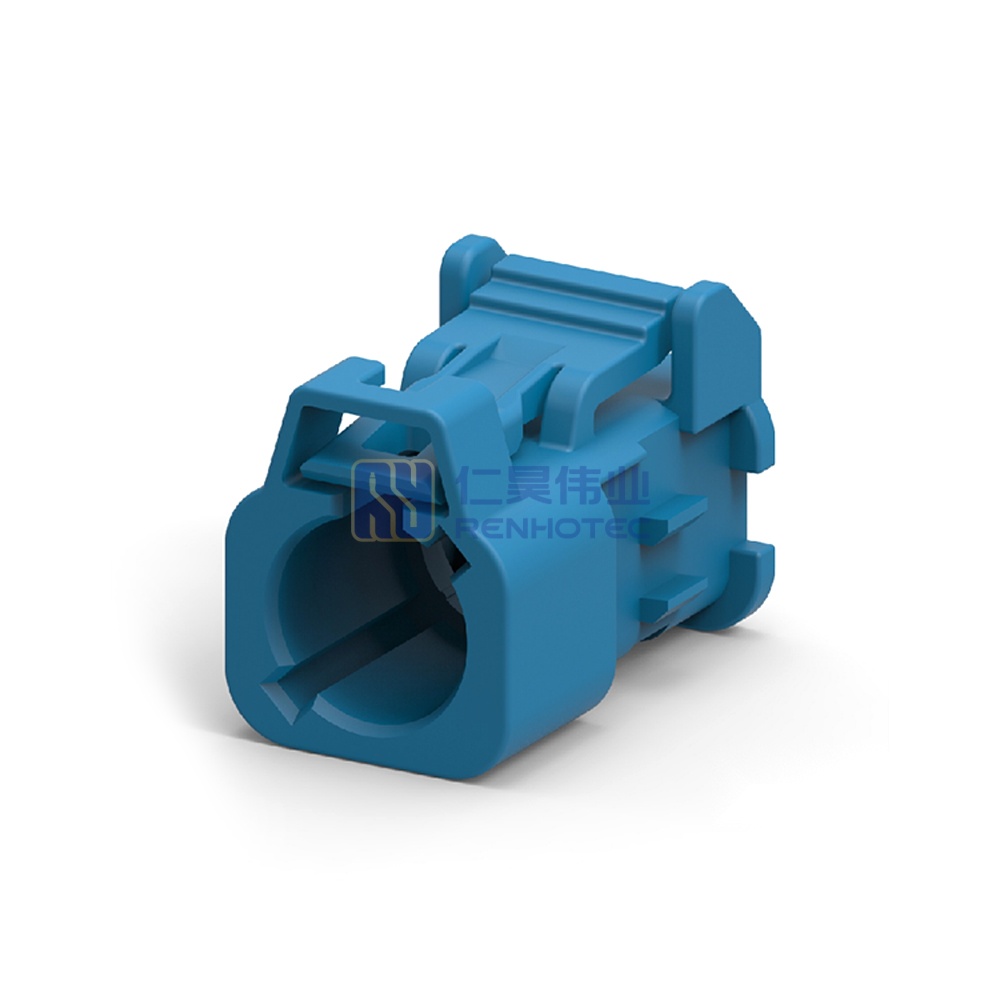

Wire-to-Wire, 180° Cable Exit, 1 Position, D Code, Housing for Female Terminals, Crimp, Cable Mount (Free-Hanging), FAKRA, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Wire-to-Device
Sealable	No
Row Count	1
Position Count	1
Key Code	C
Center Contact	Without
Housing Color	Blue
Connector Height	13.95 mm [ .549 in ]
Product Length	11.69 mm [ .46 in ]
Product Width	18.9 mm [ .744 in ]
Shielded	No
Package Qty	1000
Body Material	PBT
Package Method	Package
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Position Assurance	No
Termination Point	Wire & Cable	Connector System	Wire-to-Device
Sealable	No	Row Count	1
Position Count	1	Key Code	C
Center Contact	Without	Housing Color	Blue
Connector Height	13.95 mm [ .549 in ]	Product Length	11.69 mm [ .46 in ]
Product Width	18.9 mm [ .744 in ]	Shielded	No
Package Qty	1000	Body Material	PBT
Package Method	Package	Housing Type	Housing for Female Terminals
Cable Exit Angle	180°	Position Assurance	No

Termination Point	Wire & Cable
Connector System	Wire-to-Device
Sealable	No
Row Count	1
Position Count	1
Key Code	C
Contact Type	Socket
Center Contact	Without
Housing Color	Blue
Connector Height	13.95 mm [ .549 in ]
Product Length	11.69 mm [ .46 in ]
Product Width	18.9 mm [ .744 in ]
Shielded	No
Package Qty	1000
Body Material	PBT
Temperature Range	-40 – 100 °C [ -40 – 212 °F ]
Package Method	Package
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Type	Coaxial
Position Assurance	No
