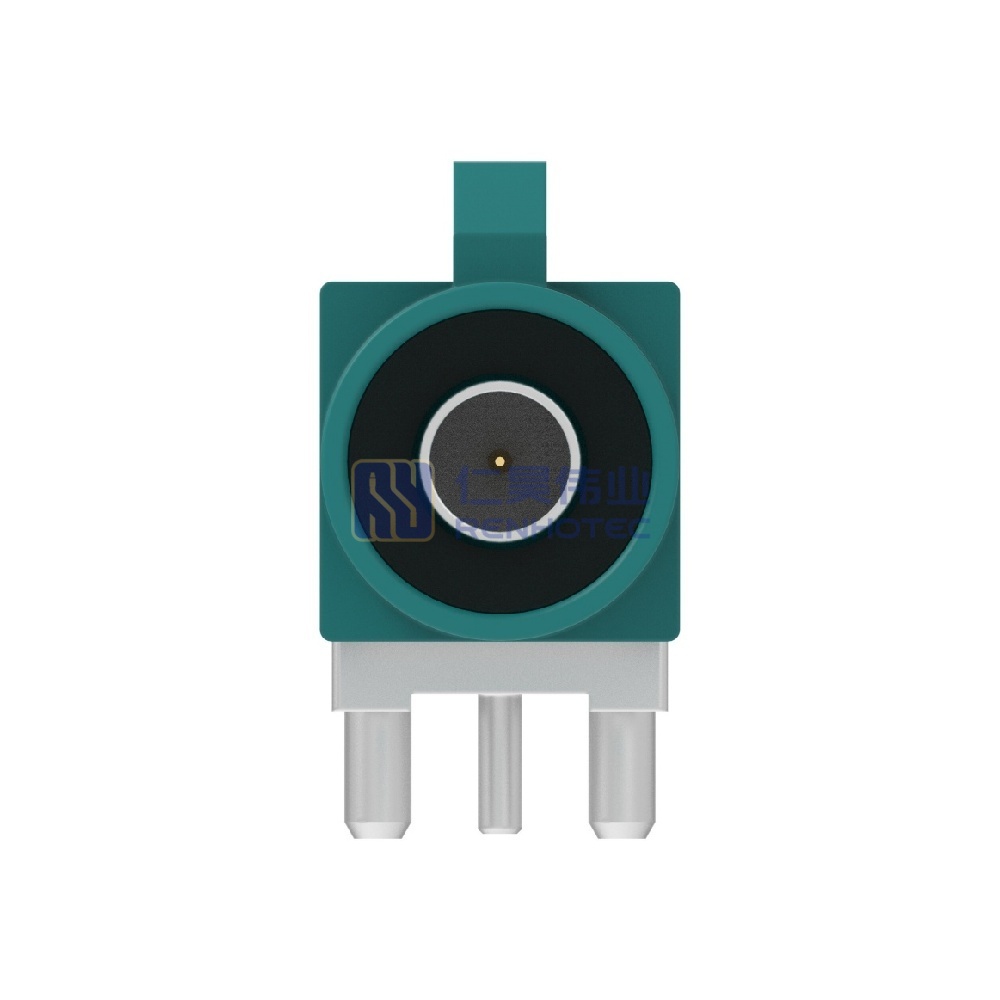

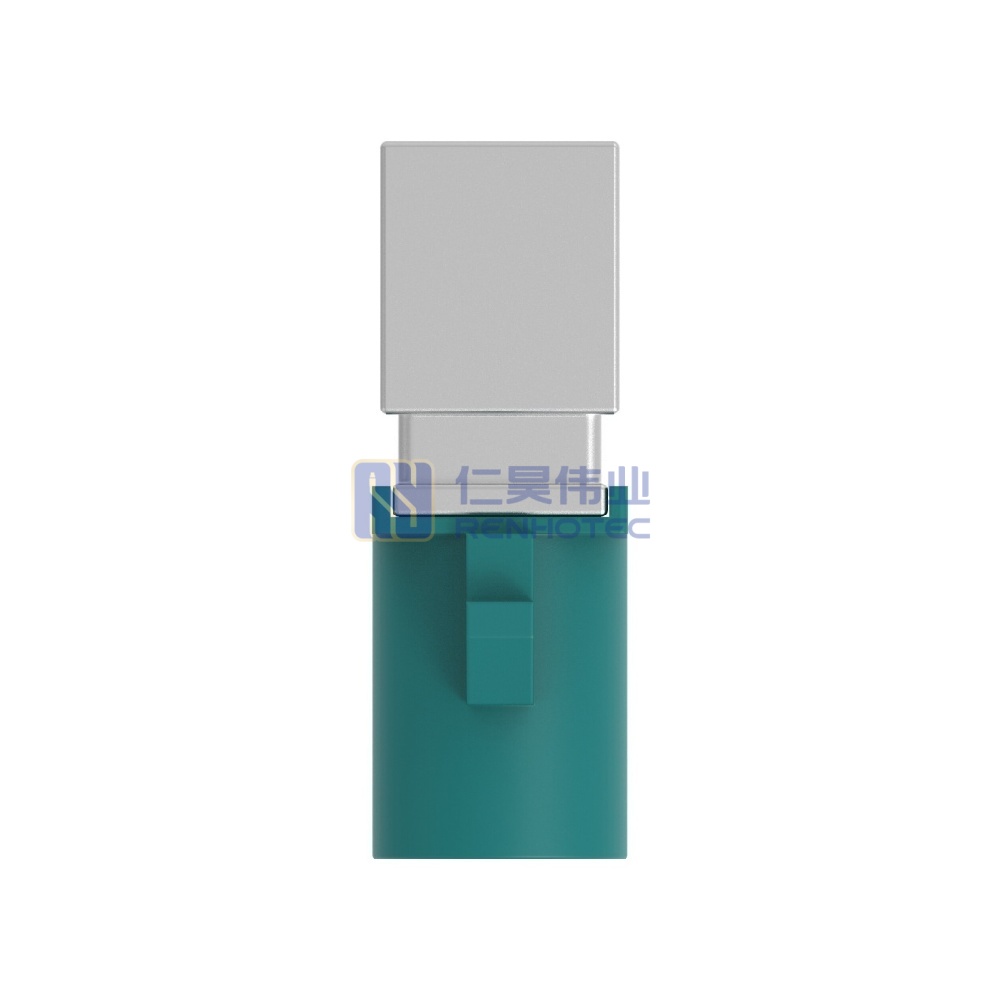

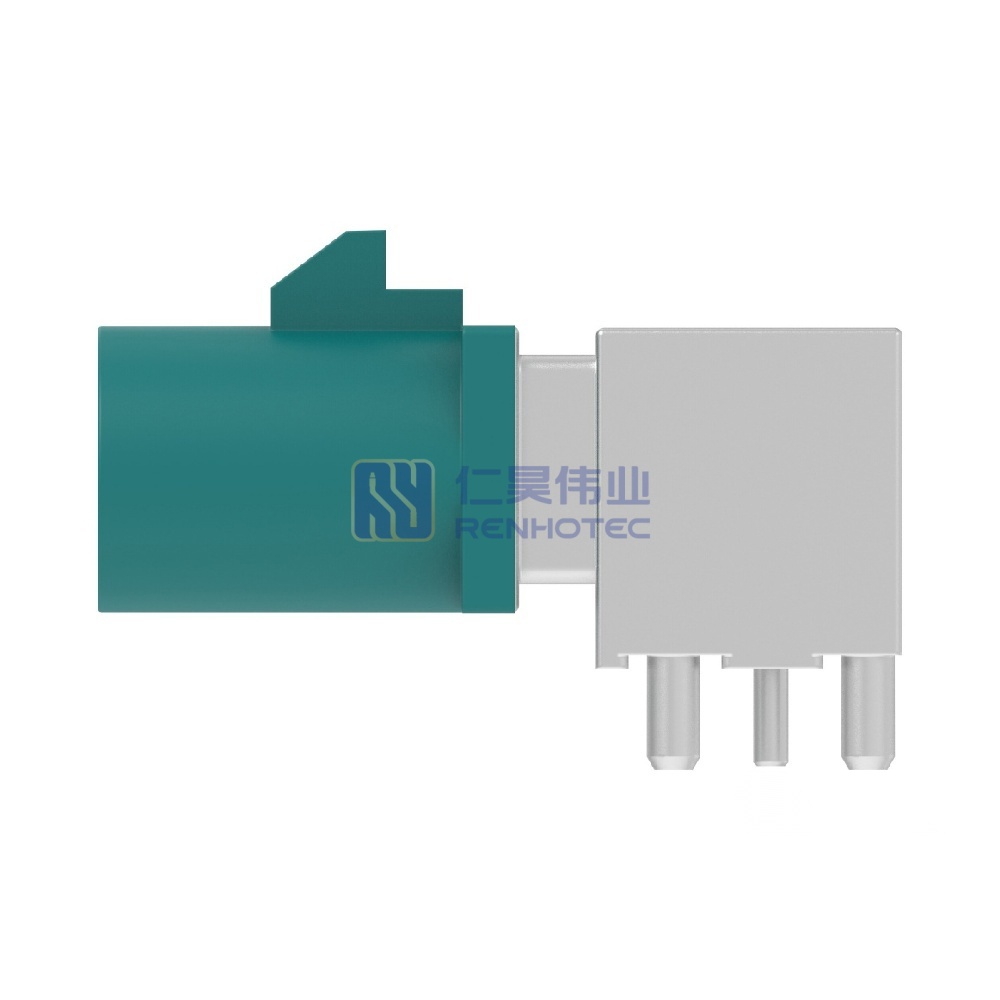

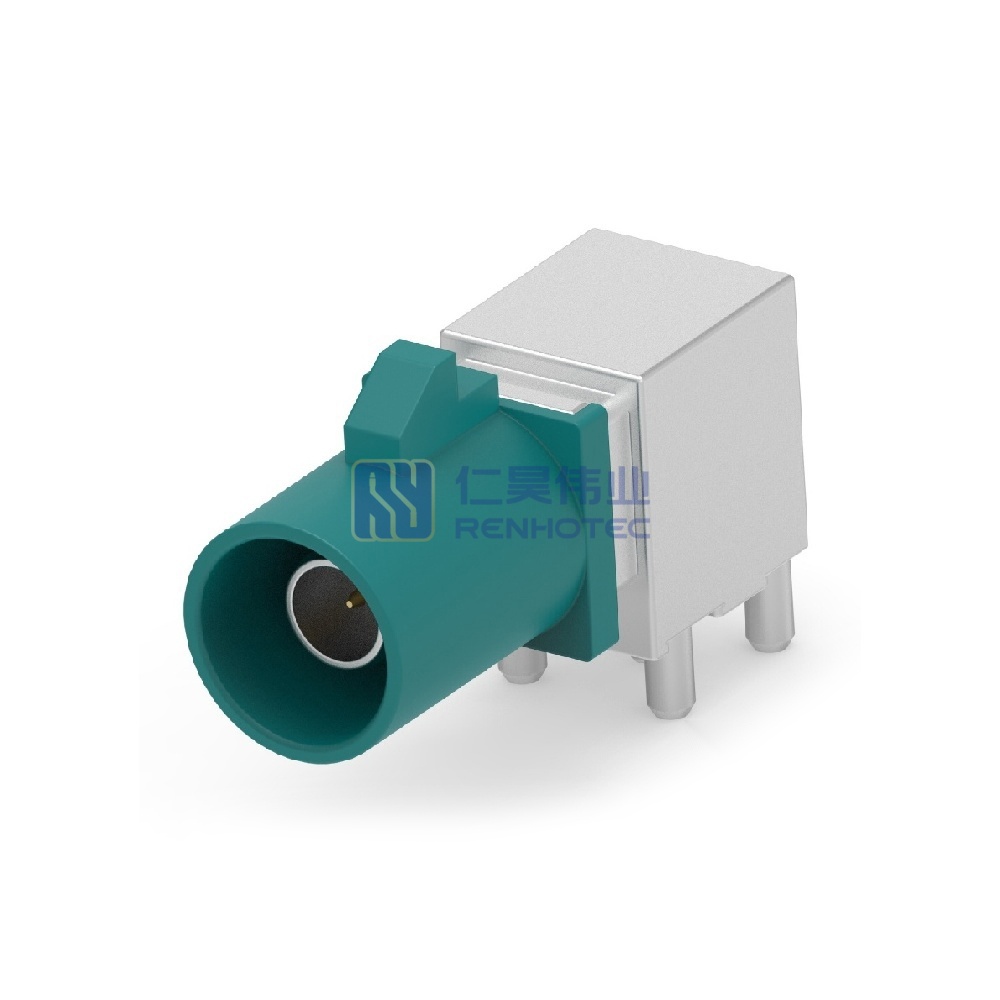

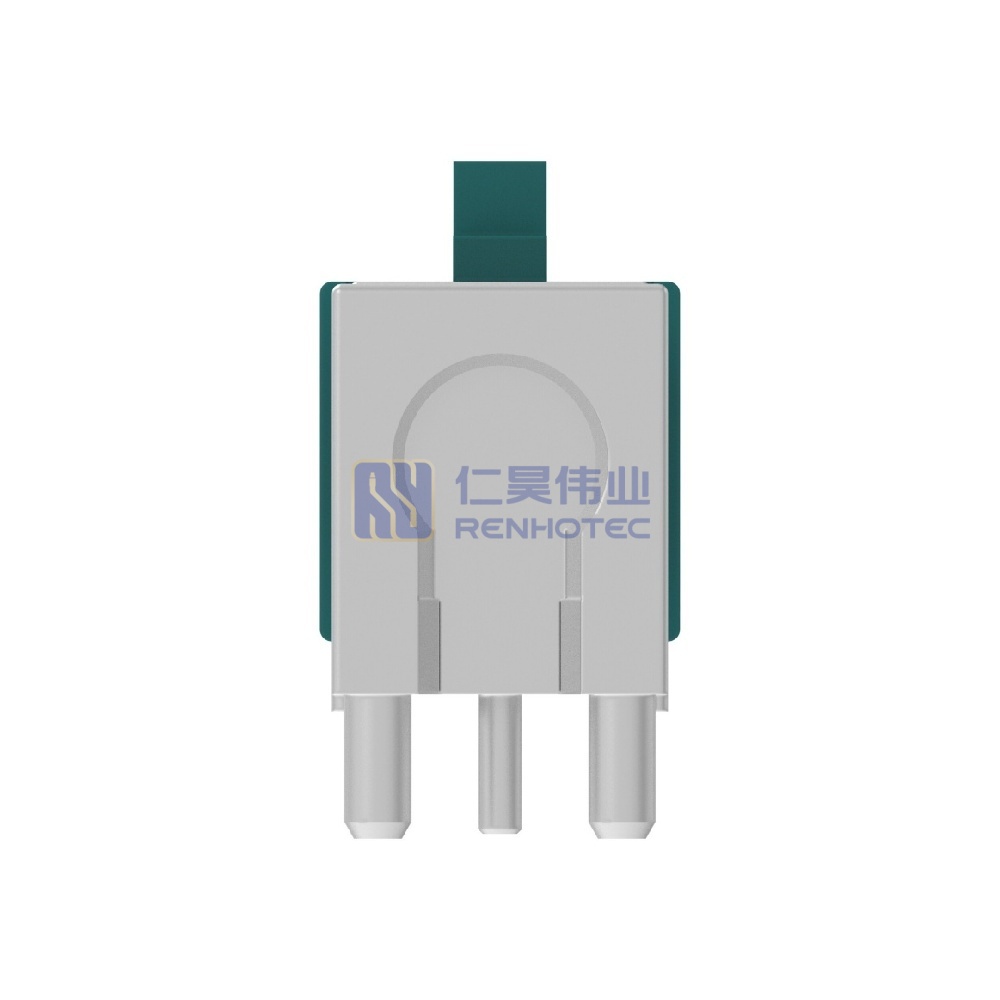

TE-1-2485540-5 Fakra Connectors Specs & Datasheet

Wire-to-Board / Wire-to-Device, Horizontal, 1 Position, Board Mount, A Code, Signal, FAKRA, Data Connectivity Headers

This FAKRA data connectivity header provides a reliable wire-to-board solution for automotive and industrial signal applications. It solves connection instability with a secure, horizontal, board-mount design, ensuring consistent data transmission in demanding environments.

Description
Attributes

With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

PCB End (Male)

Cable End (Male)

Cable End (Female)

Secure primary locking system with tactile and audible locking
Shock and vibration resistant coded housing
Protection against unintentional opening by protective bar and protective strips
High axial holding power of the coaxial insert due to secondary locking
Mechanical and color coding system with 14 different codes

Fastening groove for cable connectors for chassis mounting
Coaxial insert and cable freely rotatable in the housing
Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
Efficient, automated further processing option
Customized packaging possible


Code	A	B	C	D	E	F	G
Color	Deep Black	Cream White	Signal Blue	Bordeaux Violet	Leaf Green	Brown	Blue Gray
Application	Radio with phantom supply	Radio without phantom supply	GPS telematics or navigation	GSM Cellular Phone	TV (UHF)	TV (VHF)	SDARS terrestrial

Code	H	I	K	L	M	N	Z
Color	Violet	Beige	Curry Yellow	Carmine Red	Pastel Orange	Pastel Green	Water Blue
Application	GPS telematics and navigation	Bluetooth Controlled Parking Heating	SDARS satellite	Not defined	Keyless entry Tire pressure monitoring	Not defined	Neutral

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Termination Point	Printed Circuit Board
Connector System	Cable-to-Board
Sealable	No
PCB Orientation	Right Angle
Position Count	1
Center Contact Plating	Gold (Au)
PCB Termination	Through Hole – Solder
PCB Retention	Without
Housing Color	Water Blue
Circuit Application	Signal
Package Qty	1
Body Material	Die Cast Zinc
Package Method	Bag & Box
Cable Termination	Solder
Frequency Range GHz	6
Product Type	Connector Assembly
RF Interface	FAKRA
RF Style	Plug
Coaxial Count	1
EMI RFI Protection	Shielding
Body Finish	Plated
Body Plating	Tin
RF Center Material	Brass
Panel Mount Type	Mounting Hole
RF Coupling	Locking
RF Contact Capture	Mechanical
Detent	Without
Body Orientation	Right Angle
Termination Point	Printed Circuit Board	Connector System	Cable-to-Board
Sealable	No	PCB Orientation	Right Angle
Position Count	1	Center Contact Plating	Gold (Au)
PCB Termination	Through Hole – Solder	PCB Retention	Without
Housing Color	Water Blue	Circuit Application	Signal
Package Qty	1	Body Material	Die Cast Zinc
Package Method	Bag & Box	Cable Termination	Solder
Frequency Range GHz	6	Product Type	Connector Assembly
RF Interface	FAKRA	RF Style	Plug
Coaxial Count	1	EMI RFI Protection	Shielding
Body Finish	Plated	Body Plating	Tin
RF Center Material	Brass	Panel Mount Type	Mounting Hole
RF Coupling	Locking	RF Contact Capture	Mechanical
Detent	Without	Body Orientation	Right Angle

Product Specification

Temperature Range	-40 – 105 °C [ -40 – 221 °F ]
Temperature Range	-40 – 105 °C [ -40 – 221 °F ]

Termination Point	Printed Circuit Board
Connector System	Cable-to-Board
Sealable	No
PCB Orientation	Right Angle
Position Count	1
Center Contact Plating	Gold (Au)
PCB Termination	Through Hole – Solder
PCB Retention	Without
Housing Color	Water Blue
Circuit Application	Signal
Package Qty	1
Body Material	Die Cast Zinc
Temperature Range	-40 – 105 °C [ -40 – 221 °F ]
Package Method	Bag & Box
Impedance Ω	50
Cable Termination	Solder
Frequency Range GHz	6
Product Type	Connector Assembly
RF Interface	FAKRA
RF Style	Plug
Coaxial Count	1
EMI RFI Protection	Shielding
Body Finish	Plated
Body Plating	Tin
RF Center Material	Brass
Panel Mount Type	Mounting Hole
RF Coupling	Locking
RF Contact Capture	Mechanical
Detent	Without
Body Orientation	Right Angle

Wire-to-Board / Wire-to-Device, Horizontal, 1 Position, Board Mount, A Code, Signal, FAKRA, Data Connectivity Headers
