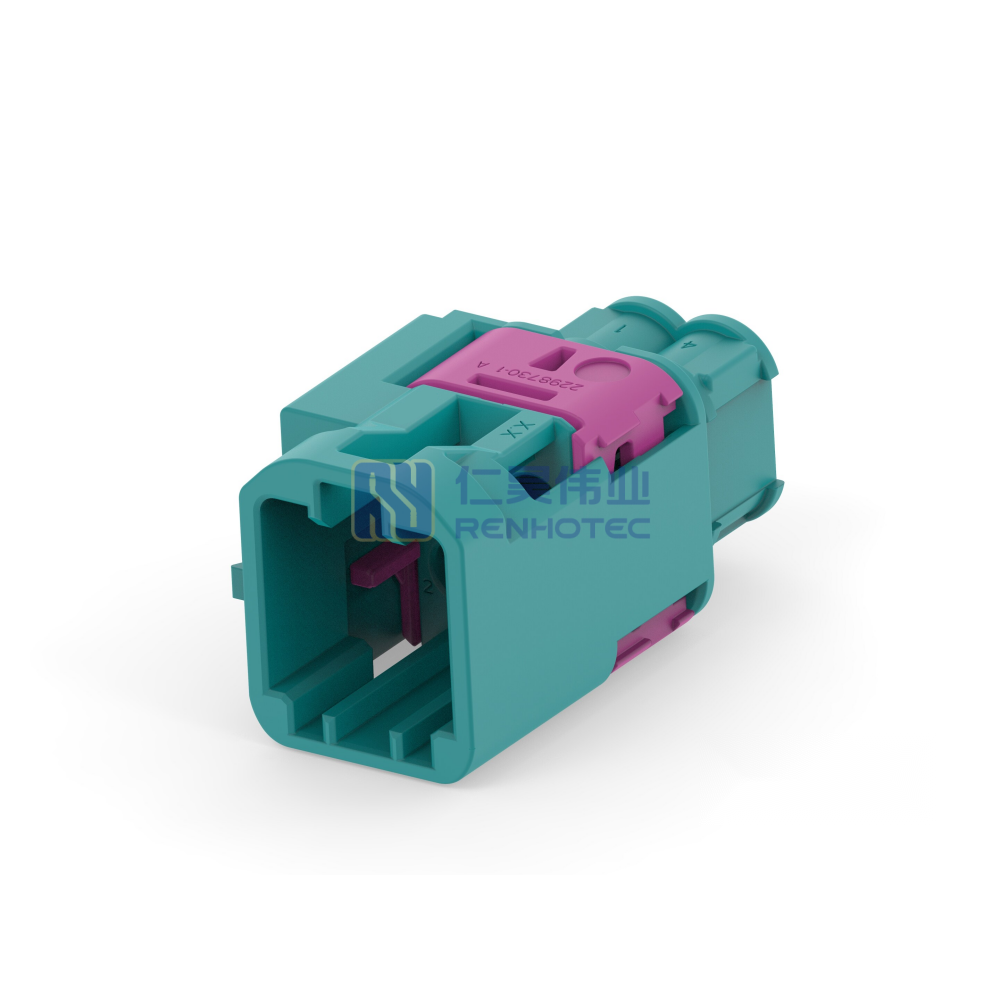

Cable-to-Cable 180° Cable Exit 4 Position Z Code Housing for Male Terminals 4 mm Centerline Crimp Data Connectivity Housings

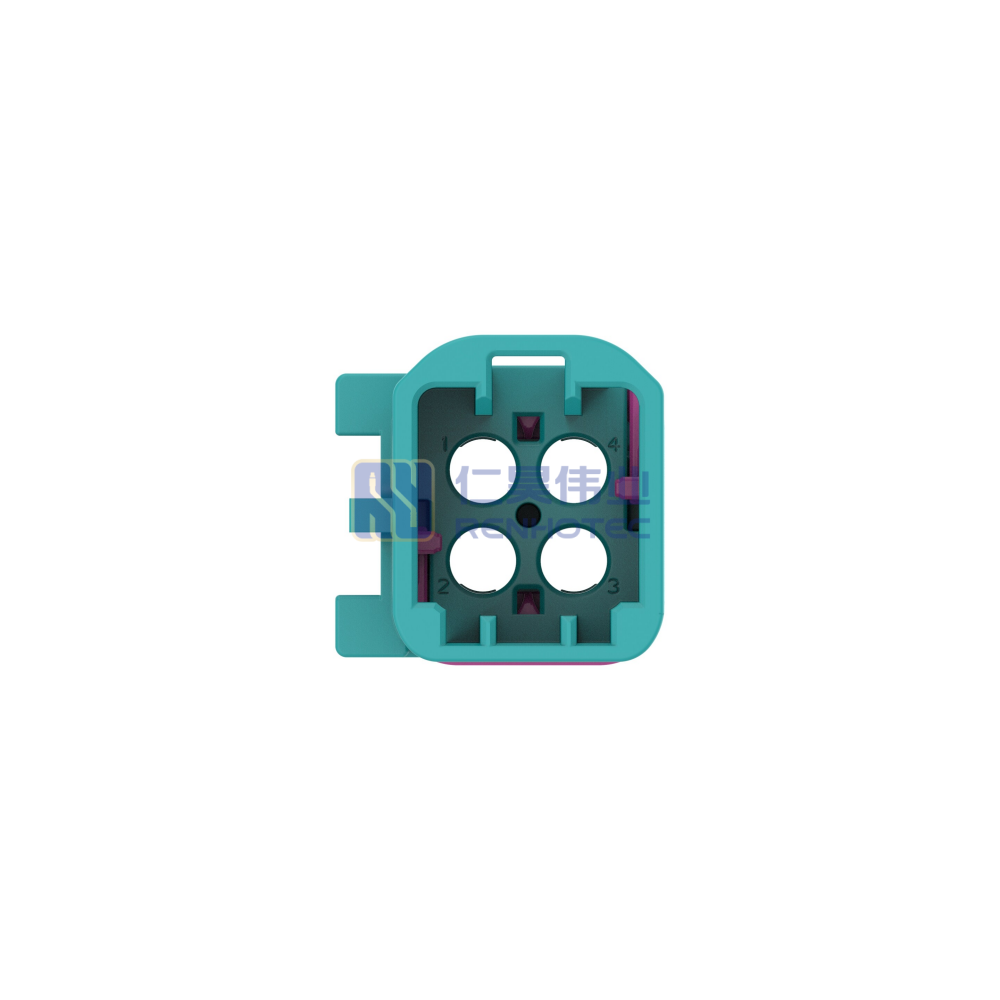

Cable-to-Cable 180° Cable Exit 4 Position Z Code Housing for Male Terminals 4 mm Centerline Crimp Data Connectivity Housings - Image 2

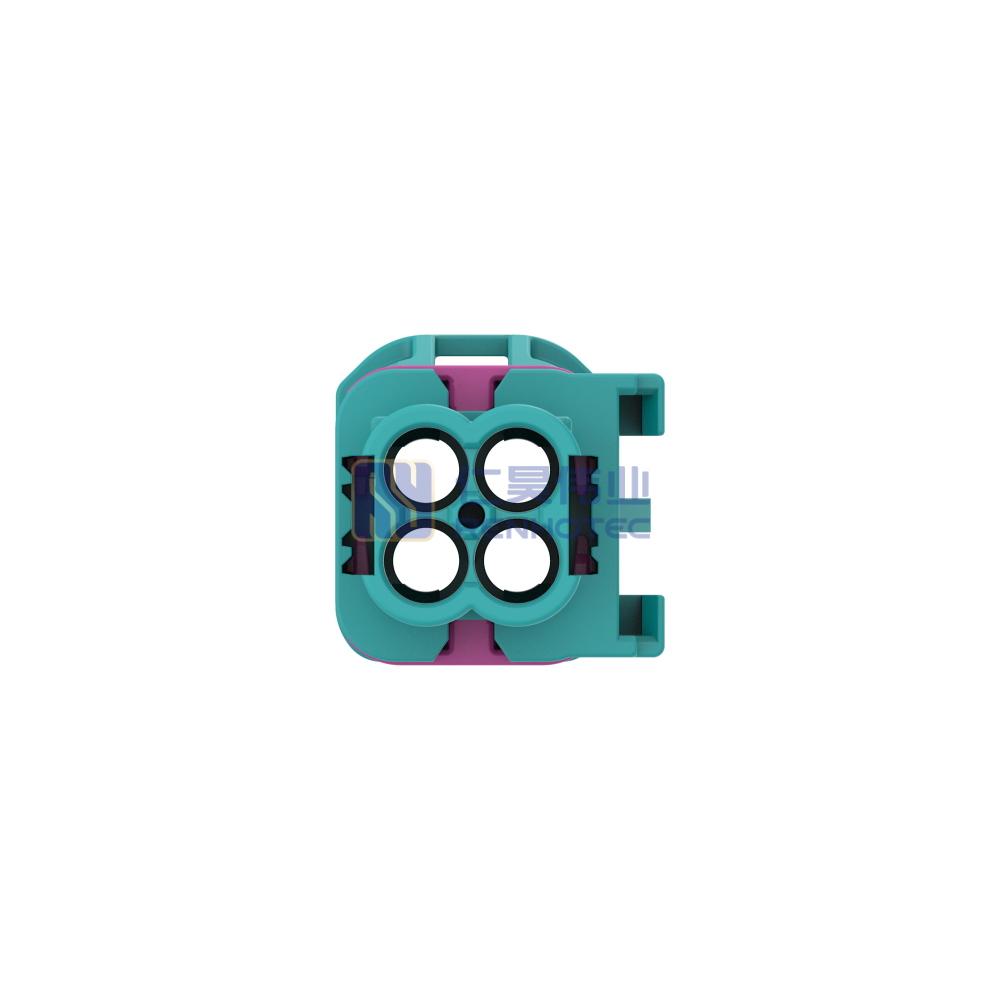

Cable-to-Cable 180° Cable Exit 4 Position Z Code Housing for Male Terminals 4 mm Centerline Crimp Data Connectivity Housings - Image 3

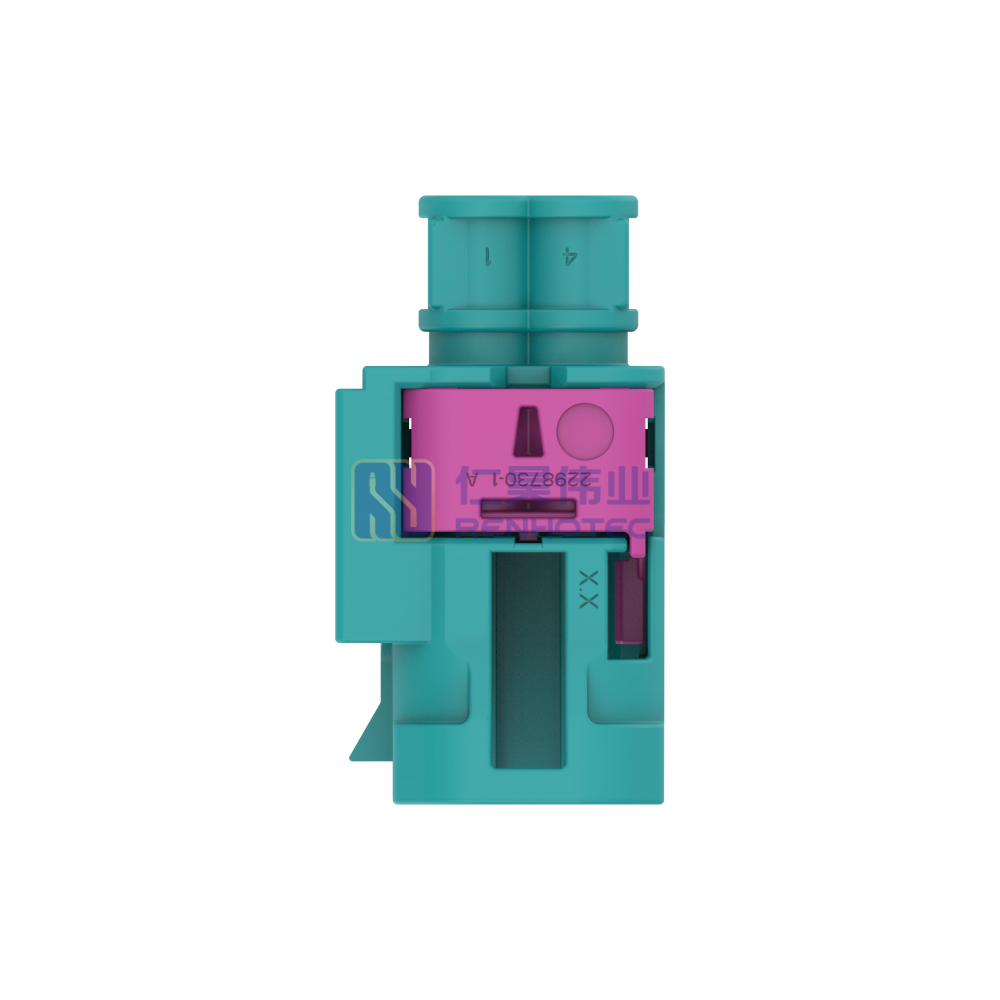

Cable-to-Cable 180° Cable Exit 4 Position Z Code Housing for Male Terminals 4 mm Centerline Crimp Data Connectivity Housings - Image 4

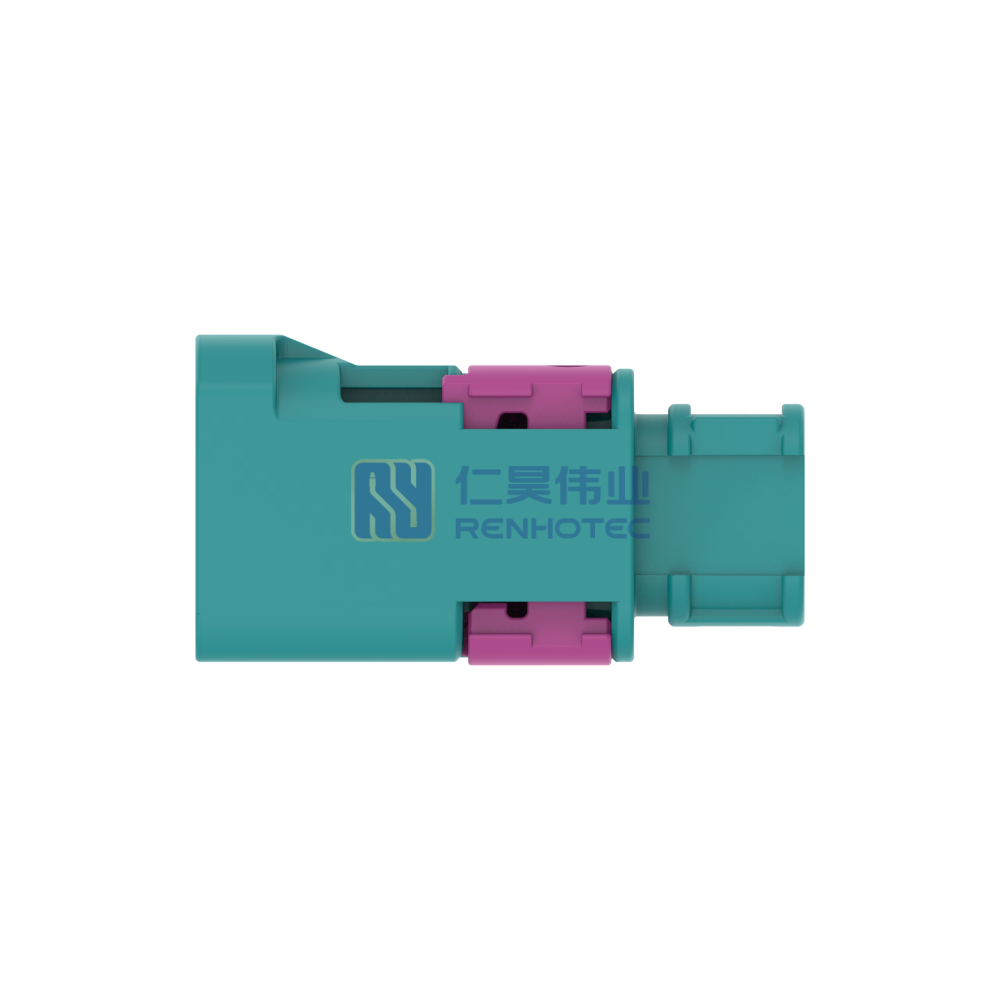

Cable-to-Cable 180° Cable Exit 4 Position Z Code Housing for Male Terminals 4 mm Centerline Crimp Data Connectivity Housings - Image 5

Cable-to-Cable 180° Cable Exit 4 Position Z Code Housing for Male Terminals 4 mm Centerline Crimp Data Connectivity Housings

SKU RHT-2-2298724-9 Category Automotive Ethernet Connectors

Product Files

Open drawing and specification files.

Catalog PDF Renhotec Alternative to TE-2-2298724-9 Automotive Ethernet Cable Assemblies Specs & Datasheet PDF

Compatible Part Number

ManufacturerPart Number
TETE-2-2298724-9

Product Type

Housing
Body Material

PA GF
Cable Exit Angle

180°
Cable Termination

Crimp
Circuit Application

High Speed Data
Connector Height

14.55 mm [ .573 in ]
Connector System

Cable-to-Cable
Housing Color

Water Blue
Housing Type

Housing for Male Terminals
Key Code

Z
Max Temperature C

65 | 70 | 75 | 80 | 85 | 90 | 100 | 105
Max Temperature F

221
Mount Type

Cable Mount (Free-Hanging)
Package Method

Box
Package Qty

1400
Pin Diameter

.4 mm [ .016 in ]
Pitch

4 mm [ .157 in ]
Position Assurance

No
Position Count

4
Primary Lock

On the Terminal
Product Length

14.5 mm [ .571 in ]
Product Width

26.8 mm [ 1.055 in ]
Row Count

2
Sealable

No
Shielded

No
Termination Point

Wire & Cable
Product Type

Housing

 Body Material

PA GF
Cable Exit Angle

180°

 Cable Termination

Crimp
Circuit Application

High Speed Data

 Connector Height

14.55 mm [ .573 in ]
Connector System

Cable-to-Cable

 Housing Color

Water Blue
Housing Type

Housing for Male Terminals

 Key Code

Z
Max Temperature C

65 | 70 | 75 | 80 | 85 | 90 | 100 | 105

 Max Temperature F

221
Mount Type

Cable Mount (Free-Hanging)

 Package Method

Box
Package Qty

1400

 Pin Diameter

.4 mm [ .016 in ]
Pitch

4 mm [ .157 in ]

 Position Assurance

No
Position Count

4

 Primary Lock

On the Terminal
Product Length

14.5 mm [ .571 in ]

 Product Width

26.8 mm [ 1.055 in ]
Row Count

2

 Sealable

No
Shielded

No

 Termination Point

Wire & Cable

Product Specification

Cable Type

RTK 031
Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Cable Type

RTK 031

 Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Product Type

Housing
Body Material

PA GF
Cable Exit Angle

180°
Cable Termination

Crimp
Cable Type

RTK 031
Circuit Application

High Speed Data
Connector Height

14.55 mm [ .573 in ]
Connector System

Cable-to-Cable
Housing Color

Water Blue
Housing Type

Housing for Male Terminals
Key Code

Z
Max Temperature C

65 | 70 | 75 | 80 | 85 | 90 | 100 | 105
Max Temperature F

221
Mount Type

Cable Mount (Free-Hanging)
Package Method

Box
Package Qty

1400
Pin Diameter

.4 mm [ .016 in ]
Pitch

4 mm [ .157 in ]
Position Assurance

No
Position Count

4
Primary Lock

On the Terminal
Product Length

14.5 mm [ .571 in ]
Product Width

26.8 mm [ 1.055 in ]
Row Count

2
Sealable

No
Shielded

No
Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Termination Point

Wire & Cable
