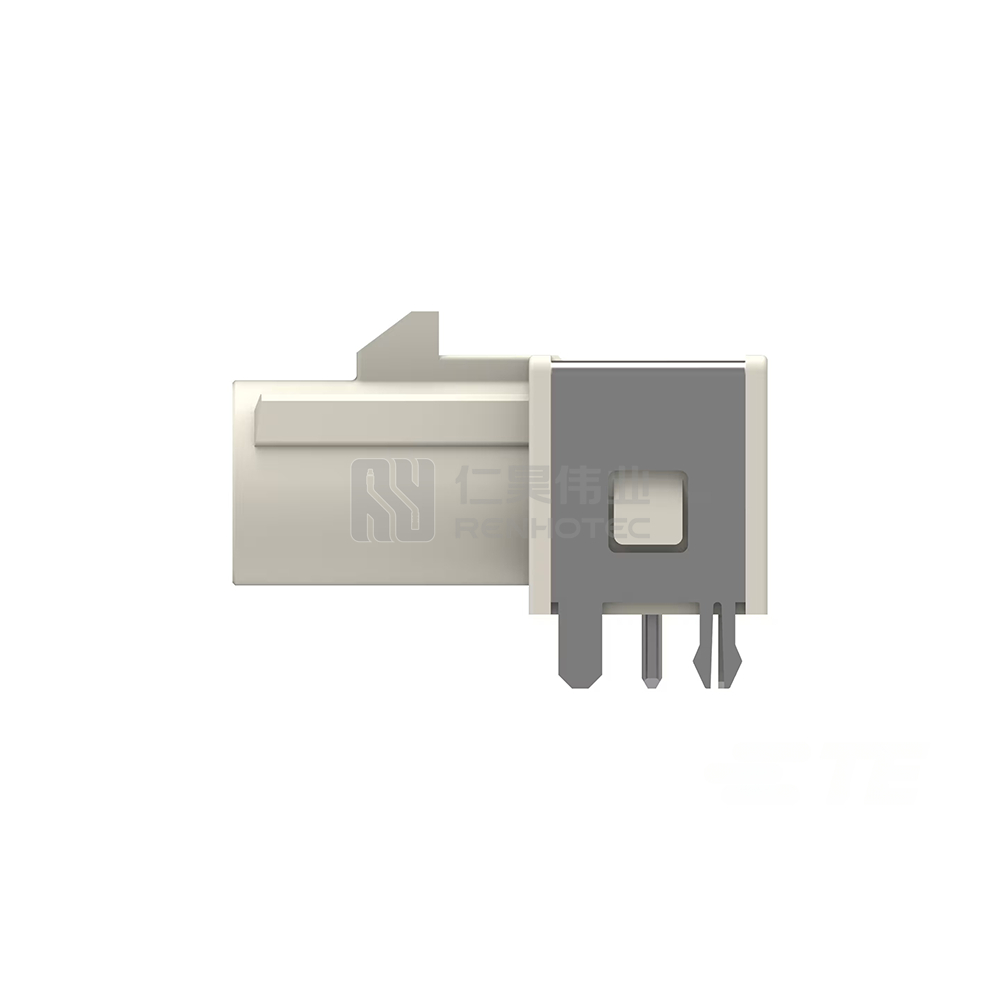

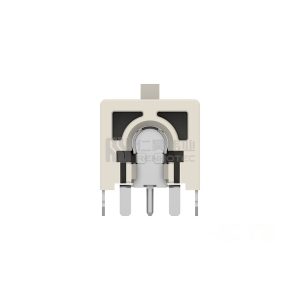

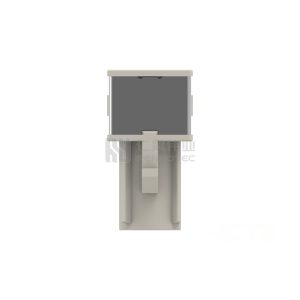

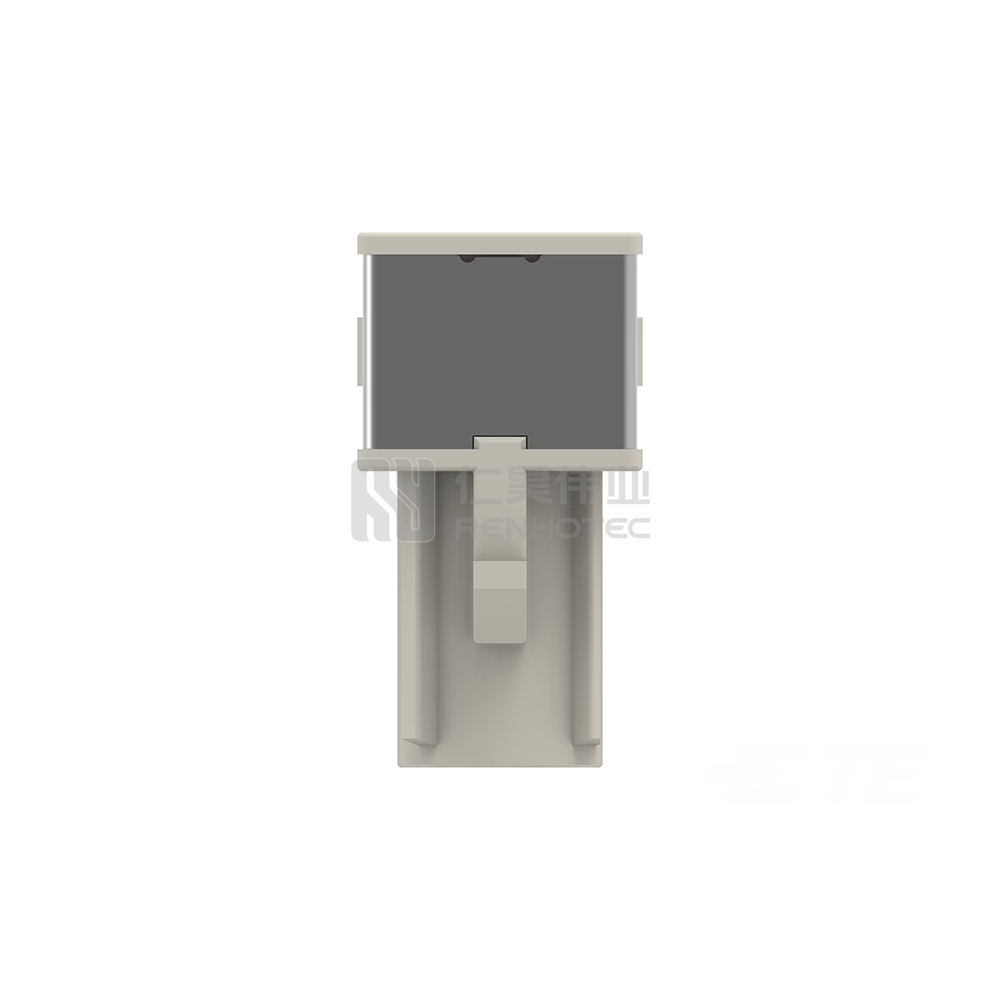

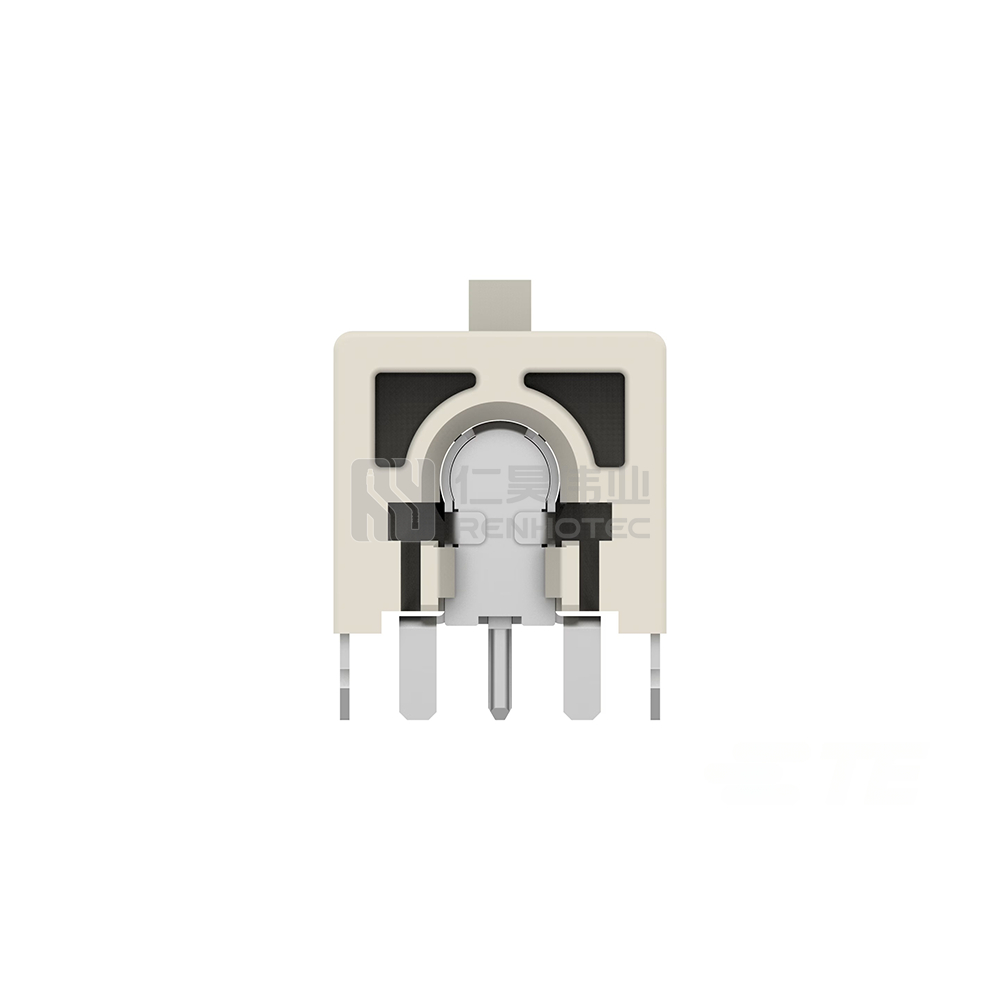

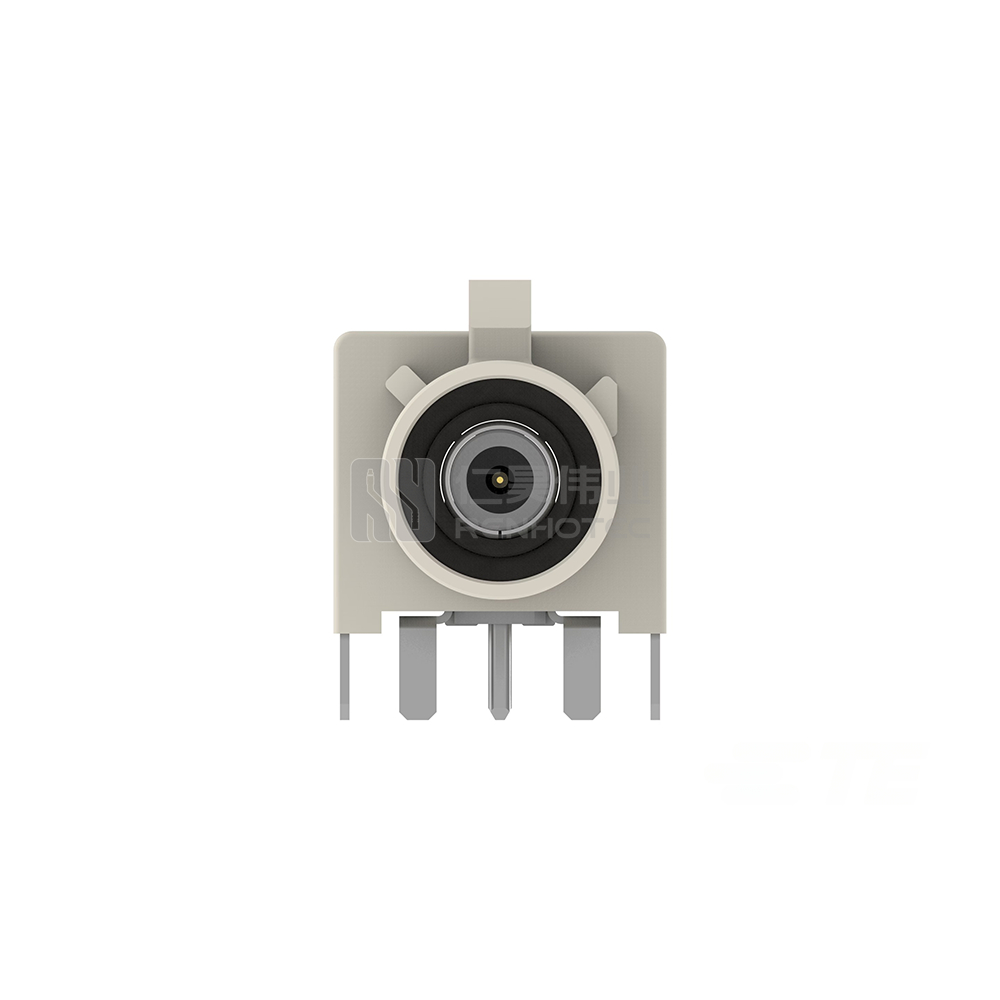

Wire-to-Board, Shielded, Horizontal, 1 Position, Board Mount, F Code, Signal, FAKRA, Data Connectivity Headers

Termination Point

Printed Circuit Board
Connector System

Wire-to-Board
Sealable

No
Row Count

1
PCB Orientation

Horizontal
Position Count

1
Key Code

D
Center Contact

With
Contact Plating

Gold (Au)
Center Contact Plating

Gold (Au)
Pin Diameter

.5 mm [ .02 in ]
Max Current A

1
PCB Termination

Through Hole – Solder
Mating Retention

With
PCB Retention

With
Mount Type

Board Mount
Housing Color

Violet
Connector Height

13.8 mm [ .543 in ]
Product Length

19.5 mm [ .768 in ]
Product Width

10.4 mm [ .409 in ]
Operating Voltage VDC

60
Body Material

PA6T GF30
Outer Contact Plating

Tin (Sn)
PCB Retention Type

Boardlock
Max Temperature

105 °C [ 221 °F ]
PCB Retention Plating

Tin
Termination Point

Printed Circuit Board

 Connector System

Wire-to-Board
Sealable

No

 Row Count

1
PCB Orientation

Horizontal

 Position Count

1
Key Code

D

 Center Contact

With
Contact Plating

Gold (Au)

 Center Contact Plating

Gold (Au)
Pin Diameter

.5 mm [ .02 in ]

 Max Current A

1
PCB Termination

Through Hole – Solder

 Mating Retention

With
PCB Retention

With

 Mount Type

Board Mount
Housing Color

Violet

 Connector Height

13.8 mm [ .543 in ]
Product Length

19.5 mm [ .768 in ]

 Product Width

10.4 mm [ .409 in ]
Operating Voltage VDC

60

 Body Material

PA6T GF30
Outer Contact Plating

Tin (Sn)

 PCB Retention Type

Boardlock
Max Temperature

105 °C [ 221 °F ]

 PCB Retention Plating

Tin

Product Specification

Contact Type

Pin
Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Contact Type

Pin

 Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Termination Point

Printed Circuit Board
Connector System

Wire-to-Board
Sealable

No
Row Count

1
PCB Orientation

Horizontal
Position Count

1
Key Code

D
Contact Type

Pin
Center Contact

With
Contact Plating

Gold (Au)
Center Contact Plating

Gold (Au)
Pin Diameter

.5 mm [ .02 in ]
Max Current A

1
PCB Termination

Through Hole – Solder
Mating Retention

With
PCB Retention

With
Mount Type

Board Mount
Housing Color

Violet
Connector Height

13.8 mm [ .543 in ]
Product Length

19.5 mm [ .768 in ]
Product Width

10.4 mm [ .409 in ]
Operating Voltage VDC

60
Body Material

PA6T GF30
Outer Contact Plating

Tin (Sn)
PCB Retention Type

Boardlock
Max Temperature

105 °C [ 221 °F ]
Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
PCB Retention Plating

Tin
Impedance Ω

50
