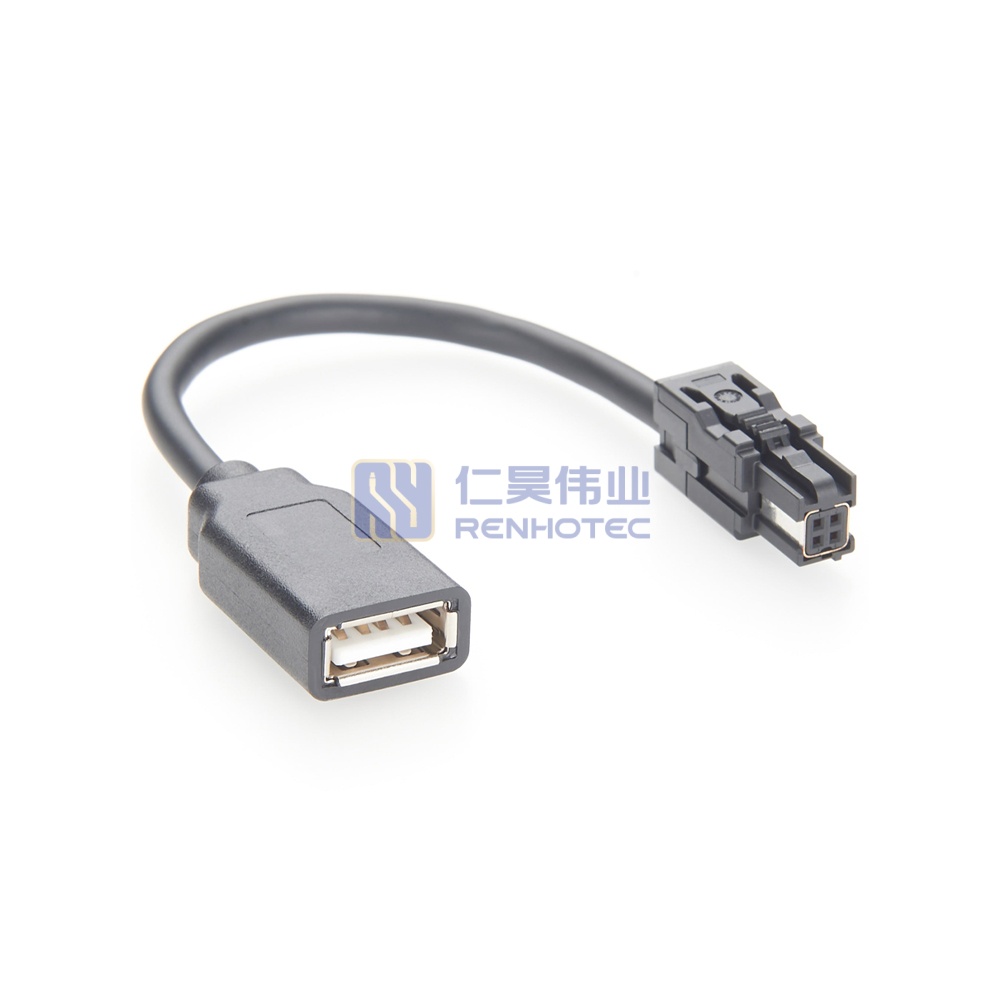

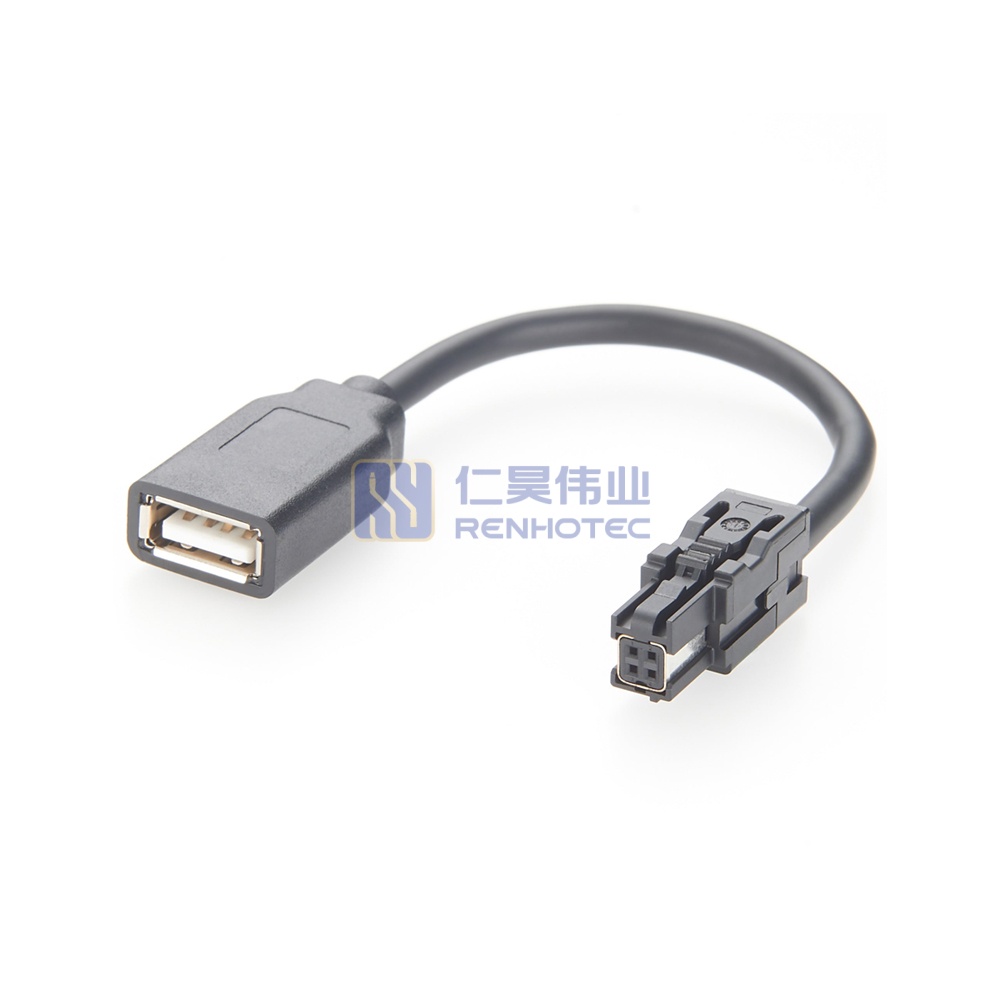

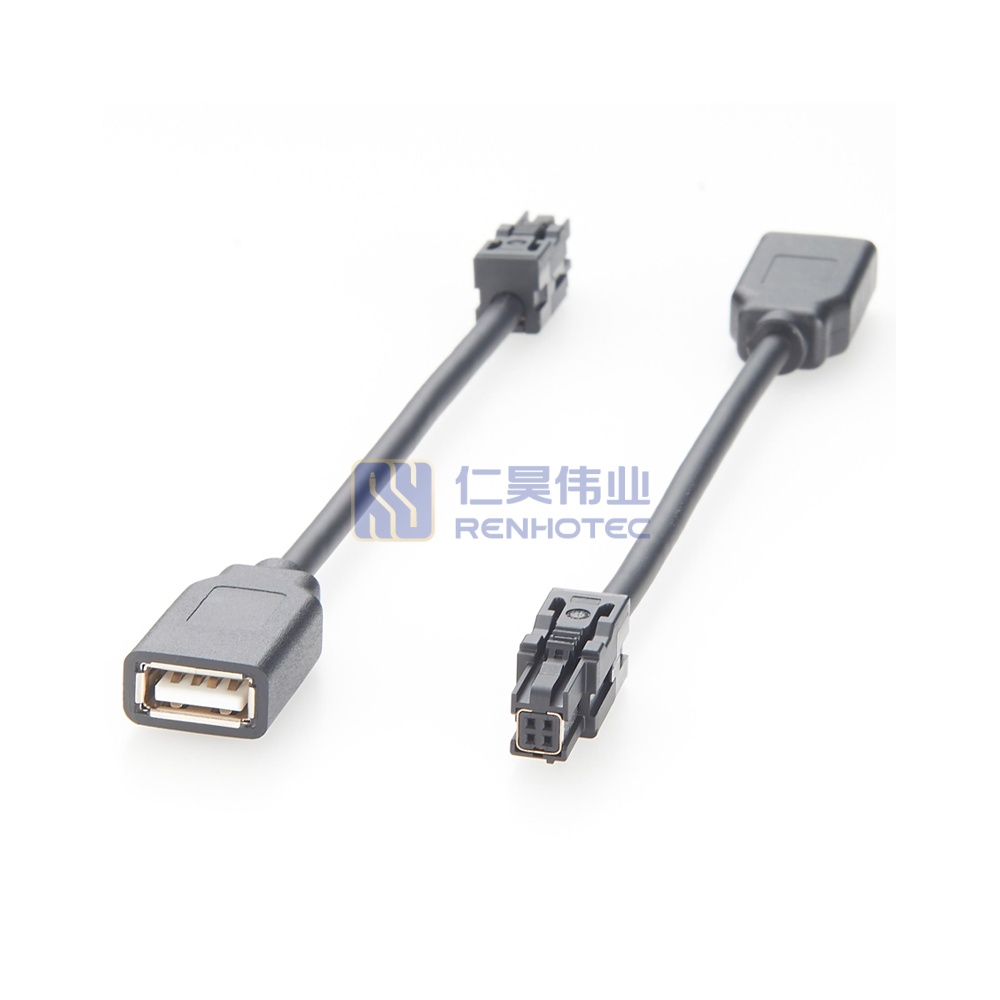

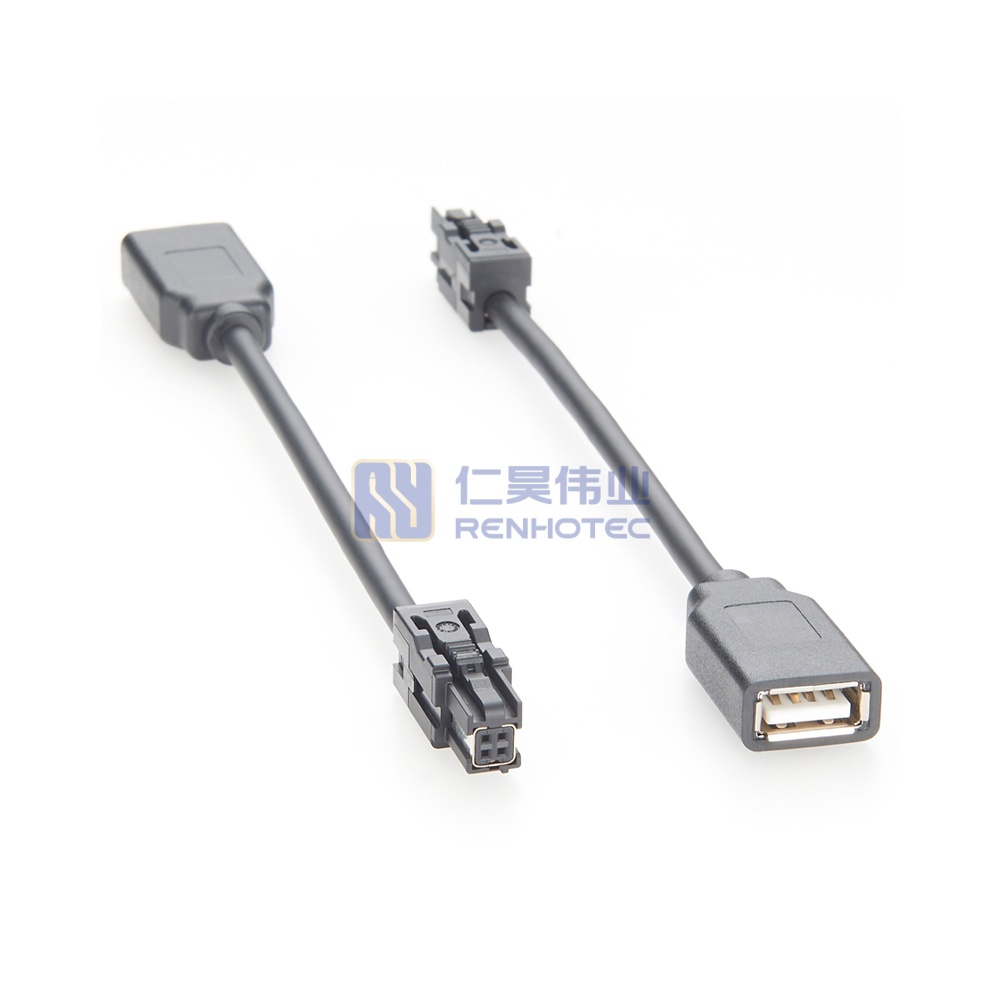

USB 2.0 to HSC Automotive Cable – RHT-605-20801
Product Specification
| 1st Connector | USB 2.0 |
||
|---|---|---|---|
| 2nd Connector | HSC A |
||
| 1st Contact Type | Female Pin |
||
| 2nd Contact Type | Female Pin |
||
| Cable Type | UL2725 28AWG*1P+24#*2C+AEB |
||
| Impedance | 90 ohm |
||
| Frequency Range | DC ~ 0.48 GHz |
||
| Temperature Range | -40°C to +105°C |
||
| Insulation Resistance | 20 MΩ Min |
||
| 1st Connector | USB 2.0 |
2nd Connector | HSC A |
| 1st Contact Type | Female Pin |
2nd Contact Type | Female Pin |
| Cable Type | UL2725 28AWG*1P+24#*2C+AEB |
Impedance | 90 ohm |
| Frequency Range | DC ~ 0.48 GHz |
Temperature Range | -40°C to +105°C |
| Insulation Resistance | 20 MΩ Min |
| Length | Customized |
|---|---|
| Length | Customized |
| 1st Connector | USB 2.0 |
|---|---|
| 2nd Connector | HSC A |
| 1st Contact Type | Female Pin |
| 2nd Contact Type | Female Pin |
| Cable Type | UL2725 28AWG*1P+24#*2C+AEB |
| Length | Customized |
| Impedance | 90 ohm |
| Frequency Range | DC ~ 0.48 GHz |
| Temperature Range | -40°C to +105°C |
| Insulation Resistance | 20 MΩ Min |
The HSC Connector is a compact, fully shielded automotive interconnect solution designed for high-speed data applications up to 1Gb/s+. Built with 0.50mm square terminals, the HSC series delivers a significantly lighter and smaller footprint without compromising electrical performance. With comprehensive 360° EMI shielding and integrated mechanical coding keys, it provides superior signal integrity and error-free assembly for automotive LVDS, USB, and camera links.
HSC Connector Mechanical Coding Keys & Color Identification
Key Features & Benefits
• High‑Speed Transmission
• Compliant with USCAR‑2
• Durable Robust Design
• Mismating Prevention
• Flexible Board‑Side Options
• Wide Temperature Range
Applications
• Automotive Vision Systems: HD Surround View Cameras, Rearview Cameras, Driver Monitoring Systems (DMS).
• Infotainment & Display Links: LVDS Display Panels, Digital Instrument Clusters, Head-Up Displays (HUD).
• High-Speed Data Interconnects: Vehicle USB Ports, GMSL Automotive Links, Smart Antenna Modules.
