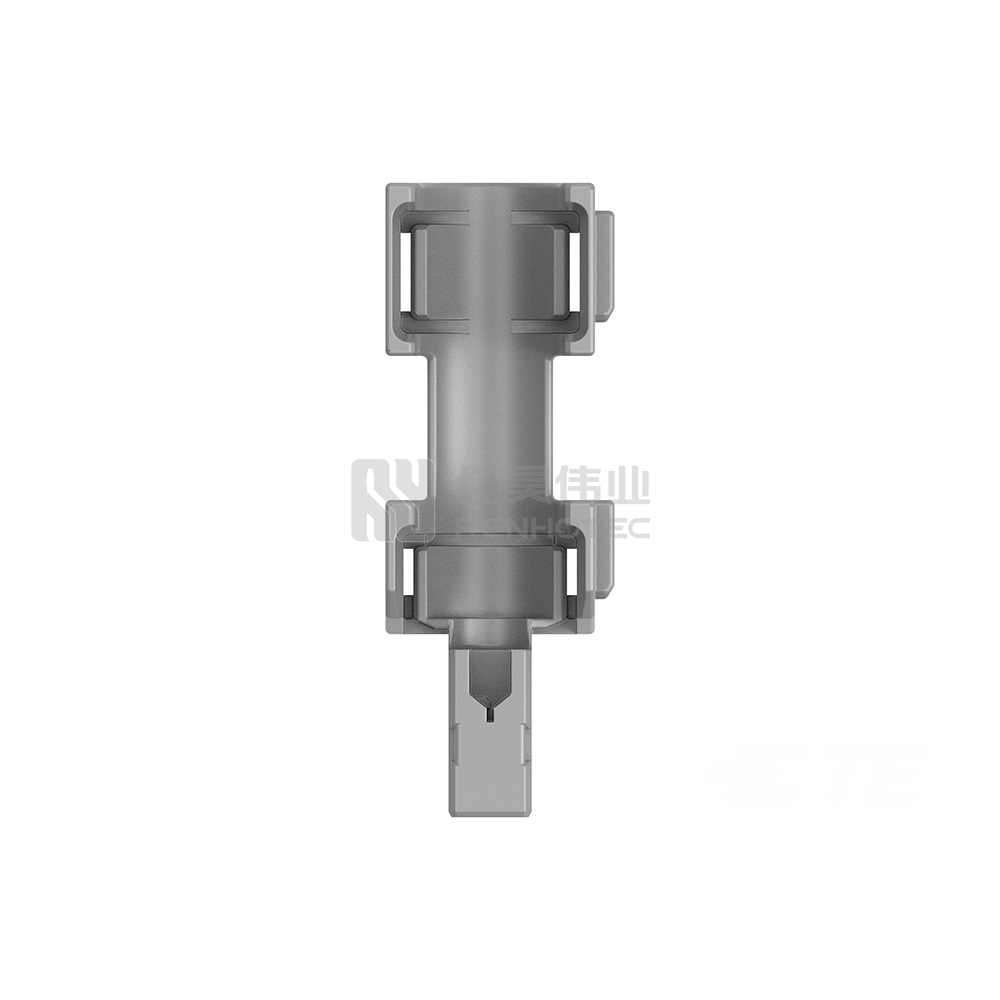

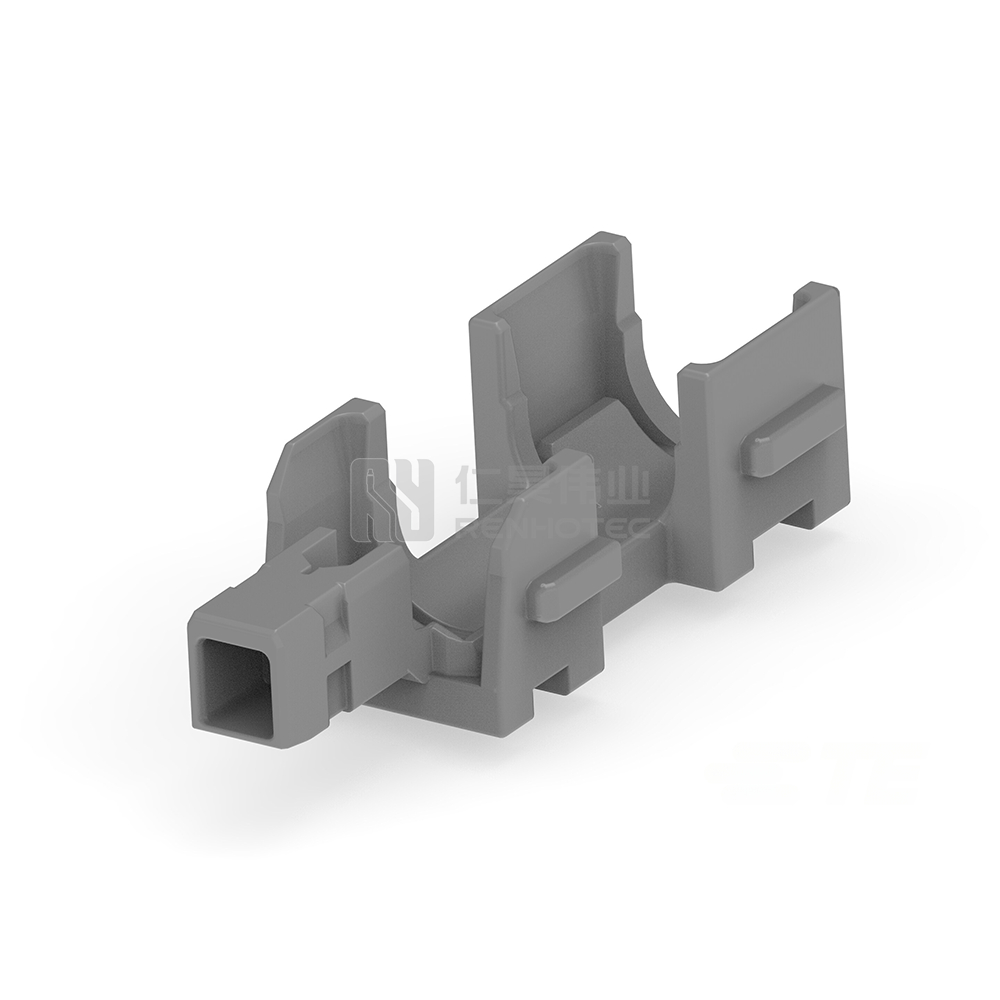

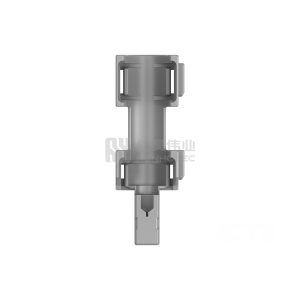

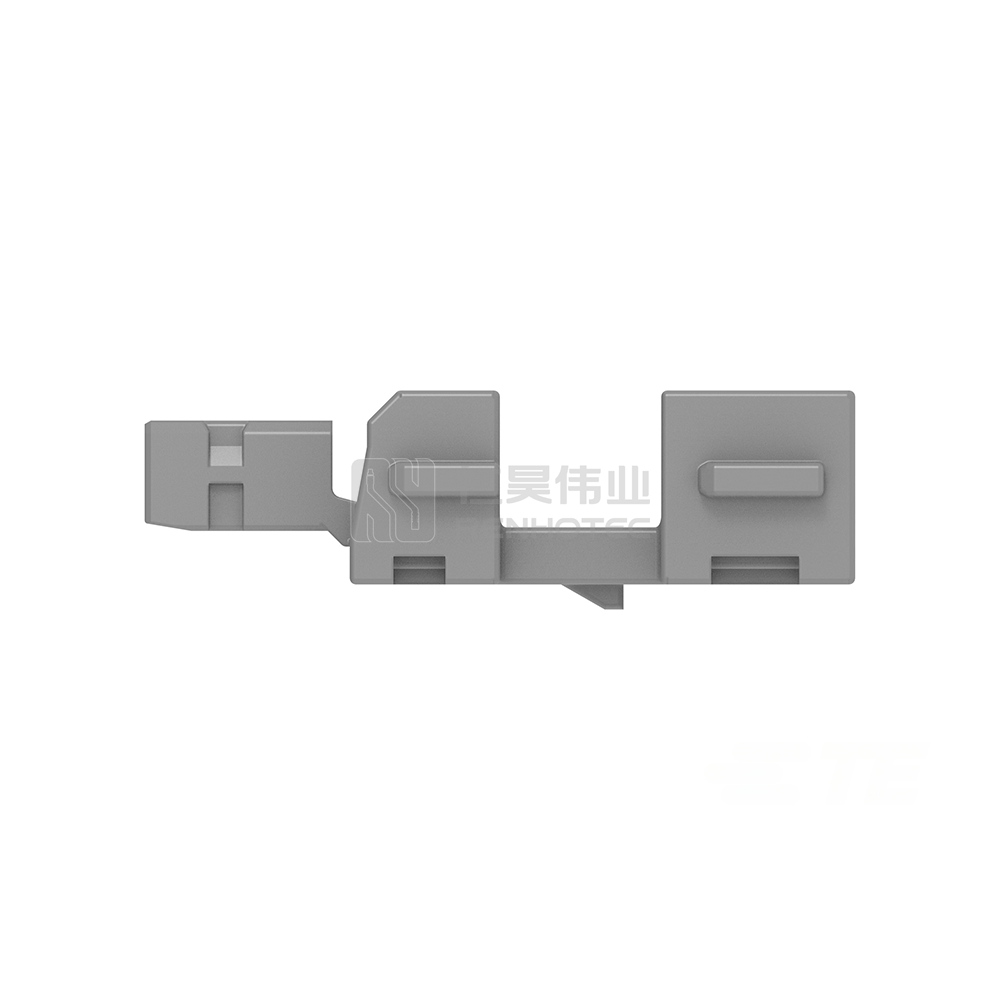

Tab Terminal,0.8 mm Tab Width, Tin (Sn),0.25 mm Tab Thickness, Unsealed, Terminates To Wire & Cable, FAKRA

This 0.8mm Tab Terminal with a 0.25mm Tin-plated thickness provides a reliable, cost-effective connection for FAKRA cable assemblies. Its unsealed design offers flexibility for custom sealing solutions, ensuring a secure and durable termination to prevent signal loss and connection failure in automotive and telecom applications.

With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

PCB End (Male)

Cable End (Male)

Cable End (Female)

  • Secure primary locking system with tactile and audible locking
  • Shock and vibration resistant coded housing
  • Protection against unintentional opening by protective bar and protective strips
  • High axial holding power of the coaxial insert due to secondary locking
  • Mechanical and color coding system with 14 different codes
  • Fastening groove for cable connectors for chassis mounting
  • Coaxial insert and cable freely rotatable in the housing
  • Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
  • Efficient, automated further processing option
  • Customized packaging possible
Code A B C D E F G
Color Deep Black Cream White Signal Blue Bordeaux Violet Leaf Green Brown Blue Gray
Application Radio with phantom supply Radio without phantom supply GPS telematics or navigation GSM Cellular Phone TV (UHF) TV (VHF) SDARS terrestrial
Code H I K L M N Z
Color Violet Beige Curry Yellow Carmine Red Pastel Orange Pastel Green Water Blue
Application GPS telematics and navigation Bluetooth Controlled
Parking Heating		 SDARS satellite Not defined Keyless entry
Tire pressure monitoring		 Not defined Neutral


Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues
good reviews

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Termination Point

Wire & Cable
Connector System

Cable-to-Cable
Sealable

No
Row Count

1
Position Count

1
Max Current A

1
Mount Type

Cable Mount (Free-Hanging)
Housing Color

Gray
Shielded

No
Tab Width

.8 mm [ .03 in ]
Tab Thickness

.25 mm [ .009 in ]
Primary Lock

Clean Body
Housing Type

Housing for Male Terminals
Cable Exit Angle

180°
Cable Termination

Crimp
Position Assurance

No
Nominal Voltage V

800
Termination Point

Wire & Cable

 Connector System

Cable-to-Cable
Sealable

No

 Row Count

1
Position Count

1

 Max Current A

1
Mount Type

Cable Mount (Free-Hanging)

 Housing Color

Gray
Shielded

No

 Tab Width

.8 mm [ .03 in ]
Tab Thickness

.25 mm [ .009 in ]

 Primary Lock

Clean Body
Housing Type

Housing for Male Terminals

 Cable Exit Angle

180°
Cable Termination

Crimp

 Position Assurance

No
Nominal Voltage V

800

Product Specification

Contact Type

Tab
Temperature Range

-40 – 85 °C [ -40 – 185 °F ]
Contact Type

Tab

 Temperature Range

-40 – 85 °C [ -40 – 185 °F ]
Termination Point

Wire & Cable
Connector System

Cable-to-Cable
Sealable

No
Row Count

1
Position Count

1
Contact Type

Tab
Max Current A

1
Mount Type

Cable Mount (Free-Hanging)
Housing Color

Gray
Shielded

No
Tab Width

.8 mm [ .03 in ]
Tab Thickness

.25 mm [ .009 in ]
Temperature Range

-40 – 85 °C [ -40 – 185 °F ]
Primary Lock

Clean Body
Housing Type

Housing for Male Terminals
Cable Exit Angle

180°
Cable Termination

Crimp
Position Assurance

No
Nominal Voltage V

800
