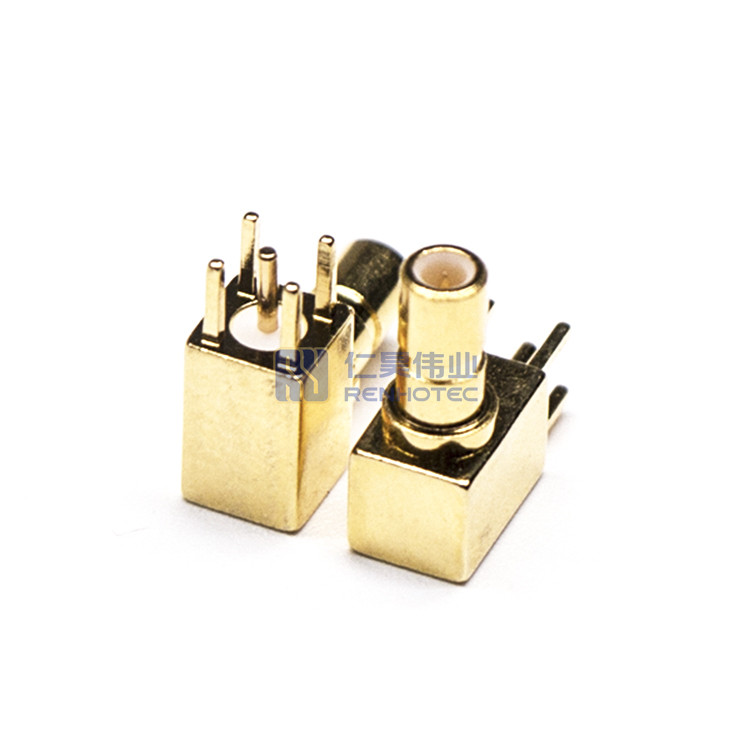

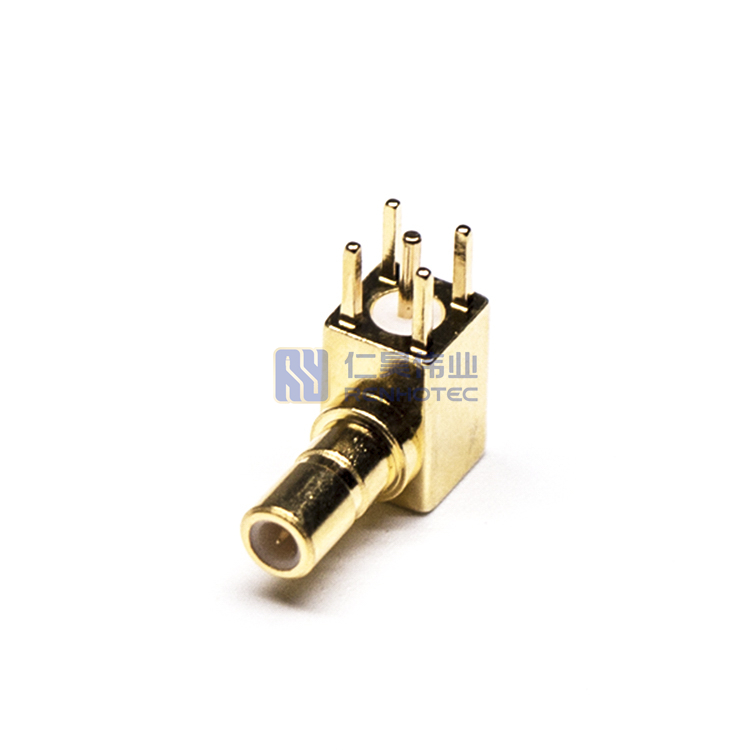

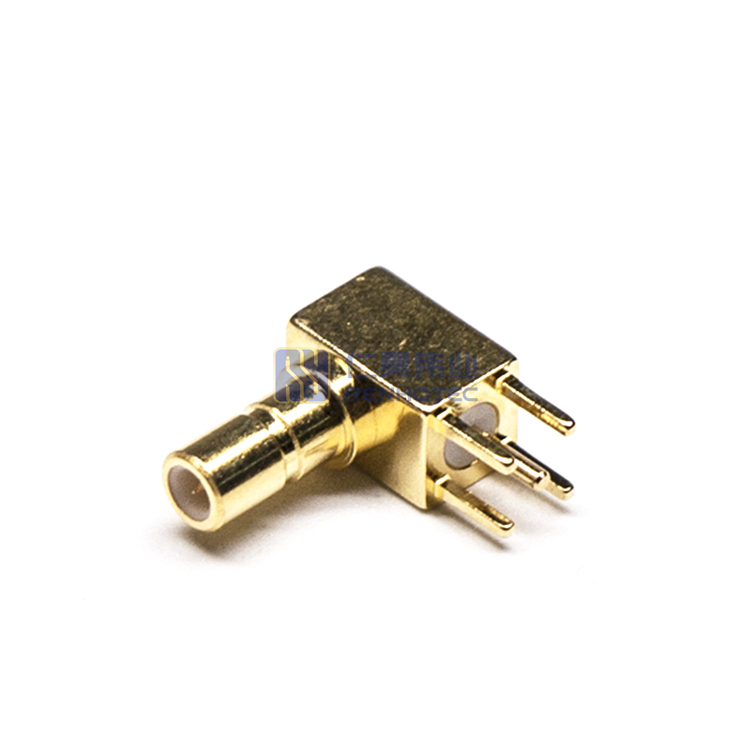

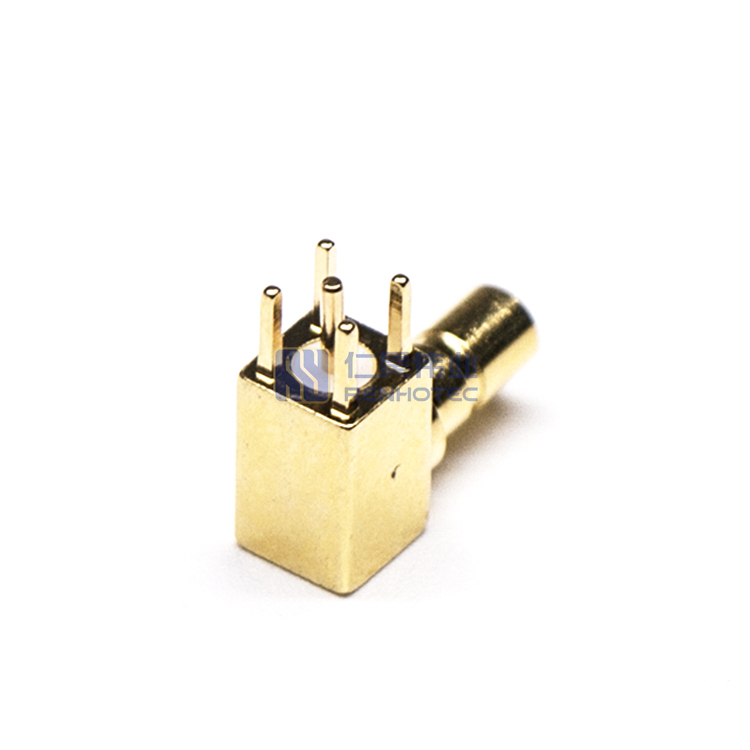

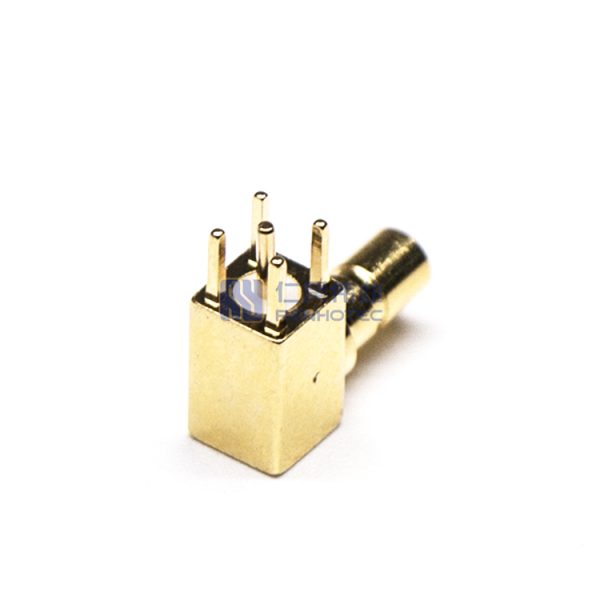

SSMB Connector Right Angle Jack Solder Panel Mount Through Hole 50ohm
- Lightweight and space-saving alternative to SMB
- Snap-on interface for quick and easy installation
- Gold and nickel plating are available
- 50 Ohm options available
The SSMB 50 ohm connector is a small version of the standard SMB connector. Amphenol RF’s SSMB series provides excellent electrical performance in a micro-miniature footprint. While the snap-on mating interface allows quick installation and dense packaging, the excellent electrical performance of the SSMB series allows it to be used in many applications as an alternative to larger connectors like SMAs.
Interface Dimensions SSMB Connectors
Product Specification
| RF Series | SSMB Type |
||
|---|---|---|---|
| Connector Type | Jack |
||
| Contact Type | Female Pin |
||
| Orientation | Right Angle |
||
| Contact Termination Style | Solder |
||
| Shield Termination | Solder |
||
| Mounting Type | Panel Mount |
||
| Mounting Feature | Through Hole |
||
| Fastening Type | Snap On |
||
| Impedance | 50 ohm |
||
| Insulator Material | Teflon White |
||
| Shell Material | Copper Alloy |
||
| Shell Finish | Gold Plated |
||
| Contact Material | Brass |
||
| Contact Finish | Gold Plated |
||
| Frequency Range | 0~8 GHz |
||
| Insultation Resistance | 5000 MΩ Min |
||
| Mating Durability | ≥ 500 Cycles |
||
| Working Voltage | 500 V rms |
||
| VSWR | 1.5MAX |
||
| Temperature Range | −65°C to +165°C |
||
| RF Series | SSMB Type |
Connector Type | Jack |
| Contact Type | Female Pin |
Orientation | Right Angle |
| Contact Termination Style | Solder |
Shield Termination | Solder |
| Mounting Type | Panel Mount |
Mounting Feature | Through Hole |
| Fastening Type | Snap On |
Impedance | 50 ohm |
| Insulator Material | Teflon White |
Shell Material | Copper Alloy |
| Shell Finish | Gold Plated |
Contact Material | Brass |
| Contact Finish | Gold Plated |
Frequency Range | 0~8 GHz |
| Insultation Resistance | 5000 MΩ Min |
Mating Durability | ≥ 500 Cycles |
| Working Voltage | 500 V rms |
VSWR | 1.5MAX |
| Temperature Range | −65°C to +165°C |
| RF Series | SSMB Type |
|---|---|
| Connector Type | Jack |
| Contact Type | Female Pin |
| Orientation | Right Angle |
| Contact Termination Style | Solder |
| Shield Termination | Solder |
| Mounting Type | Panel Mount |
| Mounting Feature | Through Hole |
| Fastening Type | Snap On |
| Impedance | 50 ohm |
| Insulator Material | Teflon White |
| Shell Material | Copper Alloy |
| Shell Finish | Gold Plated |
| Contact Material | Brass |
| Contact Finish | Gold Plated |
| Frequency Range | 0~8 GHz |
| Insultation Resistance | 5000 MΩ Min |
| Mating Durability | ≥ 500 Cycles |
| Working Voltage | 500 V rms |
| VSWR | 1.5MAX |
| Temperature Range | −65°C to +165°C |
