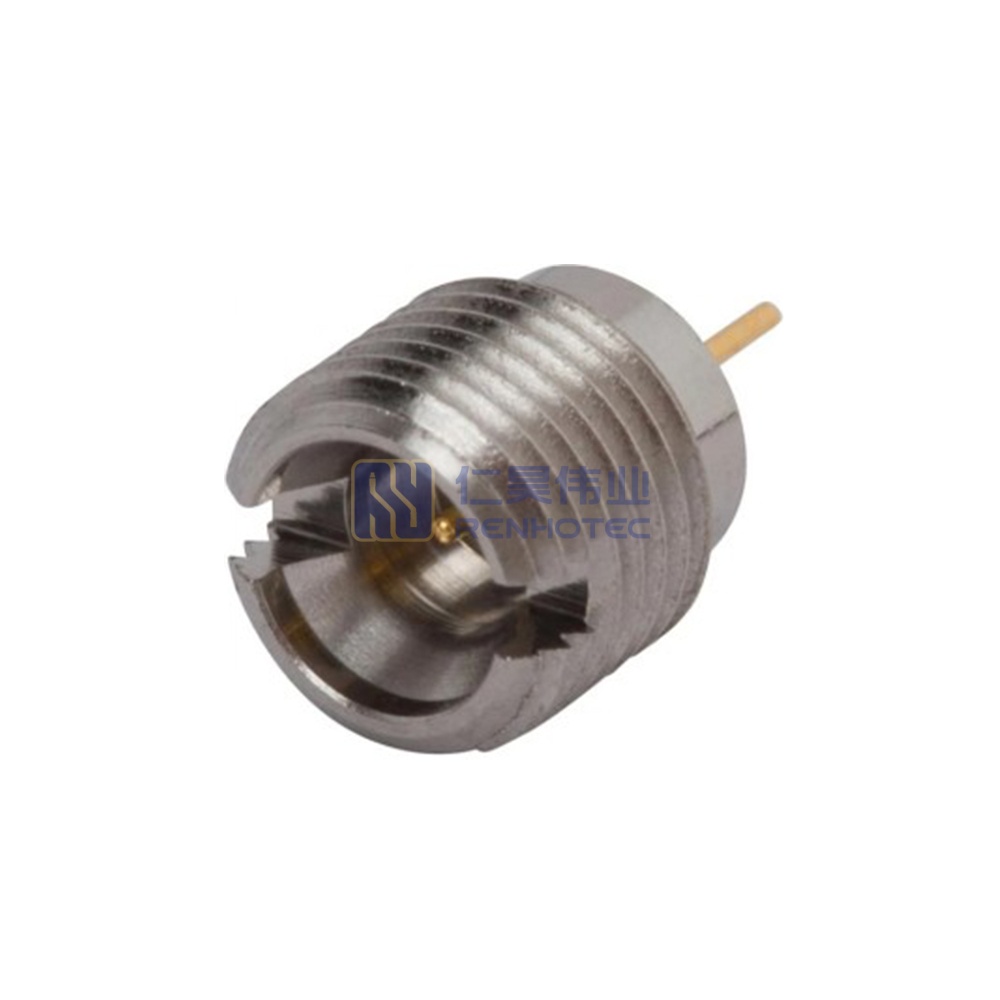

SMP Plug for PCB Connector – RHT-628-2027
Product Specification
| RF Series | SMP Type |
||
|---|---|---|---|
| Orientation | Straight |
||
| Connector Type | Plug |
||
| Mounting Type | Panel Mount |
||
| Contact Type | Male Pin |
||
| Contact Material | Beryllium Copper |
||
| Contact Finish | Gold Plated |
||
| Shell Material | Stainless Steel |
||
| Shell Finish | Passivation Plating |
||
| Insulator Material | PTFE |
||
| Impedance | 50 ohm |
||
| Frequency Range | DC-40GHz |
||
| VSWR | 1.35 MAX |
||
| Dielectric Withstanding Voltage | 1000 V |
||
| Insulation Resistance | 5000MΩ Min |
||
| Temperature Range | -55°C to +125°C |
||
| RF Series | SMP Type |
Orientation | Straight |
| Connector Type | Plug |
Mounting Type | Panel Mount |
| Contact Type | Male Pin |
Contact Material | Beryllium Copper |
| Contact Finish | Gold Plated |
Shell Material | Stainless Steel |
| Shell Finish | Passivation Plating |
Insulator Material | PTFE |
| Impedance | 50 ohm |
Frequency Range | DC-40GHz |
| VSWR | 1.35 MAX |
Dielectric Withstanding Voltage | 1000 V |
| Insulation Resistance | 5000MΩ Min |
Temperature Range | -55°C to +125°C |
| RF Series | SMP Type |
|---|---|
| Orientation | Straight |
| Connector Type | Plug |
| Mounting Type | Panel Mount |
| Contact Type | Male Pin |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold Plated |
| Shell Material | Stainless Steel |
| Shell Finish | Passivation Plating |
| Insulator Material | PTFE |
| Impedance | 50 ohm |
| Frequency Range | DC-40GHz |
| VSWR | 1.35 MAX |
| Dielectric Withstanding Voltage | 1000 V |
| Insulation Resistance | 5000MΩ Min |
| Temperature Range | -55°C to +125°C |
Drawing for SMP Plug for PCB ConnectorDownload
