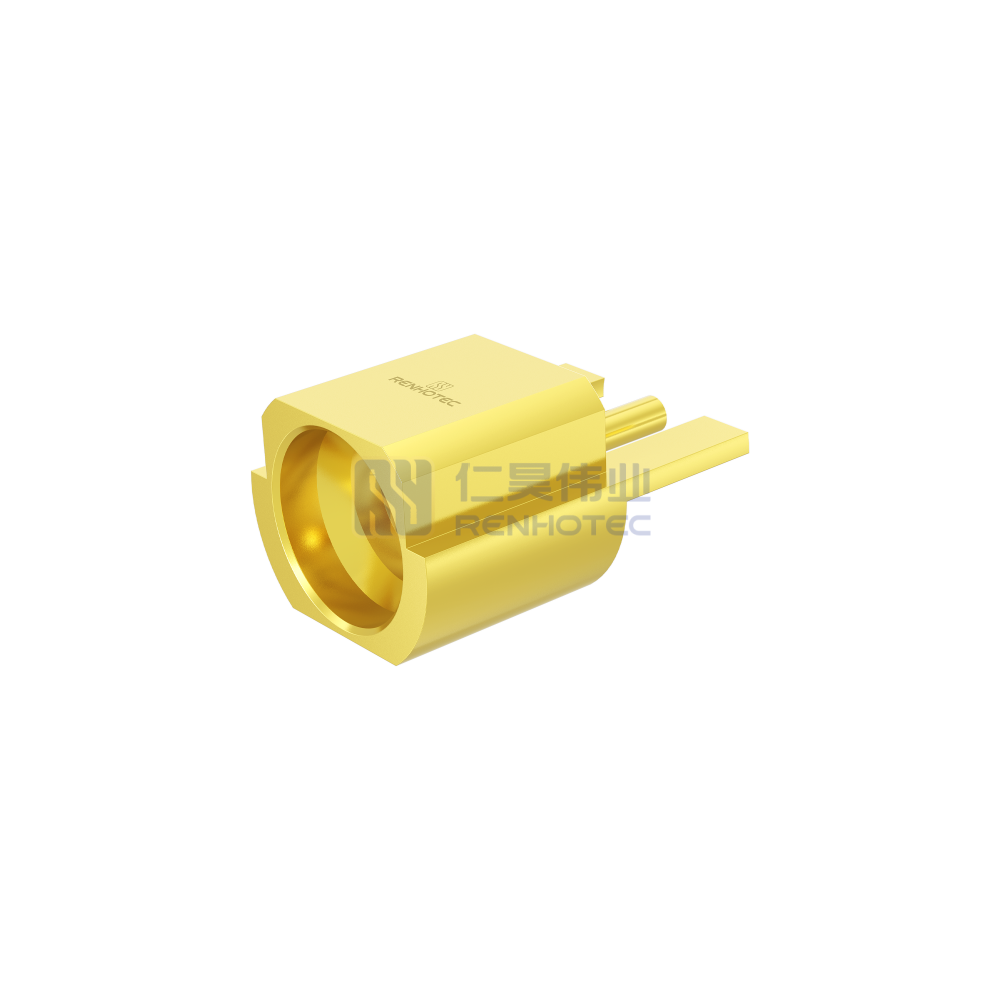

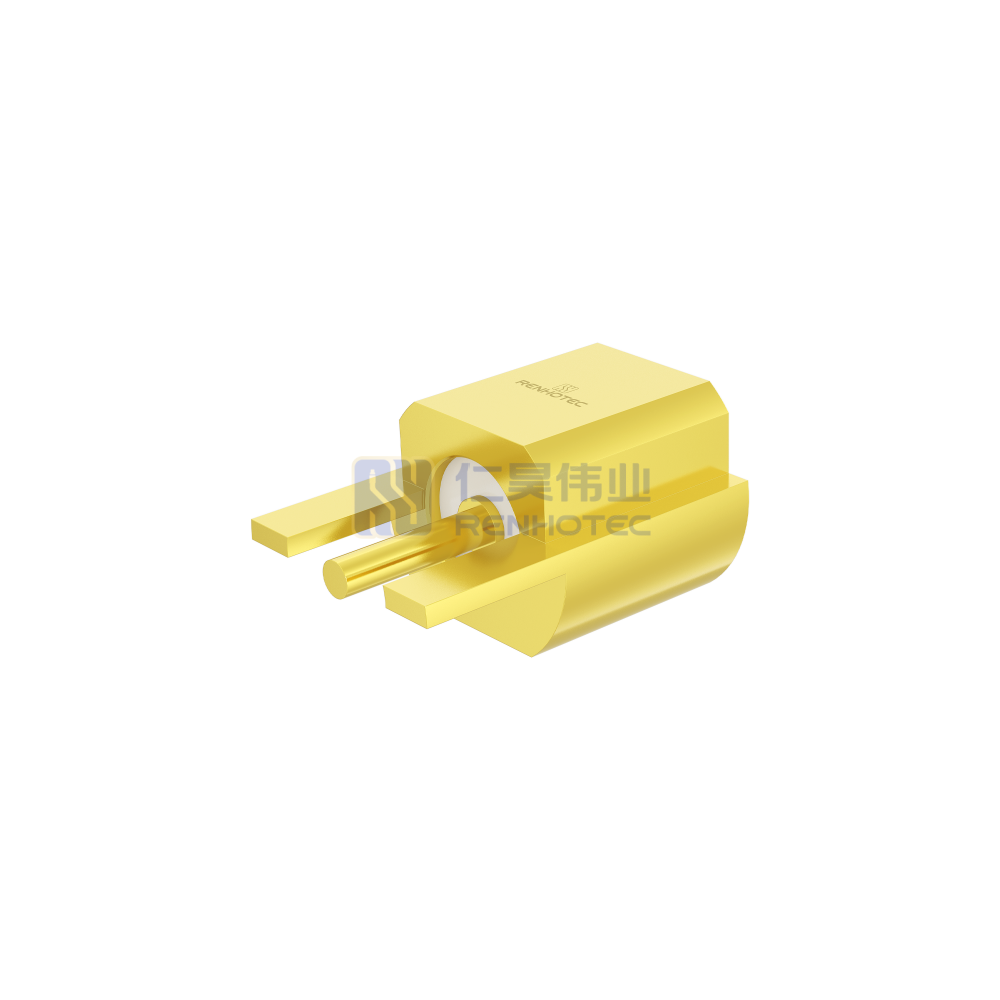

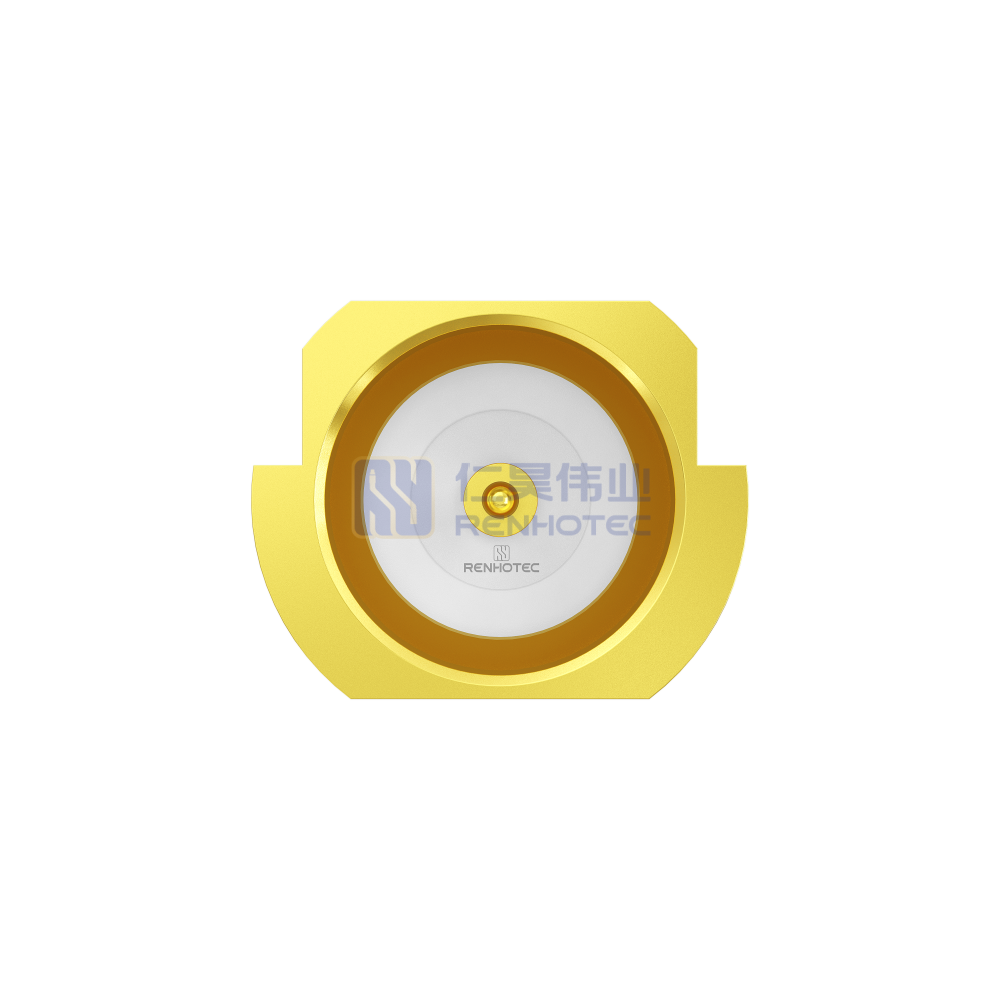

SMP Plug for PCB Connector – RHT-628-0035
SMP plug, 50Ω, board-mounted male connector for PCB integration, compact footprint supports dense array layouts, delivers stable RF performance up to 40 GHz, applied in phased array systems, automotive radar sensors, and microwave integrated circuits.
Product Specification
| RF Series | SMP Type |
||
|---|---|---|---|
| Orientation | Straight |
||
| Connector Type | Plug |
||
| Mounting Type | Panel Mount |
||
| Contact Type | Male Pin |
||
| Contact Material | BE-C |
||
| Contact Finish | Gold Plated |
||
| Shell Material | Brass |
||
| Shell Finish | Gold Plated |
||
| Insulator Material | TEFLON |
||
| Impedance | 50 ohm |
||
| Frequency Range | 0-18GHz |
||
| VSWR | 1.5 MAX |
||
| Working Voltage | 335 V rms |
||
| Dielectric Withstanding Voltage | 500 V |
||
| Insulation Resistance | 5000MΩ Min |
||
| Temperature Range | -50°C to +155°C |
||
| RF Series | SMP Type |
Orientation | Straight |
| Connector Type | Plug |
Mounting Type | Panel Mount |
| Contact Type | Male Pin |
Contact Material | BE-C |
| Contact Finish | Gold Plated |
Shell Material | Brass |
| Shell Finish | Gold Plated |
Insulator Material | TEFLON |
| Impedance | 50 ohm |
Frequency Range | 0-18GHz |
| VSWR | 1.5 MAX |
Working Voltage | 335 V rms |
| Dielectric Withstanding Voltage | 500 V |
Insulation Resistance | 5000MΩ Min |
| Temperature Range | -50°C to +155°C |
| Insertion Loss | 0.2dB Max |
||
|---|---|---|---|
| Mating Cycles | 100 Cycles mini |
||
| Insertion Loss | 0.2dB Max |
Mating Cycles | 100 Cycles mini |
| RF Series | SMP Type |
|---|---|
| Orientation | Straight |
| Connector Type | Plug |
| Mounting Type | Panel Mount |
| Contact Type | Male Pin |
| Contact Material | BE-C |
| Contact Finish | Gold Plated |
| Shell Material | Brass |
| Shell Finish | Gold Plated |
| Insulator Material | TEFLON |
| Impedance | 50 ohm |
| Frequency Range | 0-18GHz |
| VSWR | 1.5 MAX |
| Insertion Loss | 0.2dB Max |
| Working Voltage | 335 V rms |
| Dielectric Withstanding Voltage | 500 V |
| Insulation Resistance | 5000MΩ Min |
| Mating Cycles | 100 Cycles mini |
| Temperature Range | -50°C to +155°C |
The SMP interface, similar in size to MMCX connectors, supports frequencies from DC to 40 GHz. Frequently employed in compact high-frequency coaxial modules, this interface comes in push-on and snap-on mating variations.
Features
- Full detent, limited detent, smooth bore or catcher’s mitt
- Standard surface mount (versus swept contact) for best performance
- 50 ohm impedance
- Performance to 40 GHz
- Cable-to-board or board-to-board applications
- Push-on interface for quick installation, or blind mate
SMP Connector Types
Cable Mount
Panel Mount
SMP Adaptor
Applications
- Antennas
- Broadband
- Instrumentation
- Medical
- Quantum Computing
