SMP Male Straight PCB Surface Mount 18 GHz – RHT-628-2011
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-628-2011 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-628-2011 |
| AmphenolCDI | P797-4CC |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.

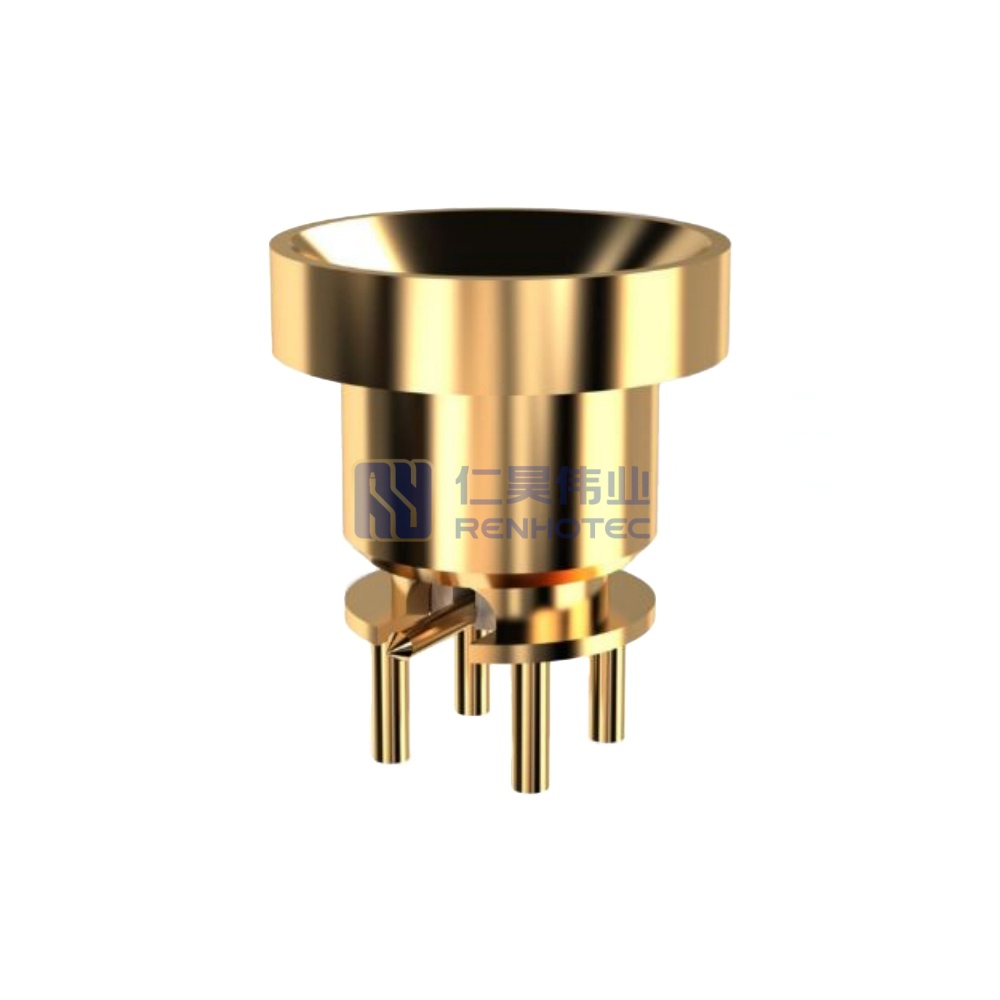

SMP male PCB connector, 50Ω, straight surface-mount package for automated assembly, supports frequencies up to 18 GHz with stable return loss, compact footprint suits dense RF boards, commonly used in 5G small cells, radar sensors, and microwave test interfaces.
| Body Material | 303 SST / 304 SST |
||
|---|---|---|---|
| Center Contact Material | Beryllium Copper |
||
| Center Contact Plating | Gold Plated |
||
| Contact Termination | COAX |
||
| Dielectric Material | PTFE |
||
| Frequency | 18 GHz |
||
| Gender | Male |
||
| Hermetic | No |
||
| Housing Finish | Passivate |
||
| Insertion Loss | .03 √f(GHz) |
||
| Mating Cycles | 500 Cycles |
||
| Voltage | 335 Vrms max @ sea level |
||
| Body Material | 303 SST / 304 SST |
Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold Plated |
Contact Termination | COAX |
| Dielectric Material | PTFE |
Frequency | 18 GHz |
| Gender | Male |
Hermetic | No |
| Housing Finish | Passivate |
Insertion Loss | .03 √f(GHz) |
| Mating Cycles | 500 Cycles |
Voltage | 335 Vrms max @ sea level |
Product Specification
| RF Series | SMP Type |
||
|---|---|---|---|
| Connector Type | Plug |
||
| Contact Type | Male Pin |
||
| Impedance | 50 ohm |
||
| Operating Temperature | -65°C to +165°C |
||
| Orientation | Straight |
||
| RF Series | SMP Type |
Connector Type | Plug |
| Contact Type | Male Pin |
Impedance | 50 ohm |
| Operating Temperature | -65°C to +165°C |
Orientation | Straight |
| Body Material | 303 SST / 304 SST |
|---|---|
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold Plated |
| RF Series | SMP Type |
| Connector Type | Plug |
| Contact Type | Male Pin |
| Impedance | 50 ohm |
| Contact Termination | COAX |
| Dielectric Material | PTFE |
| Frequency | 18 GHz |
| Gender | Male |
| Hermetic | No |
| Housing Finish | Passivate |
| Insertion Loss | .03 √f(GHz) |
| Mating Cycles | 500 Cycles |
| Operating Temperature | -65°C to +165°C |
| Orientation | Straight |
| Voltage | 335 Vrms max @ sea level |
The SMP interface, similar in size to MMCX connectors, supports frequencies from DC to 40 GHz. Frequently employed in compact high-frequency coaxial modules, this interface comes in push-on and snap-on mating variations.
