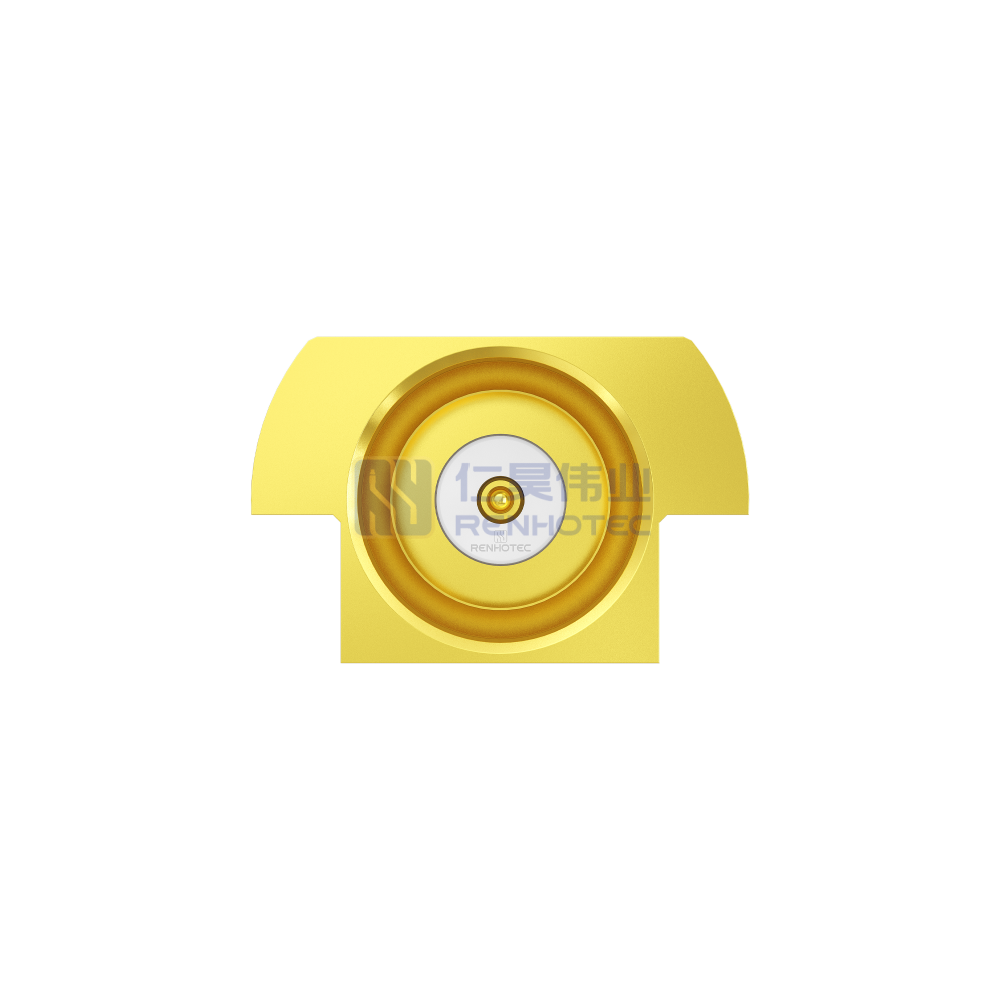

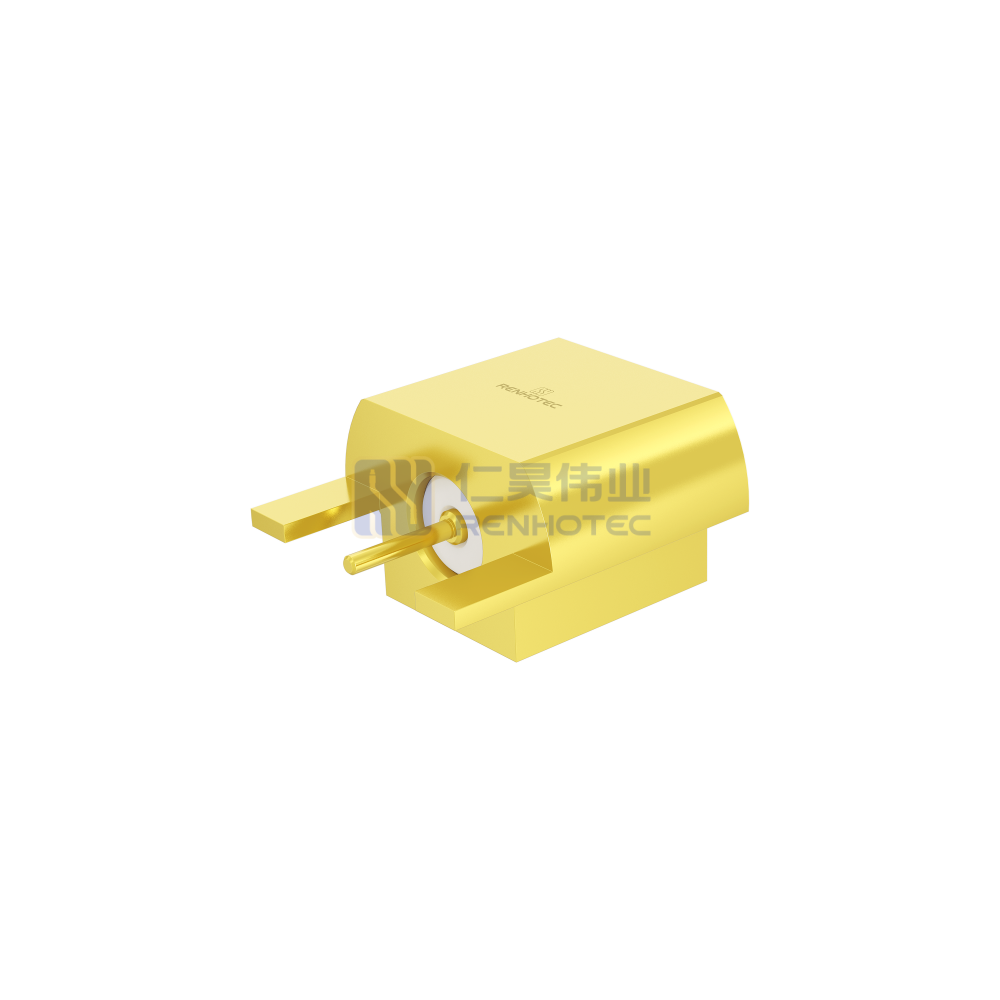

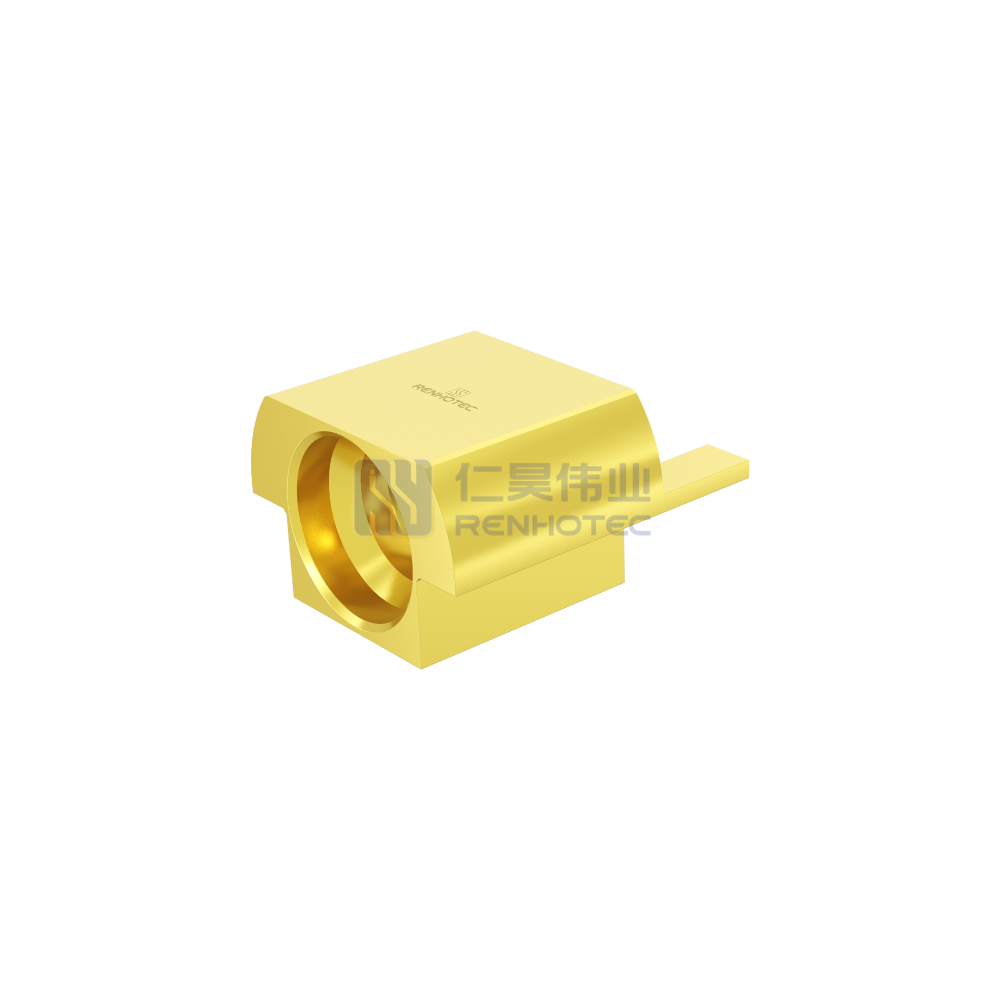

SMP Jack – RHT-628-0022
Product Specification
| RF Series | SMP Type |
||
|---|---|---|---|
| Orientation | Straight |
||
| Connector Type | Jack |
||
| Contact Type | Female Pin |
||
| Contact Material | Brass |
||
| Contact Finish | Gold Plated |
||
| Shell Material | Brass |
||
| Shell Finish | Gold Plated |
||
| Insulator Material | PTFE |
||
| Impedance | 50 ohm |
||
| Frequency Range | 0-3GHz |
||
| Dielectric Withstanding Voltage | 750 V |
||
| Insulation Resistance | 1000MΩ Min |
||
| Temperature Range | -40°C to +125°C |
||
| RF Series | SMP Type |
Orientation | Straight |
| Connector Type | Jack |
Contact Type | Female Pin |
| Contact Material | Brass |
Contact Finish | Gold Plated |
| Shell Material | Brass |
Shell Finish | Gold Plated |
| Insulator Material | PTFE |
Impedance | 50 ohm |
| Frequency Range | 0-3GHz |
Dielectric Withstanding Voltage | 750 V |
| Insulation Resistance | 1000MΩ Min |
Temperature Range | -40°C to +125°C |
| RF Series | SMP Type |
|---|---|
| Orientation | Straight |
| Connector Type | Jack |
| Contact Type | Female Pin |
| Contact Material | Brass |
| Contact Finish | Gold Plated |
| Shell Material | Brass |
| Shell Finish | Gold Plated |
| Insulator Material | PTFE |
| Impedance | 50 ohm |
| Frequency Range | 0-3GHz |
| Dielectric Withstanding Voltage | 750 V |
| Insulation Resistance | 1000MΩ Min |
| Temperature Range | -40°C to +125°C |
Drawing for SMP JackDownload
