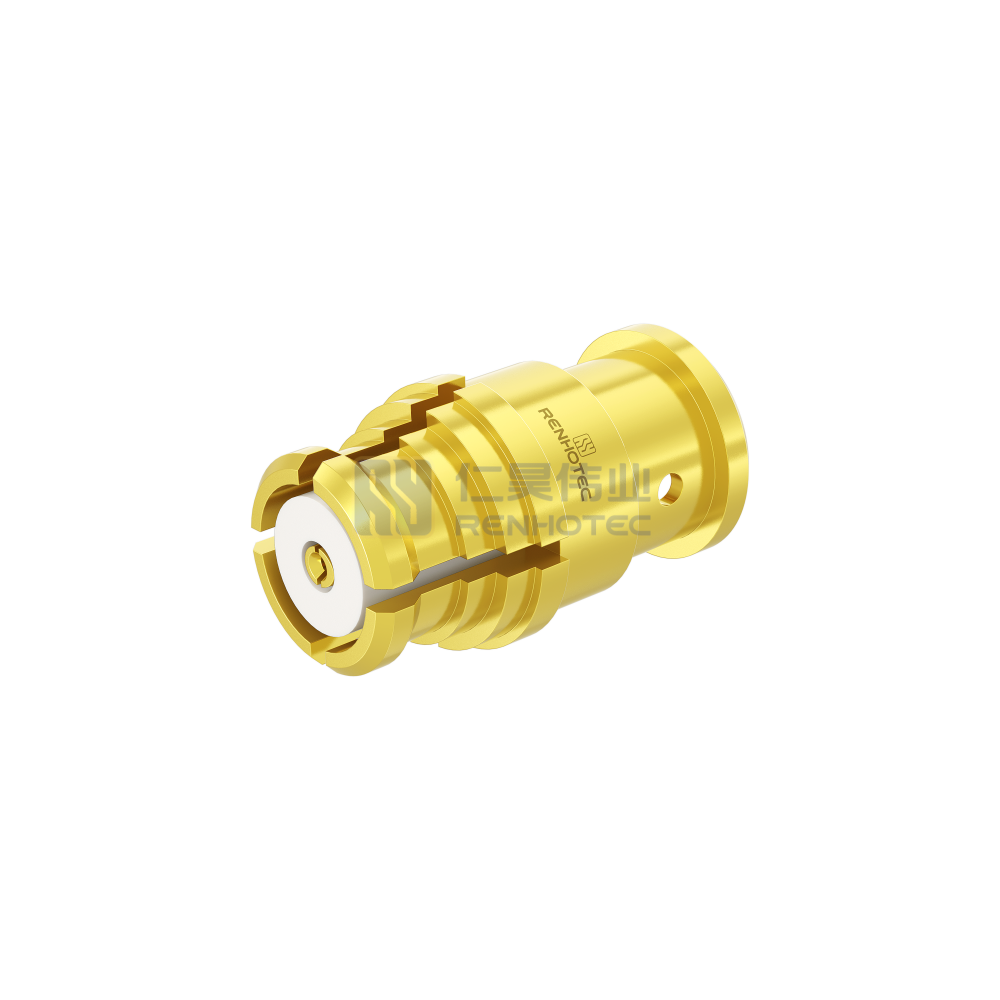

SMP Jack for 085/RG405 Cable – RHT-628-0037-MT
SMP jack, 50Ω, designed for 0.085″ and RG405 cables with crimp or solder termination options, supports blind-mate board-to-cable connections up to 40 GHz, commonly deployed in microwave transceivers and antenna feed networks.
Product Specification
| RF Series | SMP Type |
||
|---|---|---|---|
| Orientation | Straight |
||
| Connector Type | Jack |
||
| Suitable Cable | 085/RG405 |
||
| Contact Type | Female Pin |
||
| Contact Material | CuBe |
||
| Contact Finish | Gold Plated |
||
| Shell Material | CuBe |
||
| Shell Finish | Gold Plated |
||
| Insulator Material | PTFE |
||
| Impedance | 50 ohm |
||
| Frequency Range | DC-40GHz |
||
| VSWR | 1.5 MAX |
||
| Temperature Range | -40°C to +165°C |
||
| RF Series | SMP Type |
Orientation | Straight |
| Connector Type | Jack |
Suitable Cable | 085/RG405 |
| Contact Type | Female Pin |
Contact Material | CuBe |
| Contact Finish | Gold Plated |
Shell Material | CuBe |
| Shell Finish | Gold Plated |
Insulator Material | PTFE |
| Impedance | 50 ohm |
Frequency Range | DC-40GHz |
| VSWR | 1.5 MAX |
Temperature Range | -40°C to +165°C |
| Outer Conductor Material | CuBe |
||
|---|---|---|---|
| Outer Contact Plating | Gold Plated |
||
| Insertion Loss | ≤0.1 xSqt.(f_GHz) |
||
| Outer Conductor Material | CuBe |
Outer Contact Plating | Gold Plated |
| Insertion Loss | ≤0.1 xSqt.(f_GHz) |
| RF Series | SMP Type |
|---|---|
| Orientation | Straight |
| Connector Type | Jack |
| Suitable Cable | 085/RG405 |
| Contact Type | Female Pin |
| Contact Material | CuBe |
| Contact Finish | Gold Plated |
| Outer Conductor Material | CuBe |
| Outer Contact Plating | Gold Plated |
| Shell Material | CuBe |
| Shell Finish | Gold Plated |
| Insulator Material | PTFE |
| Impedance | 50 ohm |
| Frequency Range | DC-40GHz |
| VSWR | 1.5 MAX |
| Insertion Loss | ≤0.1 xSqt.(f_GHz) |
| Temperature Range | -40°C to +165°C |
The SMP interface, similar in size to MMCX connectors, supports frequencies from DC to 40 GHz. Frequently employed in compact high-frequency coaxial modules, this interface comes in push-on and snap-on mating variations.
Features
- Full detent, limited detent, smooth bore or catcher’s mitt
- Standard surface mount (versus swept contact) for best performance
- 50 ohm impedance
- Performance to 40 GHz
- Cable-to-board or board-to-board applications
- Push-on interface for quick installation, or blind mate
SMP Connector Types
Cable Mount
Panel Mount
SMP Adaptor
Applications
- Antennas
- Broadband
- Instrumentation
- Medical
- Quantum Computing
Our Advantages
Physical factory
Having a professional production team, selfproduced and self sold
Quality assurance
Through strict qualitycontrol, ensure quality
After sales system
Actively follow up andpromptly address anyissues
After sales system
Actively follow up andpromptly address anyissues
