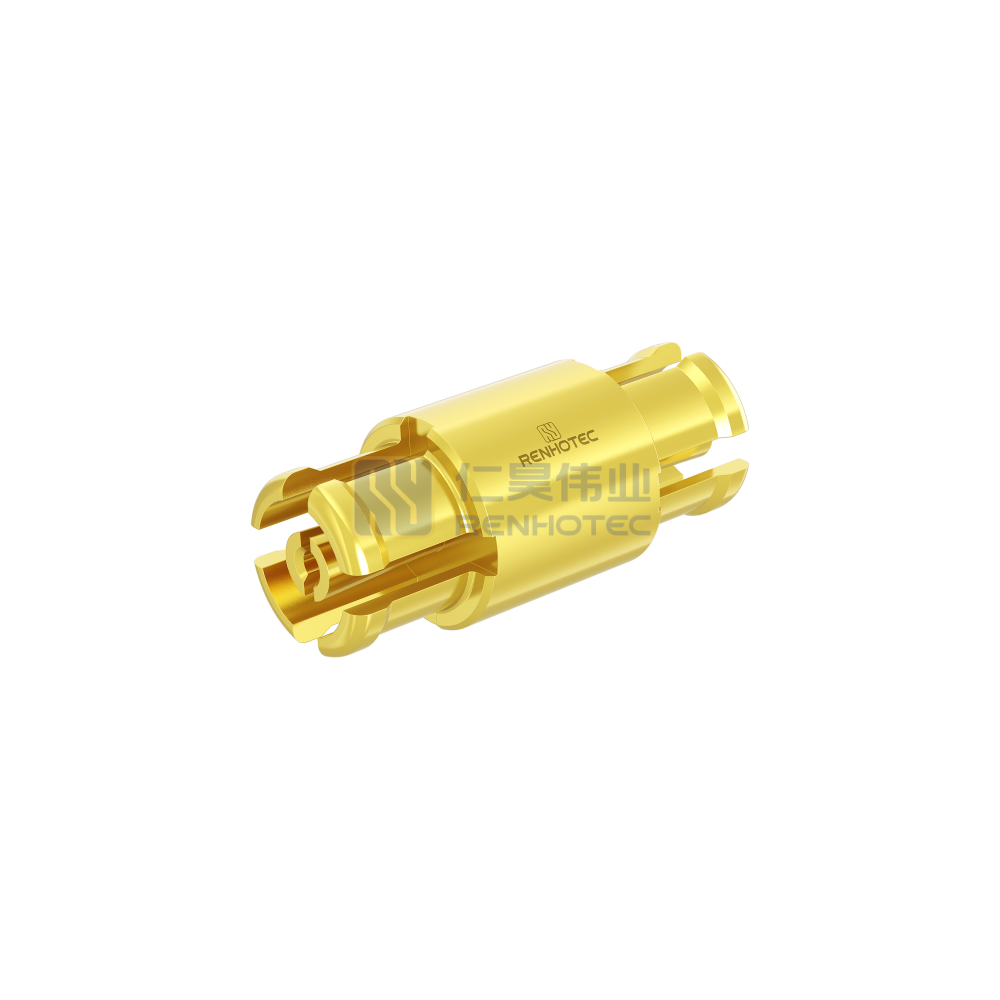

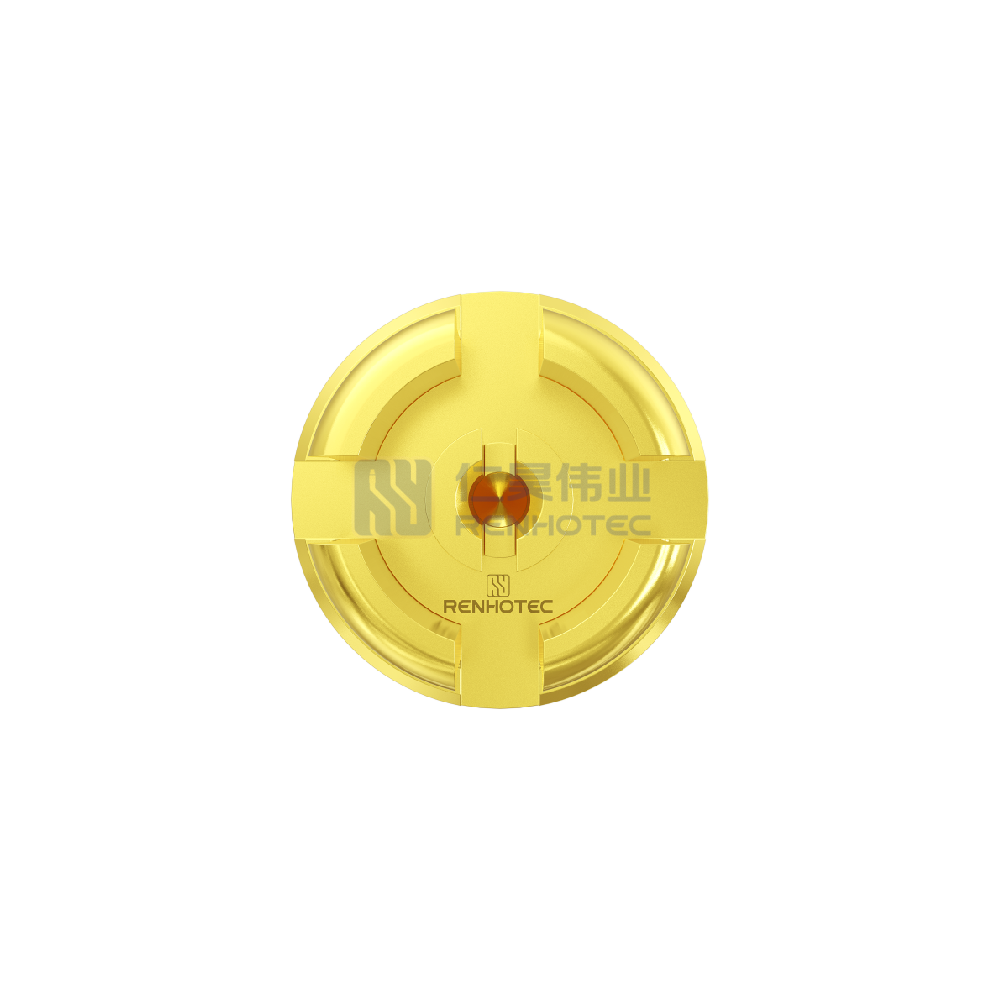

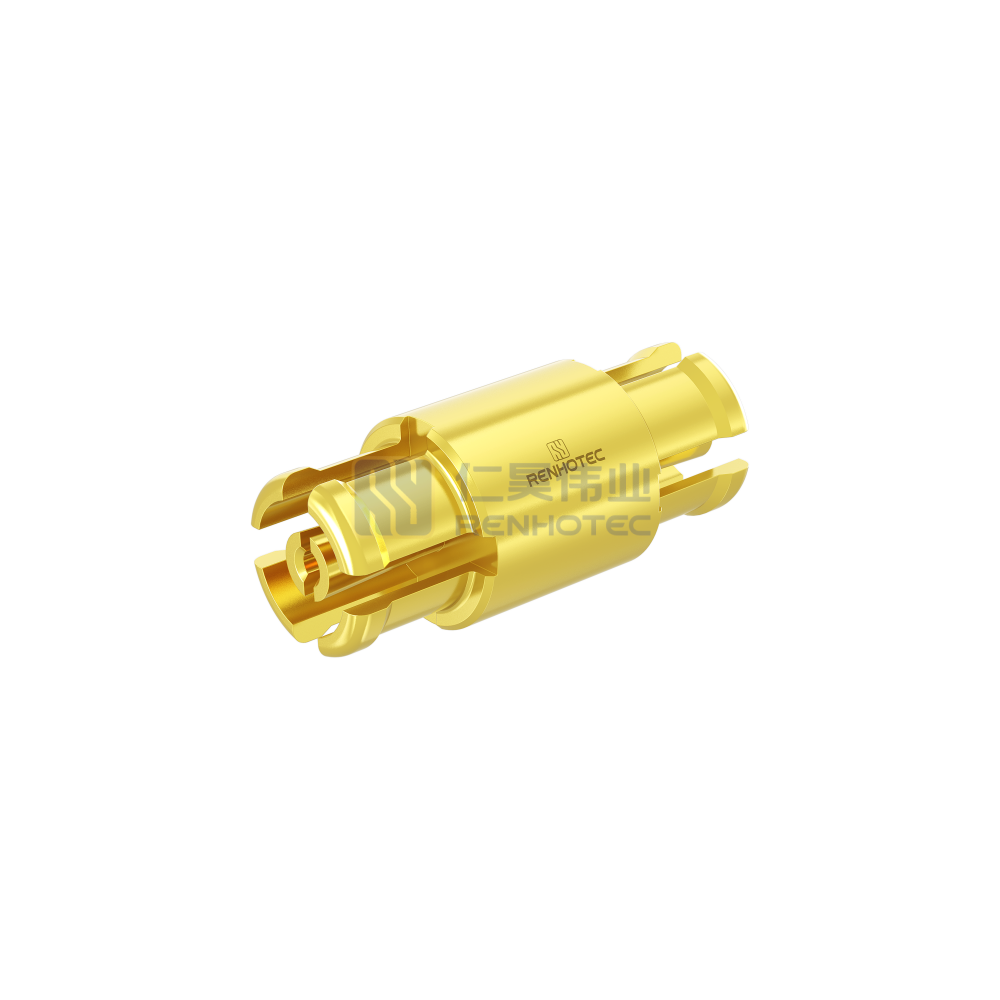

SMP Female to SMP Female Adapter – RHT-628-0023
Product Specification
| 1st Connector | Jack |
||
|---|---|---|---|
| 2nd Connector | Jack |
||
| 1st Contact Type | Female Pin |
||
| 2nd Contact Type | Female Pin |
||
| Convert From(Adapter 1) | SMP |
||
| Convert To(Adapter 2) | SMP |
||
| Adapter Style | SMP to SMP |
||
| Contact Finish | Gold Plated |
||
| Contact Material | Beryllium Copper |
||
| Dielectric Withstanding Voltage | 750 V |
||
| Frequency Range | 0-6GHz |
||
| Impedance | 50 ohm |
||
| Insulation Resistance | 1000MΩ Min |
||
| Insulator Material | PTFE |
||
| Orientation | Straight |
||
| Shell Finish | Gold Plated |
||
| Shell Material | Beryllium Copper |
||
| Temperature Range | -40°C to +125°C |
||
| 1st Connector | Jack |
2nd Connector | Jack |
| 1st Contact Type | Female Pin |
2nd Contact Type | Female Pin |
| Convert From(Adapter 1) | SMP |
Convert To(Adapter 2) | SMP |
| Adapter Style | SMP to SMP |
Contact Finish | Gold Plated |
| Contact Material | Beryllium Copper |
Dielectric Withstanding Voltage | 750 V |
| Frequency Range | 0-6GHz |
Impedance | 50 ohm |
| Insulation Resistance | 1000MΩ Min |
Insulator Material | PTFE |
| Orientation | Straight |
Shell Finish | Gold Plated |
| Shell Material | Beryllium Copper |
Temperature Range | -40°C to +125°C |
| 1st Connector | Jack |
|---|---|
| 2nd Connector | Jack |
| 1st Contact Type | Female Pin |
| 2nd Contact Type | Female Pin |
| Convert From(Adapter 1) | SMP |
| Convert To(Adapter 2) | SMP |
| Adapter Style | SMP to SMP |
| Contact Finish | Gold Plated |
| Contact Material | Beryllium Copper |
| Dielectric Withstanding Voltage | 750 V |
| Frequency Range | 0-6GHz |
| Impedance | 50 ohm |
| Insulation Resistance | 1000MΩ Min |
| Insulator Material | PTFE |
| Orientation | Straight |
| Shell Finish | Gold Plated |
| Shell Material | Beryllium Copper |
| Temperature Range | -40°C to +125°C |
Drawing for SMP Female to SMP Female AdapterDownload
