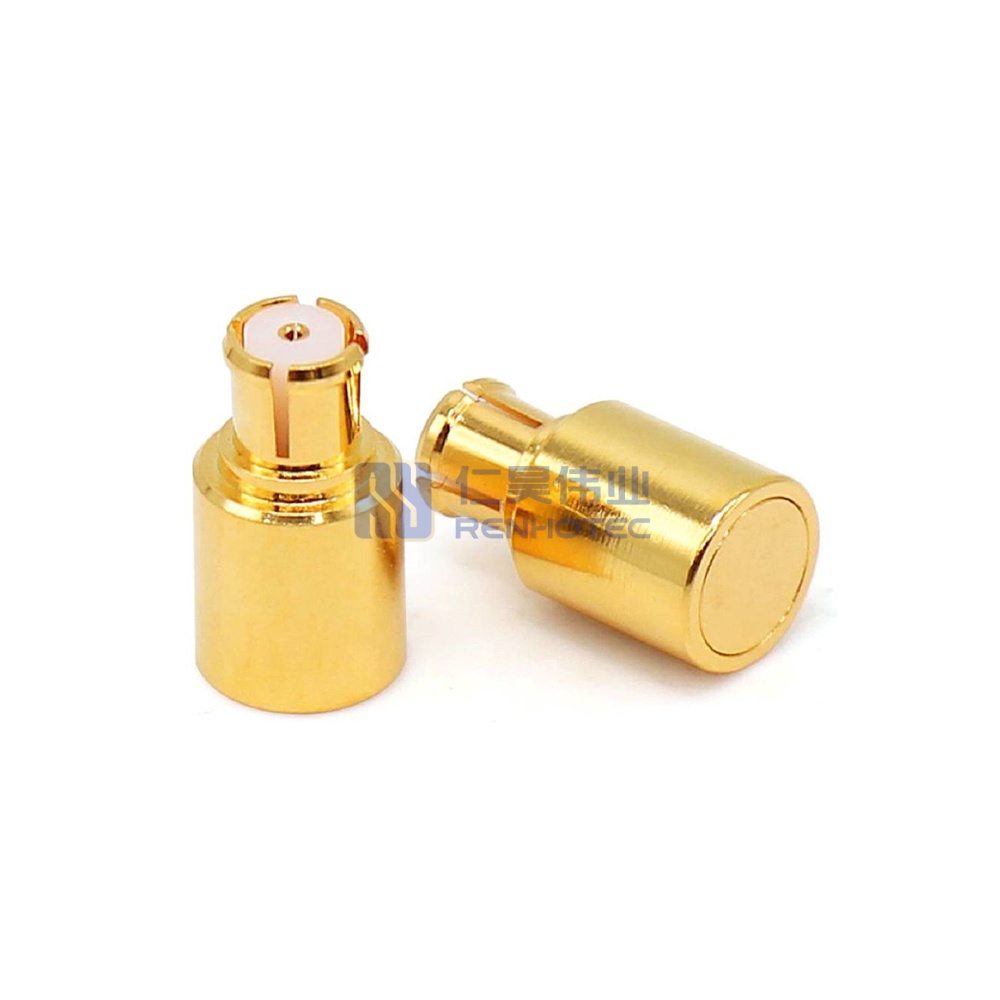

SMP Female Termination – RHT-628-2033

SKU RHT-628-2033 Category RF Coaxial Loads

  • Frequency Range: Operates effectively across DC to 18 GHz for broad microwave application support.

  • 50-Ohm Impedance: Delivers precise signal matching with a low VSWR of 1.3 MAX to minimize signal reflection.

  • Durable Construction: Features a gold-plated beryllium bronze contact and brass bronze outer conductor built for 500+ mating cycles.

  • Power Handling: Handles up to 0.5W continuous power at 25°C and peak power up to 100W (5 μs pulse width).

Product Specification

Connector Type

Jack

Contact Type

Female Pin

Contact Material

Beryllium Bronze

Contact Finish

Gold Plated

Insulator Material

PTFE

Impedance

50 ohm

Frequency Range

DC-18GHz

VSWR

1.3 MAX

Dielectric Withstanding Voltage

1000 V

Insulation Resistance

5000MΩ Min

Temperature Range

-55°C to +125°C

Connector Type

Jack

Contact Type

Female Pin

Contact Material

Beryllium Bronze

Contact Finish

Gold Plated

Insulator Material

PTFE

Impedance

50 ohm

Frequency Range

DC-18GHz

VSWR

1.3 MAX

Dielectric Withstanding Voltage

1000 V

Insulation Resistance

5000MΩ Min

Temperature Range

-55°C to +125°C

Outer Conductor Material

Brass Bronze

Outer Contact Plating

Gold Plated

Insertion Loss

≤0.06*√F (GHz) dB

Mating Cycles

500 Cycles mini

Average Power

0.5W at 25°C

Peak Power

0.4% duty cycle), 100W (5μ sec pulse width

Outer Conductor Material

Brass Bronze

Outer Contact Plating

Gold Plated

Insertion Loss

≤0.06*√F (GHz) dB

Mating Cycles

500 Cycles mini

Average Power

0.5W at 25°C

Peak Power

0.4% duty cycle), 100W (5μ sec pulse width

Connector Type

Jack

Contact Type

Female Pin

Contact Material

Beryllium Bronze

Contact Finish

Gold Plated

Outer Conductor Material

Brass Bronze

Outer Contact Plating

Gold Plated

Insulator Material

PTFE

Impedance

50 ohm

Frequency Range

DC-18GHz

VSWR

1.3 MAX

Insertion Loss

≤0.06*√F (GHz) dB

Dielectric Withstanding Voltage

1000 V

Insulation Resistance

5000MΩ Min

Mating Cycles

500 Cycles mini

Temperature Range

-55°C to +125°C

Average Power

0.5W at 25°C

Peak Power

0.4% duty cycle), 100W (5μ sec pulse width

RF coaxial loads are basic components in the RF signal chain, typically placed at the end of the line and also known as RF terminators. Their main function is to fully absorb microwave energy from the transmission line, thereby improving circuit matching, preventing unwanted reflections, and minimizing interference. In addition, they can control power levels, serve as decoupling elements, act as reference standards, and help reduce interference in radar systems.

Renhotec RF Coaxial Load

Product Features

  • Core functions: Efficiently absorbs microwave energy, improves circuit matching, reduces reflections and interference, and ensures overall system stability.
  • Versatile and adaptable: Controls power, isolates interference, supports calibration testing, reduces radar system interference, and adapts to multiple application scenarios.
  • Reliable performance: Standard impedance compatibility, low VSWR for improved efficiency and signal quality, supports a wide range of power levels, frequencies, and temperatures, ensuring stable and dependable operation.
RF load connector type

Application Scenarios

  • Wireless communication: devices such as base stations, mobile phones, satellite communications, etc.
  • Instrumentation: network analyzers, signal generators, etc.
  • Aerospace: communication, navigation, and radar systems for aircraft.
RF Load Application
RF Load Application (1)
RF Load Application (3)
RF Load Application (2)

RF Coaxial Loads FAQ

The main ones are frequency range, power capacity, and impedance matching.

No. They need to be used with transmission lines that have corresponding connectors.

It can cause signal reflections, which may reduce efficiency or even damage the equipment.

Common types include fixed and adjustable loads. They can also be categorized as low, medium, or high-power loads based on power rating.

With normal use, service life typically ranges from a few years to over ten years, depending on the operating environment.

Drawing for SMP Female TerminationDownload
Microwave Components CatalogDownload
