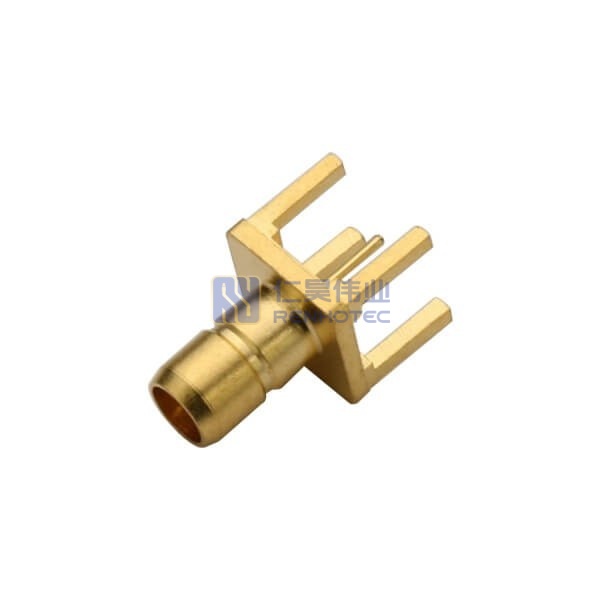

SMB Connector Straight Jack Male Pin Solder 75ohm – RHT-626-0229
Product Specification
| RF Series | SMB Type |
||
|---|---|---|---|
| Fastening Type | Snap On |
||
| Orientation | Straight |
||
| Connector Type | Jack |
||
| Contact Type | Male Pin |
||
| Mounting Type | Panel Mount |
||
| Impedance | 75ohm |
||
| Insulator Material | TEFLON |
||
| Contact Material | Brass |
||
| Insulation Resistance | 1000 Ohms |
||
| Rated Voltage | 335V rms |
||
| RF Series | SMB Type |
Fastening Type | Snap On |
| Orientation | Straight |
Connector Type | Jack |
| Contact Type | Male Pin |
Mounting Type | Panel Mount |
| Impedance | 75ohm |
Insulator Material | TEFLON |
| Contact Material | Brass |
Insulation Resistance | 1000 Ohms |
| Rated Voltage | 335V rms |
| Termination | Solder |
||
|---|---|---|---|
| Mount Feature | Through Hole |
||
| Port Numbers | 1 |
||
| Body Material | Copper |
||
| Body Plating | Gold Plating |
||
| Contact Plating | Gold Plating |
||
| Insertion Loss | 0.6dB Max |
||
| Termination | Solder |
Mount Feature | Through Hole |
| Port Numbers | 1 |
Body Material | Copper |
| Body Plating | Gold Plating |
Contact Plating | Gold Plating |
| Insertion Loss | 0.6dB Max |
| RF Series | SMB Type |
|---|---|
| Fastening Type | Snap On |
| Orientation | Straight |
| Connector Type | Jack |
| Contact Type | Male Pin |
| Termination | Solder |
| Mounting Type | Panel Mount |
| Mount Feature | Through Hole |
| Port Numbers | 1 |
| Impedance | 75ohm |
| Frequency(Max） | 4GHz |
| Body Material | Copper |
| Body Plating | Gold Plating |
| Insulator Material | TEFLON |
| Contact Material | Brass |
| Contact Plating | Gold Plating |
| Insulation Resistance | 1000 Ohms |
| Insertion Loss | 0.6dB Max |
| Rated Voltage | 335V rms |
