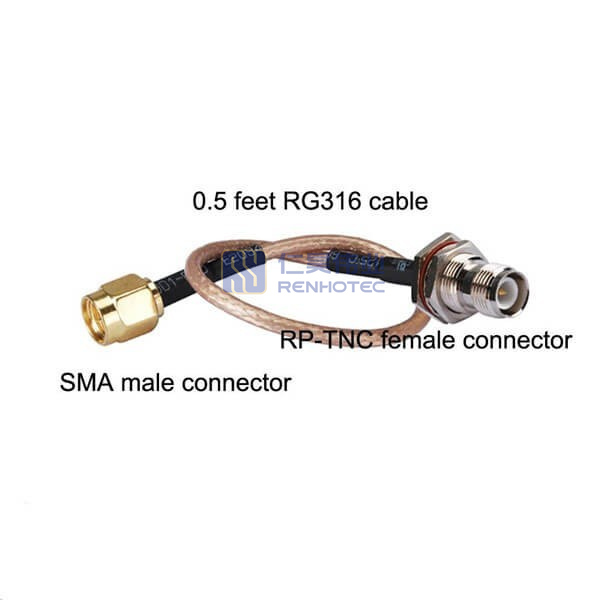

SMA Plug to RP TNC Jack RF Cable Assemblies With RG316 Cable

  • RF coaxial cable features Simple Construction, Good Stability and Cost-Effective.
  • RF coaxial cable also perform very well over short distances such as home installations
  • The RF coaxial cable has the characteristics of strong adaptability to the environment, high and low temperature resistance, bending resistance, corrosion resistance and moisture resistance.

RF coaxial cable offer good resistance to electromagnetic interference, with excellent electrical and mechanical properties, good shielding, attenuation is low, low VSWR.

RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.

Application Scenarios

Company Information

Renhao Weiye Technology (Wuhan) Co., Ltd.
We Acquired ISO 9001, Environment and Management Systems Certification to Ensure High Quality. Please Contact Us Free for More Details if Interested.

Product Specification

RF Cable Style

SMA to TNC

RF Cable 1st Connector

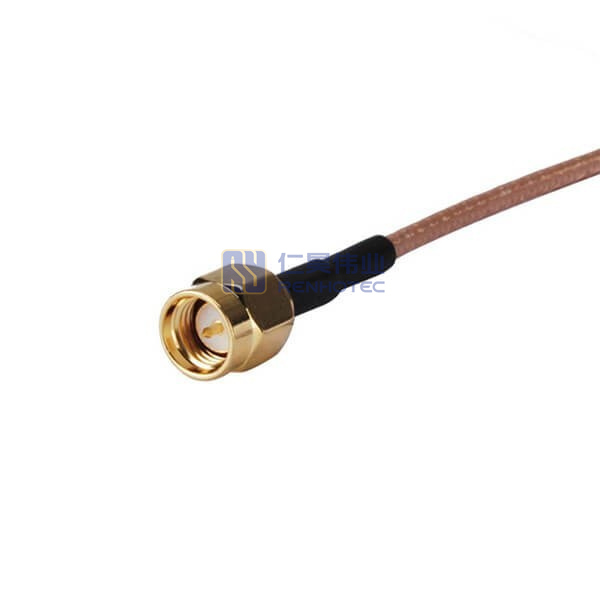

SMA Plug

1st Contact Type

Male Pin

1st Connector Orientation

Straight

RF Cable 2nd Connector

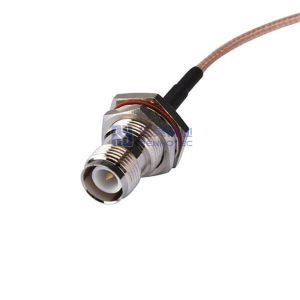

RP TNC Jack

2nd Contact Type

Male Pin

2nd Connector Orientation

Straight

Impedance

50 ohm

Cable Color

Brown

Frequency Range

0-14GHz

Temperature Range

−40°C to +85°C

Cable Type

RG316

RF Cable Style

SMA to TNC

RF Cable 1st Connector

SMA Plug

1st Contact Type

Male Pin

1st Connector Orientation

Straight

RF Cable 2nd Connector

RP TNC Jack

2nd Contact Type

Male Pin

2nd Connector Orientation

Straight

Impedance

50 ohm

Cable Color

Brown

Frequency Range

0-14GHz

Temperature Range

−40°C to +85°C

Cable Type

RG316

RF Cable Style

SMA to TNC

RF Cable 1st Connector

SMA Plug

1st Contact Type

Male Pin

1st Connector Orientation

Straight

RF Cable 2nd Connector

RP TNC Jack

2nd Contact Type

Male Pin

2nd Connector Orientation

Straight

Impedance

50 ohm

Cable Color

Brown

Frequency Range

0-14GHz

Temperature Range

−40°C to +85°C

Cable Type

RG316
