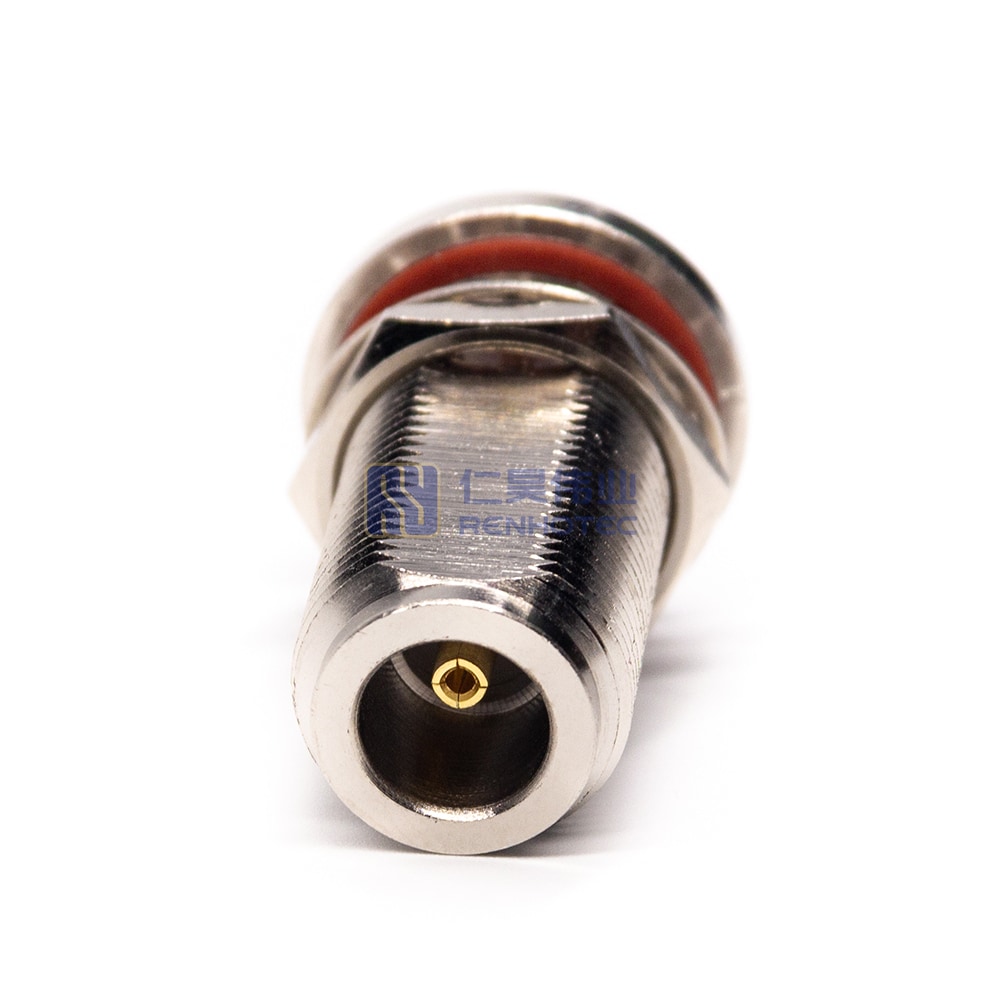

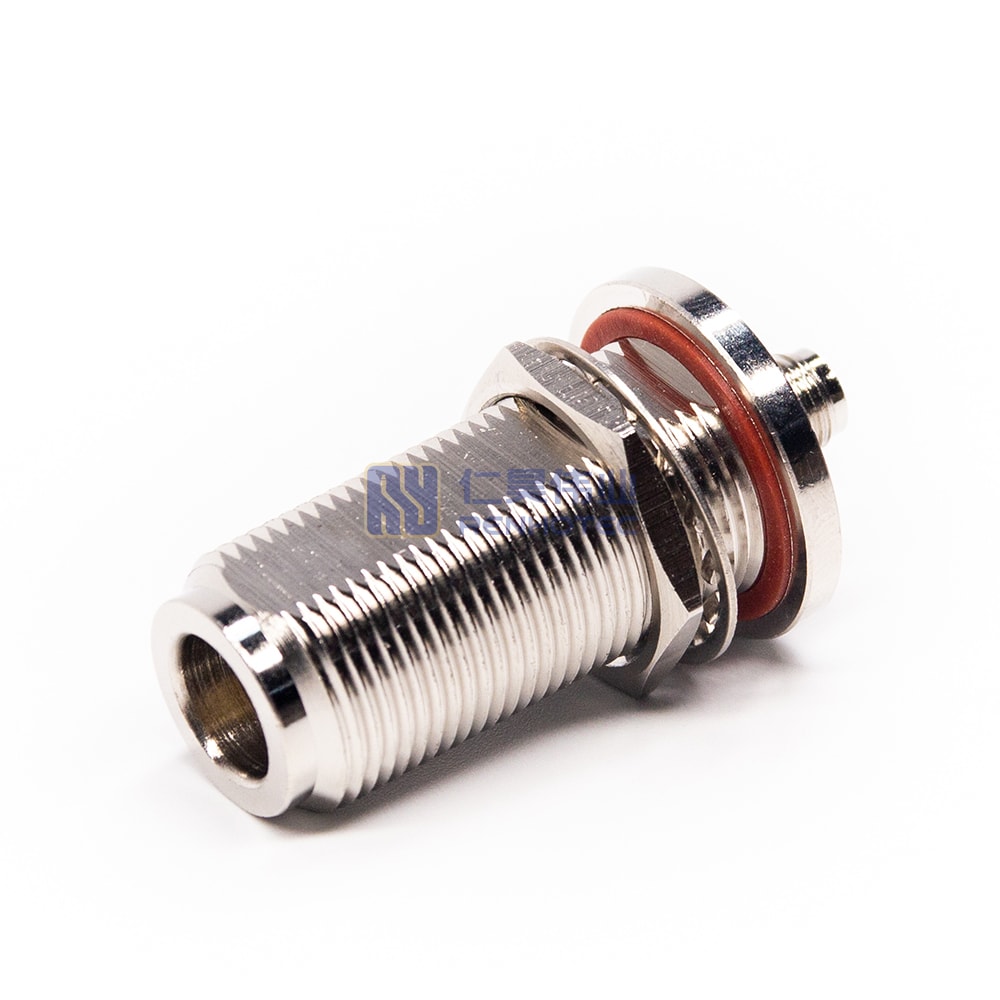

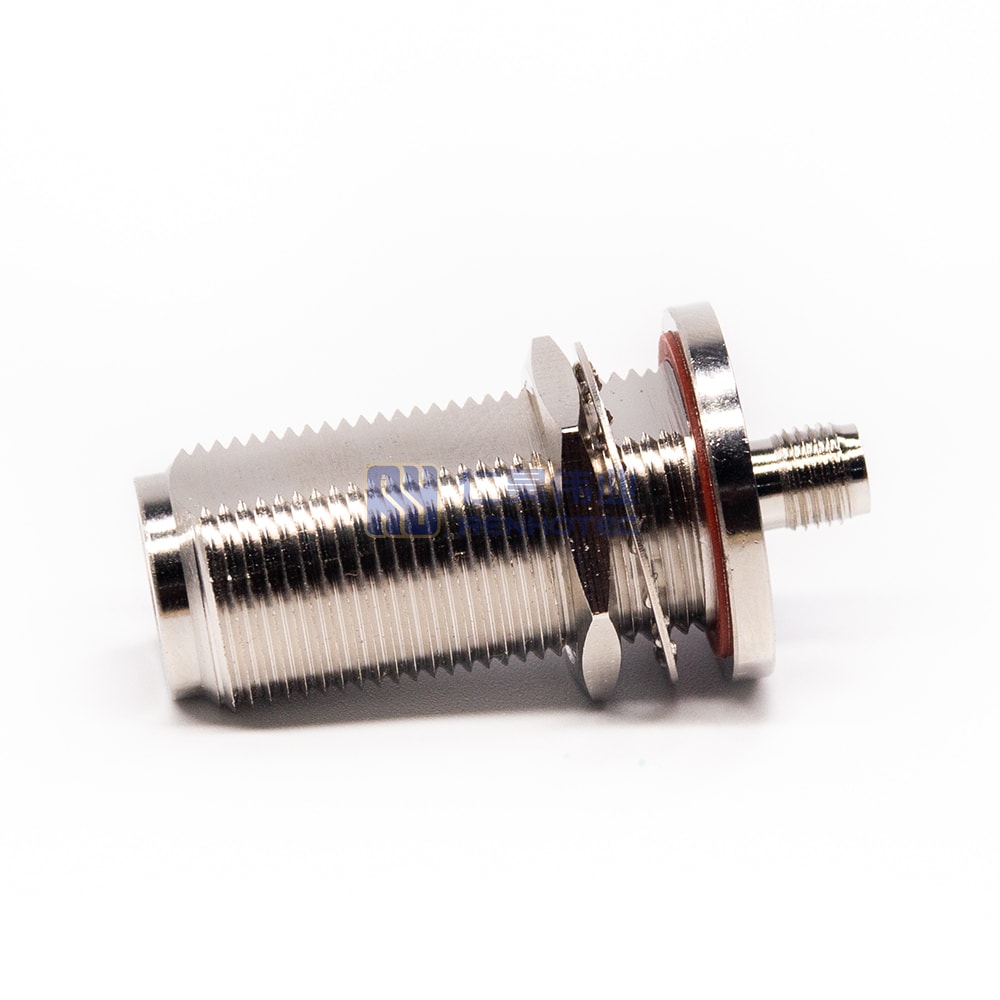

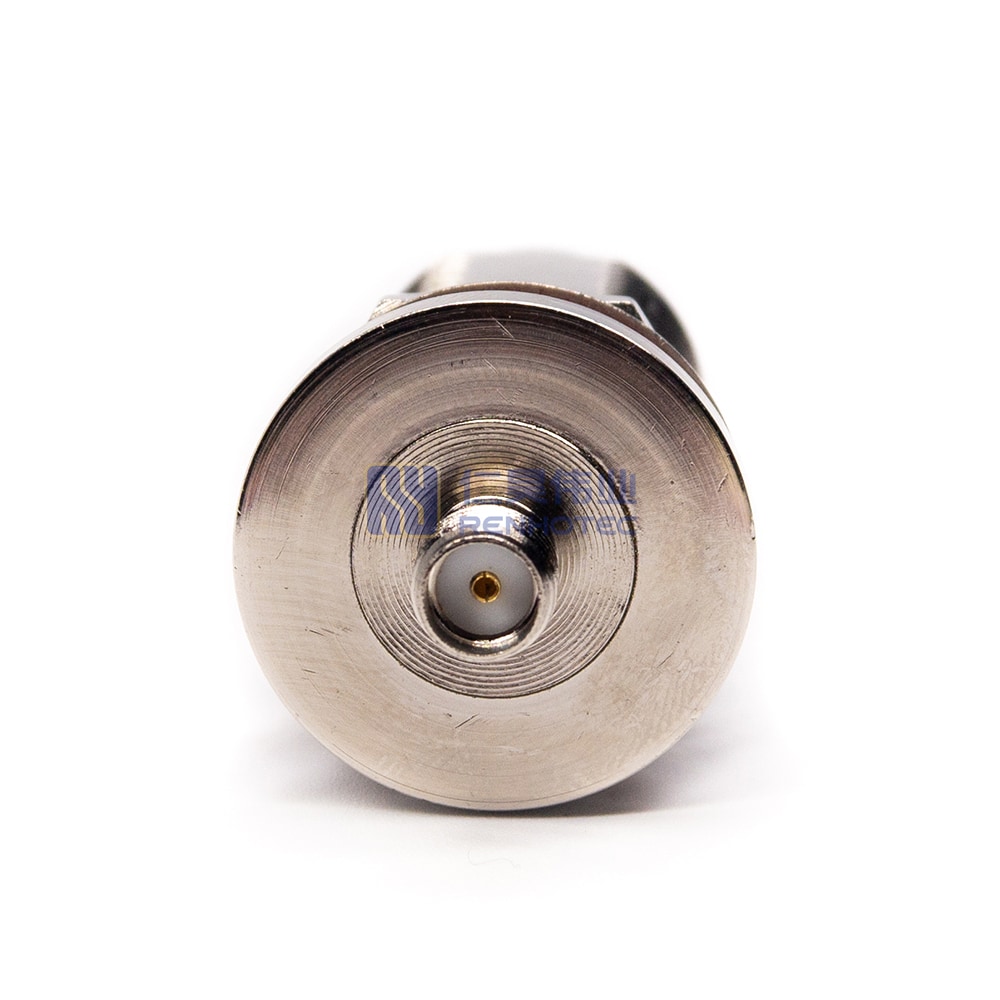

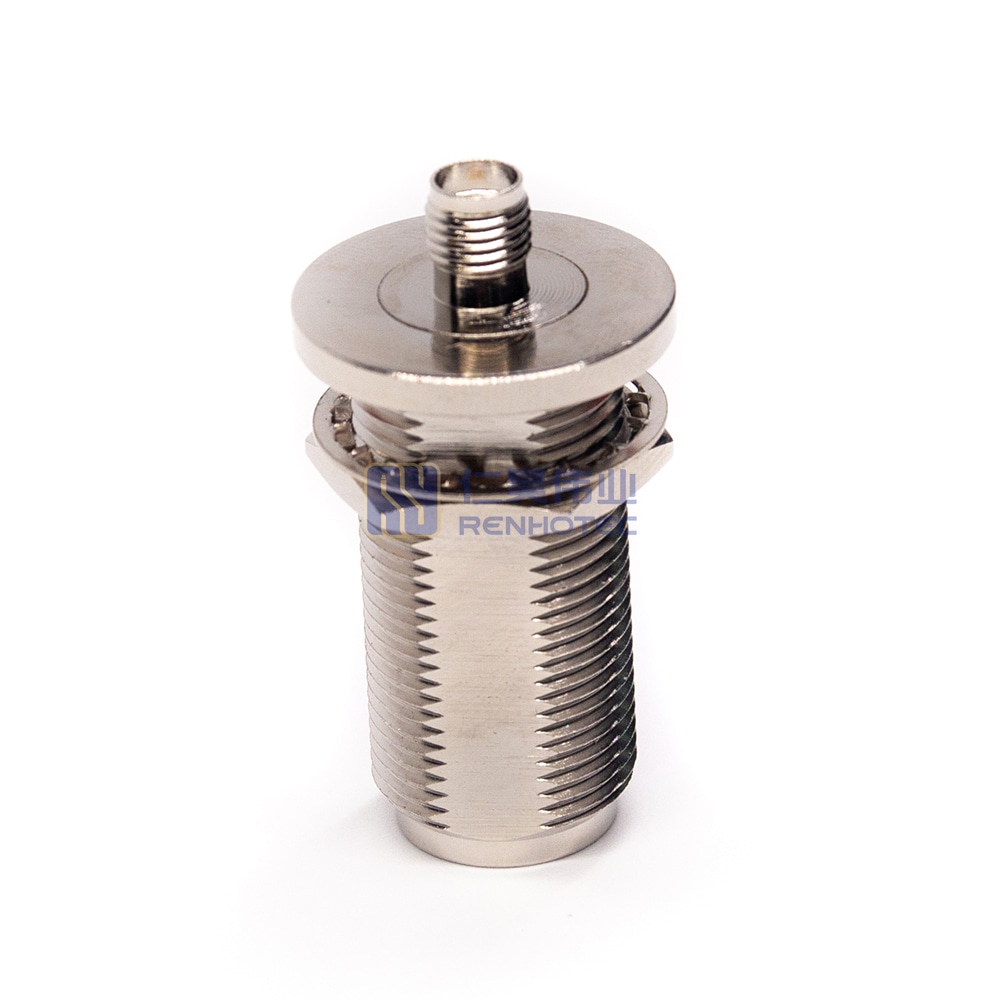

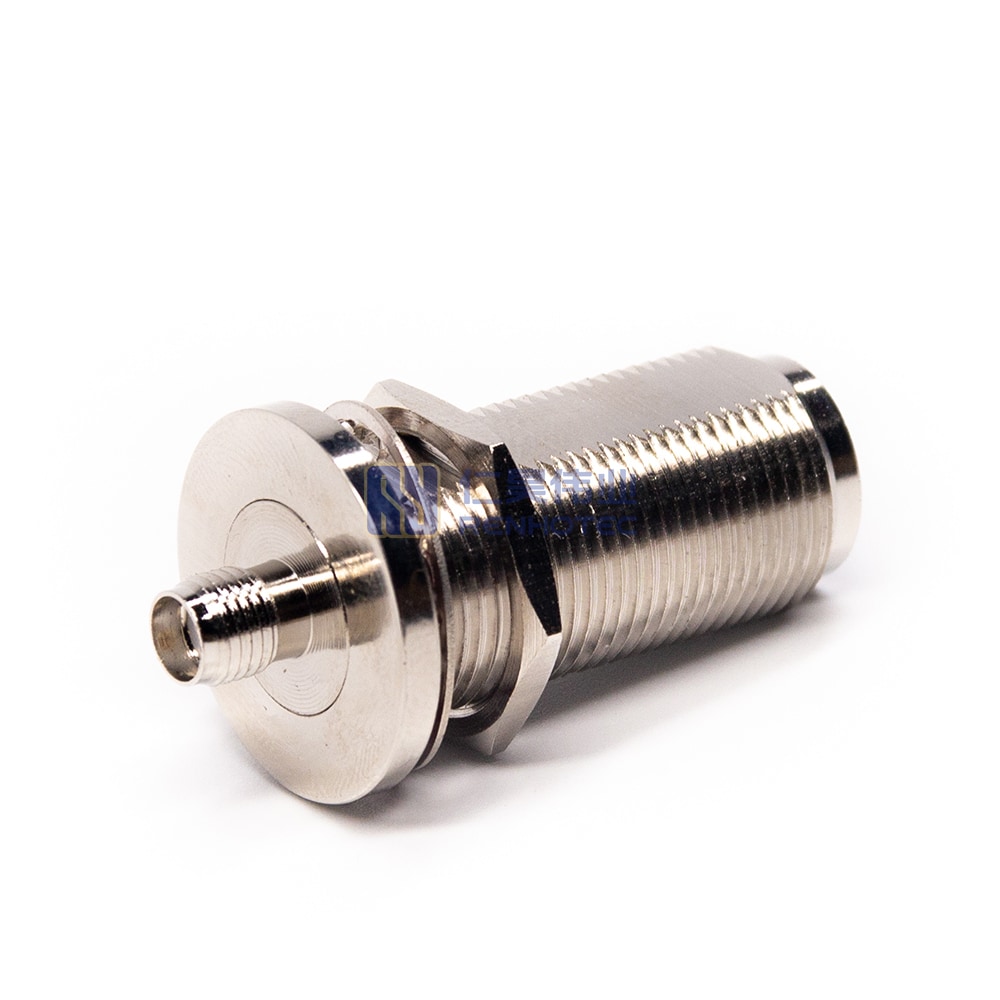

SMA Female to N Female Straight Adapter

  • Exquisite production technology
  • Accurate signal transmission
  • High-quality anti-corrosion
  • Easy to install

RF adapters for changing gender or as connector protectors in precision test and measurement applications are commonly available.
They are also used to transfer signals between connector interfaces.
Coaxial adapters are available in 50 ohm and 75 ohm designs. Standard polarity and reverse polarity Jack to Jack, Plug to Jack, and Plug to Plug adapters are available across most RF interfaces.
The polarity of an interface can change by changing the center contact from male to female or from female to male, depending on the adapter interface.

RF Adapter Series



Industry Application

Product Specification

Adapter Style

SMA to N

Convert From(Adapter 1)

SMA

1st Connector

Jack

1st Contact Type

Female Pin

Convert To(Adapter 2)

N Type

2nd Connector

Jack

2nd Contact Type

Female Pin

Orientation

Straight

Shell Material

Brass

Shell Finish

Nickel Plated

Contact Finish

Gold Plated

Impedance

50 ohm

Mounting Type

Panel Mount

Mounting Feature

Bulkhead

Ingress Protection

IP65

Features

Waterproof

Adapter Style

SMA to N

Convert From(Adapter 1)

SMA

1st Connector

Jack

1st Contact Type

Female Pin

Convert To(Adapter 2)

N Type

2nd Connector

Jack

2nd Contact Type

Female Pin

Orientation

Straight

Shell Material

Brass

Shell Finish

Nickel Plated

Contact Finish

Gold Plated

Impedance

50 ohm

Mounting Type

Panel Mount

Mounting Feature

Bulkhead

Ingress Protection

IP65

Features

Waterproof

Check out the latest project drawing of the product.
