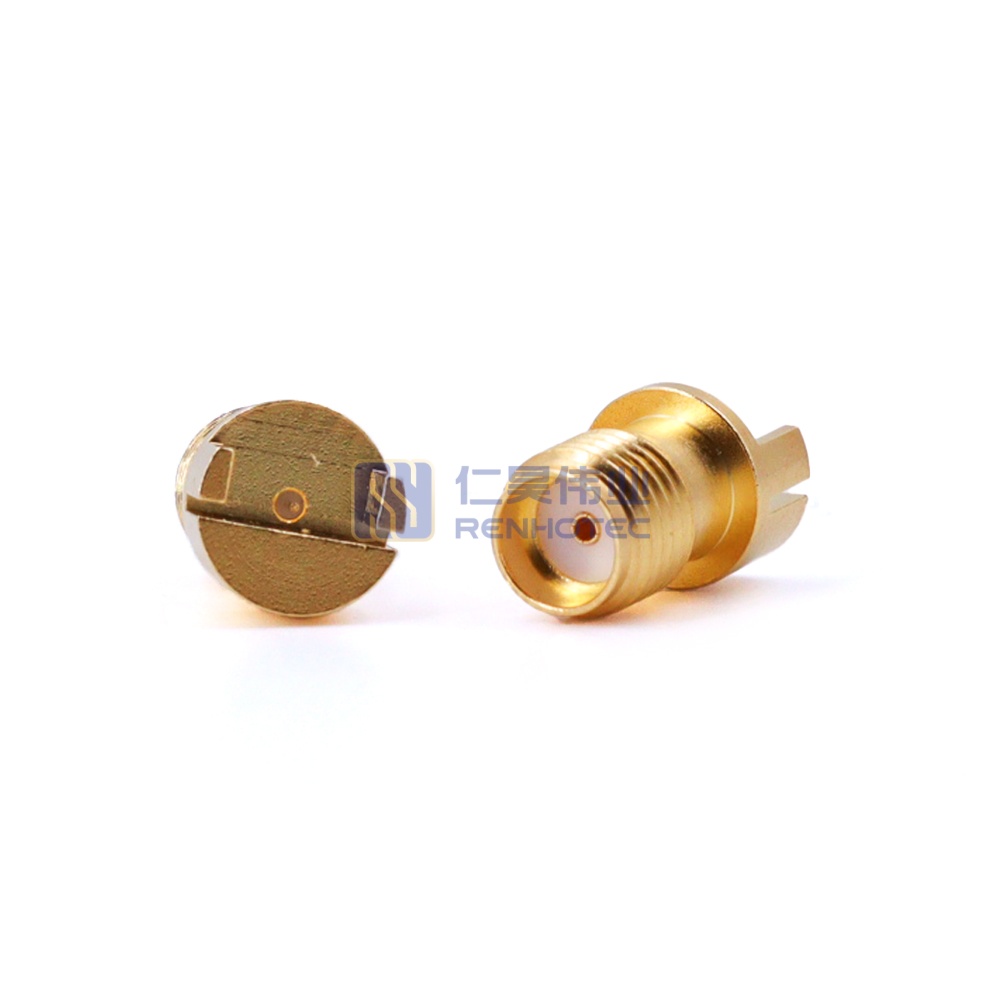

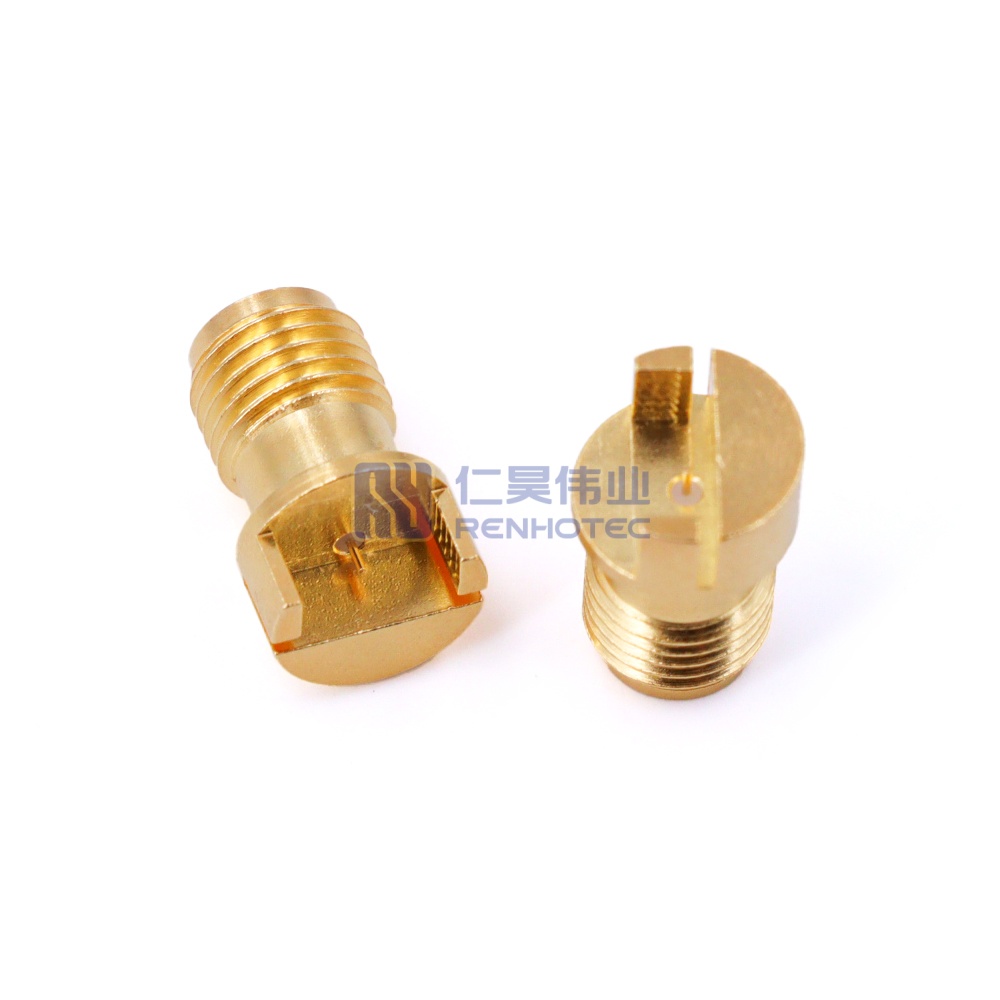

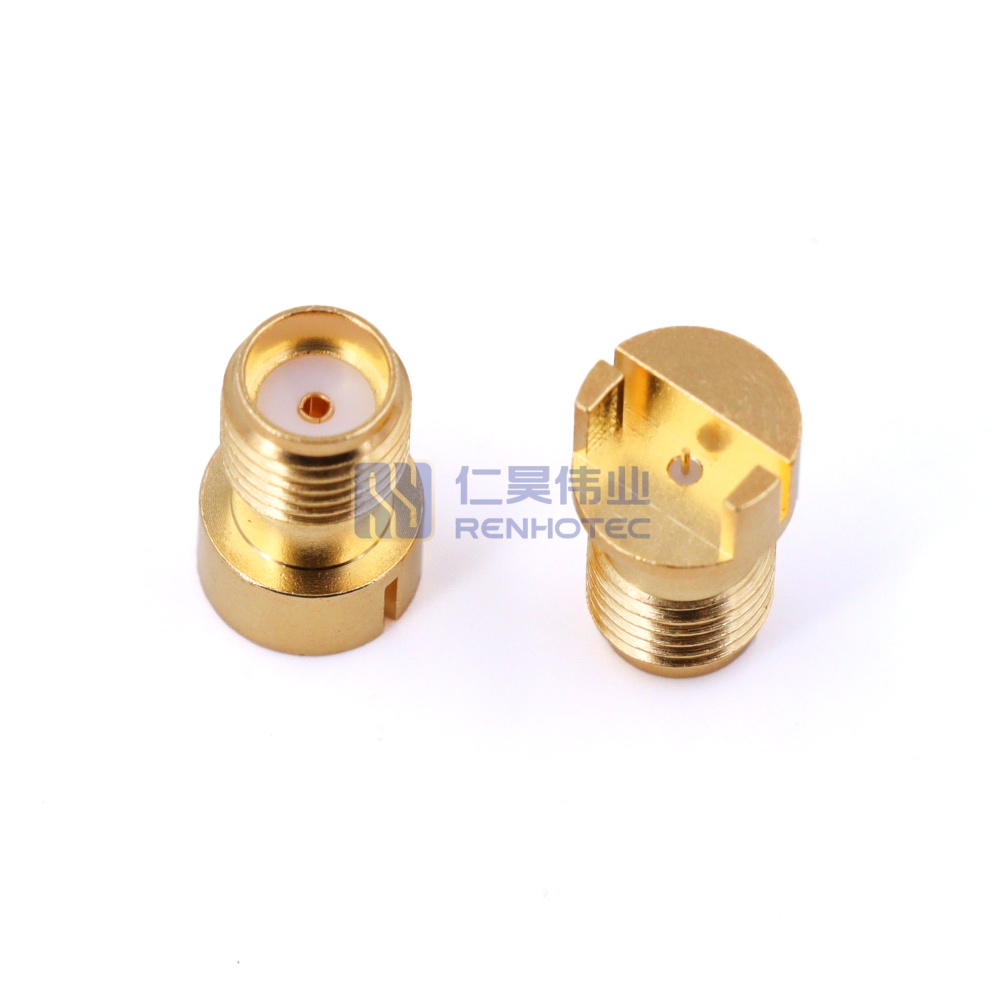

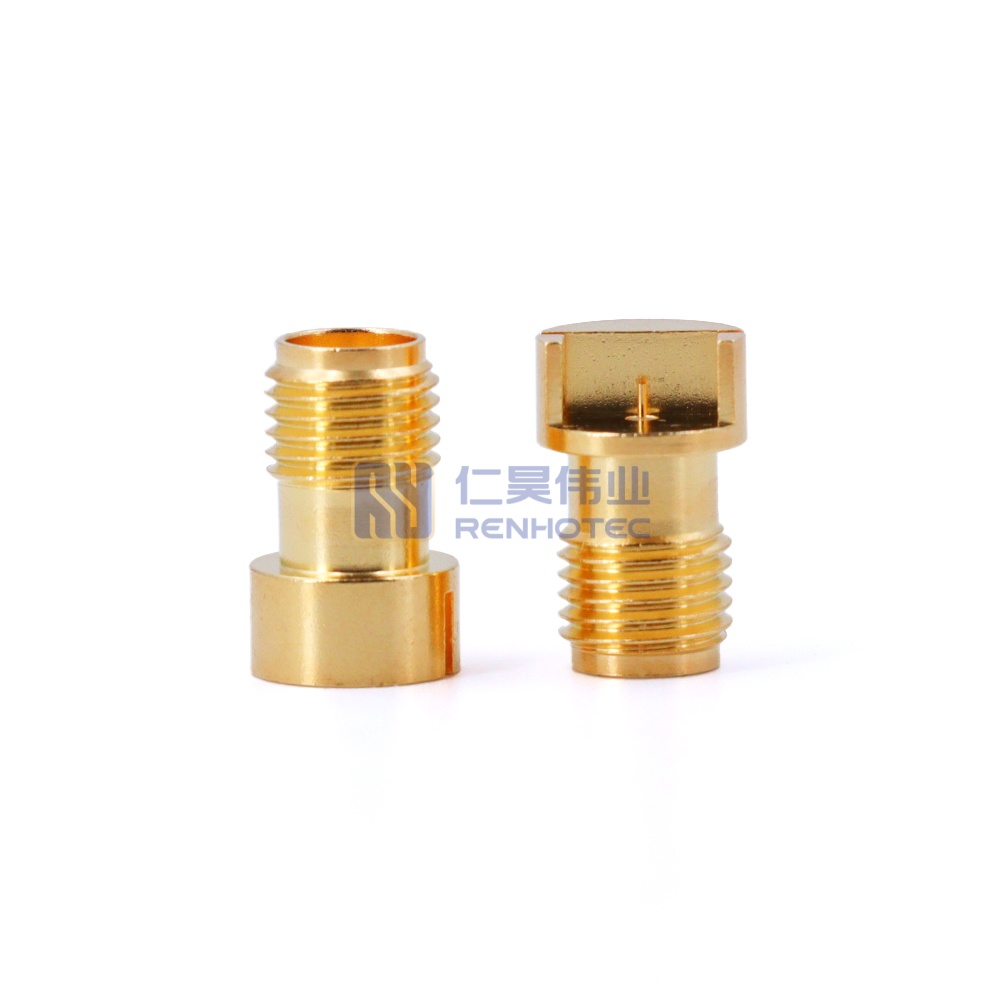

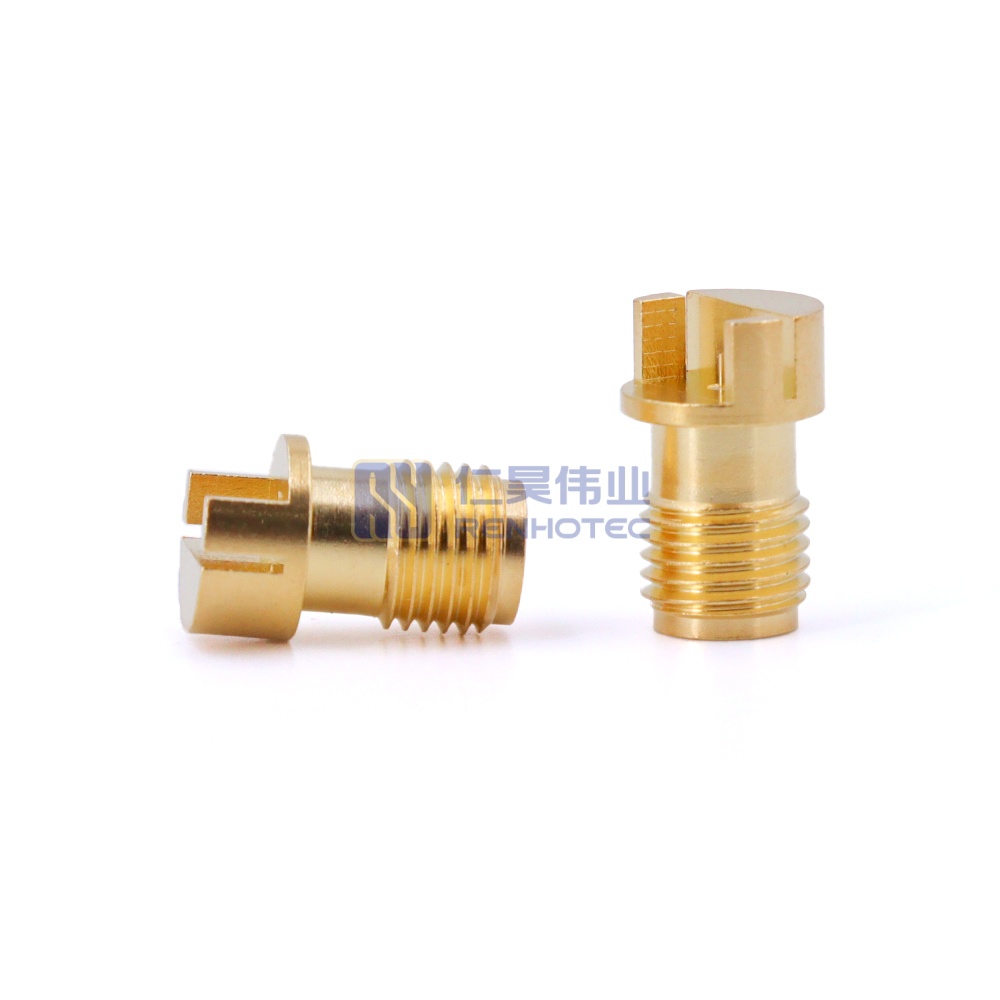

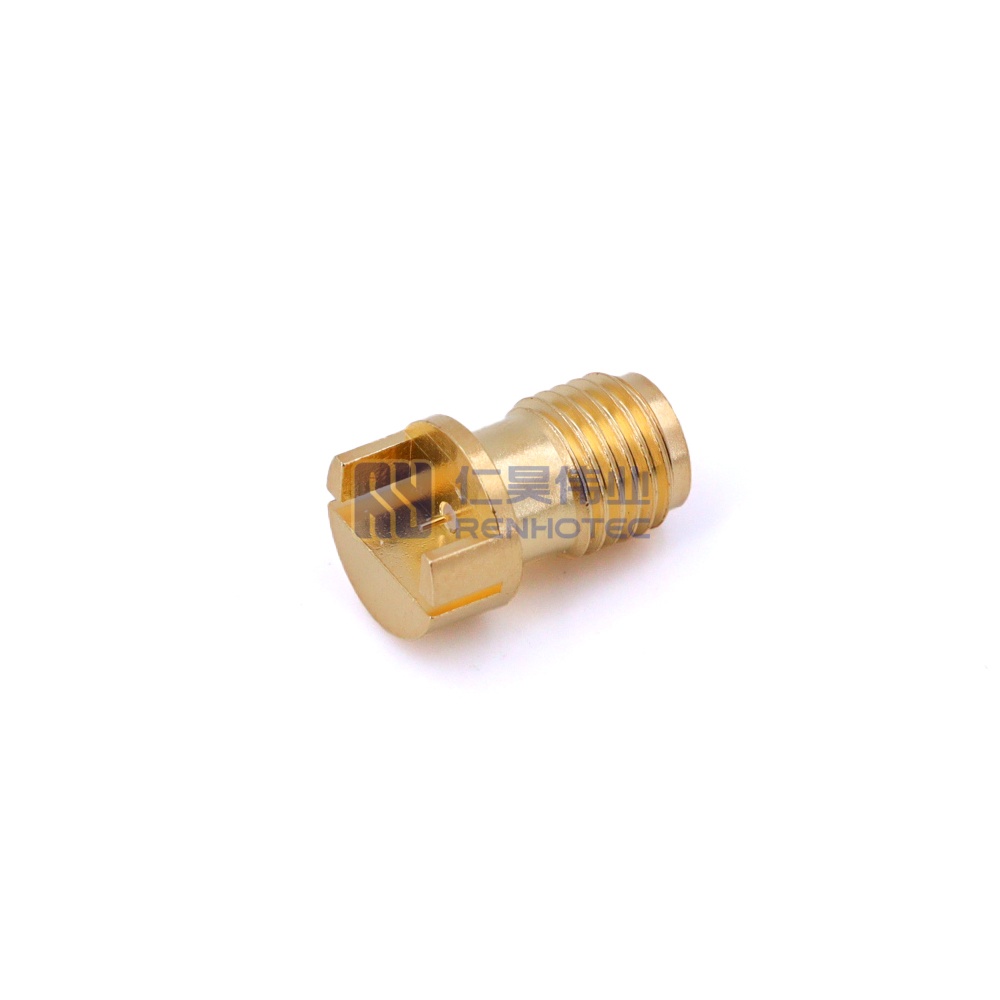

SMA Female RF Coaxial Connector 27GHz PCB Edge Launch Type Pin for PCB
Product Specification
| RF Series | SMA Type |
||
|---|---|---|---|
| Connector Type | Jack |
||
| Frequency Range | DC-27 GHz |
||
| VSWR | 1.15:1 (max) |
||
| Impedance | 50 ohm |
||
| Insulation Resistance | ≥5000 MΩ |
||
| Dielectric Withstanding Voltage | 500 V |
||
| Contact Type | Female Pin |
||
| RF Series | SMA Type |
Connector Type | Jack |
| Frequency Range | DC-27 GHz |
VSWR | 1.15:1 (max) |
| Impedance | 50 ohm |
Insulation Resistance | ≥5000 MΩ |
| Dielectric Withstanding Voltage | 500 V |
Contact Type | Female Pin |
| External Conductor Material | Brass, Gold plating |
||
|---|---|---|---|
| Inner Conductor Material | Beryllium bronze, Gold Plating |
||
| Insulator | PEI & PTFE |
||
| Insertion Loss | ≤0.05×√F(GHz) dB |
||
| Operation Temperature | -55℃ ~ +165℃ |
||
| Service Life | ≥500 |
||
| External Conductor Material | Brass, Gold plating |
Inner Conductor Material | Beryllium bronze, Gold Plating |
| Insulator | PEI & PTFE |
Insertion Loss | ≤0.05×√F(GHz) dB |
| Operation Temperature | -55℃ ~ +165℃ |
Service Life | ≥500 |
| RF Series | SMA Type |
|---|---|
| Connector Type | Jack |
| External Conductor Material | Brass, Gold plating |
| Inner Conductor Material | Beryllium bronze, Gold Plating |
| Insulator | PEI & PTFE |
| Frequency Range | DC-27 GHz |
| VSWR | 1.15:1 (max) |
| Impedance | 50 ohm |
| Insertion Loss | ≤0.05×√F(GHz) dB |
| Operation Temperature | -55℃ ~ +165℃ |
| Service Life | ≥500 |
| Insulation Resistance | ≥5000 MΩ |
| Dielectric Withstanding Voltage | 500 V |
| Contact Type | Female Pin |
