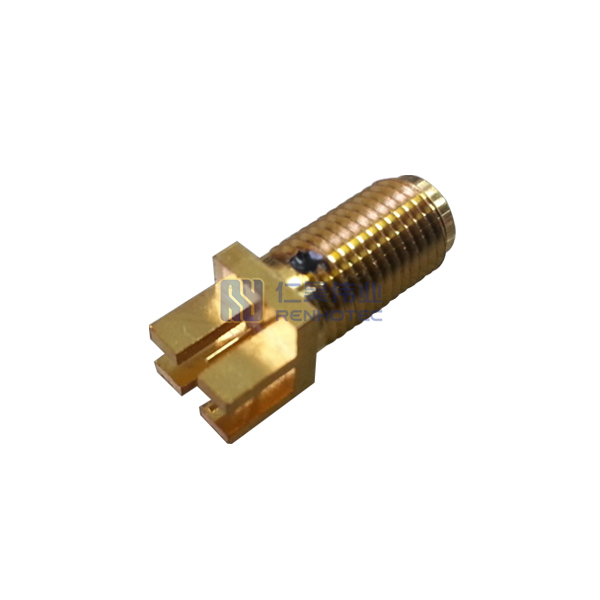

SMA Connector Straight Jack Panel Mount Edge Mount – RHT-612-0276

The SMA Connector Straight Jack Panel Mount Edge Mount is ideal for use in telecommunications, aerospace, and other industries. This high-quality connector ensures secure and reliable RF signal connections. Perfect for applications requiring a durable and precise panel mount solution.

The SMA connector is a semi-precision, ultra-compact RF and microwave connector that is widely used, especially for RF connections in electronic systems with frequencies up to 18 GHz and beyond. While SMA connectors are now widely used, their use is likely to expand further as the operating frequencies of many new RF systems extend into the microwave region.

Light weight, compact and antivibration design for harsh environments

Available in brass and stainless steel with gold, nickel and passivated plating

Terminates to all standard flexible coaxial cables,as semi-rigid and conformable cable

Subminiature design:Space-saving vertical mating

Complete Variety

SMA Male

SMA Female

RP-SMA Male

RP-SMA Female

Crimp Type

Crimp with Solder

Solder Typ

Solder Cup

For Antenna

Through Hole

Edge Mount

Offset Type

Flange Type

Bulkhead Type

Product Application

Telecommunications

PC / LAN

Antenna

Instrumentation

GPS

Base Stations

Our Advantages

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

SMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Mounting Type

Panel Mount

Mounting Feature

Edge Mount

Contact Termination Style

Solder

Fastening Type

1/4-36 Threaded

Impedance

50 ohm

Insulator Material

PTFE

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Contact Material

Phosphor Bronze

Contact Finish

Gold Plated

VSWR

R/A type ?Q 1.5MAX, Straight type?Q1.3 MAX

Frequency Range

DC-6GHz

Center Contact Resistance

6 M? Max

Outer Contact Resistance

?Q 2.0 M?? (Milliohms Max.)

Insultation Resistance

?R 5 x 103 M?? (Megohms MIN.)

Rated Voltage

335 Volts RMS Continuous

Mating Durability

?? 500 Cycles

Temperature Range

-65?? to +165??

RF Series

SMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Mounting Type

Panel Mount

Mounting Feature

Edge Mount

Contact Termination Style

Solder

Fastening Type

1/4-36 Threaded

Impedance

50 ohm

Insulator Material

PTFE

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Contact Material

Phosphor Bronze

Contact Finish

Gold Plated

VSWR

R/A type ?Q 1.5MAX, Straight type?Q1.3 MAX

Frequency Range

DC-6GHz

Center Contact Resistance

6 M? Max

Outer Contact Resistance

?Q 2.0 M?? (Milliohms Max.)

Insultation Resistance

?R 5 x 103 M?? (Megohms MIN.)

Rated Voltage

335 Volts RMS Continuous

Mating Durability

?? 500 Cycles

Temperature Range

-65?? to +165??

RF Series

SMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Mounting Type

Panel Mount

Mounting Feature

Edge Mount

Contact Termination Style

Solder

Fastening Type

1/4-36 Threaded

Impedance

50 ohm

Insulator Material

PTFE

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Contact Material

Phosphor Bronze

Contact Finish

Gold Plated

VSWR

R/A type ?Q 1.5MAX, Straight type?Q1.3 MAX

Frequency Range

DC-6GHz

Center Contact Resistance

6 M? Max

Outer Contact Resistance

?Q 2.0 M?? (Milliohms Max.)

Insultation Resistance

?R 5 x 103 M?? (Megohms MIN.)

Rated Voltage

335 Volts RMS Continuous

Mating Durability

?? 500 Cycles

Temperature Range

-65?? to +165??

Download Drawing

Renhotec Information

Where is your factory located? Can I visit your factory?

We have two factories, one is located in Dongguan city, another in Jiangmen city. Visitors are always welcome.

RF Connector Compatibility

Yes, our RF connector interface dimension conform international standards. Normally it’s interchangeable with similar products of other brands, it’s better to send us the datasheet/sample of other brands for check before order.

We recommend that you provide us with detailed specifications of your existing interfaces and cables, performance requirement and usage environment, so that our technical team can evaluate them.

Please advise your PCB layout dimension requirement, we’ll recommend you the most suitable Renhotec drawing for check.

Customization and Sample Testing

Yes, we offer customization services to meet your specific needs. Please provide your specification, performance requirement or drawing, photos, or samples for evaluation.

Yes, we provide customised services, it has MOQ requirement, please send your requirement for our engineer team evaluation.

Yes, please advise the thread length for evaluation.

Yes, we can. Please send us the datasheet or connector and cable requirement, we can produce as per request.

Yes, please share it and the requirement with us, our engineer team will evaluate it.

RF Connector Specifications

The impedance of an RF connector typically refers to the characteristic impedance of the transmission line it supports. The most common characteristic impedances for RF connectors are 50 ohms and 75 ohms. Please select an RF connector with the appropriate characteristic impedance to ensure optimal signal transmission and minimal signal loss within the system.

Order Lead Time

Lead time depends on the product type, quantity, and production status. For items ready in stock, the lead time is 3-5 working days. For common items, the lead time for 10K is 10-12 working days. The accurate lead time can be provided once the order is confirmed.

Shipping and Packaging

For small quantities, we ship by express. For larger quantities, we ship by sea, air, railway, or truck.

Our standard packaging methods include blister box/polybag with label in a carton box. We can also package as per request.

Payment Methods

Accepted payment methods include T/T, Paypal, etc.

Quality Assurance

Yes, we can provide regular inspection reports. If you have a special requirement, please let us know.

Yes, they conform. RoHS and REACH test reports are available.

Our products have 12 months’ warranty. It’s better to provide the feedback within one month after you receive the goods.
